Toyota RAV4 悬架横梁和发动机底罩 — Figure 5152

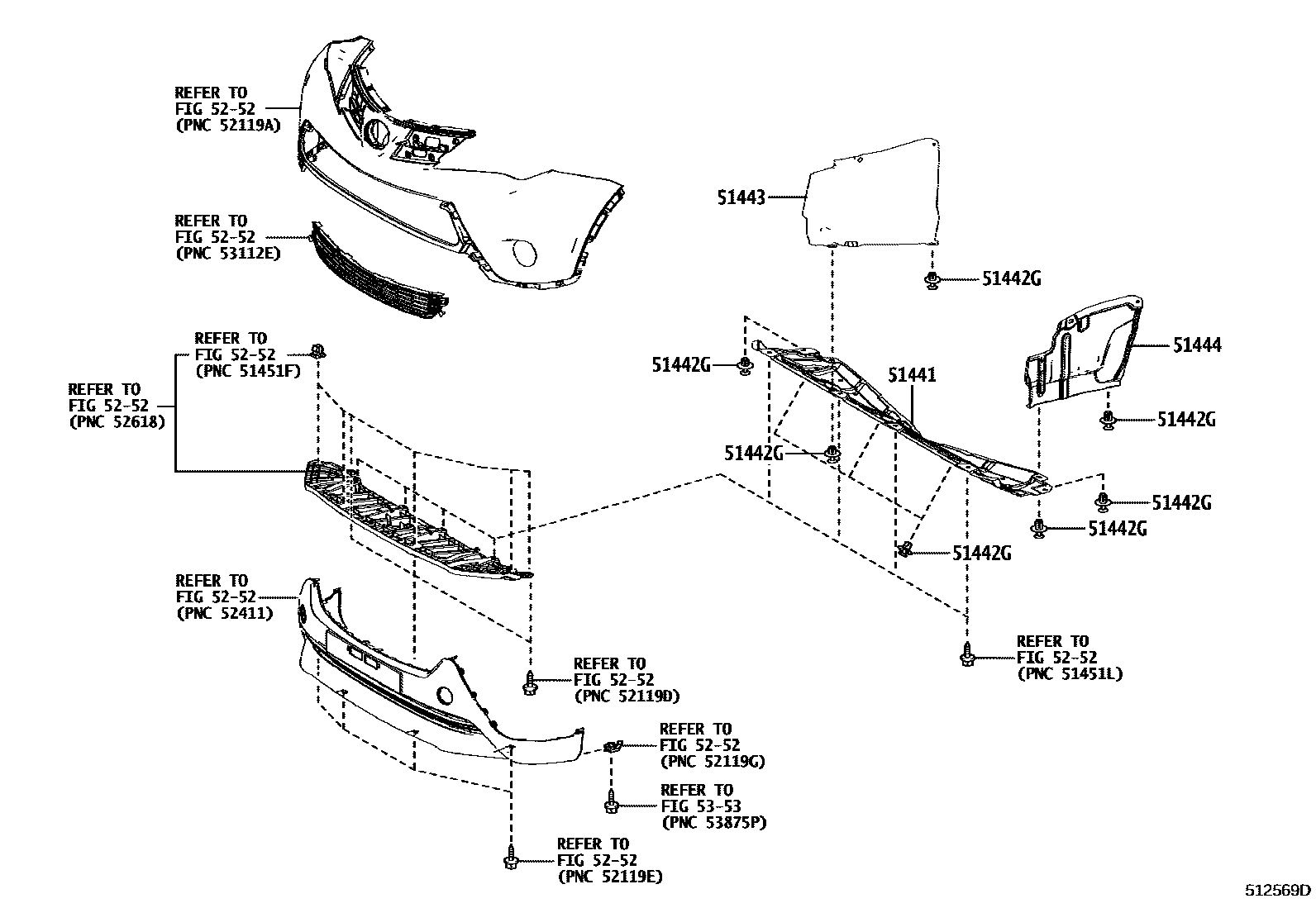

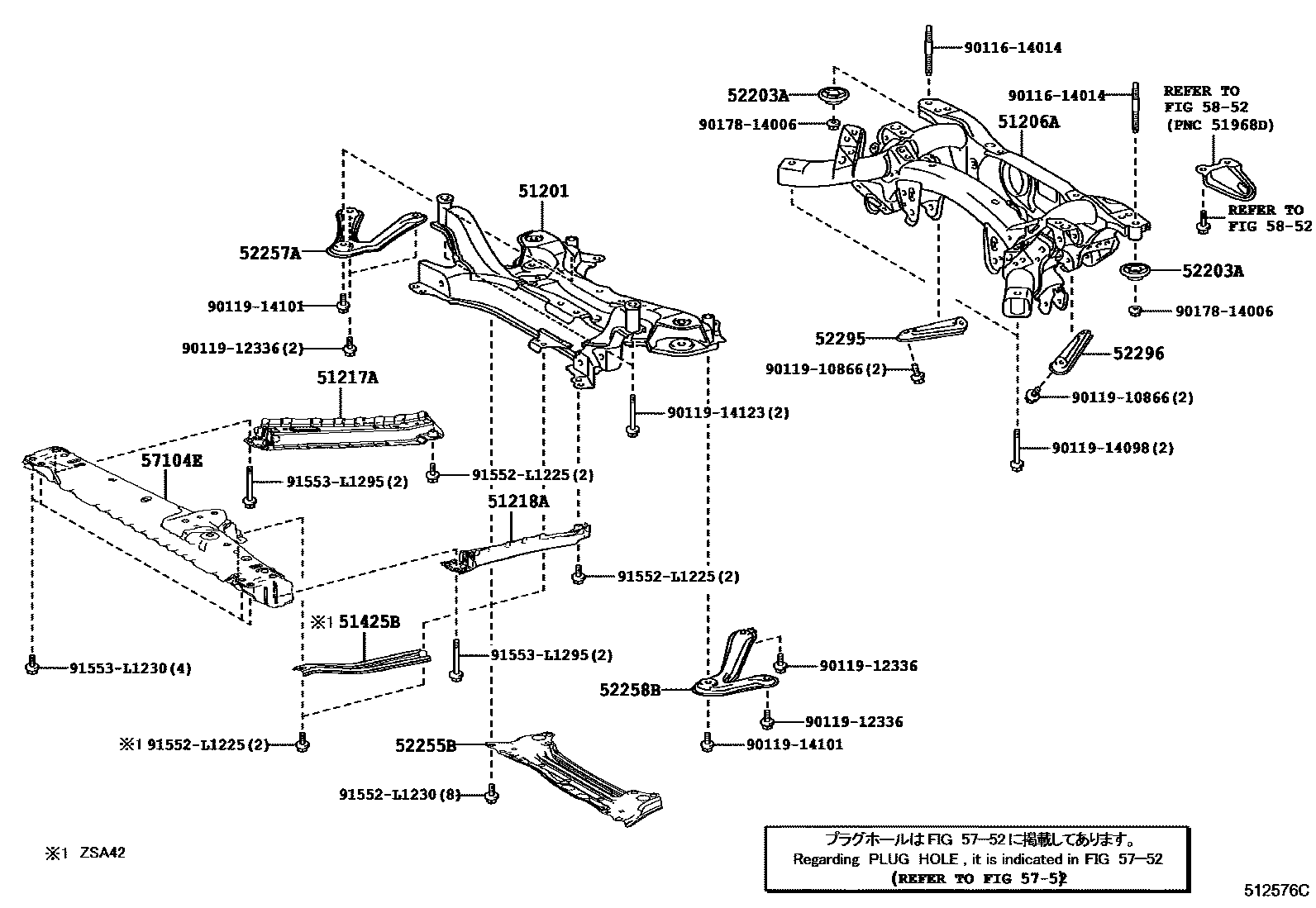

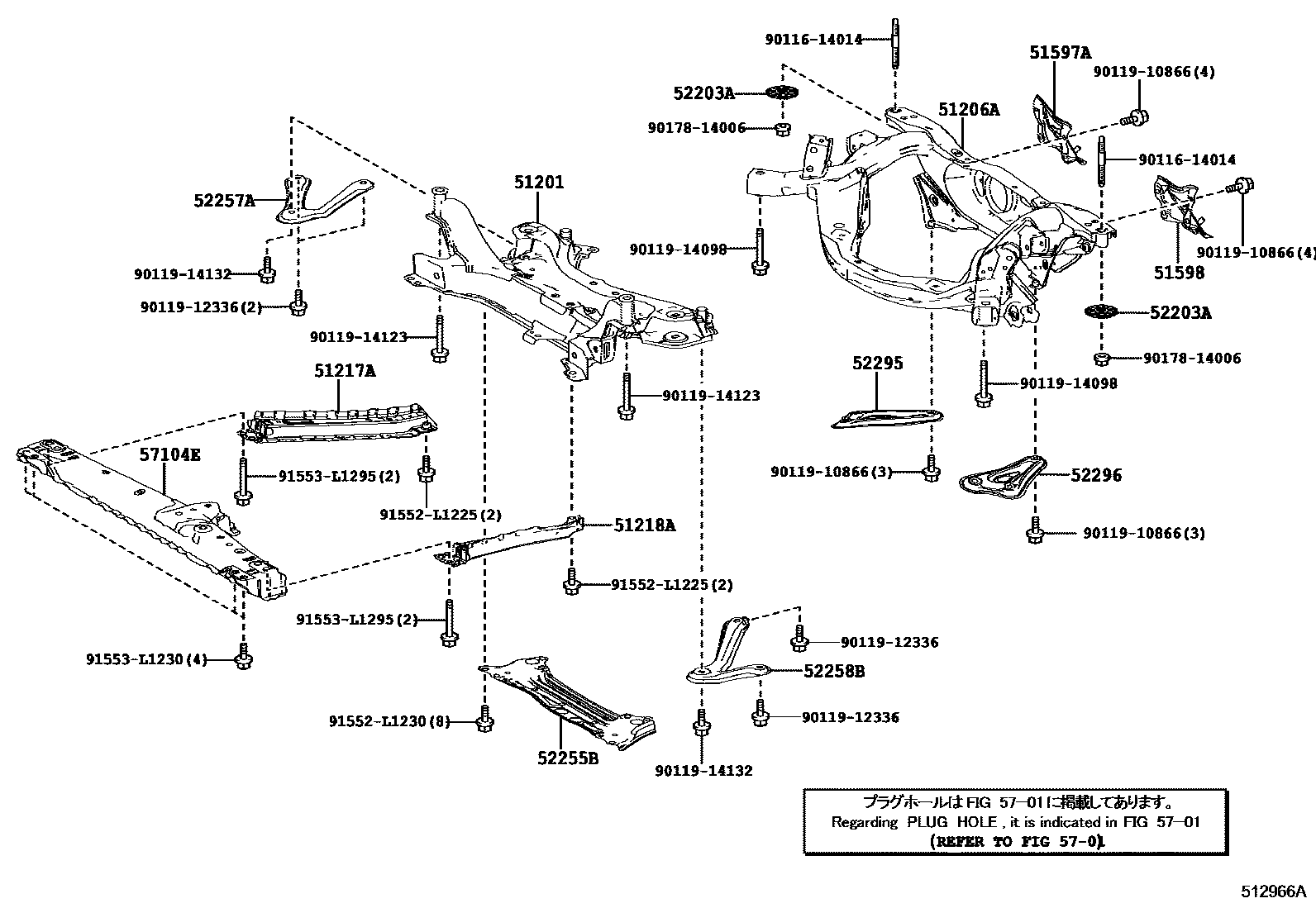

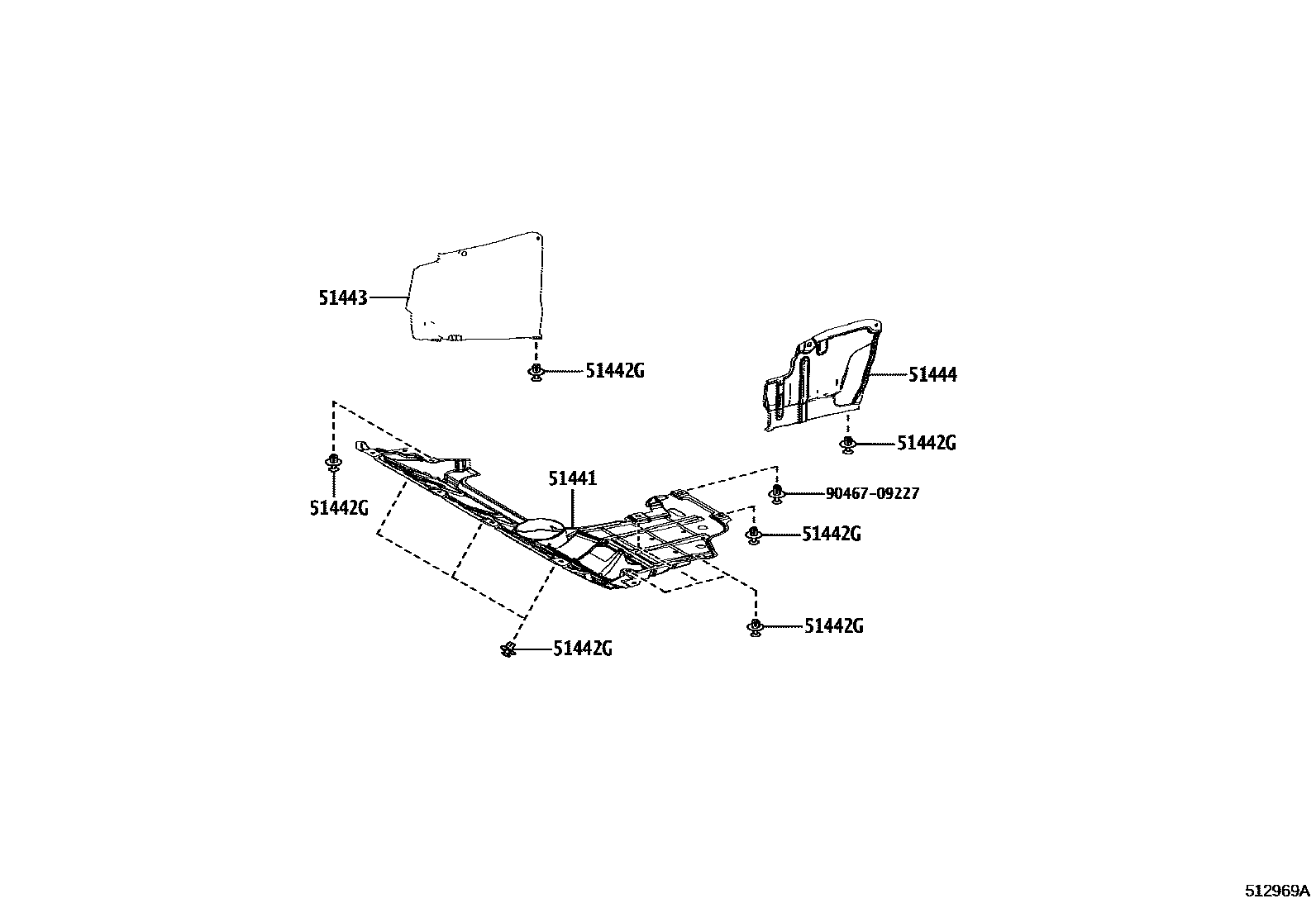

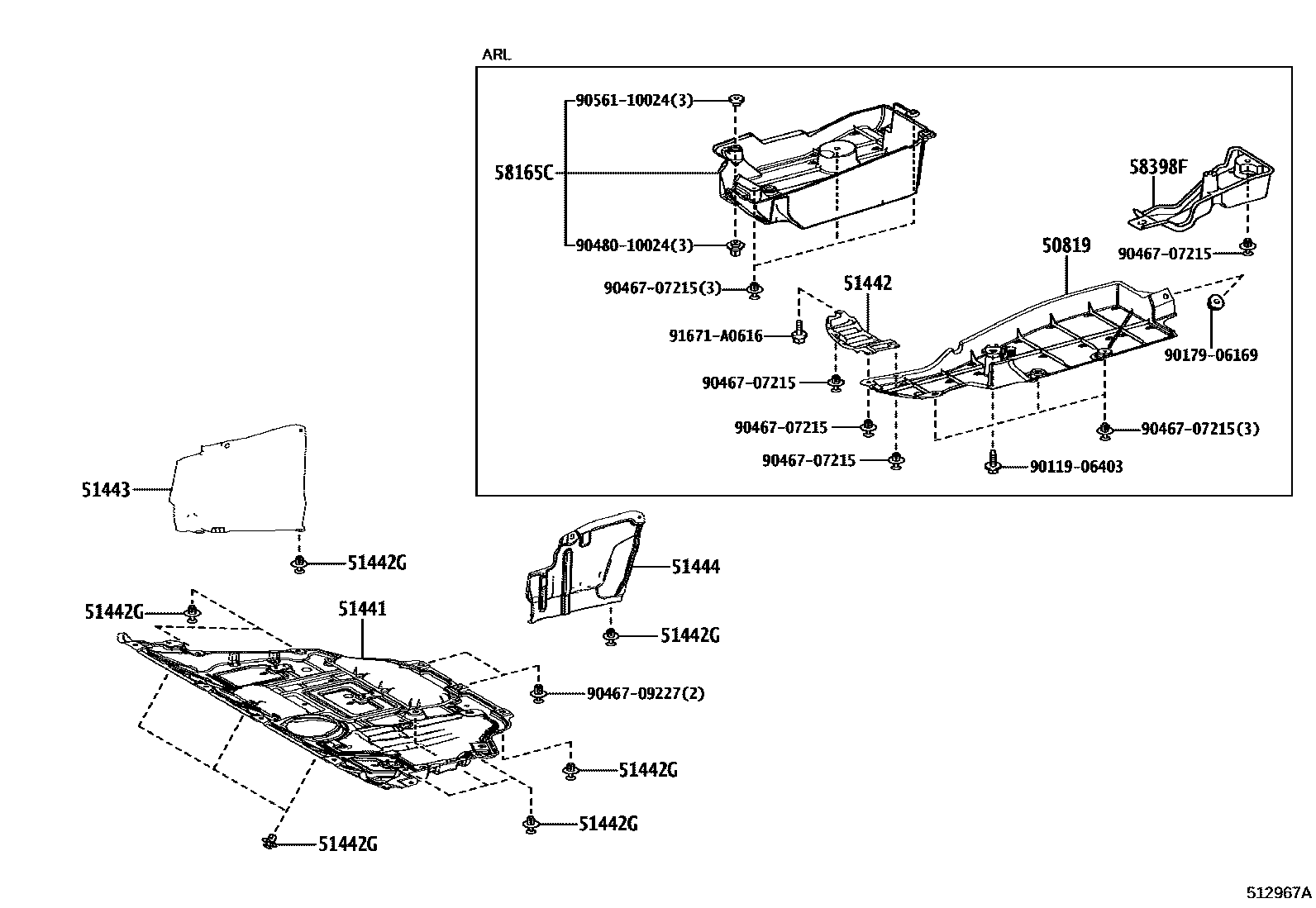

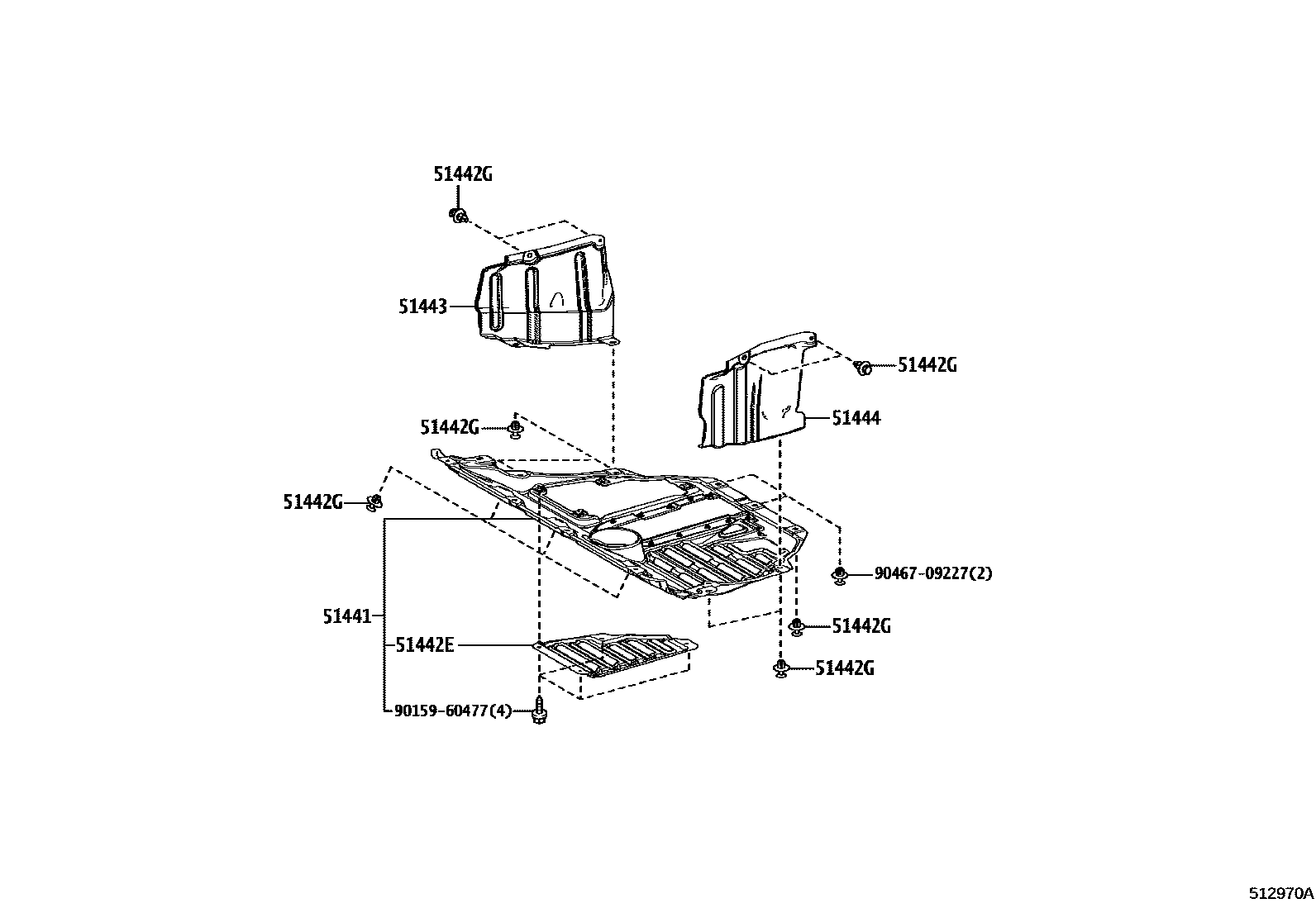

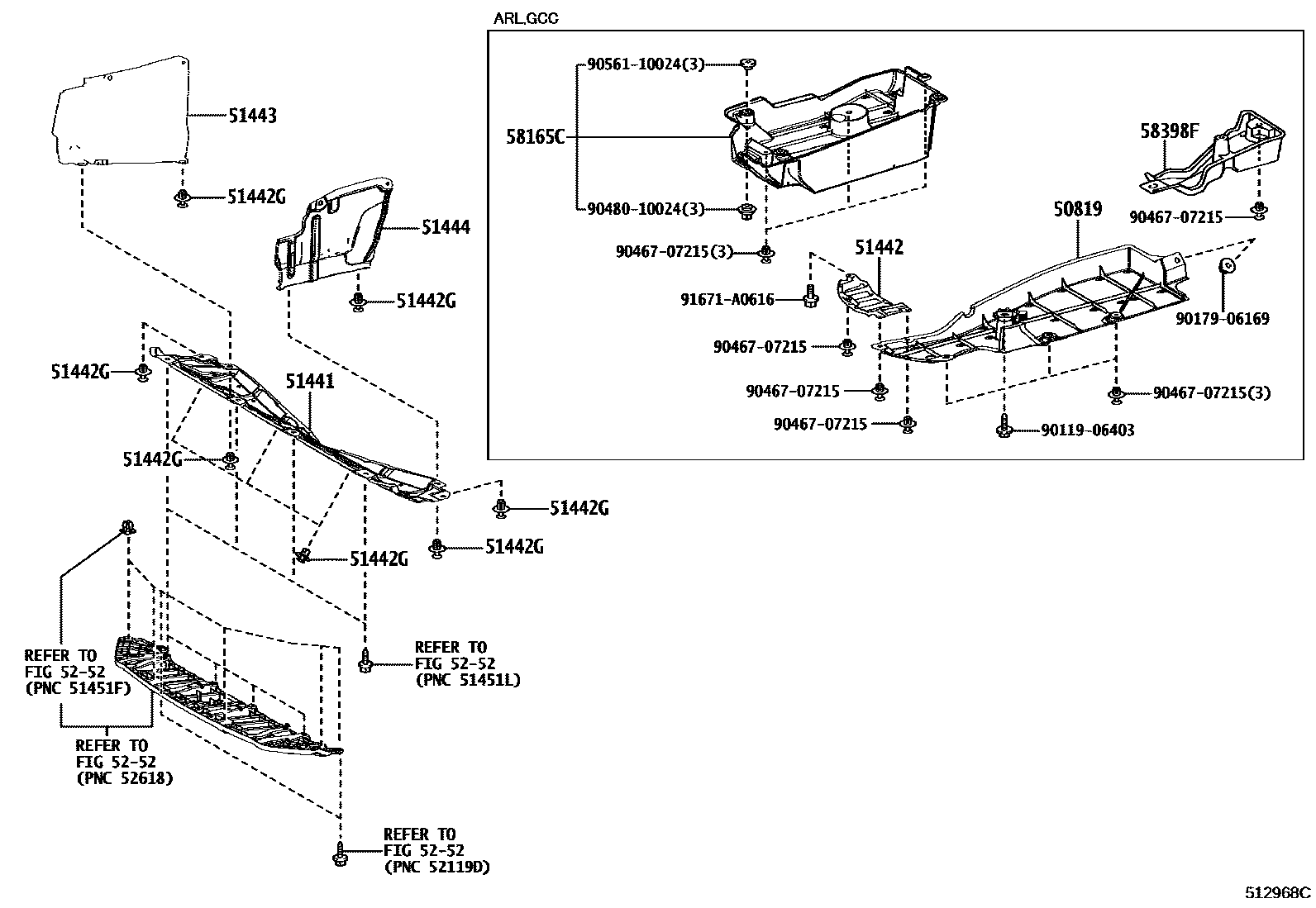

Toyota RAV4 EPC diagram 5152, 悬架横梁和发动机底罩, with 7 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 50819 | front floor cover | 50819-42031 |
| 51201 | Front suspension cross member sub-assembly | 51201-12441 · 51201-12442 · 51201-12451 |
| 51206A | Rear suspension cross member sub-assembly | 51206-42062 · 51206-42063 · 51206-48060 · 51206-78010 |
| 51217A | Right front suspension cross member reinforcement | 51107-42020 · 51107-48020 |
| 51218A | Left front suspension cross member reinforcement | 51108-42020 · 51108-48020 |
| 51425B | Engine front mounting bracket lower reinforcement | 51425-42010 |
| 51441 | No. 1 engine bottom cover | 51410-42080 · 51410-42100 · 51410-42120 · 51441-42150 |
| 51442 | No. 2 engine bottom cover | 51442-42090 |
| 51442E | No. 2 engine bottom cover | 51442-42110 |
| 51442G | No. 1 engine bottom cover clip | 90467-07215 |
| 51443 | Engine right rear bottom cover | 51443-42010 · 51443-48090 |
| 51444 | Engine left rear bottom cover | 51444-42040 · 51444-48030 |
| 51597A | Rear stabilizer bar right bracket | 51597-48010 |
| 51598 | Rear stabilizer bar left bracket | 51598-48010 |
| 52203A | Rear body fixed cushion pad sub-assembly | 52203-42020 |
| 52255B | Front suspension cross member front bracket | 52255-76010 |
| 52257A | Right front suspension cross member rear bracket | 52257-42010 · 52257-48040 |
| 52258B | Left front suspension cross member rear bracket | 52258-42010 · 52258-48050 |
| 52295 | Right rear suspension cross member bracket | 52295-42010 · 53653-48020 |
| 52296 | Left rear suspension cross member bracket | 52296-42010 · 53654-48010 |
| 57104E | Front cross member sub-assembly | 57104-42070 |
| 58165C | Front floor right cover | 58165-42021 |
| 58398F | No. 1 floor under cover | 58398-42022 |
