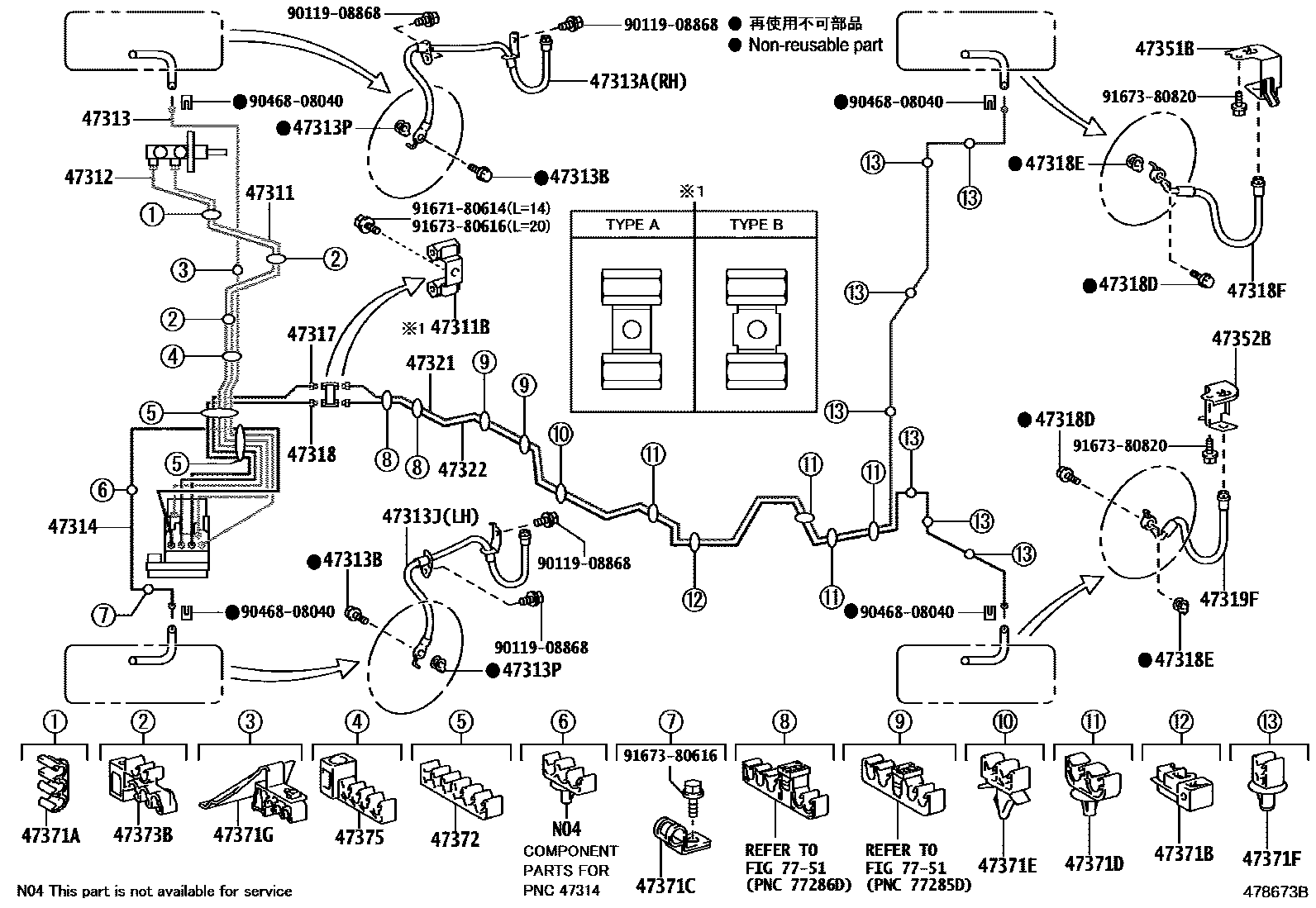

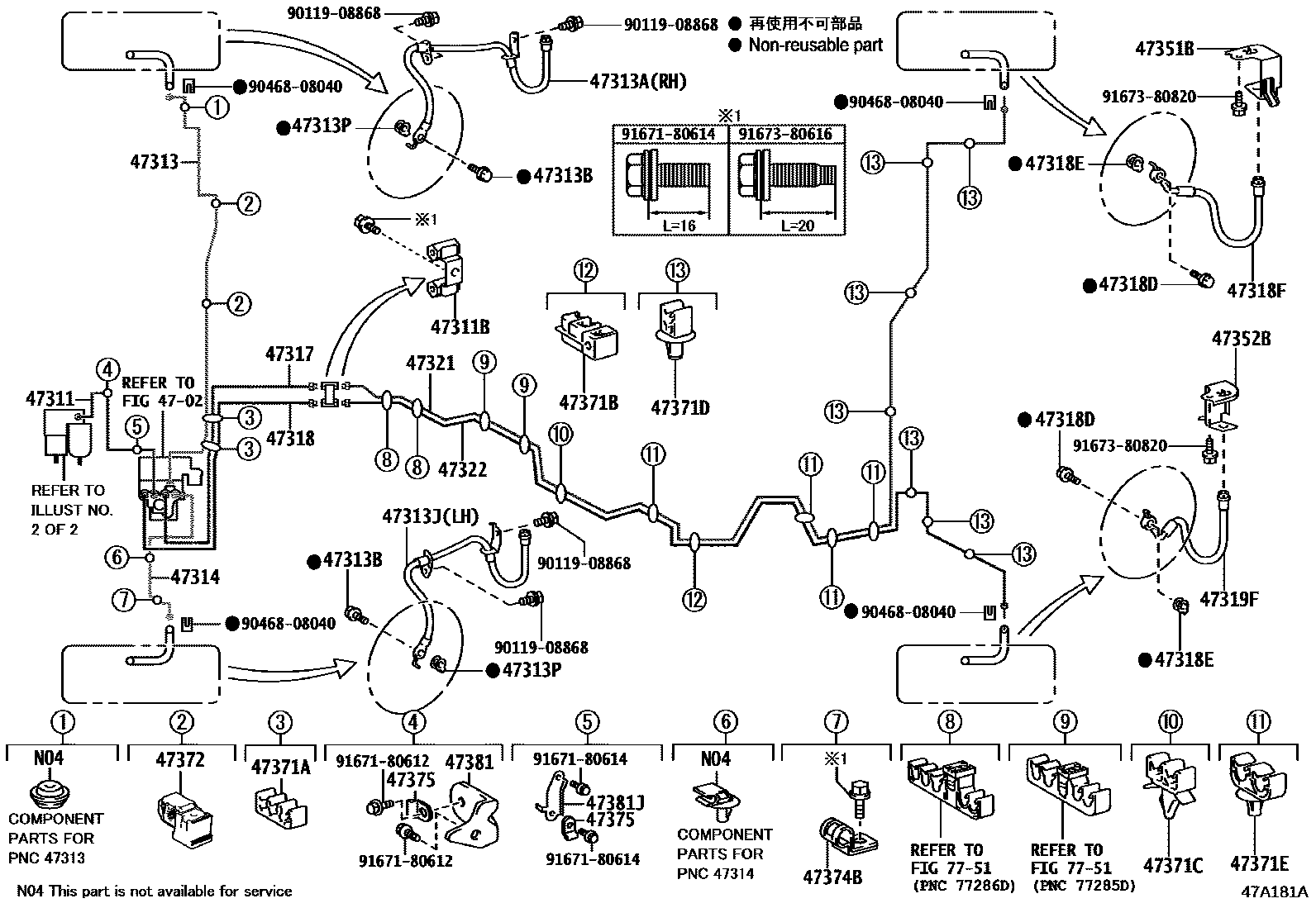

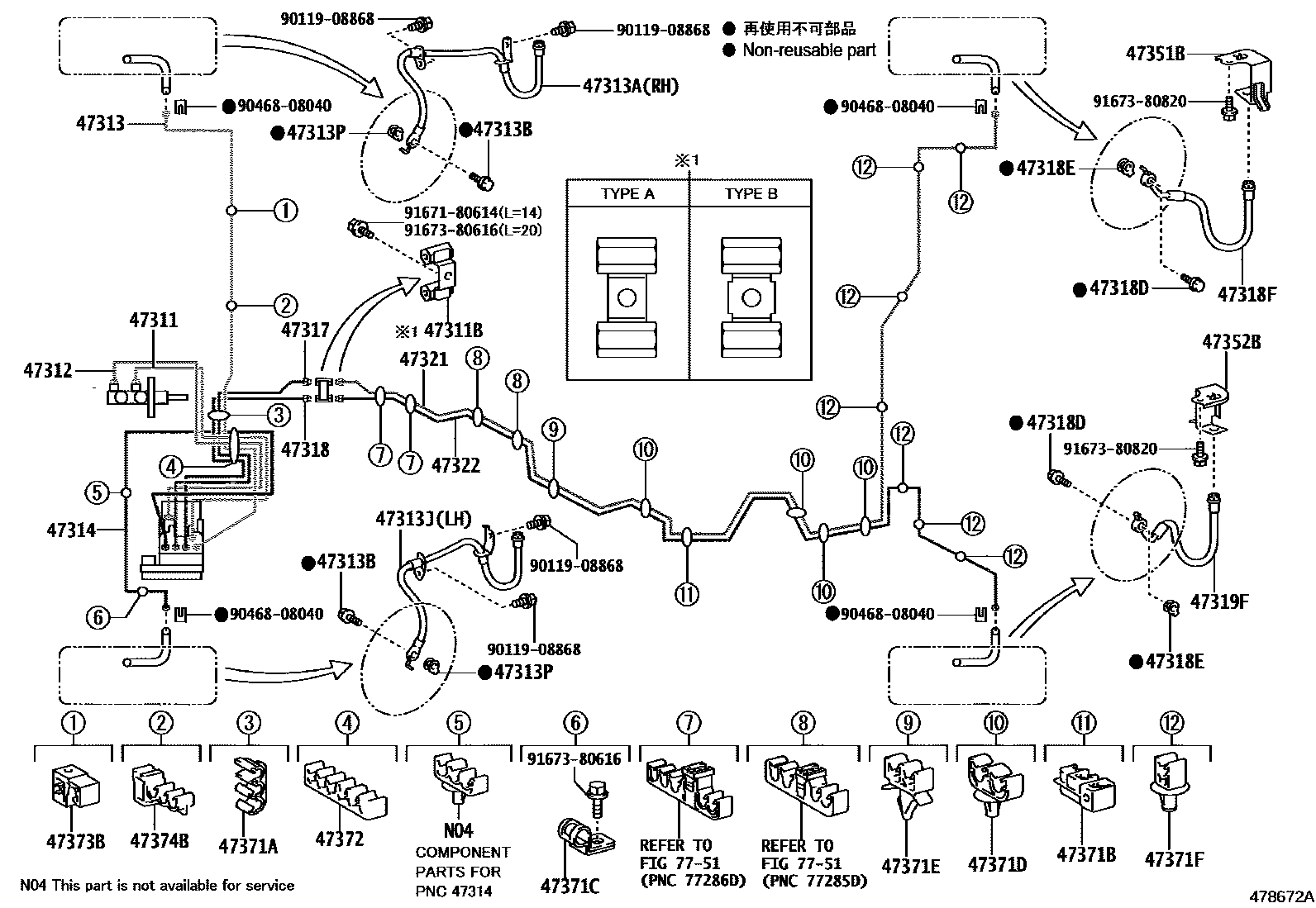

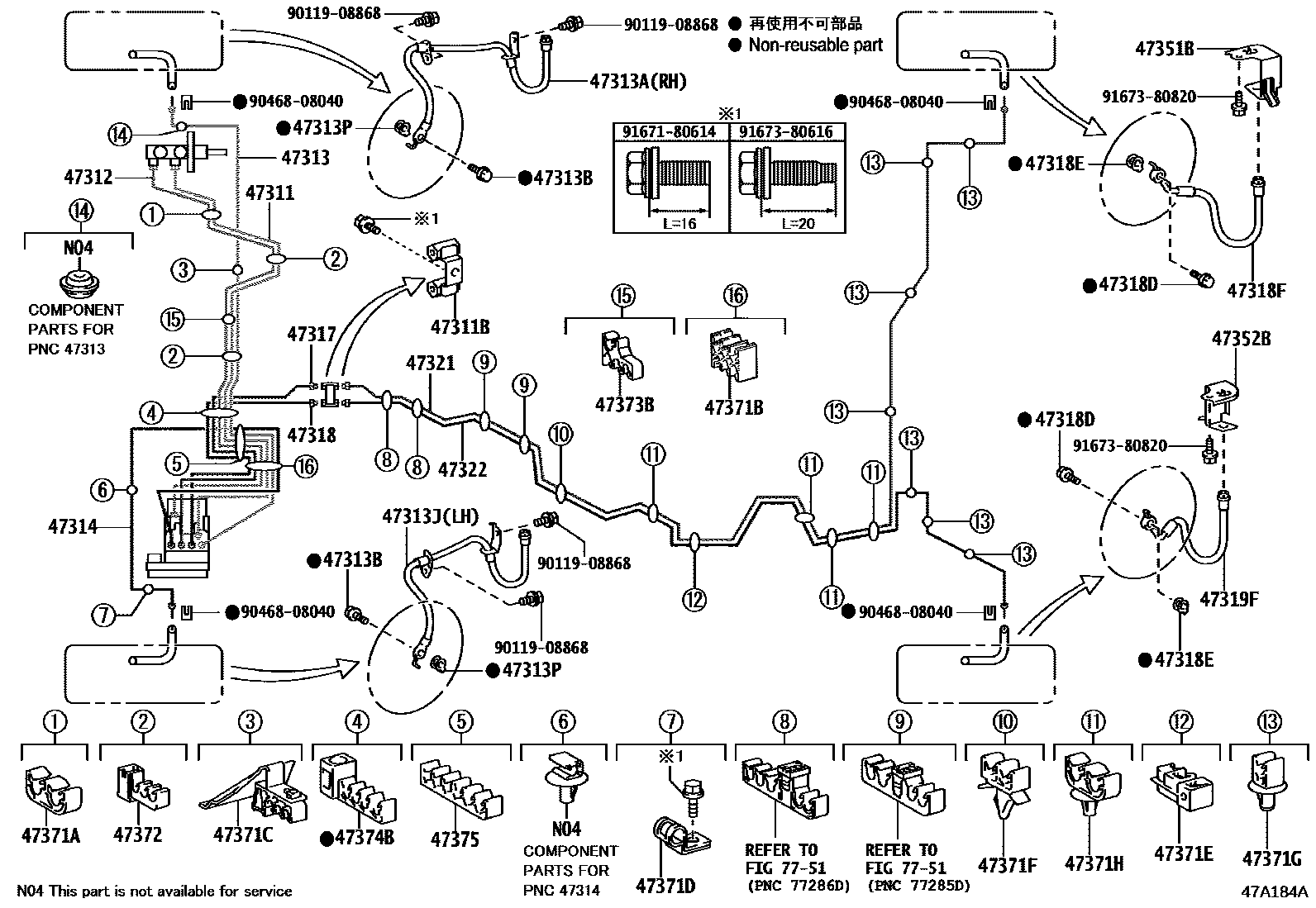

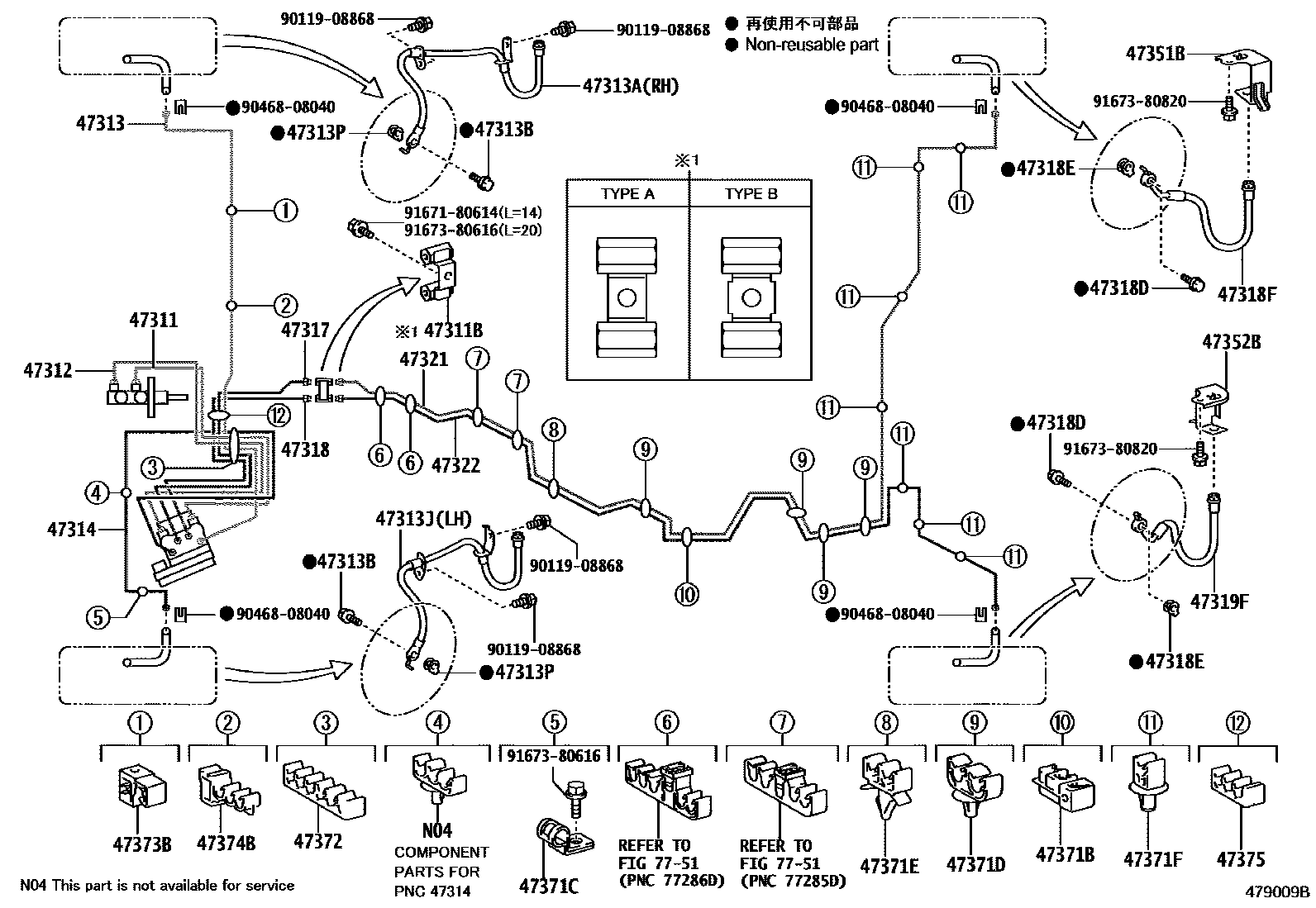

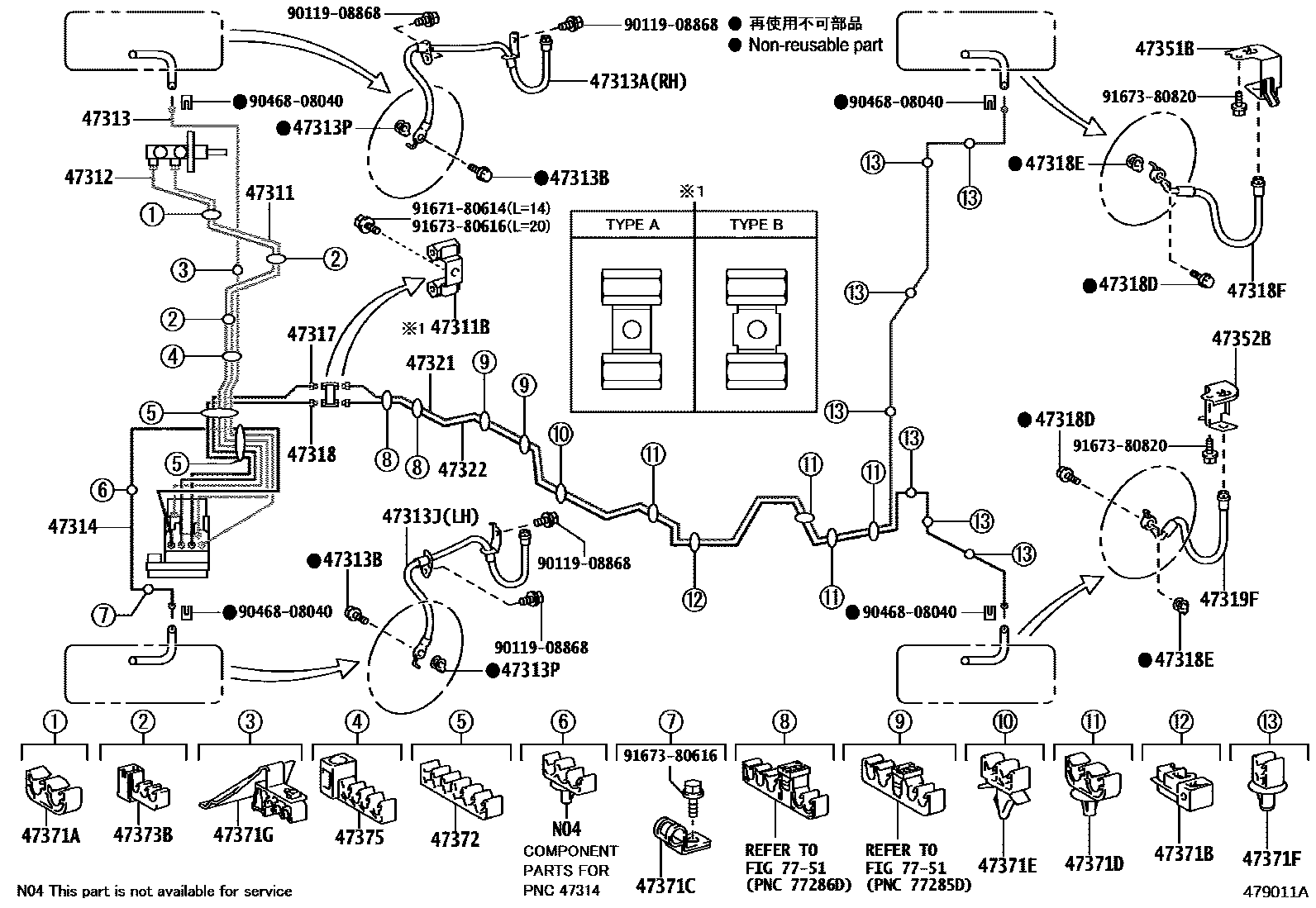

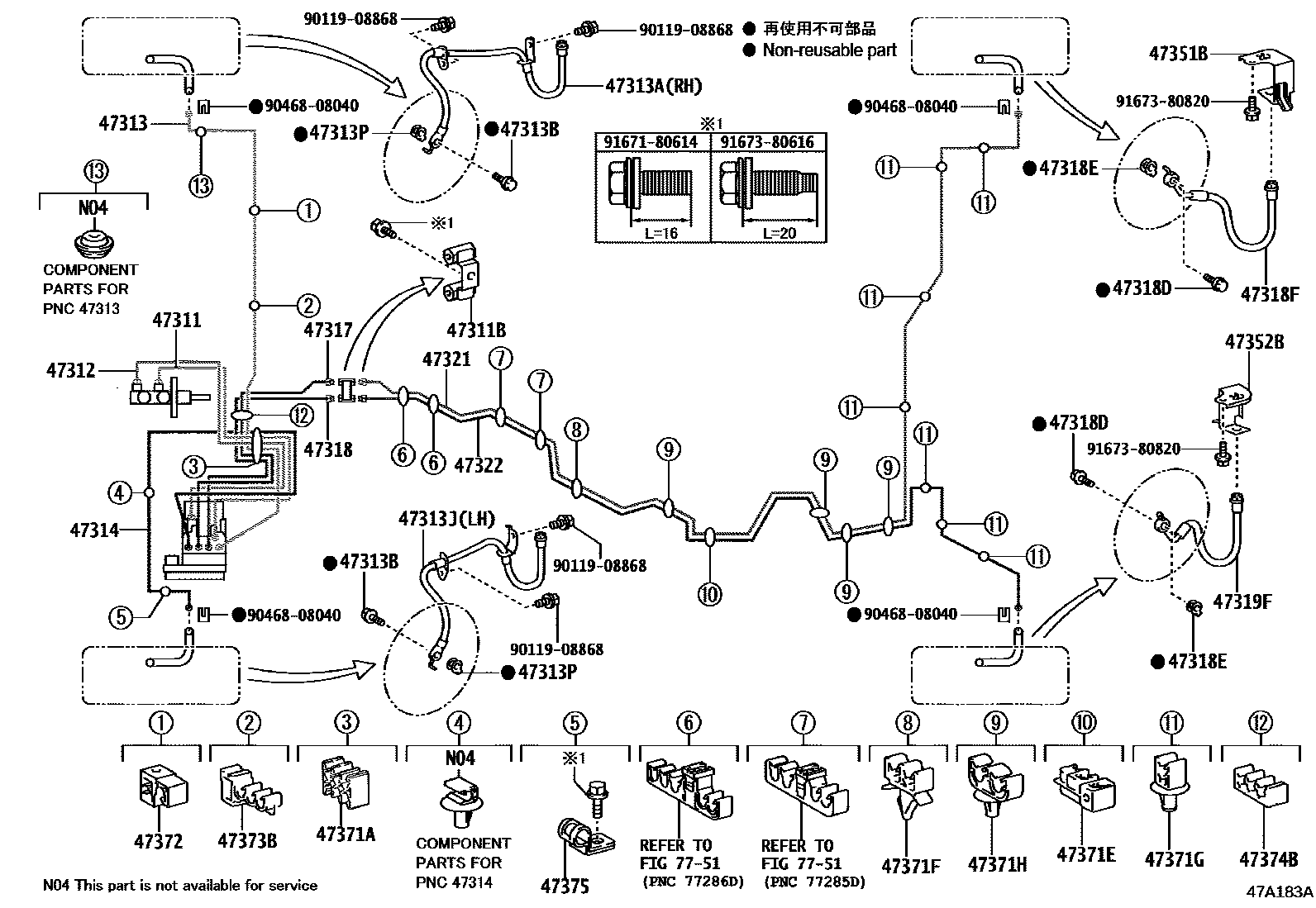

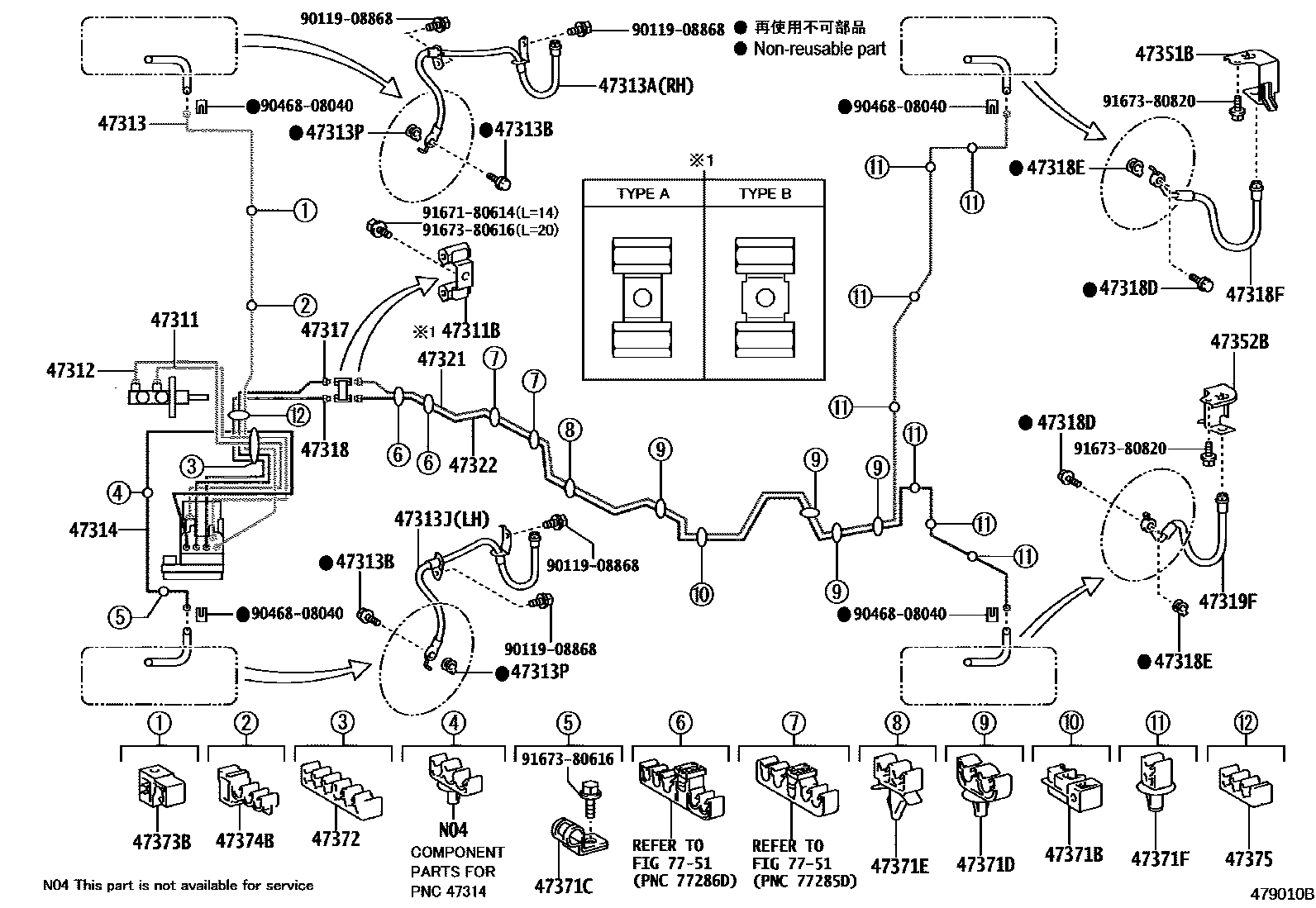

Toyota RAV4 制动配管和卡箍 — Figure 4708
Toyota RAV4 EPC diagram 4708, 制动配管和卡箍, with 13 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

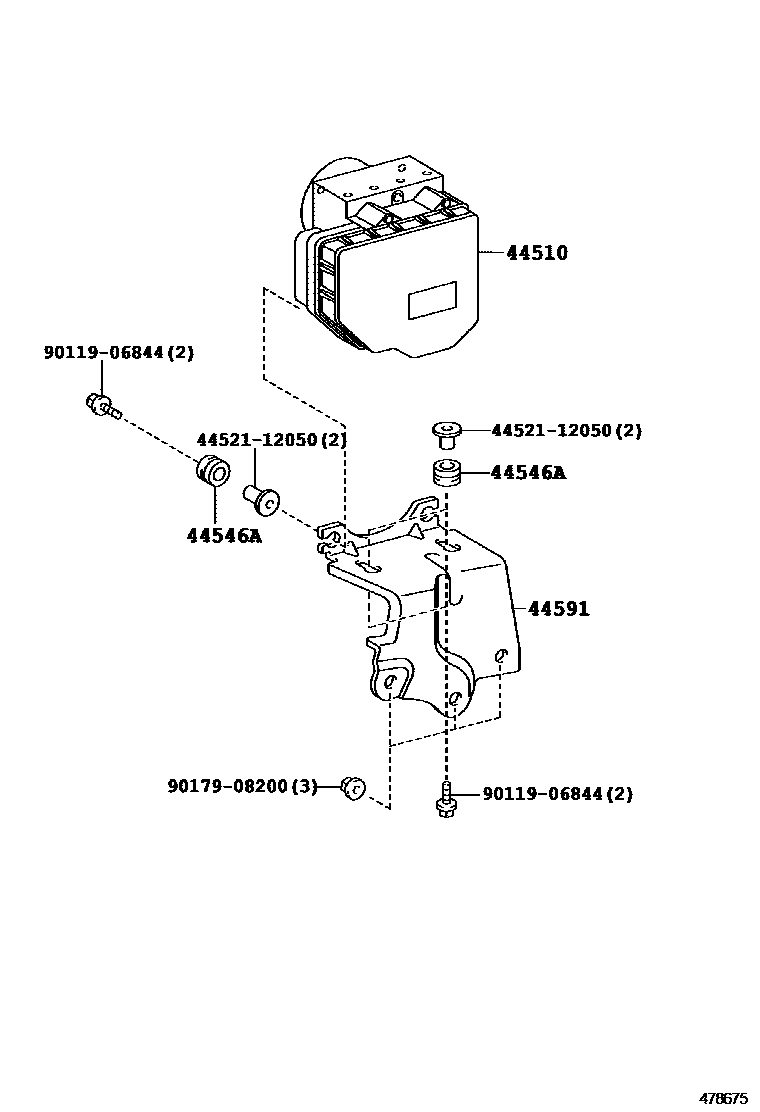

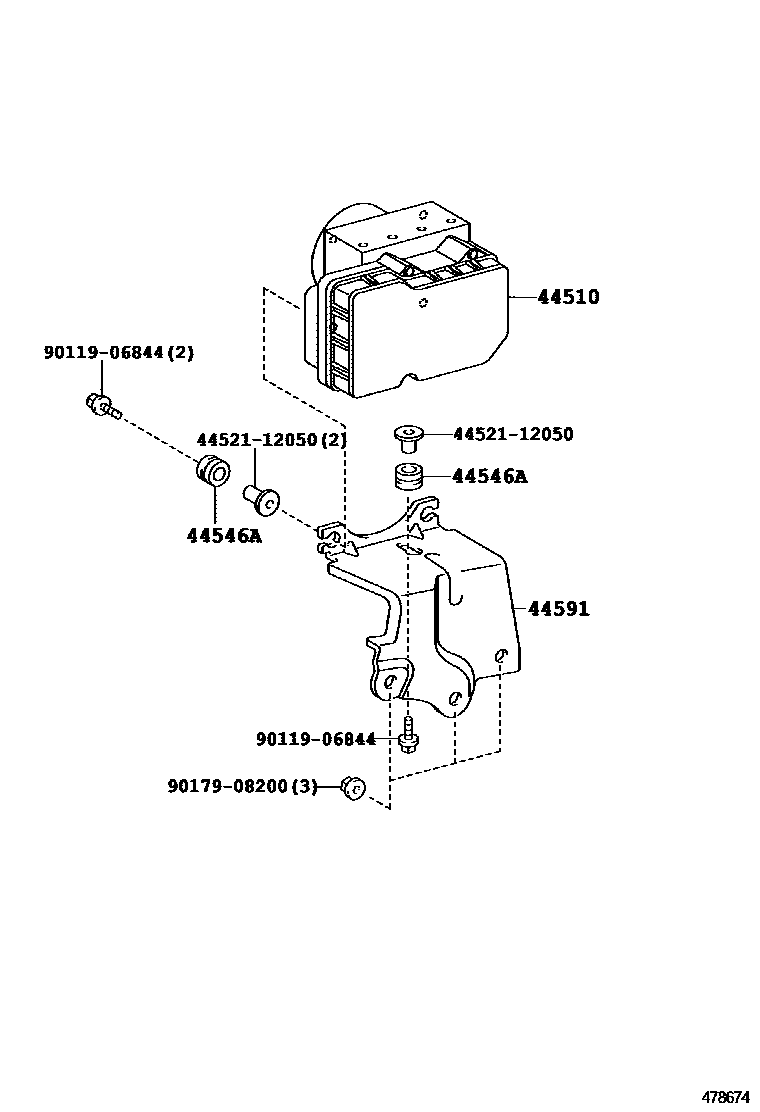

| 44510 | brake actuator assembly | 44050-42370 · 44050-42371 · 44050-42380 · 44050-42381 · 44050-42390 · 44050-42391 · 44050-42392 · 44050-42430 · 44050-42431 · 44050-42432 · 44050-42500 · 44050-42501 · 44050-42502 · 44050-42640 · 44050-42641 · 44050-42642 · 44050-42670 · 44050-42671 · 44050-42672 · 44050-42690 · 44050-42691 · 44050-42692 · 44050-42790 · 44050-42800 · 44050-42810 · 44050-42820 · 44050-42870 · 44050-42880 · 44050-42A30 · 44050-42A40 · 44050-42A50 · 44050-42A60 · 44050-42B30 · 44050-42B31 · 44050-42B40 · 44050-42B41 · 44050-42B50 · 44050-42B51 · 44050-42C20 · 44050-42C21 · 44050-42C30 · 44050-42C31 · 44050-42C40 · 44050-42C41 · 44050-42C90 · 44050-42C91 · 44050-42D10 · 44050-42D20 · 44050-42D30 · 44050-42D40 · 44050-42D90 · 44050-42E00 · 44050-42E10 · 44050-42E20 · 44050-42E30 · 44050-42E40 · 44050-42E50 · 44050-42E60 · 44050-42E90 · 44050-42F00 · 44050-42F10 · 44050-42F20 |
| 44546A | Brake actuator bolt cushion | 44546-12110 |
| 44547B | brake actuator bracket cushion | 47131-47070 |

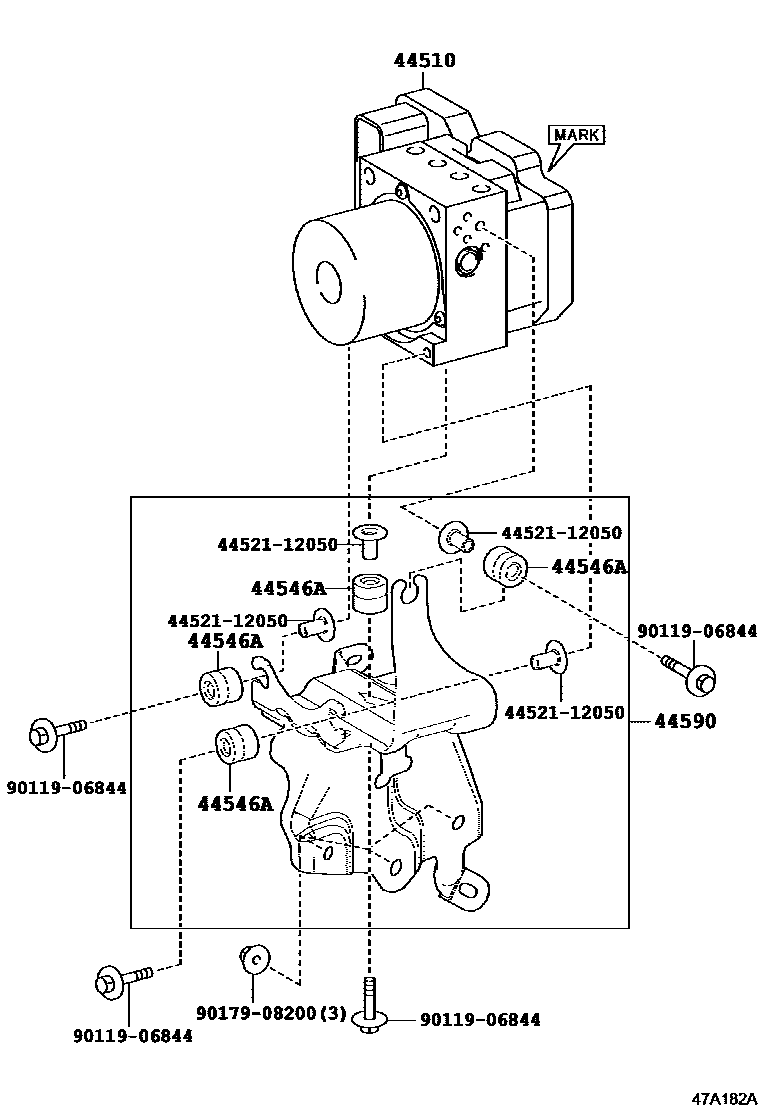

| 44590 | Brake actuator bracket assembly | 44590-48170 · 44590-78010 |
| 44591 | No. 1 brake actuator bracket | 44591-42020 · 44591-42060 |

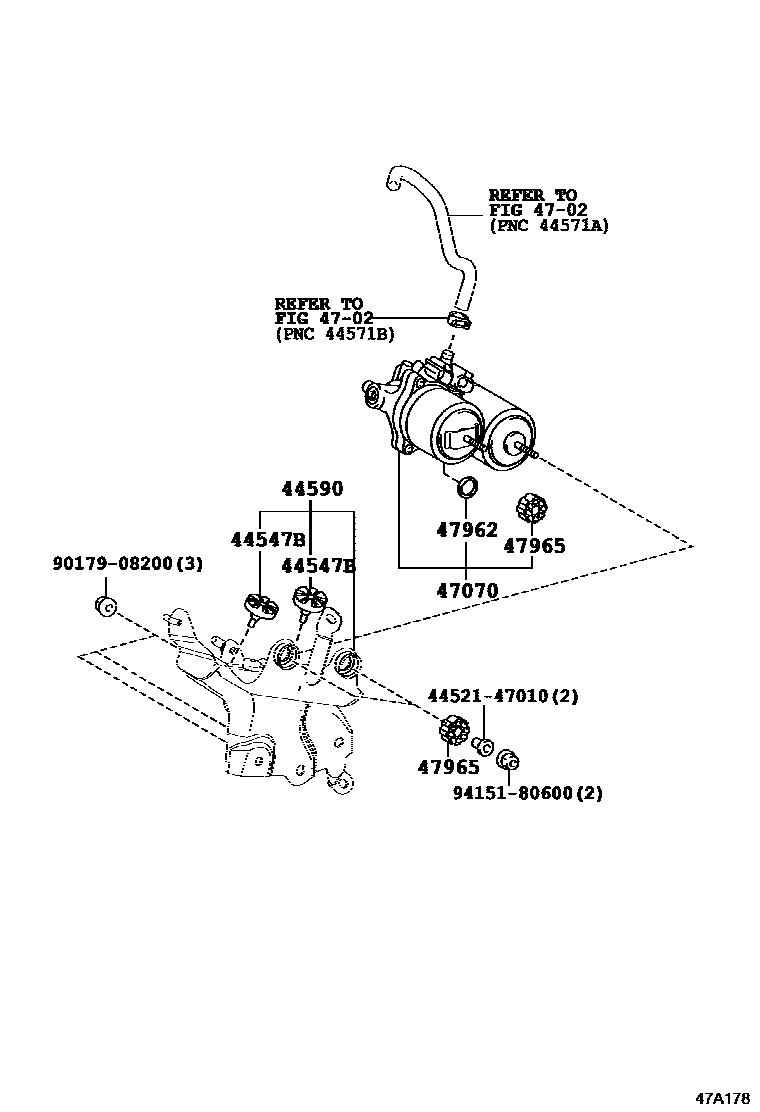

| 47070 | Brake booster pump assembly | 47070-47060 |
| 47311 | No. 1 front brake pipe | 47311-42170 · 47311-42180 · 47311-42190 · 47311-42200 · 47311-42210 · 47311-42220 · 47311-42230 · 47311-48080 · 47311-78030 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 · 90412-10285 |
| 47312 | No. 2 front brake pipe | 47312-42340 · 47312-42350 · 47312-42360 · 47312-42370 · 47312-42380 · 47312-42390 · 47312-42400 · 47312-48020 |
| 47313 | No. 3 front brake pipe | 47313-42340 · 47313-42350 · 47313-42370 · 47313-42380 · 47313-42390 · 47313-42400 · 47313-42410 · 47313-48040 · 47313-78030 |
| 47313A | No. 1 front flexible hose | 90947-02F47 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02F48 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-42220 · 47314-42230 · 47314-42240 · 47314-42250 · 47314-48030 · 47314-78020 |
| 47317 | No. 7 front brake pipe | 47317-42210 · 47317-42220 · 47317-42230 · 47317-48330 · 47317-78010 · 47317-78030 |
| 47318 | No. 8 front brake pipe | 47318-42210 · 47318-42220 · 47318-42230 · 47318-48200 · 47318-78010 · 47318-78030 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-02G79 |
| 47319F | Left rear flexible hose | 90947-02G80 |
| 47321 | No. 1 rear brake pipe | 47321-42150 · 47321-42200 · 47321-48130 · 47321-48140 |
| 47322 | No. 2 rear brake pipe | 47322-42140 · 47322-48140 · 47322-48150 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-42071 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-42071 · 47352-42081 |
| 47371A | No. 1 brake pipe clamp | 90464-00857 · 90464-00868 · 90464-00880 · 90464-00903 |
| 47371B | No. 6 brake pipe clamp | 77299-32030 · 90464-00880 |
| 47371C | No. 7 brake pipe clamp | 47371-42110 · 90461-10781 · 90469-07019 |
| 47371D | No. 8 brake pipe clamp | 90461-10781 · 90469-07020 · 90949-01E01 · 90949-01E02 |
| 47371E | No. 9 brake pipe clamp | 77299-32030 · 90469-07019 · 90949-01E02 |
| 47371F | No. 10 brake pipe clamp | 90469-07019 · 90949-01D29 · 90949-01E01 |
| 47371G | No. 11 brake pipe clamp | 47371-42110 · 90949-01E01 |
| 47371H | No. 12 brake pipe clamp | 90949-01E02 |
| 47372 | No. 2 brake pipe clamp | 90464-00890 · 90949-01C82 · 90949-01D05 · 90949-01D35 · 90949-01E06 |
| 47373B | No. 3 brake pipe clamp | 4476A-42010 · 90949-01C19 · 90949-01C82 · 90949-01D05 |
| 47374B | No. 4 brake pipe clamp | 90461-10781 · 90464-00953 · 90949-01D05 · 90949-01E16 |
| 47375 | No. 5 brake pipe clamp | 90461-10781 · 90461-10840 · 90464-00953 · 90949-01C85 · 90949-01D44 · 90949-01E16 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-48140 |
| 47381J | No. 2 brake pipe clamp bracket | 47381-75020 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
