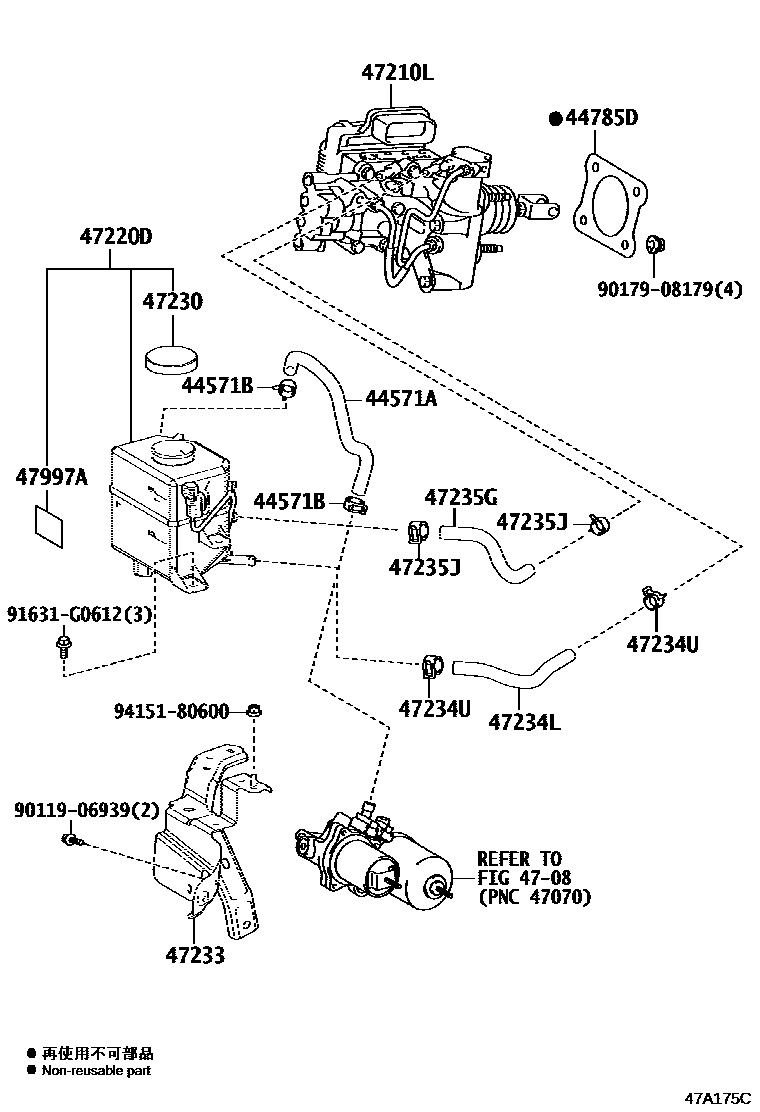

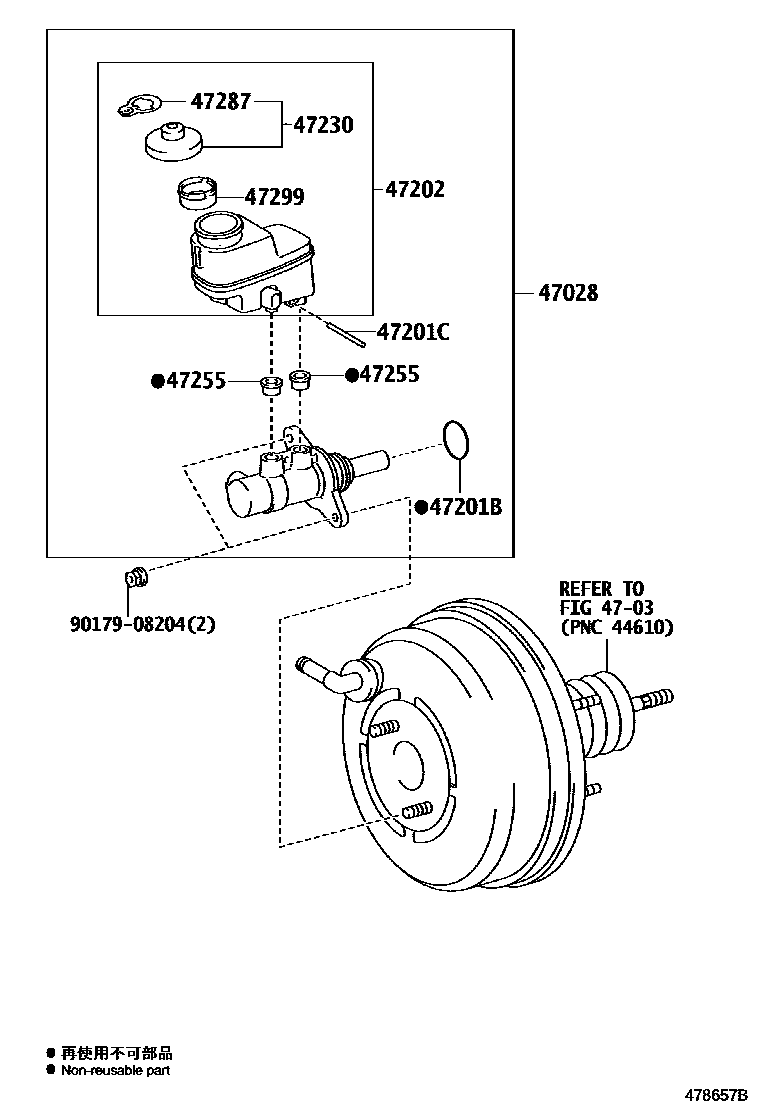

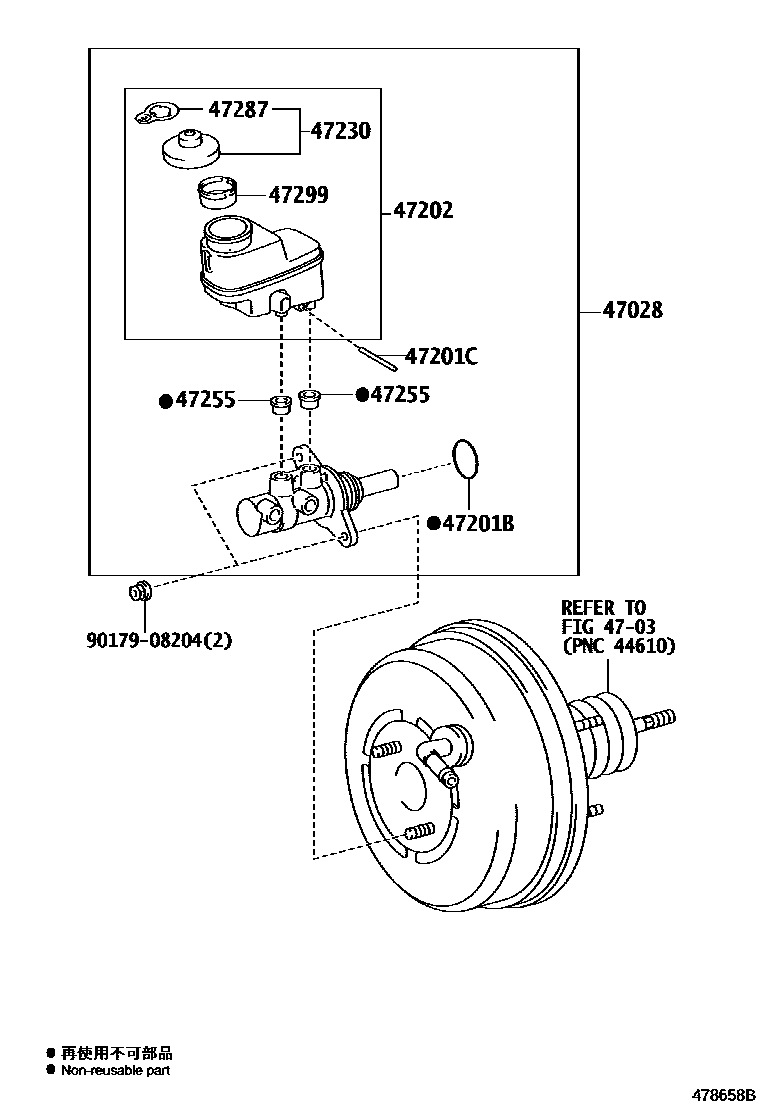

Toyota RAV4 制动总泵 — Figure 4702
Toyota RAV4 EPC diagram 4702, 制动总泵, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44571A | No. 1 brake actuator hose | 44571-78010 |
| 44571B | Hose clip (for brake actuator hose No. 1) | 96137-41501 |
| 44785D | brake master cylinder gasket | 44785-12040 |
| 47028 | Brake master cylinder sub-assembly | 47201-42340 · 47201-42350 · 47201-42362 · 47201-42372 · 47201-42382 · 47201-42392 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-42100 · 47220-42110 |
| 47210L | Brake booster assembly with master cylinder | 47050-42080 · 47050-42100 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-78010 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-20140 · 47230-47090 · 47230-58010 |
| 47233 | Reservoir tank bracket | 47233-42010 |
| 47234L | Reservoir Tank No. 1 Hose | 47234-42010 |
| 47234U | Clamp (for reservoir tank No. 1 hose) | 96137-41501 |
| 47235G | Reservoir tank No. 2 hose | 47235-42010 |
| 47235J | Clamp (for reservoir tank No. 2 hose) | 96137-41501 |
| 47255 | Master pump reservoir seal | 90029-48001 |
| 47287 | brake fluid information label | 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-25010 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
