Toyota RAV4 冷却器和配管(HEV 或 BEV 或 FCEV) — Figure 3914

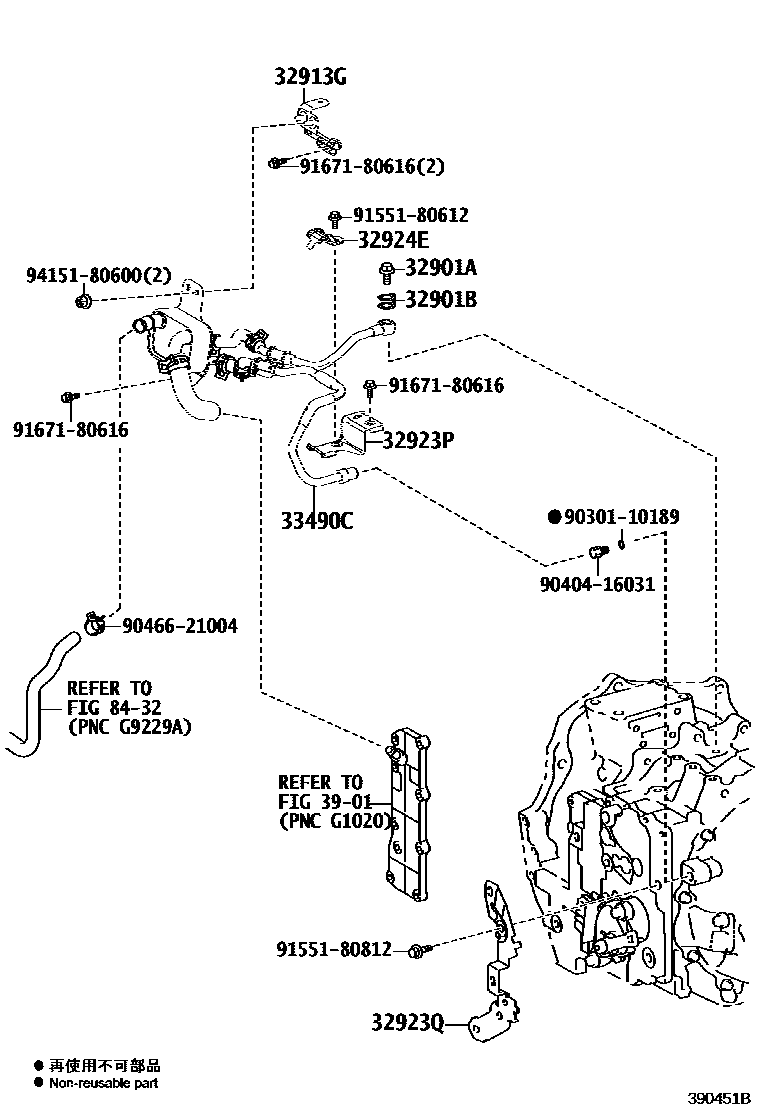

Toyota RAV4 EPC diagram 3914, 冷却器和配管(HEV 或 BEV 或 FCEV), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32901A | Connector bolt (for oil cooler) | 90401-12039 |
| 32901B | Gasket (for transmission oil cooler connector) | 90430-12037 |
| 32913G | Transmission oil cooler bracket | 32913-48040 |
| 32923P | No. 1 transmission oil cooler pipe clamp | 32925-48010 |
| 32923Q | Transmission oil cooler pipe clamp | 32923-48040 |
| 32924E | No. 2 transmission oil cooler pipe clamp | 32927-48010 |
| 33490C | Transmission oil cooler assembly | 33490-48010 |
