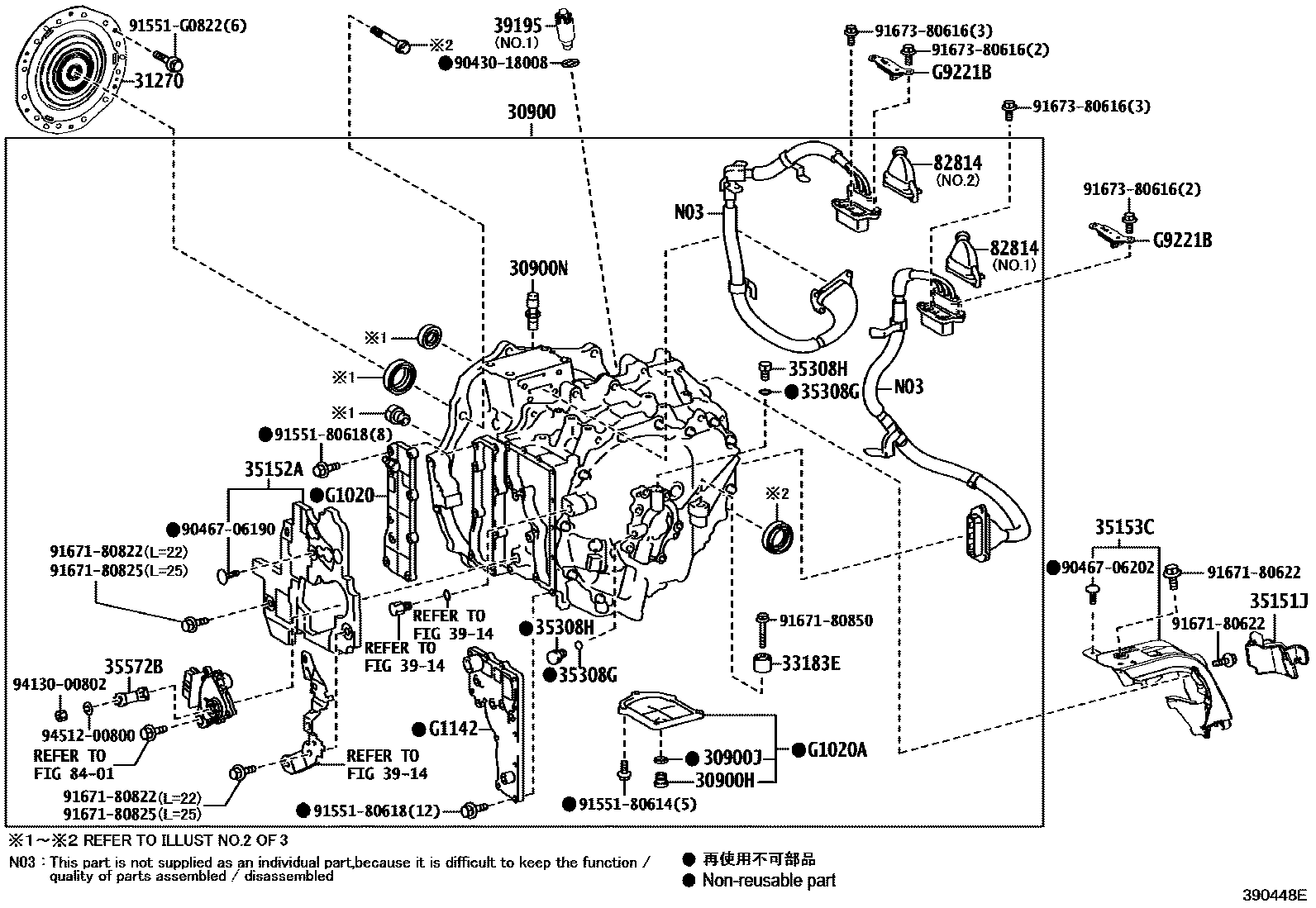

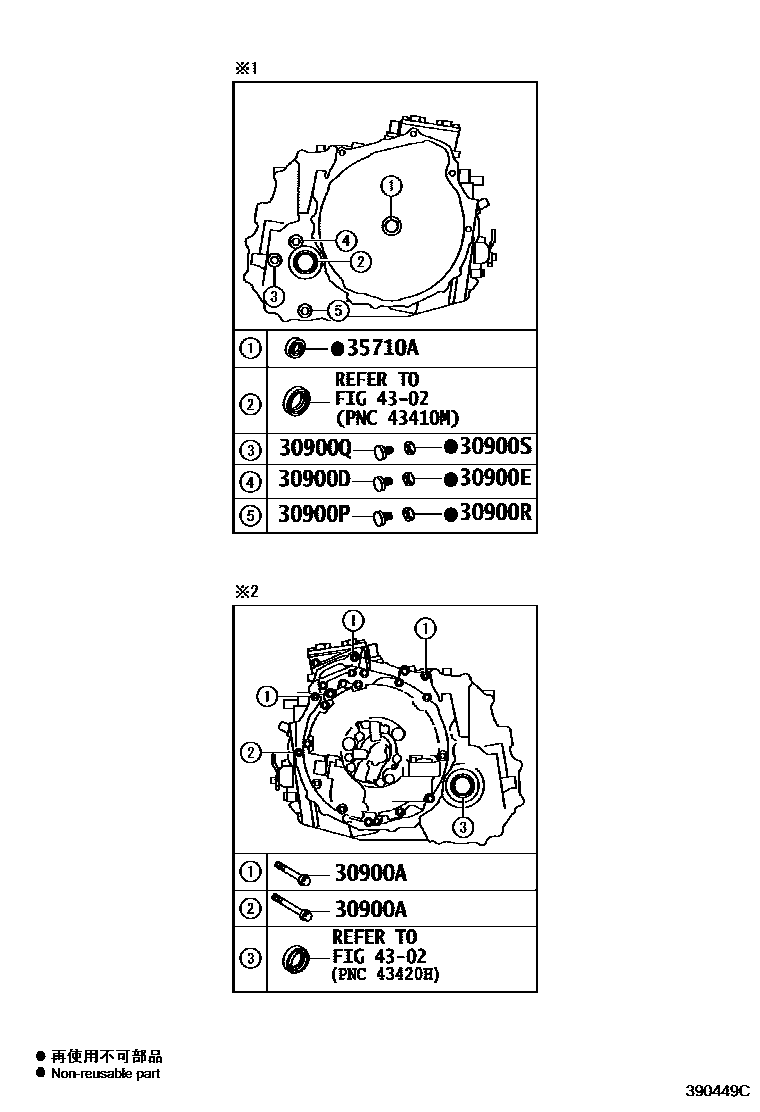

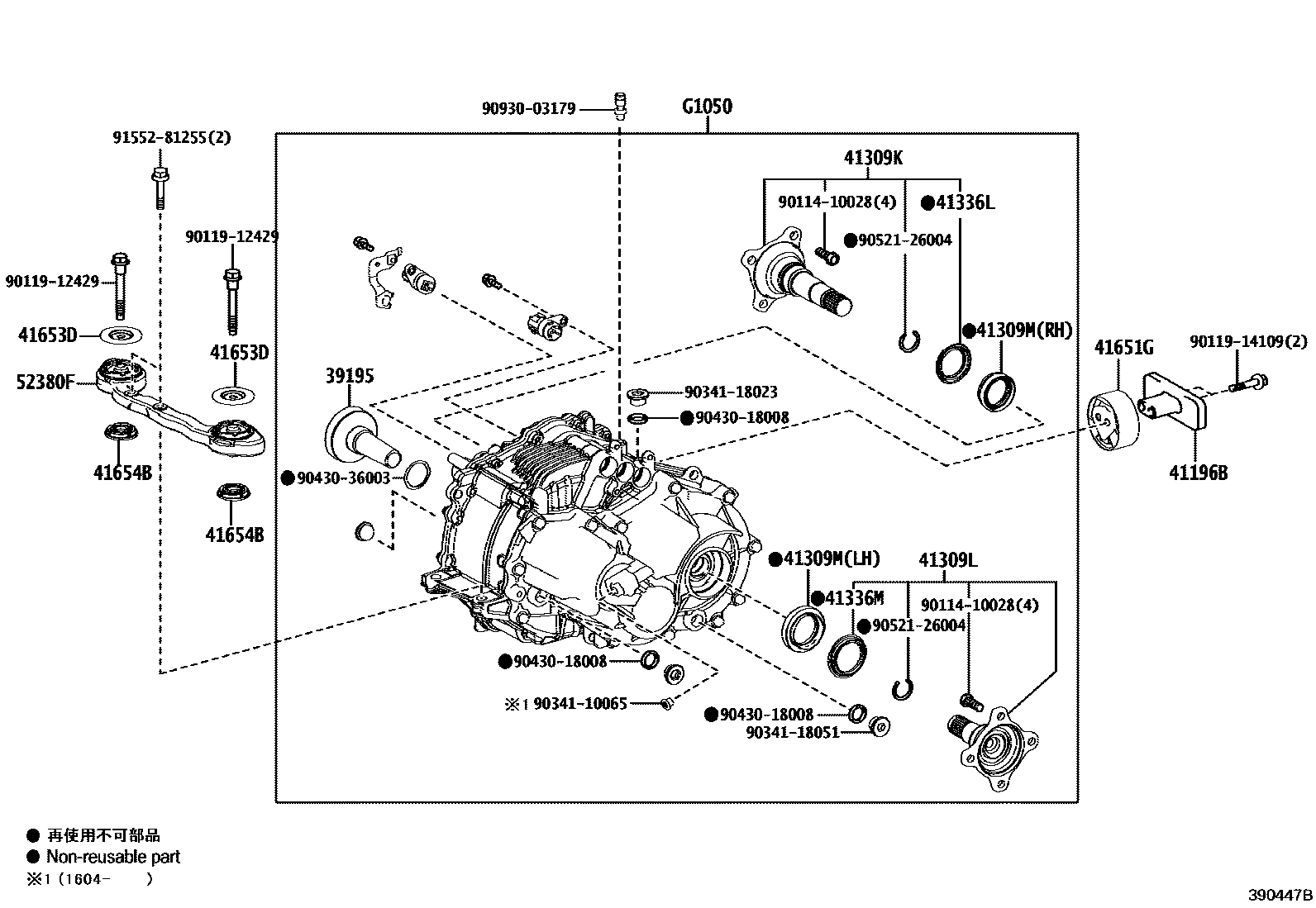

Toyota RAV4 传动桥总成(HEV 或 BEV 或 FCEV) — Figure 3901
Toyota RAV4 EPC diagram 3901, 传动桥总成(HEV 或 BEV 或 FCEV), with 3 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30900 | Hybrid vehicle transmission axle assembly | 30900-48121 · 30900-78011 |
| 30900A | Bolts (used to secure the transaxle and engine of hybrid vehicles) | 90119-12168 · 91512-61065 |
| 30900D | Headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18078 |
| 30900E | Gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900H | No. 3 headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18016 |
| 30900J | No. 3 gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900N | Breather plug (for transaxle) | 90930-03201 |
| 30900P | Drain plug (HEV) | 90341-18016 |
| 30900Q | Oil filling plug (HEV) | 90341-18016 |
| 30900R | Drain plug gasket (HEV) | 90430-18008 |
| 30900S | Oil filling plug gasket (HEV) | 90430-18008 |
| 31270 | Transmission input damper assembly | 31270-30010 |
| 33183E | dynamic damper | 33183-48010 |
| 35151J | automatic transmission cover | 35151-33090 |
| 35152A | No. 2 automatic transmission cover | 35151-33100 |
| 35153C | No. 3 automatic transmission cover | 35153-48020 |
| 35308G | No. 2 O-ring (for transmission oil pump cover) | 90301-06196 |
| 35308H | Screw plug (for transmission oil pump cover) | 90341-08001 |
| 35572B | Transmission outer lever | 35572-33030 |
| 35710A | T-type oil seal (for input shaft) | 90311-25027 |
| 39195 | HV transaxle mass damper | 39195-28011 · 39195-33020 |
| 41196B | Differential dynamic damper | 41196-48060 |
| 41309K | Right differential side gear shaft sub-assembly | 41309-28060 |
| 41309L | Left differential side gear shaft sub-assembly | 41309-28050 |
| 41309M | Oil seal (for rear transaxle half-shaft gear) | 90311-38085 · 90311-42038 |
| 41336L | Right differential side gear shaft dust cover | 41336-28050 |
| 41336M | Left differential side gear shaft dust cover | 41336-28040 |
| 41651G | Differential fixed cushion | 41651-48060 |
| 41653D | Differential fixed part upper stop | 41653-48010 |
| 41654B | Differential fixed part lower block | 41654-48010 |
| 52380F | Front differential bracket assembly | 52380-48100 |
| 82814 | Wire harness dust cover | 82814-42010 · 82814-42020 · 82814-48020 · 82814-48030 |
| G1020 | No. 1 motor water jacket cover assembly | G1020-33010 |
| G1020A | No. 2 motor water jacket cover assembly | G1020-48030 |
| G1050 | Rear traction motor assembly with transmission axle | G1050-48020 |
| G1142 | Motor water jacket cover | G1020-48040 |
| G9221B | Inverter top cover | G9221-33010 |
