Toyota RAV4 变速器油冷却器和配管(ATM) — Figure 3514

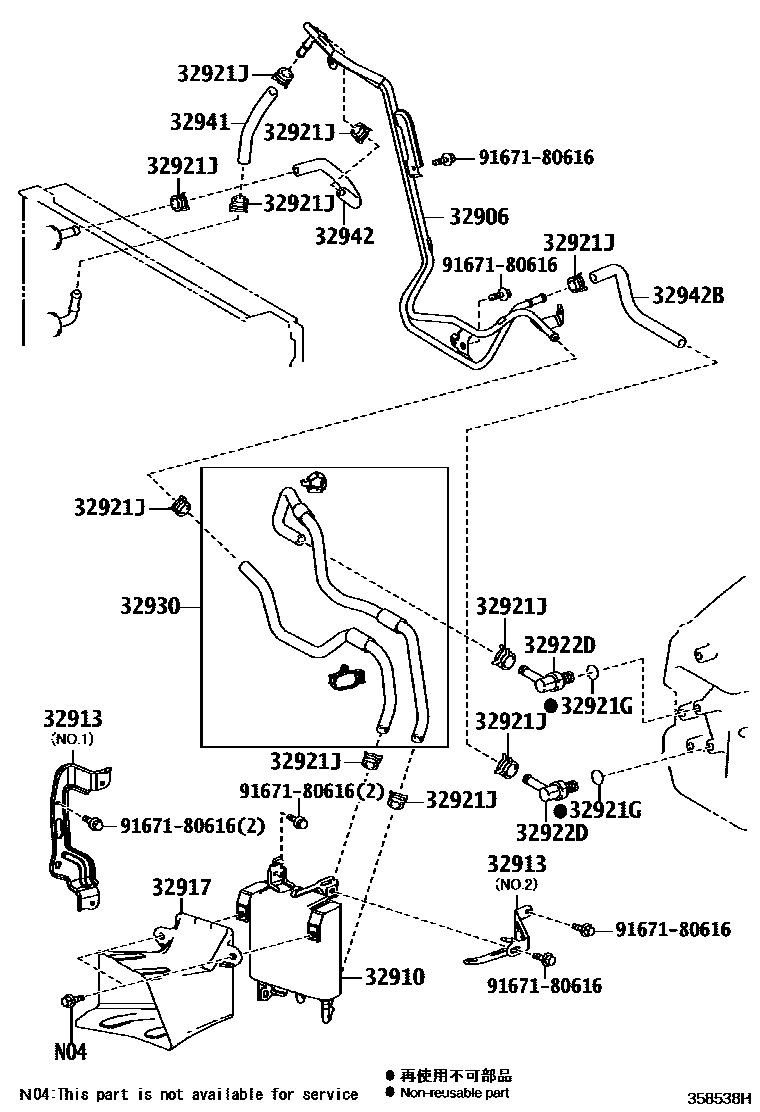

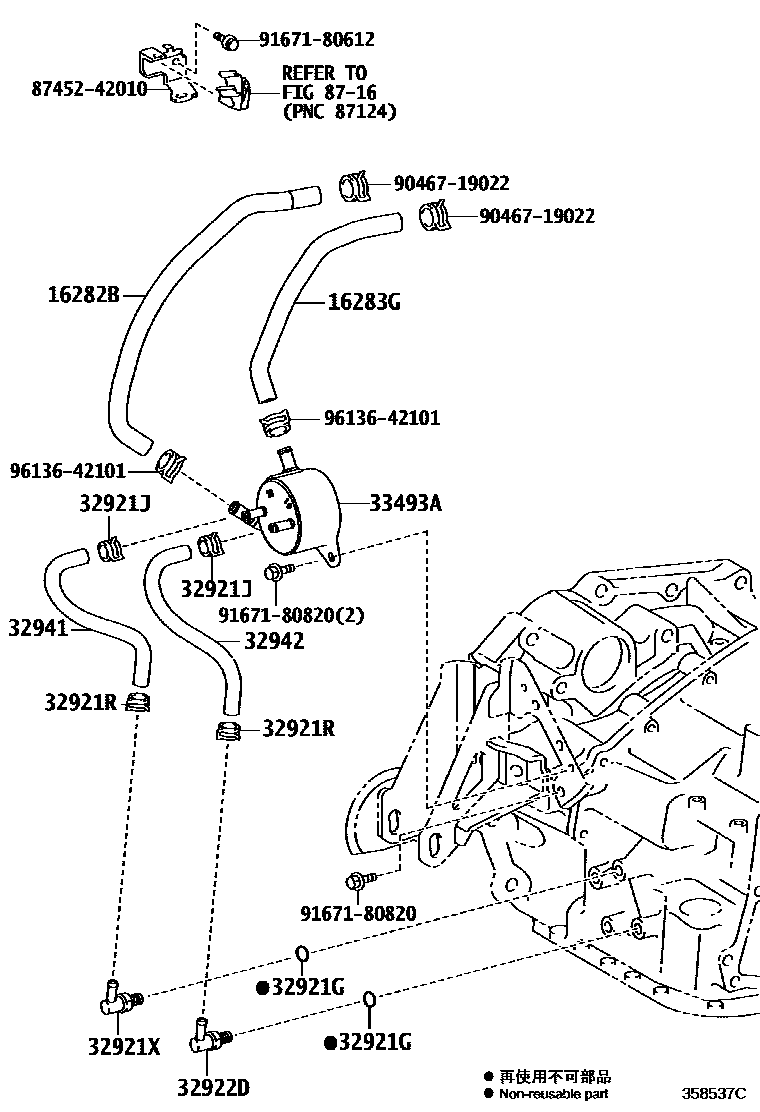

Toyota RAV4 EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16282B | HOSE, WATER BY-PASS, NO.5 | 16296-36010 |
| 16283G | HOSE, WATER BY-PASS, NO.6 | 16297-36010 |
| 32906 | Transmission oil cooler pipe sub-assembly | 32907-42010 · 32907-42050 |
| 32910 | Oil cooler assembly | 32910-42020 |
| 32913 | Transmission oil cooler bracket | 32913-42010 · 32913-42020 |
| 32917 | Transmission oil cooler air duct | 32917-42010 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-11031 |
| 32921J | Clamp (for transmission oil cooler hose) | 90466-16004 |
| 32921R | Clamp No. 2 (for transmission oil cooler hose) | 90466-16004 |
| 32921X | Transmission oil cooler oil inlet joint or elbow | 90407-14032 |
| 32922D | Transmission oil cooler oil outlet connector or elbow | 90407-14032 |
| 32930 | Transmission oil cooler accessory assembly | 32930-42050 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32941-42110 · 32941-42140 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32942-42100 · 32942-42110 |
| 32942B | No. 3 transmission oil cooler oil outlet hose | 32941-42130 |
| 33493A | Transmission oil cooler | 33493-42100 |
