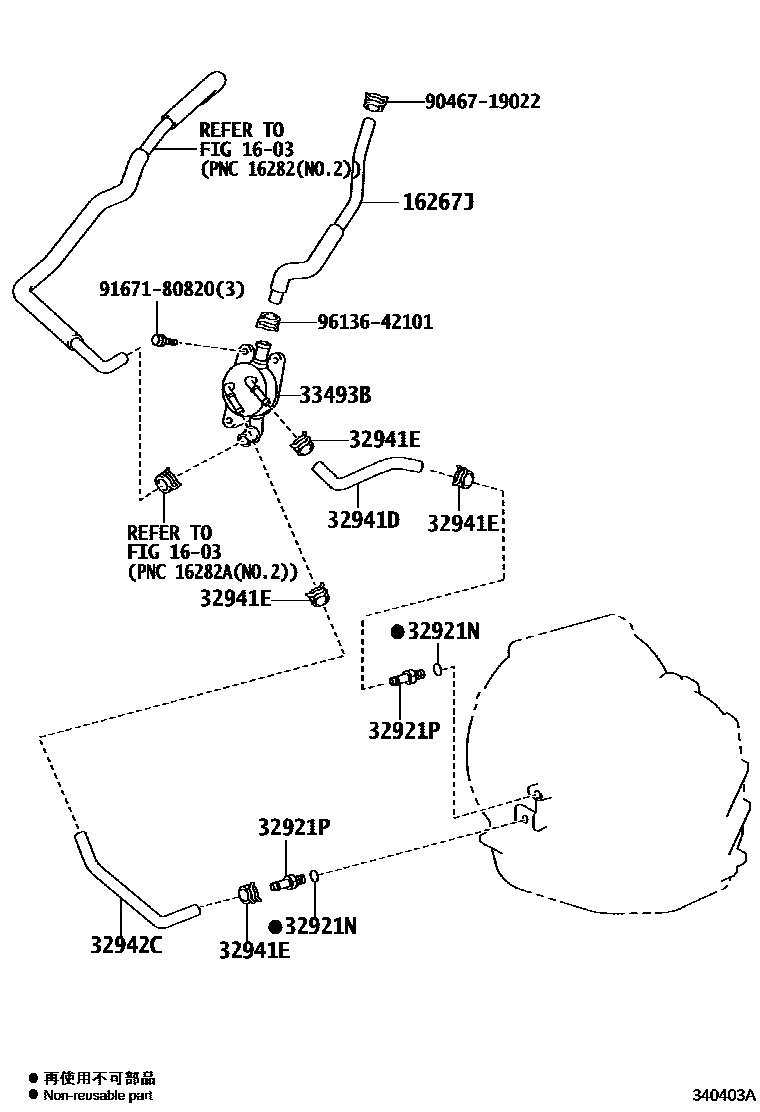

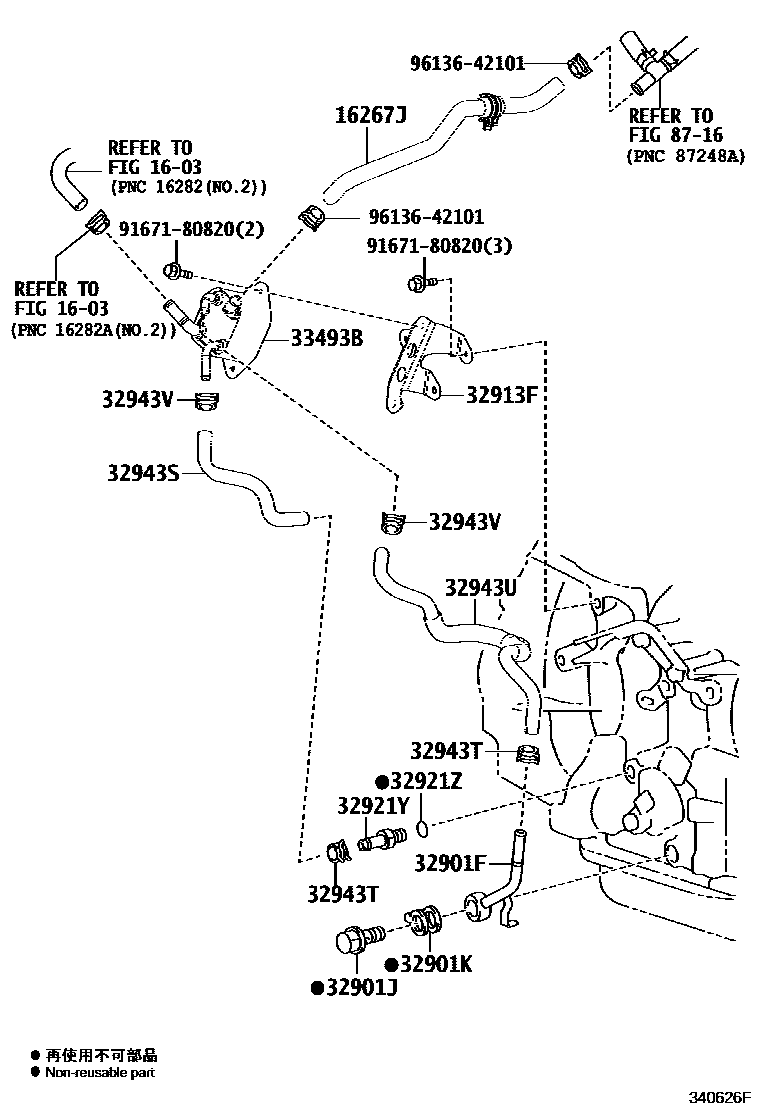

Toyota RAV4 变速器油冷却器和配管(CVT) — Figure 3414
Toyota RAV4 EPC diagram 3414, 变速器油冷却器和配管(CVT), with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16267J | HOSE, WATER BY-PASS, NO.3 | 16267-37040 · 16267-37080 |
| 32901F | Transmission oil cooler elbow sub-assembly | 32901-28010 |
| 32901J | Connector bolt (for oil cooler) | 90401-14003 |
| 32901K | Gasket (for transmission oil cooler connector) | 90430-14012 |
| 32913F | Transmission oil cooler bracket | 32913-28060 |
| 32921N | O-ring (for transmission oil cooler pipe joint) | 90301-10018 · 90301-10189 |
| 32921P | Fitting (for transmission oil cooler tube) | 90404-13004 · 90404-13010 |
| 32921Y | Pipe connector | 90404-13009 |
| 32921Z | O-ring (for pipe connector) | 90301-10018 |
| 32941D | Transmission Oil Cooler Inlet Hose | 32941-42120 |
| 32941E | Clamp (for transmission oil cooler pipe) | 90466-16004 |
| 32942C | No. 1 transmission oil cooler oil outlet hose | 32942-42090 |
| 32943S | No. 1 transmission oil cooler hose | 32943-78011 |
| 32943T | Clamp No. 1 (for transmission oil cooler hose) | 90466-16004 |
| 32943U | No. 2 transmission oil cooler hose | 32943-78020 |
| 32943V | Clamp No. 2 (for transmission oil cooler hose) | 90466-16004 |
| 33493B | oil cooler | 33493-42070 · 33493-78020 |
