Toyota RAV4 传动桥总成(CVT) — Figure 3401

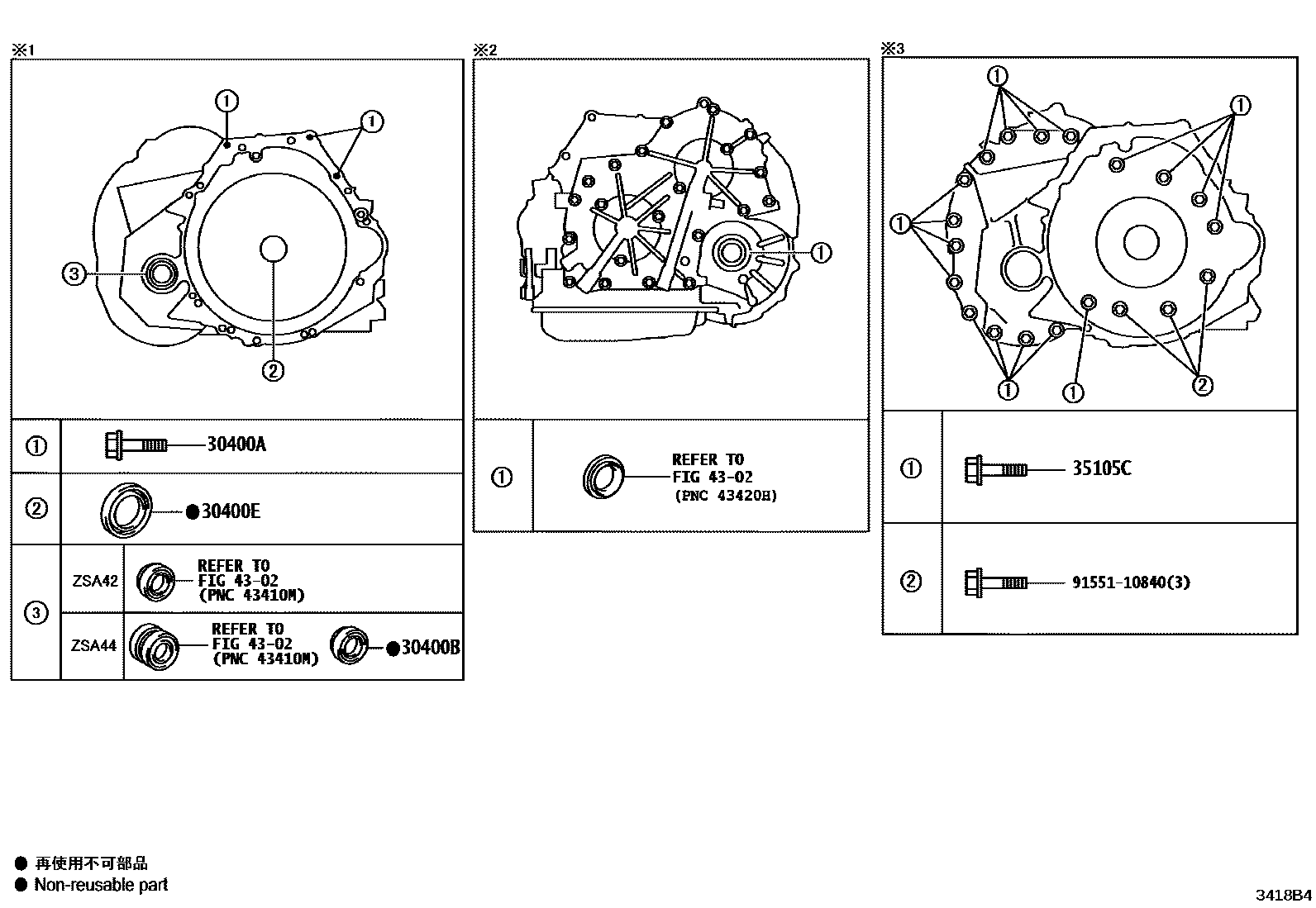

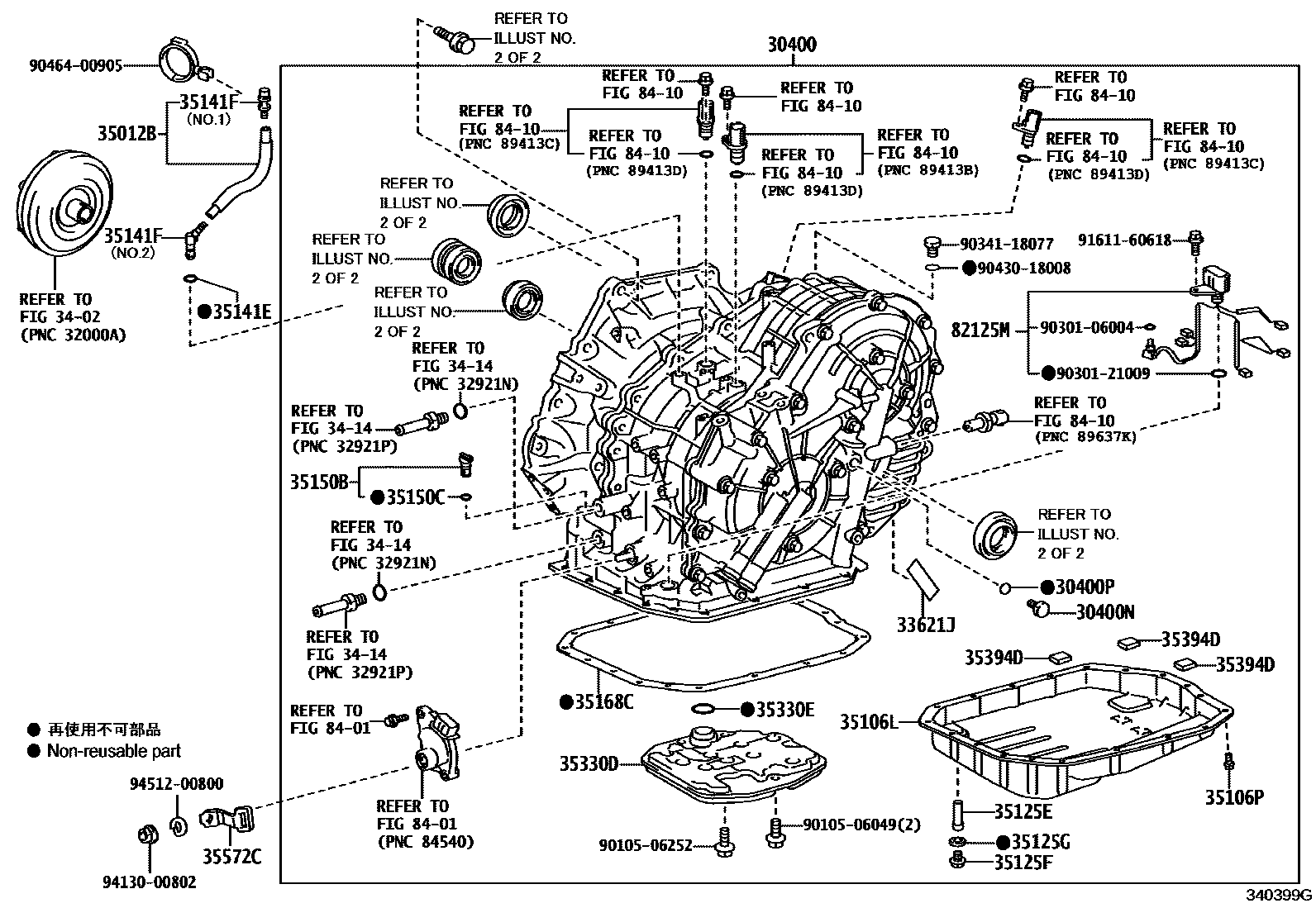

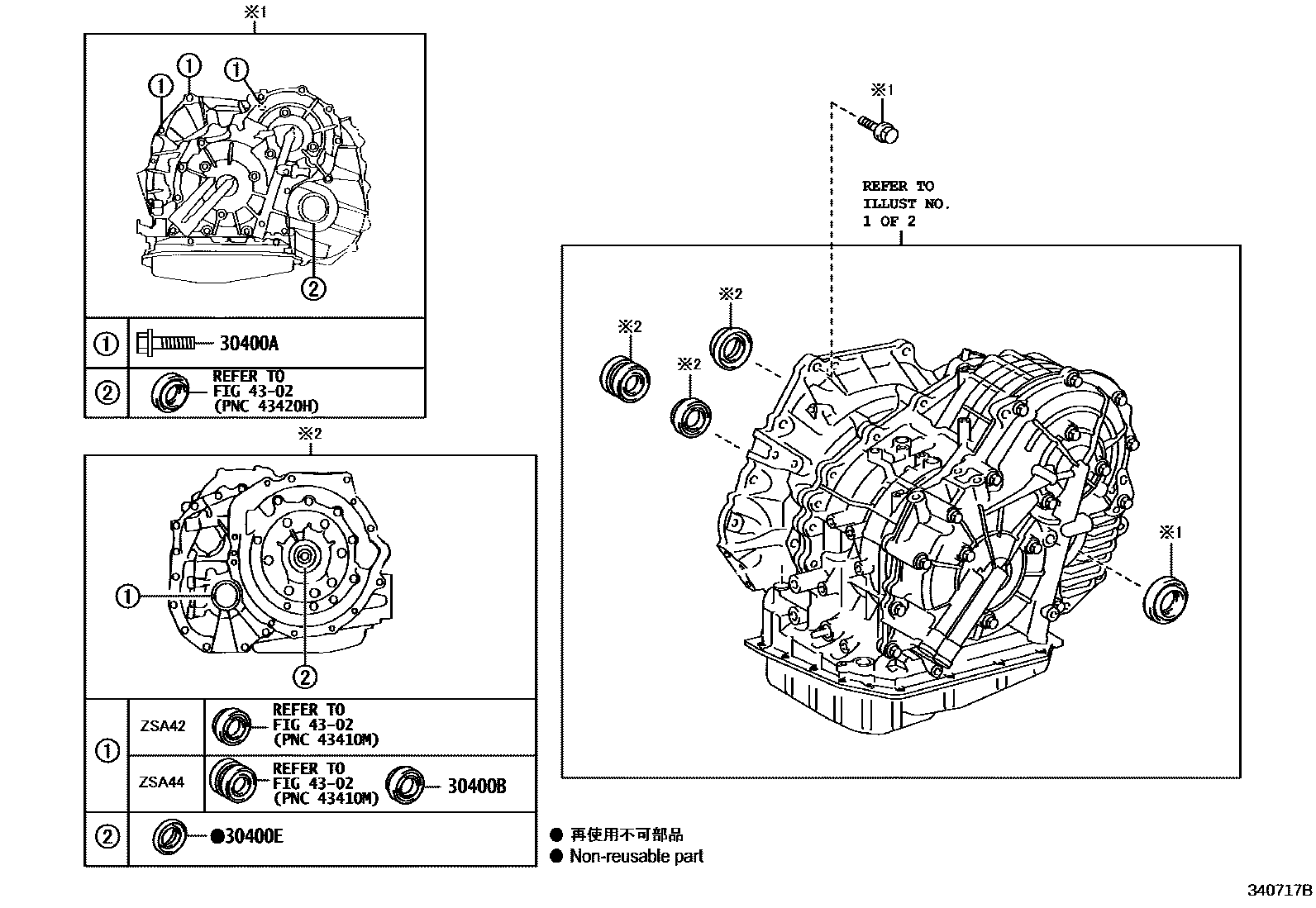

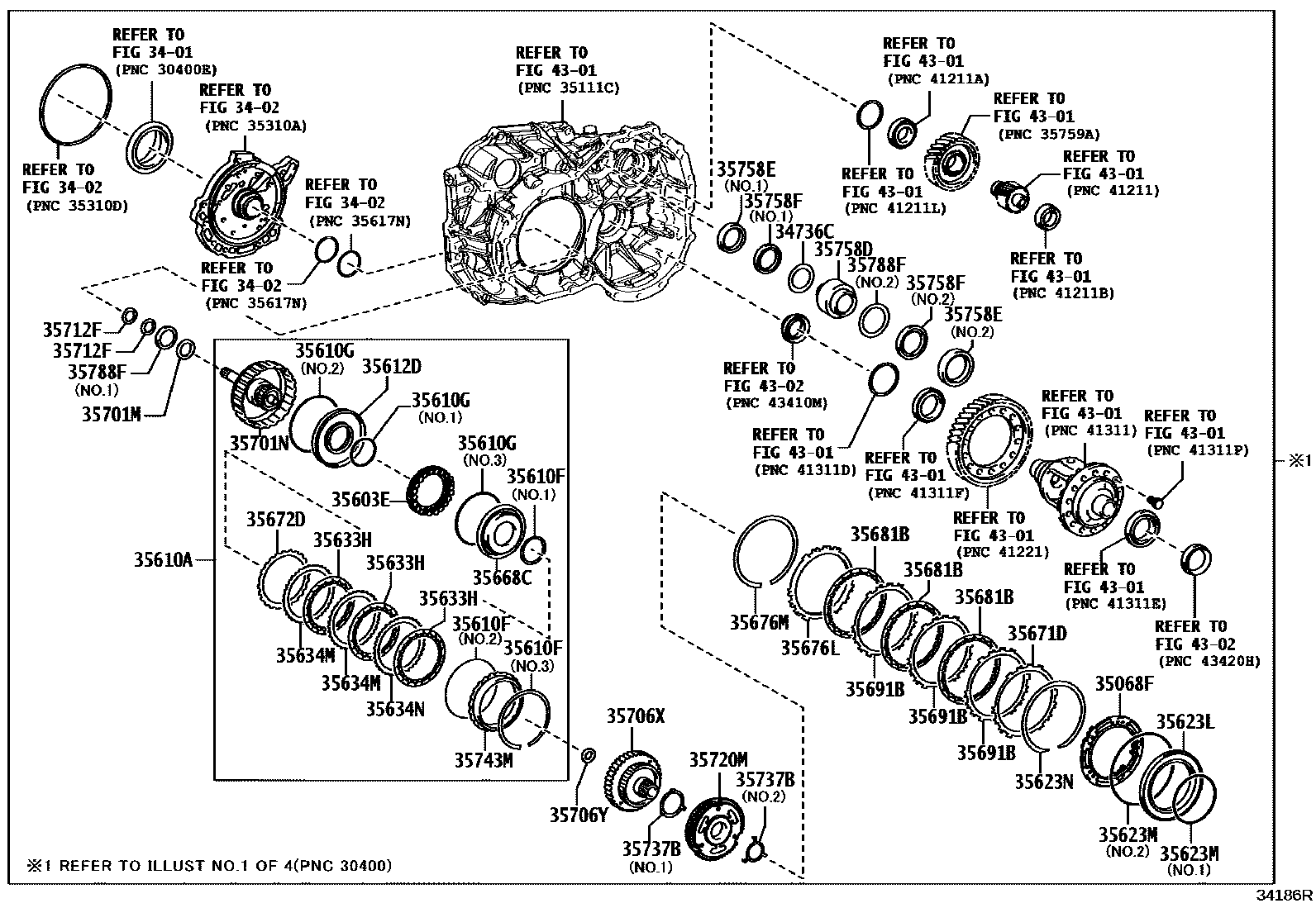

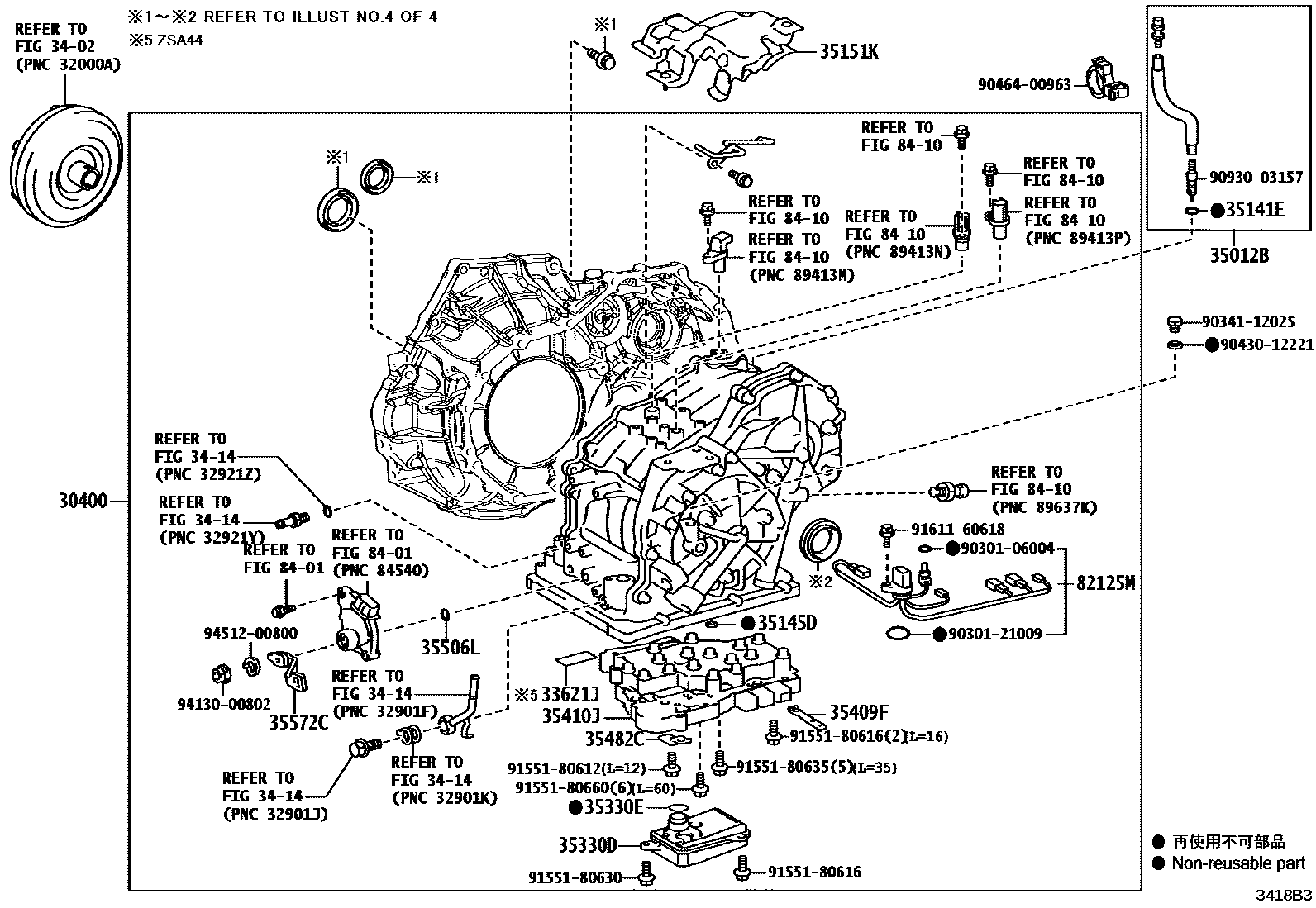

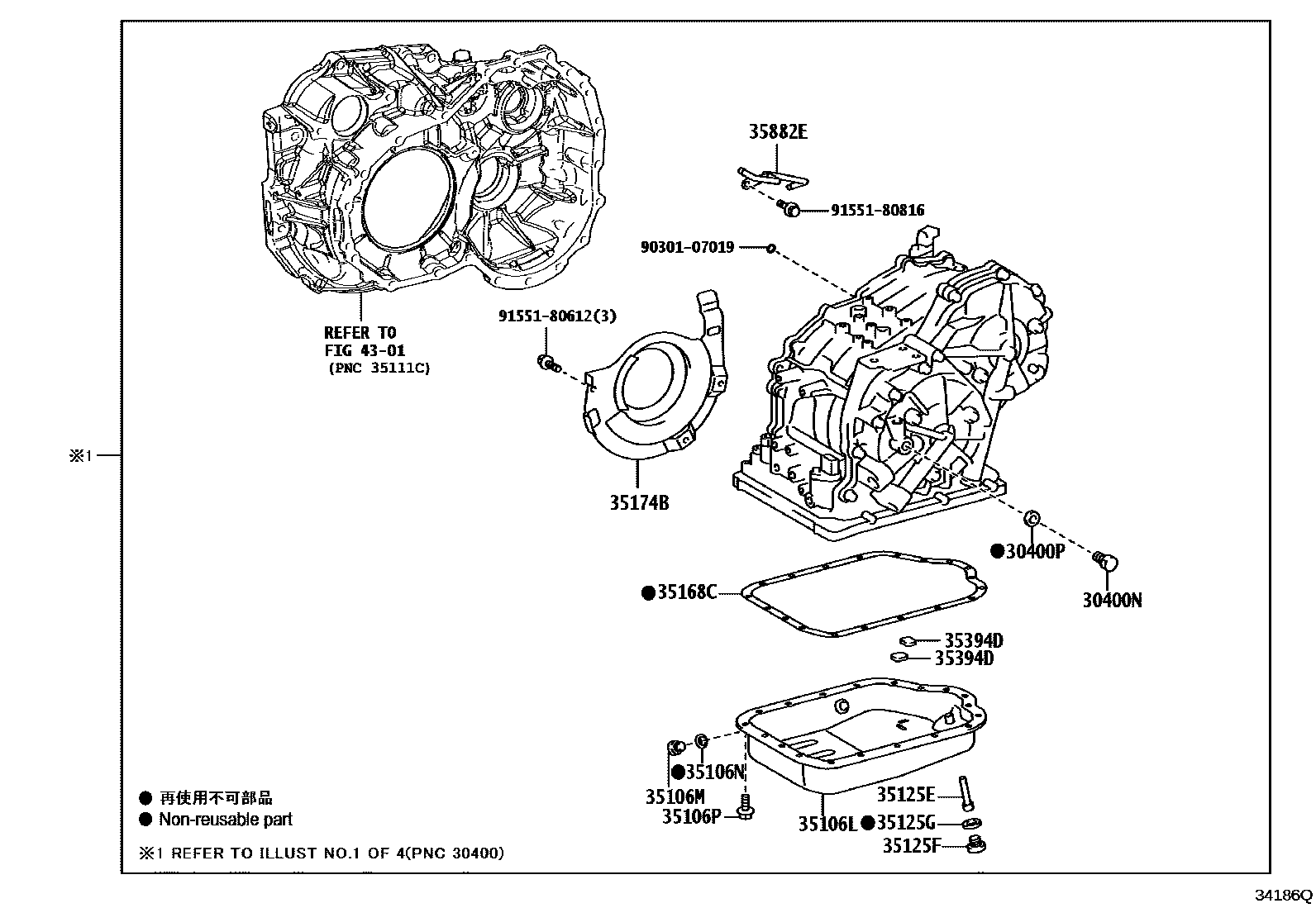

Toyota RAV4 EPC diagram 3401, 传动桥总成(CVT), with 6 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30400 | Continuously variable transmission axle assembly | 30400-42040 · 30400-42050 · 30400-42081 · 30400-42091 |
| 30400A | Bolts (for securing transaxle and engine) | 91512-61045 |
| 30400B | No. 1 T-type oil seal (for CVT) | 90311-49002 · 90311-55004 |
| 30400E | T-type oil seal (for CVT oil pump) | 90311-45027 |
| 30400N | Oil filling plug (CVT) | 90341-18077 |
| 30400P | Oil filling plug gasket (CVT) | 90430-18008 |
| 33621J | Transaxle oil information label | 33621-28021 |
| 34736C | No. 2 thrust bearing low speed gear race | 34736-44011 |
| 35012B | Transmission breather hose sub-assembly | 35012-28030 · 3510A-44012 |
| 35068F | Reverse brake return spring sub-assembly | 35068-28020 |
| 35105C | Bolts (for transaxle housing and transaxle housing) | 91551-10840 |
| 35106L | Transmission axle oil pan sub-assembly (CVT) | 35106-20031 · 35106-20032 · 35106-28100 |
| 35106M | Drain plug sub-assembly (CVT) | 90341-18016 |
| 35106N | Drain plug gasket (CVT) | 90430-01001 |
| 35106P | Bolts (for transaxle oil pan) | 90119-06173 |
| 35125E | Overflow pipe (CVT) | 35125-28170 · 35125-44070 · 35125-44071 |
| 35125F | Overflow plug (CVT) | 90341-12034 |
| 35125G | Overflow plug gasket (CVT) | 90430-12008 |
| 35141E | O-ring (for breather plug) | 90301-06005 · 90301-06021 |
| 35141F | No. 1 vent plug (CVT) | 90930-03149 · 90930-03164 |
| 35145D | Transmission axle housing gasket | 35145-33010 |
| 35150B | gearbox plug assembly | 35150-48010 |
| 35150C | O-ring (for gearbox plug) | 90301-09173 |
| 35151K | automatic transmission cover | 35151-48070 |
| 35168C | Transaxle oil pan gasket (CVT) | 35168-20010 · 35168-28020 |
| 35174B | Oil storage tank locking plate | 35174-28040 |
| 35330D | Oil filter assembly | 35330-0W090 · 35330-28020 |
| 35330E | O-ring (for oil filter) | 90301-24013 |
| 35394D | Oil filter magnet (CVT) | 35394-30011 |
| 35409F | Manual lock spring sub-assembly | 35409-44010 |
| 35410J | Transmission valve body assembly | 35410-28481 |
| 35482C | temperature sensor clip | 35482-73010 |
| 35506L | Oil seal (for manual valve stem shaft) | 90311-12001 |
| 35572C | transmission control lever | 35572-28130 · 35572-42030 |
| 35603E | Forward gear clutch return spring sub-assembly | 35603-28010 |
| 35610A | Forward gear multi-plate clutch assembly | 35610-28080 |
| 35610F | Snap ring (for forward multi-plate clutch) | 90520-48011 · 90520-99091 · 90520-99092 |
| 35610G | O-ring (for forward multi-plate clutch) | 90301-56007 · 90301-99110 · 90301-99199 |
| 35612D | forward clutch piston | 35612-28020 |
| 35623L | Reverse brake piston | 35623-28040 |
| 35623M | O-ring (for reverse brake piston) | 90301-99084 · 90301-99126 |
| 35623N | Snap ring (for reverse brake piston) | 90520-99060 |
| 35633H | Clutch disc (for forward multi-plate clutch) | 35633-28020 |
| 35634M | No. 1 clutch plate (for forward multi-plate clutch) | 35634-28020 |
| 35634N | No. 2 clutch plate (for forward multi-plate clutch) | 35634-28020 · 35634-28040 · 35634-28050 |
| 35668C | No. 1 clutch balancer | 35668-28010 |
| 35671D | brake cushion | 35671-28010 |
| 35672D | clutch cushion | 35672-28010 |
| 35676L | brake flange | 35676-28150 |
| 35676M | Snap ring (for brake flange) | 90520-99061 |
| 35681B | No. 1 brake disc | 35681-28020 |
| 35691B | No. 1 brake pad | 35691-28020 |
| 35701M | Thrust needle roller bearing (for input shaft) | 90374-26006 |
| 35701N | Input shaft sub-assembly | 35701-28030 |
| 35706X | Planetary gear train sun gear sub-assembly | 35706-28010 |
| 35706Y | Thrust needle roller bearing (for planetary gear train sun gear) | 90374-17001 |
| 35712F | Input shaft oil ring | 35712-32010 |
| 35720M | Planetary gear assembly | 35720-28060 |
| 35737B | Planetary gear carrier thrust washer | 35737-28030 · 35737-28040 |
| 35743M | Planetary ring gear | 35743-44010 |
| 35758D | Reduction driving gear | 35758-44011 |
| 35758E | Roller bearing (for reduction drive gear) | 90365-42005 · 90365-55002 |
| 35758F | Thrust needle roller bearing (for reduction drive gear) | 90374-42015 · 90374-55001 |
| 35788F | thrust bearing race | 35789-63010 · 35789-63020 · 35789-63031 |
| 35882E | Differential gear lubricant oil supply pipe | 35882-28030 |
| 82125M | Transmission wiring harness | 82125-44020 · 82125-48030 · 82125-48031 |
