Toyota RAV4 Shift Lever & Retainer — Figure 3312

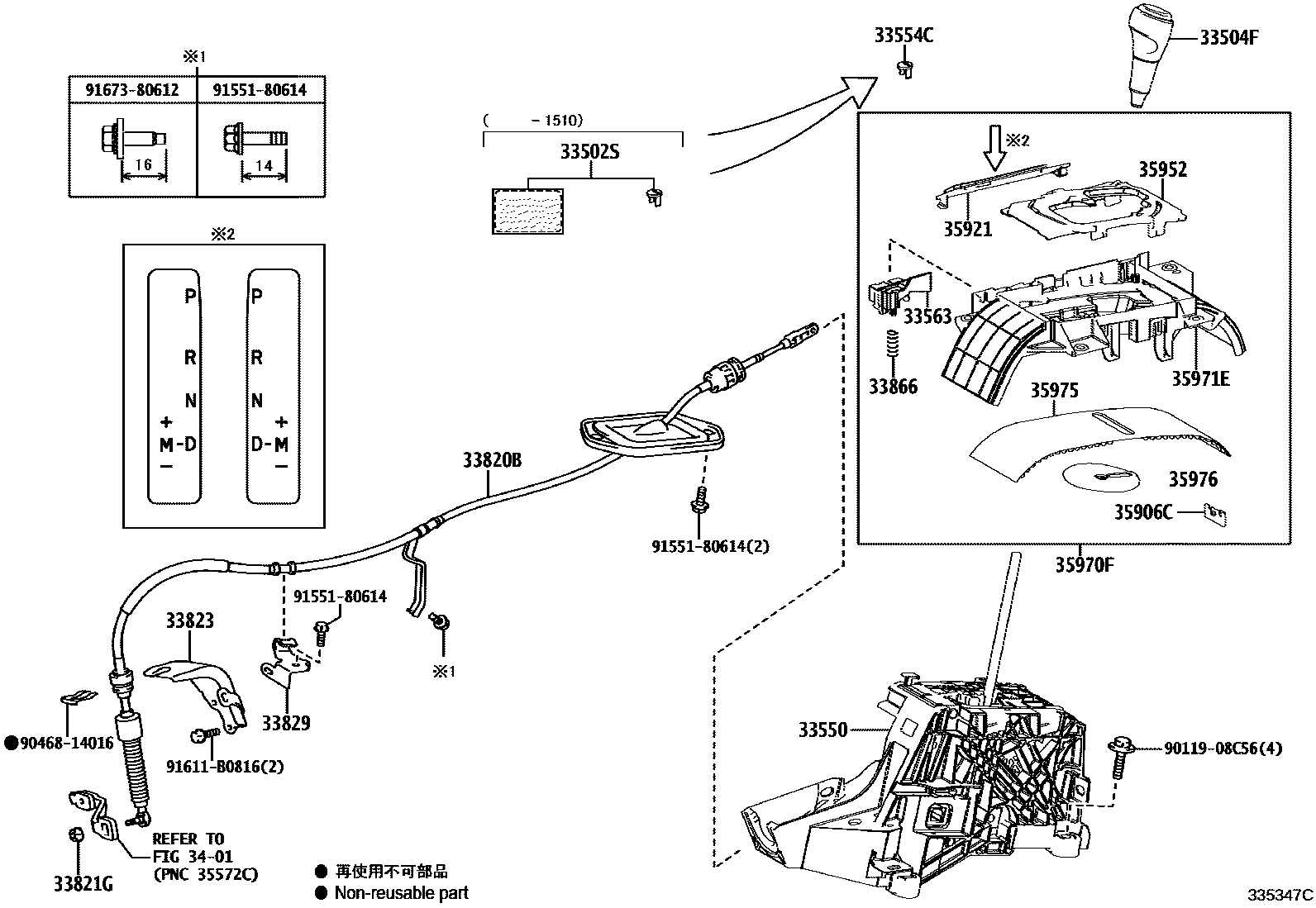

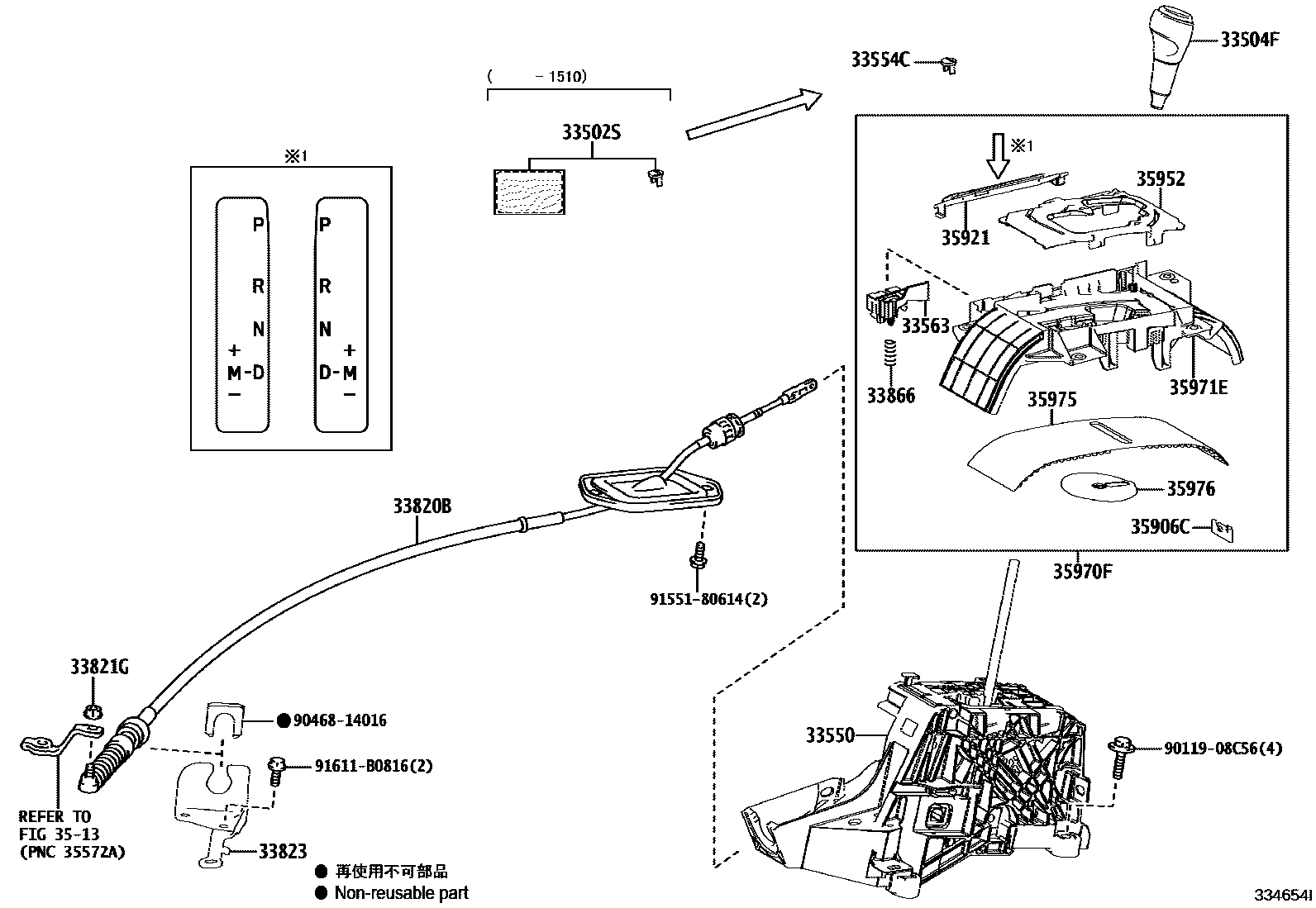

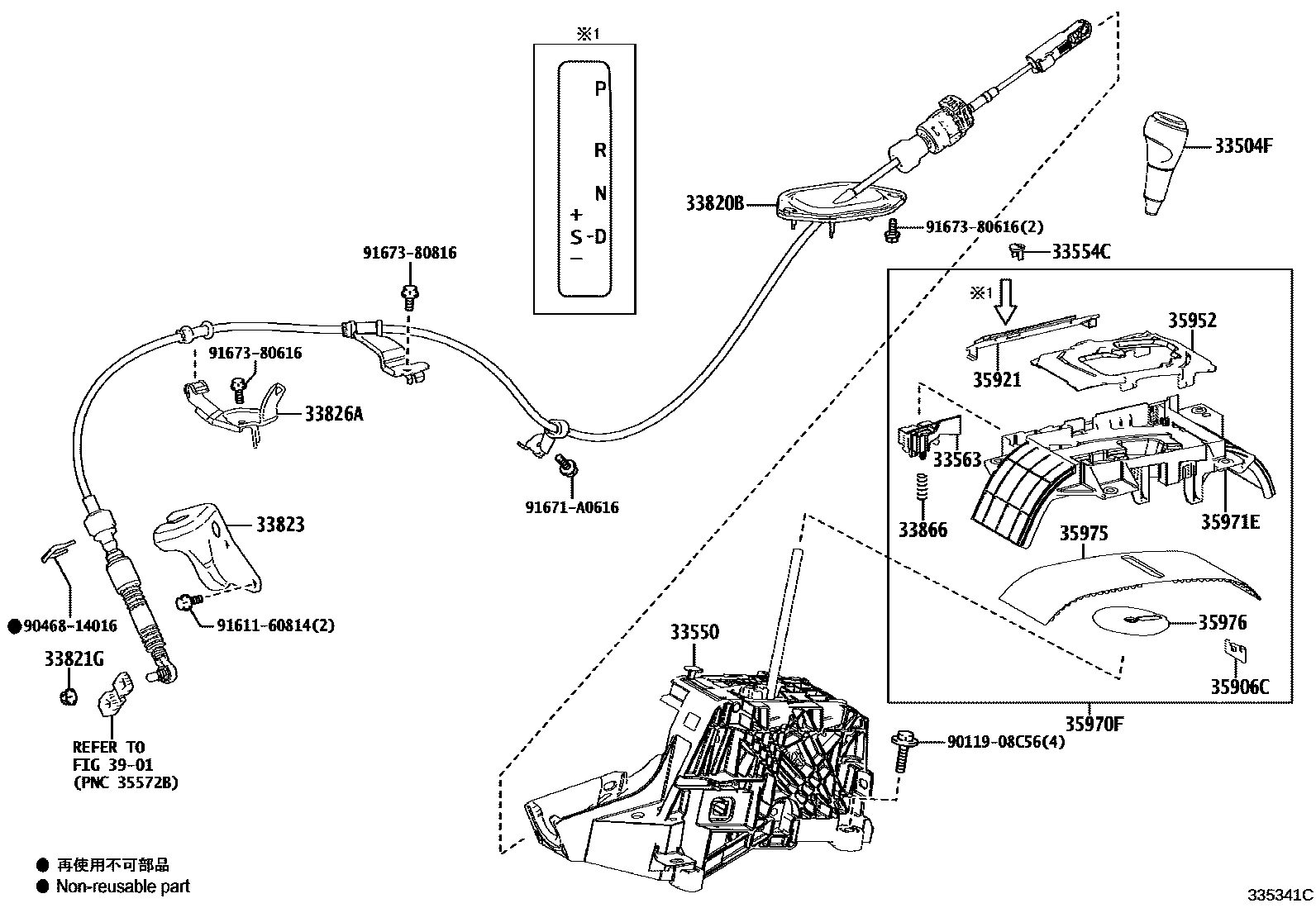

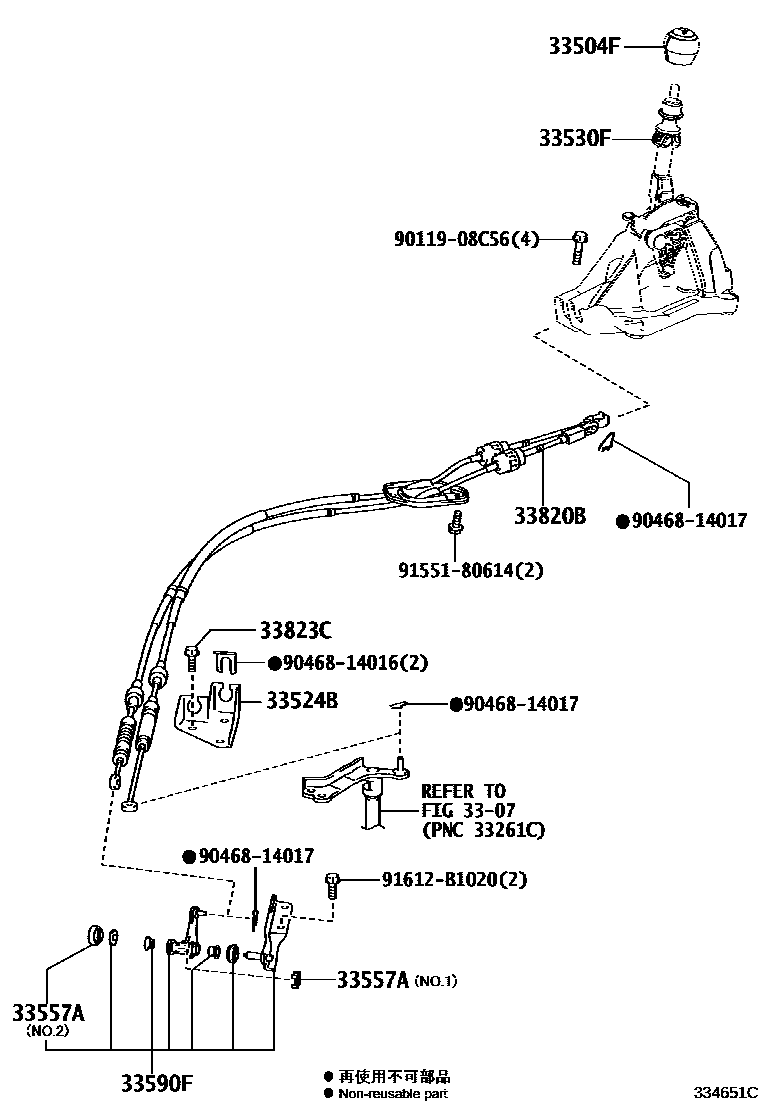

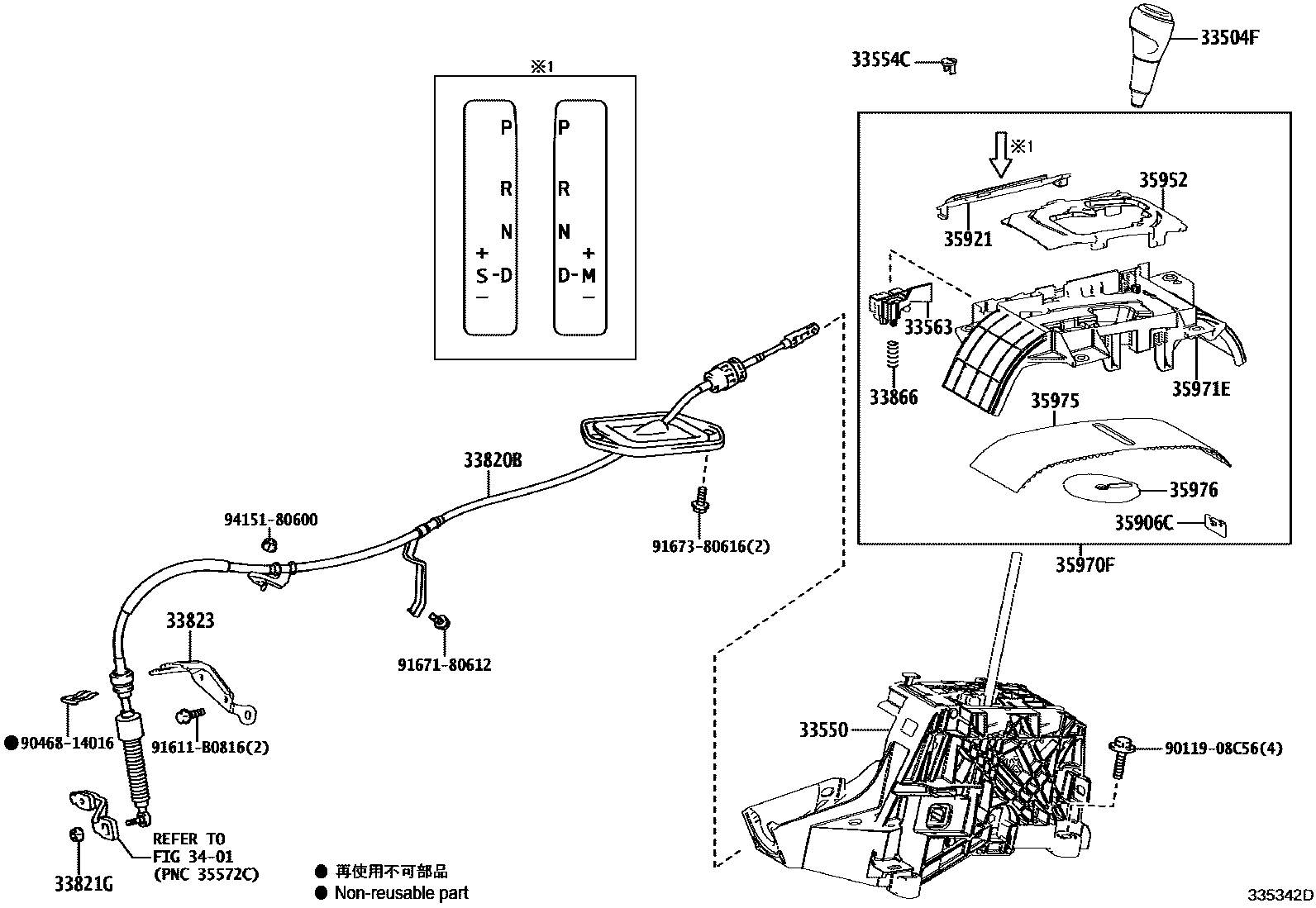

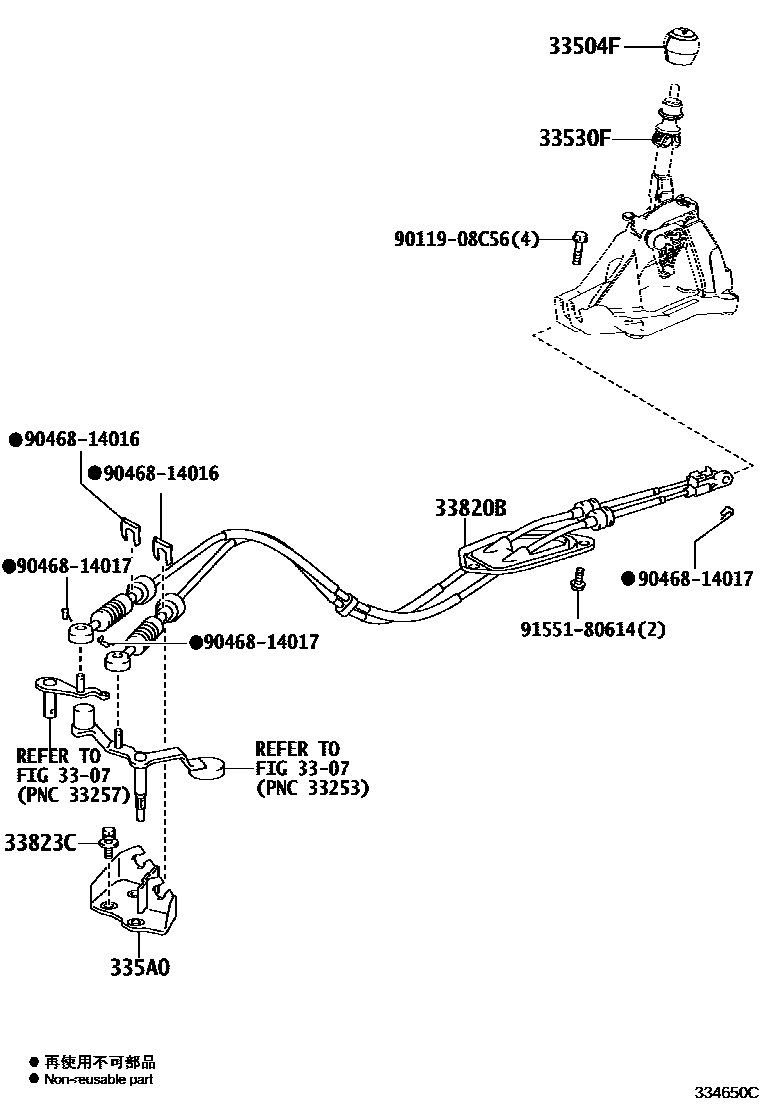

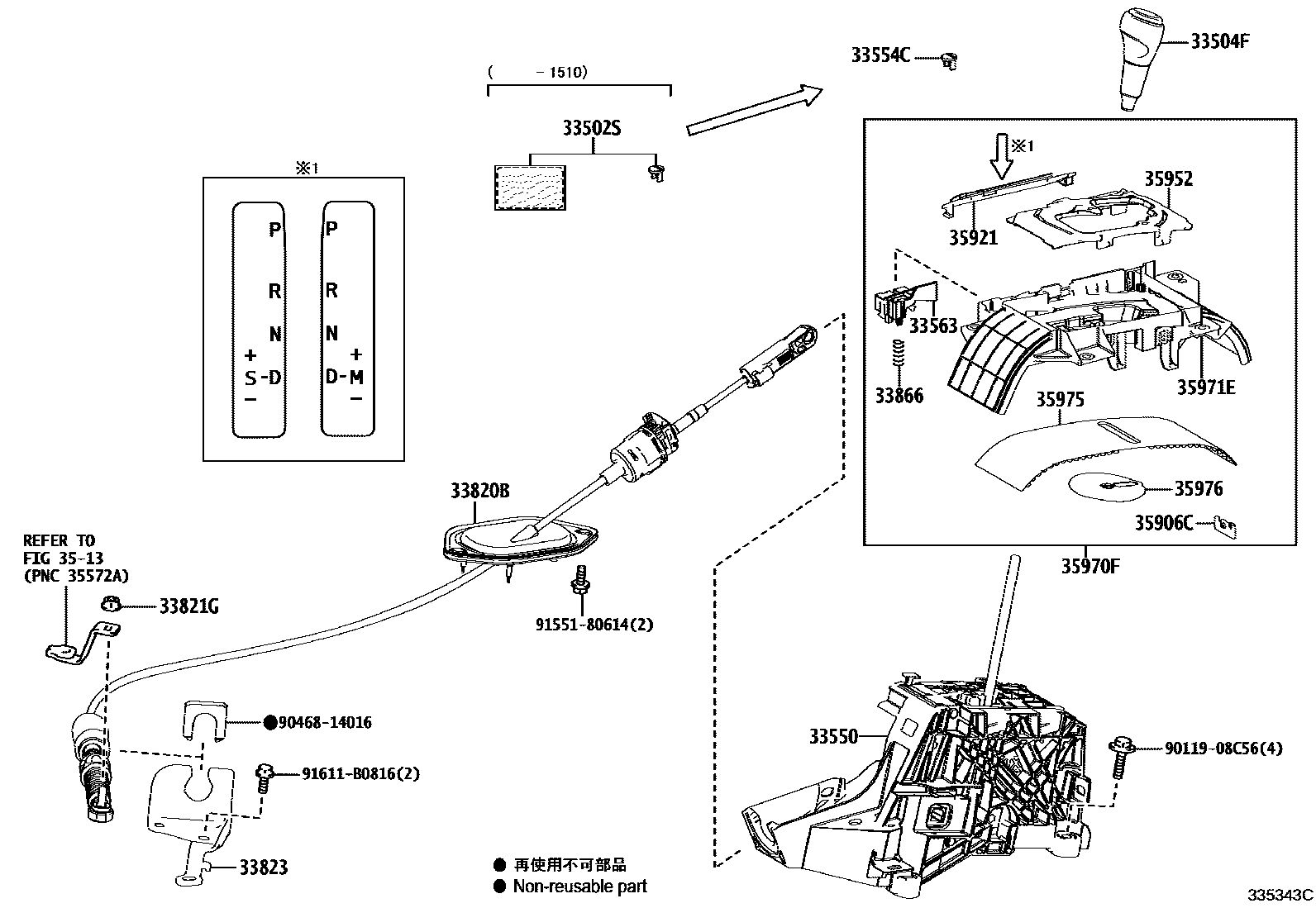

Toyota RAV4 EPC diagram 3312, Shift Lever & Retainer, with 7 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33502S | Shift lock cover assembly with label | 33502-42060 |
| 33504F | Shift lever handle sub-assembly | 33504-42100 |
| 33524B | Control cable bracket | 335A0-42010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-42090 |
| 33550 | Transmission floor shift assembly | 33550-42230 · 33550-42240 |
| 33554C | Shift lock release button cover | 33554-42050 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-20010 · 33557-33010 |
| 33563 | Shift lock release button | 33563-42100 · 33563-42120 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-20040 |
| 335A0 | Control cable bracket assembly | 335A0-21010 · 335A0-42020 |
| 33820B | Transmission control cable assembly | 33820-42280 · 33820-42290 · 33820-42340 · 33820-42370 · 33820-42380 · 33820-42390 · 33820-42400 · 33820-42420 · 33820-42430 · 33820-42450 |
| 33821G | Nut (for transmission control cable) | 90179-08061 · 94151-80800 |
| 33823 | No. 1 transmission control cable bracket | 33823-28280 · 33823-28300 · 33823-42030 · 33823-42040 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08C60 |
| 33826A | No. 2 transmission control cable bracket | 33826-48100 |
| 33829 | Transmission control cable bracket | 33829-42120 |
| 33866 | Shift lock release spring | 33866-33010 |
| 35906C | Indicator chip | 35906-49005 |
| 35921 | control position indicator board | 35921-42050 · 35921-42060 · 35921-42070 · 35921-42080 |
| 35952 | Position indicator lampshade | 35952-42020 · 35952-42030 |
| 35970F | Position indicator light housing assembly | 35970-42120 · 35970-42130 · 35970-42160 · 35970-42170 |
| 35971E | position indicator housing | 35971-42050 · 35971-42060 |
| 35975 | Slide cover (for position indicator light) | 35975-42040 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-42020 |
