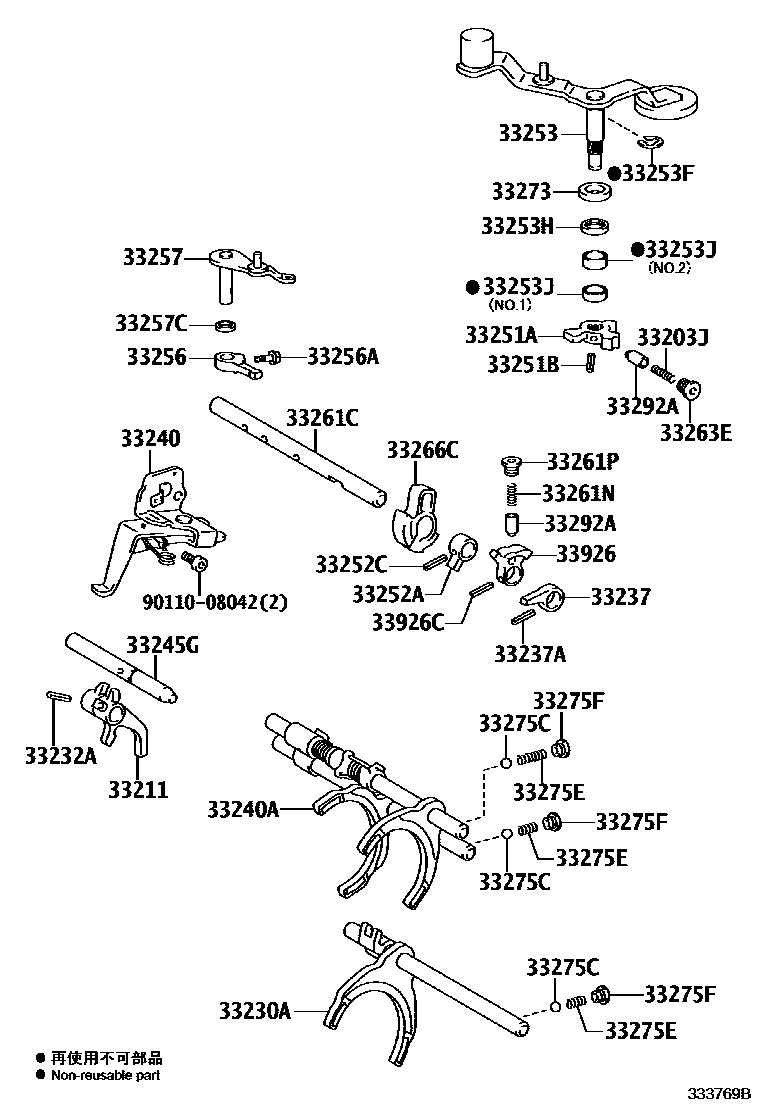

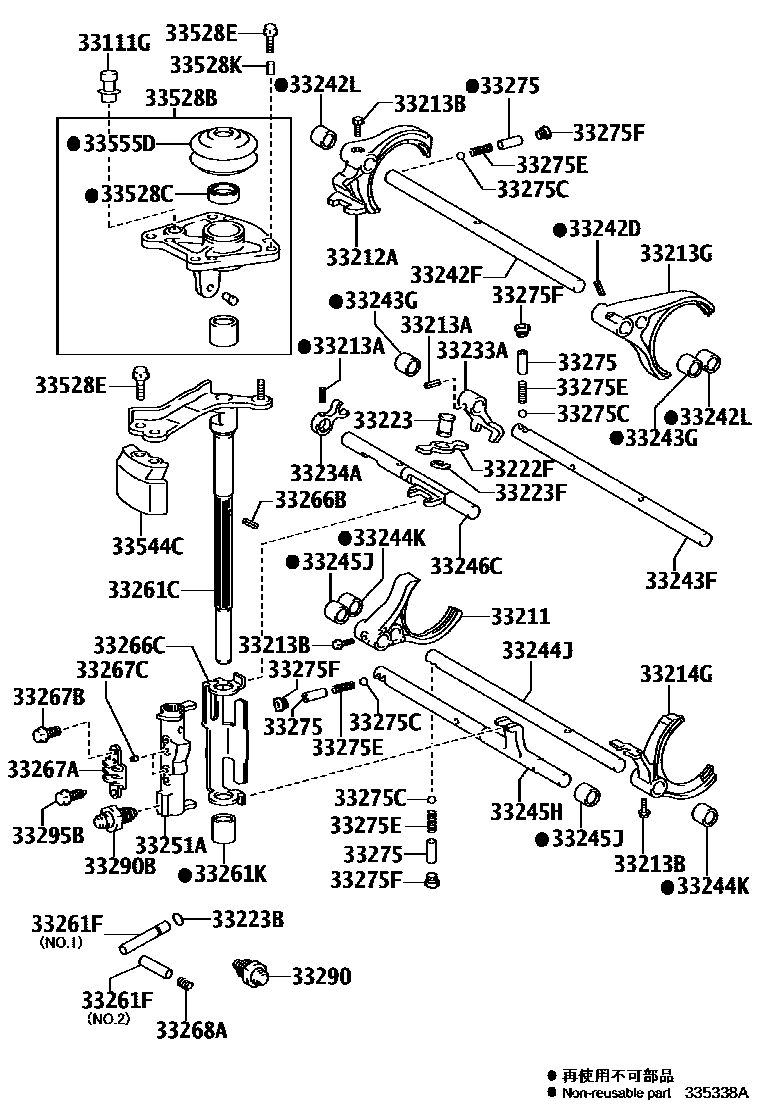

Toyota RAV4 换档拨叉和换档杆轴(MTM) — Figure 3307
Toyota RAV4 EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 2 images and 72 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111G | Breather plug (for manual transmission) | 90930-03085 |
| 33203J | Spring (steel ball for shift lever shaft) | 90501-12221 |
| 33211 | Reverse Shift Fork | 33211-20030 · 33211-20050 |
| 33212A | No. 1 shift fork | 33210-20010 |
| 33213A | Slotted spring pin (for securing shift fork) | 90254-05001 |
| 33213B | Bolt (for securing shift fork) | 90105-06077 |
| 33213G | No. 2 shift fork | 33220-20010 |
| 33214G | No. 3 shift fork | 33230-20020 |
| 33222F | shift arm | 33222-20010 |
| 33223 | shift arm pivot | 33223-20020 |
| 33223B | O-ring (for shift arm pivot) | 96721-19008 |
| 33223F | E-ring (locking plate pivot with shift fork) | 96160-01200 |
| 33230A | No. 1 shift fork shaft assembly | 33230-20060 |
| 33232A | Slotted spring pin (for securing shift guide block) | 90254-05001 |
| 33233A | No. 2 speed change guide block | 33233-20010 |
| 33234A | No. 3 speed change guide block | 33234-20010 |
| 33237 | Separate guide block | 33237-20010 |
| 33237A | Slotted spring pin (for detaching guide blocks) | 90254-05001 |
| 33240 | Reverse shift arm bracket assembly | 33240-20050 |
| 33240A | No. 2 shift fork shaft assembly | 33240-20080 |
| 33242D | Slotted spring pin (for shift fork shaft) | 90254-05016 |
| 33242F | First and second gear shift fork shaft | 33242-20110 |
| 33242L | Bearings (for shift fork shaft) | 90369-14001 |
| 33243F | Third and fourth gear shift fork shaft | 33243-20080 |
| 33243G | Bearings (for shift fork shaft) | 90369-14001 |
| 33244J | Fifth and sixth gear shift fork shaft | 33244-20080 |
| 33244K | Bearings (for shift fork shaft) | 90369-14001 |
| 33245G | No. 4 shift fork shaft | 33245-20030 |
| 33245H | Reverse shift fork shaft | 33245-20010 |
| 33245J | Bearings (for shift fork shaft) | 90369-14001 |
| 33246C | No. 5 shift fork shaft | 33246-20010 |
| 33251A | Internal shift lever No. 1 | 33251-20111 · 33251-20130 · 33251-42020 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05011 |
| 33252A | Internal shift lever No. 2 | 33252-20070 |
| 33252C | Slotted spring pin (for inner shift lever No. 2) | 90254-05001 |
| 33253 | No. 1 outer shift lever | 33253-20081 |
| 33253F | E-ring (for outer shift lever) | 90523-15003 |
| 33253H | Oil seal (for outer shift lever) | 90310-18003 |
| 33253J | Bushing (for outer shift lever) | 90384-14008 · 90384-18018 |
| 33256 | Internal gear selector | 33256-20040 |
| 33256A | Fixing bolt (for interior gear selector) | 90105-08079 |
| 33257 | External gear selector | 33257-20051 · 33257-21011 |
| 33257C | Oil seal (for external gear lever) | 90310-15005 |
| 33261C | shift lever shaft | 33261-20150 · 33261-42030 |
| 33261F | Direct sales (for shift lever shaft) | 33267-20020 · 33267-20030 |
| 33261K | Needle roller bearing (for gear selector shaft) | 90369-15002 |
| 33261N | Compression spring (for shift lever shaft) | 90501-11107 |
| 33261P | Headed straight thread plug (for shift lever shaft) | 90341-16013 |
| 33263E | Screw plug (for gear selector shaft) | 90341-16013 |
| 33266B | No. 3 shift interlock pin | 90254-05016 |
| 33266C | shift interlock plate | 33266-20070 · 33266-64010 |
| 33267A | Shift positioning plate | 33267-20010 |
| 33267B | Bolt (for shift retainer plate) | 90105-06310 |
| 33267C | Direct sales (for shift positioning plate) | 90250-06024 |
| 33268A | Torsion spring (bolt secured with shift interlock plate) | 90501-10248 |
| 33273 | No. 1 shift lever shaft cover gasket | 90560-18017 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-12041 |
| 33275C | Steel ball (for shift lock) | 90360-10003 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-12173 · 90501-13087 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12004 |
| 33290 | No. 1 locking steel ball assembly | 33290-20020 |
| 33290B | No. 2 locking steel ball assembly | 33290-64010 |
| 33292A | Locking steel ball pin | 33292-20010 |
| 33295B | Shift positioning plate pin | 33295-20010 |
| 33528B | control shaft cover | 33506-20330 |
| 33528C | Oil seal (for control shaft cover) | 90310-18002 |
| 33528E | Bolt (for control shaft cover) | 90119-08C67 · 91611-60830 |
| 33528K | Ring pin (for controlling shaft housing retaining bolts) | 90253-11021 |
| 33544C | Gear shifter damper | 33544-42010 |
| 33555D | Gear shift lever dust cover | 33555-20080 |
| 33926 | Front inner shift lever | 33926-20020 · 33926-20021 |
| 33926C | Slotted spring pin (for inner shift lever) | 90254-05001 |
