Toyota RAV4 变速器齿轮(MTM) — Figure 3305

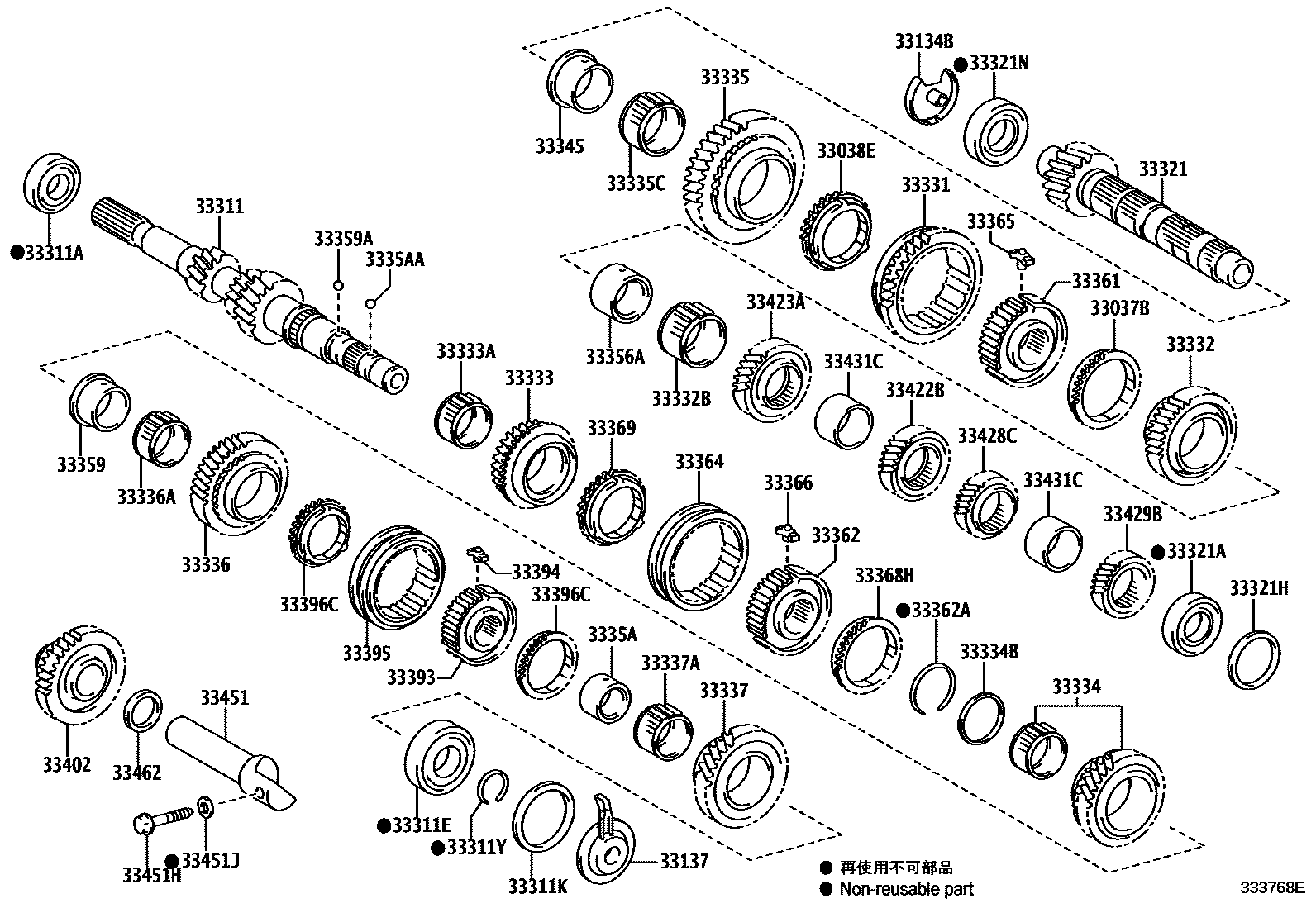

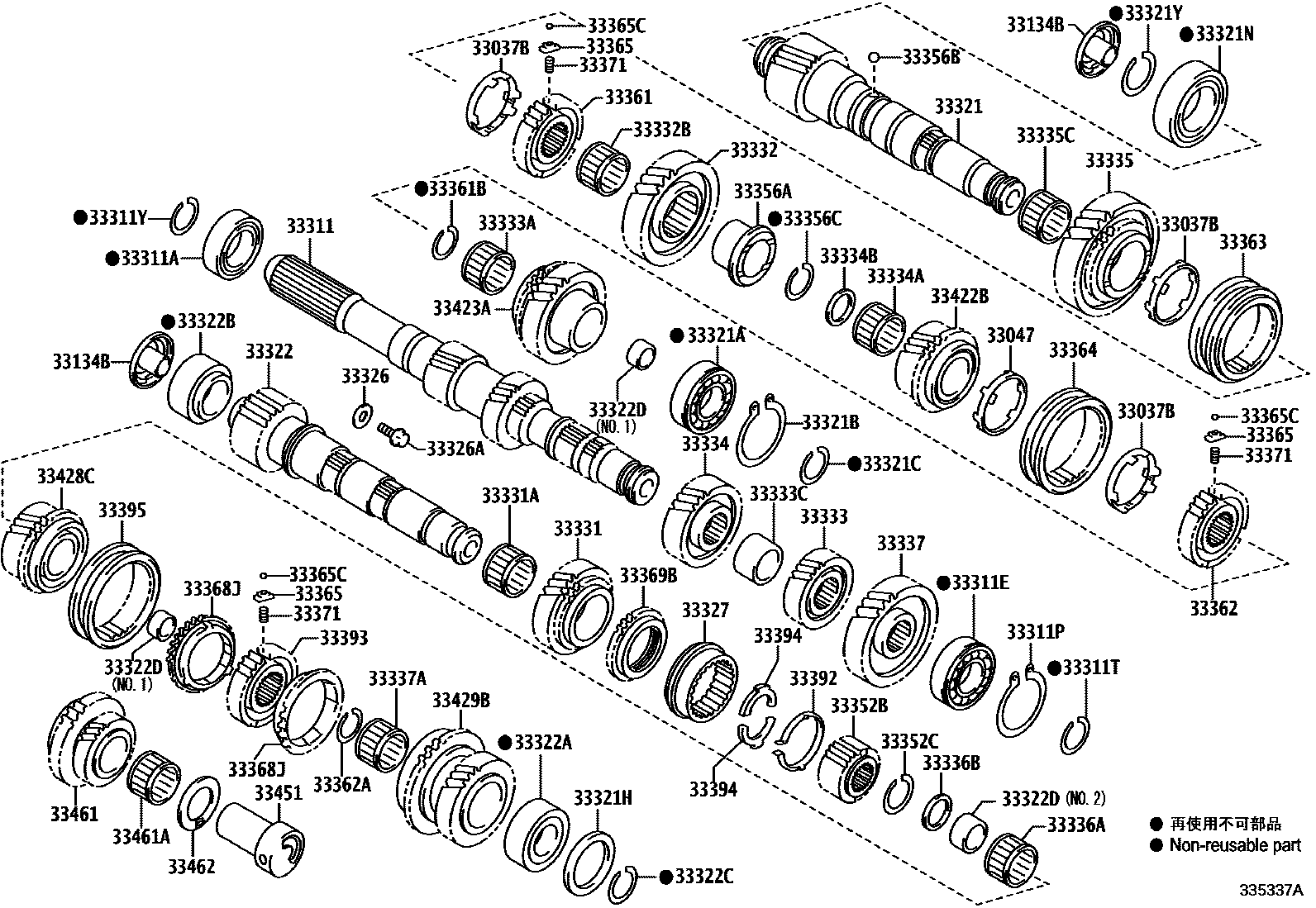

Toyota RAV4 EPC diagram 3305, 变速器齿轮(MTM), with 2 images and 85 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33037B | No. 1 synchronizer lock ring assembly | 33037-20110 · 33037-64020 |
| 33038E | No. 2 synchronizer lock ring assembly | 33037-20110 · 33037-42030 |
| 33047 | No. 4 synchronizer lock ring assembly | 33047-20010 |
| 33134B | Output shaft cover (MTM) | 33134-20020 · 33134-20030 |
| 33137 | Input shaft cover (MTM) | 33137-20010 |
| 33311 | input shaft | 33311-42042 · 33311-42060 · 33311-42061 · 33311-42070 · 33311-42071 |
| 33311A | Bearing (for front input shaft) | 90363-27002 · 90365-30032 |
| 33311E | Radial ball bearing (for rear input shaft) | 90363-32053 · 90363-35068 · 90363-35080 |
| 33311K | Spacer (for input shaft rear bearing) | 90564-61113 · 90564-61114 · 90564-61115 · 90564-61116 · 90564-61117 · 90564-61118 · 90564-61119 · 90564-61120 · 90564-61121 · 90564-61122 · 90564-61123 · 90564-61124 · 90564-61125 · 90564-61126 |
| 33311P | Shaft snap ring (for input shaft rear bearing) | 90520-72007 |
| 33311T | Shaft snap ring (for input shaft) | 90520-30034 · 90520-30035 · 90520-30036 · 90520-30037 · 90520-30038 · 90520-30039 · 90520-30040 · 90520-30041 · 90520-30214 · 90520-30215 · 90520-30216 · 90520-30217 · 90520-30218 · 90520-30219 · 90520-30239 |
| 33311Y | Shaft snap ring (for input shaft rear bearing) | 90520-27080 · 90520-33037 · 90520-33038 · 90520-33039 · 90520-33040 · 90520-33041 · 90520-33042 · 90520-33043 · 90520-33044 · 90520-33045 · 90520-33046 · 90520-33047 |
| 33321 | output shaft | 33321-42060 · 33321-42090 |
| 33321A | Bearings (for rear output shaft) | 90363-32047 · 90366-28013 |
| 33321B | Shaft snap ring (for output shaft bearing) | 90520-77002 |
| 33321C | Shaft snap ring (for output shaft bearing) | 90520-30035 · 90520-30036 · 90520-30037 · 90520-30038 · 90520-30214 · 90520-30215 · 90520-30216 |
| 33321H | Spacer (for output shaft rear bearing) | 90564-45196 · 90564-45197 · 90564-45198 · 90564-45199 · 90564-45200 · 90564-45201 · 90564-45202 · 90564-45203 · 90564-45204 · 90564-45205 · 90564-45206 · 90564-45207 · 90564-45208 · 90564-45209 · 90564-45210 · 90564-45211 · 90564-45212 · 90564-45213 · 90564-52066 · 90564-52067 · 90564-52068 · 90564-52069 · 90564-52070 · 90564-52071 · 90564-52072 · 90564-52073 · 90564-52074 · 90564-52075 · 90564-52076 · 90564-52077 · 90564-52078 · 90564-52079 · 90564-52080 · 90564-52081 · 90564-52082 · 90564-52083 · 90564-52084 · 90564-52085 · 90564-52086 · 90564-52087 · 90564-52088 · 90564-52089 · 90564-52090 |
| 33321N | Bearing (for front output shaft) | 90365-36005 · 90366-36013 |
| 33321Y | Shaft snap ring (for front output shaft bearing) | 90520-34030 |
| 33322 | No. 2 output shaft | 33322-42010 |
| 33322A | Bearing (for No. 2 rear output shaft) | 90366-32028 |
| 33322B | Bearing (for No. 2 front output shaft) | 90366-35139 |
| 33322C | Snap ring (for No. 2 output shaft bearing) | 90520-30035 · 90520-30036 · 90520-30037 · 90520-30038 · 90520-30214 · 90520-30215 · 90520-30216 |
| 33322D | Collar (for output shaft) | 90386-36001 · 90386-42001 |
| 33326 | Bearing locking plate | 33326-20020 |
| 33326A | Bolt (for bearing locking plate) | 91611-B0812 |
| 33327 | No. 4 transmission hub sleeve | 33327-20010 |
| 33331 | reverse gear | 33331-20080 · 33331-20100 |
| 33331A | Bearing (for reverse gear) | 90364-47009 |
| 33332 | Second gear | 33332-20180 · 33332-42060 · 33332-64010 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-50004 · 90364-51002 |
| 33333 | Third gear | 33034-42030 · 33333-20100 |
| 33333A | Needle roller bearing (for third gear) | 90364-36022 · 90364-41004 |
| 33333C | Collar (for third gear) | 90387-37002 |
| 33334 | fourth gear | 33025-20010 · 33025-33010 · 33334-64011 |
| 33334A | Needle roller bearing (for fourth gear) | 90364-42007 |
| 33334B | Spacer (for fourth gear bearing) | 90560-41005 · 90560-42002 |
| 33335 | first gear | 33335-42060 · 33335-42070 · 33335-64010 |
| 33335C | Needle roller bearing (for first gear) | 90364-47009 · 90364-51003 |
| 33336 | fifth gear | 33336-20150 · 33336-33040 |
| 33336A | Needle roller bearings (for fifth gear) | 90364-42007 · 90364-45016 |
| 33336B | Spacer (for fifth gear bearing) | 90560-42002 |
| 33337 | Sixth speed gear sub-assembly | 33337-20120 · 33337-33010 · 33337-42011 |
| 33337A | Needle roller bearing (for sixth gear) | 90364-36023 · 90364-42006 |
| 33345 | First gear bushing | 33345-20040 |
| 33352B | No. 4 transmission clutch hub | 33352-20010 |
| 33352C | Shaft snap ring | 90520-39038 · 90520-39039 · 90520-39040 · 90520-39041 · 90520-39042 · 90520-39043 · 90520-39044 · 90520-39045 |
| 33356A | Second gear gear bearing inner race | 33356-20040 · 33356-20060 |
| 33356B | Second gear gear bearing inner race locking steel ball | 90360-06004 |
| 33356C | Snap ring (for second gear bearing inner race) | 90520-39046 · 90520-39047 · 90520-39048 · 90520-39049 · 90520-39050 · 90520-39051 · 90520-39052 · 90520-39053 |
| 33359 | Fifth gear gear bearing inner race | 33359-20020 |
| 33359A | Fifth gear gear bearing inner race locking steel ball | 90360-05012 |
| 3335A | Sixth gear bearing inner race (MTM) | 3335A-20020 |
| 3335AA | Six-speed gear bearing inner race locking steel ball (MTM) | 90360-05012 |
| 33361 | No. 1 transmission clutch hub | 33361-20060 · 33361-20080 |
| 33361B | Shaft snap ring (for clutch hub No. 1) | 90520-33030 · 90520-33031 · 90520-33032 · 90520-33034 · 90520-33035 · 90520-33036 |
| 33362 | No. 2 transmission clutch hub | 33362-20030 · 33362-20050 |
| 33362A | Shaft snap ring (used to secure the No. 2 clutch hub) | 90520-33030 · 90520-33031 · 90520-33032 · 90520-33034 · 90520-33035 · 90520-33036 · 90520-39055 · 90520-39056 · 90520-39057 · 90520-39058 · 90520-39059 · 90520-39060 |
| 33363 | No. 1 transmission hub sleeve | 33363-20041 |
| 33364 | No. 2 transmission hub sleeve | 33364-20061 · 33364-20080 |
| 33365 | No. 1 synchromesh shift key | 33365-20070 · 33365-53010 |
| 33365C | Steel ball (for synchromesh shift key) | 90360-05010 |
| 33366 | No. 2 synchromesh shift key | 33365-20080 |
| 33368H | Synchronizer ring (for fourth gear) | 33381-20030 |
| 33368J | Synchronizer ring (for fifth gear) | 33385-20020 |
| 33369 | No. 3 synchronizer lock ring | 33369-20060 |
| 33369B | No. 4 synchronizer lock ring | 33381-20010 |
| 33371 | No. 1 synchromesh shift key spring | 33371-20030 |
| 33392 | No. 3 synchromesh shift key spring | 33392-35010 |
| 33393 | No. 3 transmission clutch hub | 33393-20030 · 33393-20050 |
| 33394 | No. 3 synchromesh shift key | 33365-20080 · 33394-20030 |
| 33395 | No. 3 transmission hub sleeve | 33395-20050 · 33395-20070 |
| 33396C | No. 5 synchronizer locking ring (MTM) | 33396-20020 |
| 33402 | Reverse idler gear sub-assembly | 33402-20090 |
| 33422B | Fourth gear driven gear | 33035-64010 · 33422-20090 · 33422-33010 |
| 33423A | Third gear driven gear | 33034-20091 · 33423-42030 |
| 33428C | fifth speed driven gear | 33036-64010 · 33428-20150 · 33428-33010 |
| 33429B | Sixth speed driven gear | 33037-42010 · 33429-20090 · 33429-33010 |
| 33431C | Output gear spacer | 33431-20100 |
| 33451 | Reverse gear idler shaft | 33451-20050 · 33451-20070 |
| 33451H | Bolt (for reverse idler shaft) | 90105-08150 |
| 33451J | Gasket (for reverse idler shaft) | 90430-08010 |
| 33461 | reverse idler gear | 33461-64010 |
| 33461A | Reverse idler bearing | 90364-37014 |
| 33462 | Reverse idler thrust washer | 33462-20060 · 33462-20080 |
