Toyota RAV4 离合器壳和变速器壳(MTM) — Figure 3302

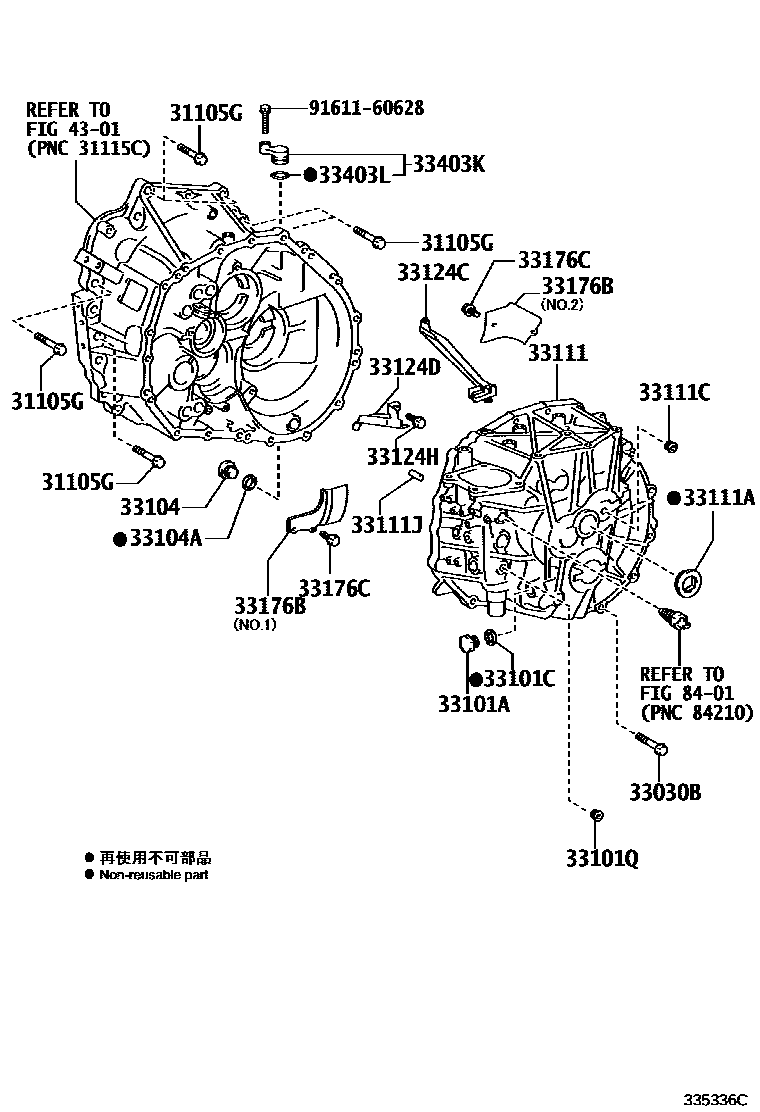

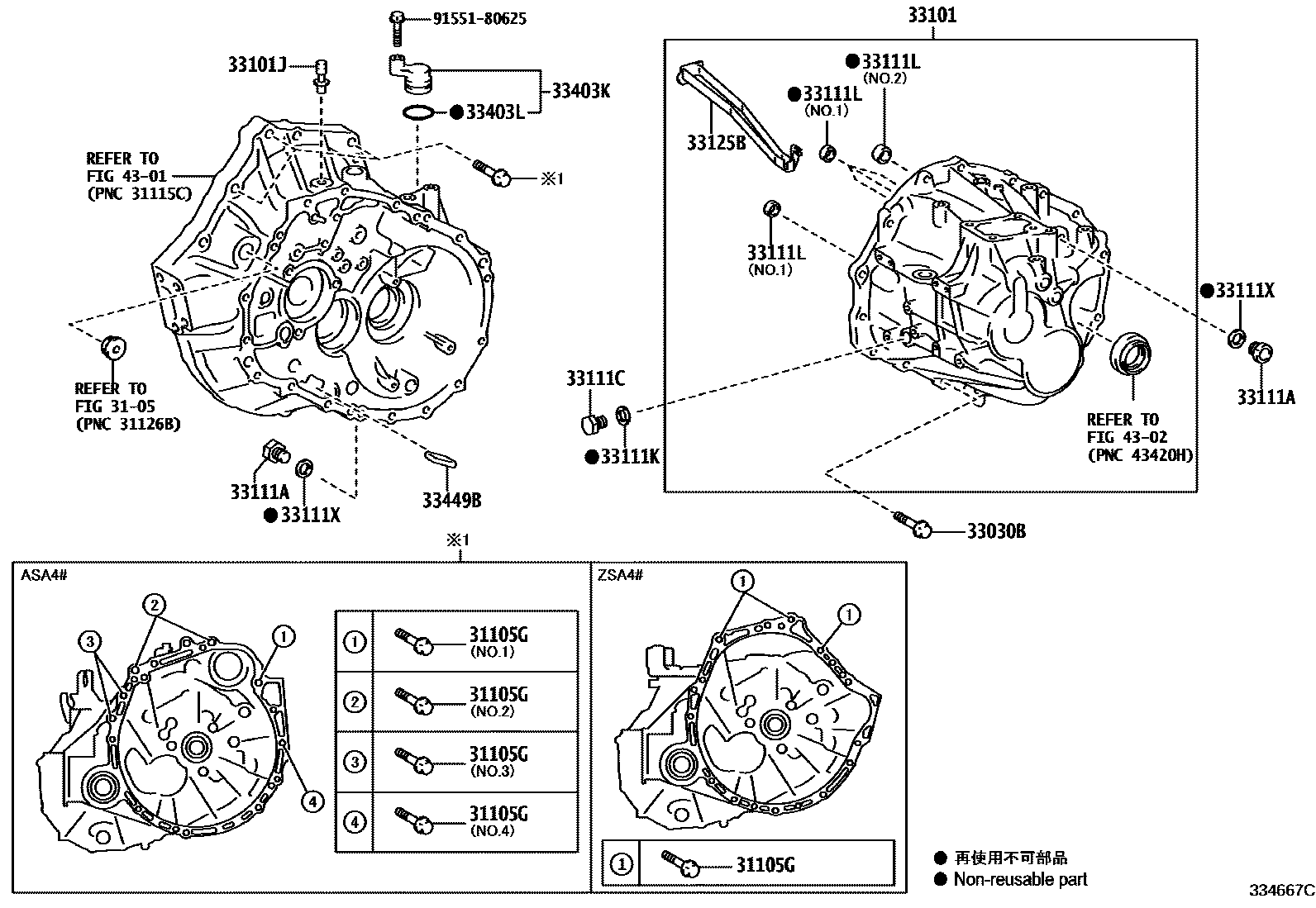

Toyota RAV4 EPC diagram 3302, 离合器壳和变速器壳(MTM), with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105G | Bolts (for securing transaxle housing and engine) | 90105-12147 · 90119-12042 · 90119-12252 · 91512-61045 · 91512-61060 · 91512-61065 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 90105-08086 · 91551-10840 |
| 33101 | Manual transmission housing sub-assembly | 33101-20100 · 33101-33030 · 33101-42050 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18033 |
| 33101C | Gasket (for manual transmission filler plug) | 90430-18008 |
| 33101J | vent plug | 90930-03085 |
| 33101Q | No. 1 screw plug (for gearbox) | 90341-18019 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18006 |
| 33104A | Drain plug gasket (MTM) | 90430-18008 |
| 33111 | Manual transmission housing | 33111-42060 |
| 33111A | Manual transmission plug | 90341-18006 · 90341-42002 |
| 33111C | Screw plug (for gearbox) | 90341-12004 · 90341-18033 |
| 33111J | Direct sales (for manual transmission) | 90250-08054 |
| 33111K | Gasket (for gearbox) | 12157-10010 |
| 33111L | Bimetallic bushing (for gearbox) | 90384-14008 · 90384-16005 |
| 33111X | Gearbox plug gasket | 12157-10010 |
| 33124C | No. 1 oil collecting pipe (MTM) | 33124-20040 |
| 33124D | No. 2 oil collecting pipe (MTM) | 33124-42010 |
| 33124H | Bolt (for oil collection pipe) | 91611-B0616 |
| 33125B | Manual gearbox oil collector | 33125-20020 |
| 33176B | Transmission oil separator (MTM) | 33176-20010 · 33176-20020 |
| 33176C | Bolt (for transmission oil separator) | 91611-B0616 |
| 33403K | Speedometer driven gear hole cover sub-assembly | 33403-20230 |
| 33403L | O-ring | 96711-24018 |
| 33449B | derailleur magnet | 33449-60010 |
