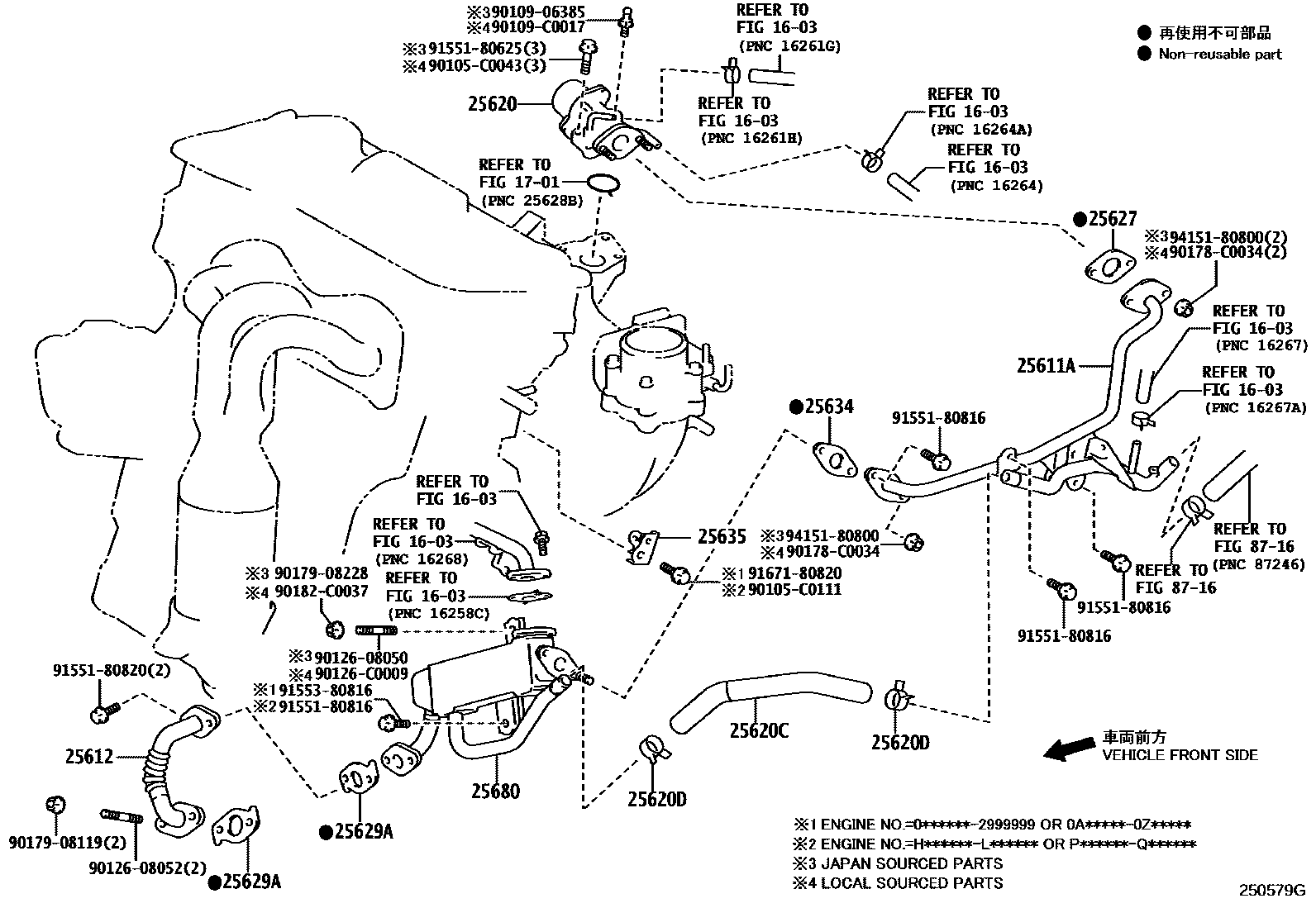

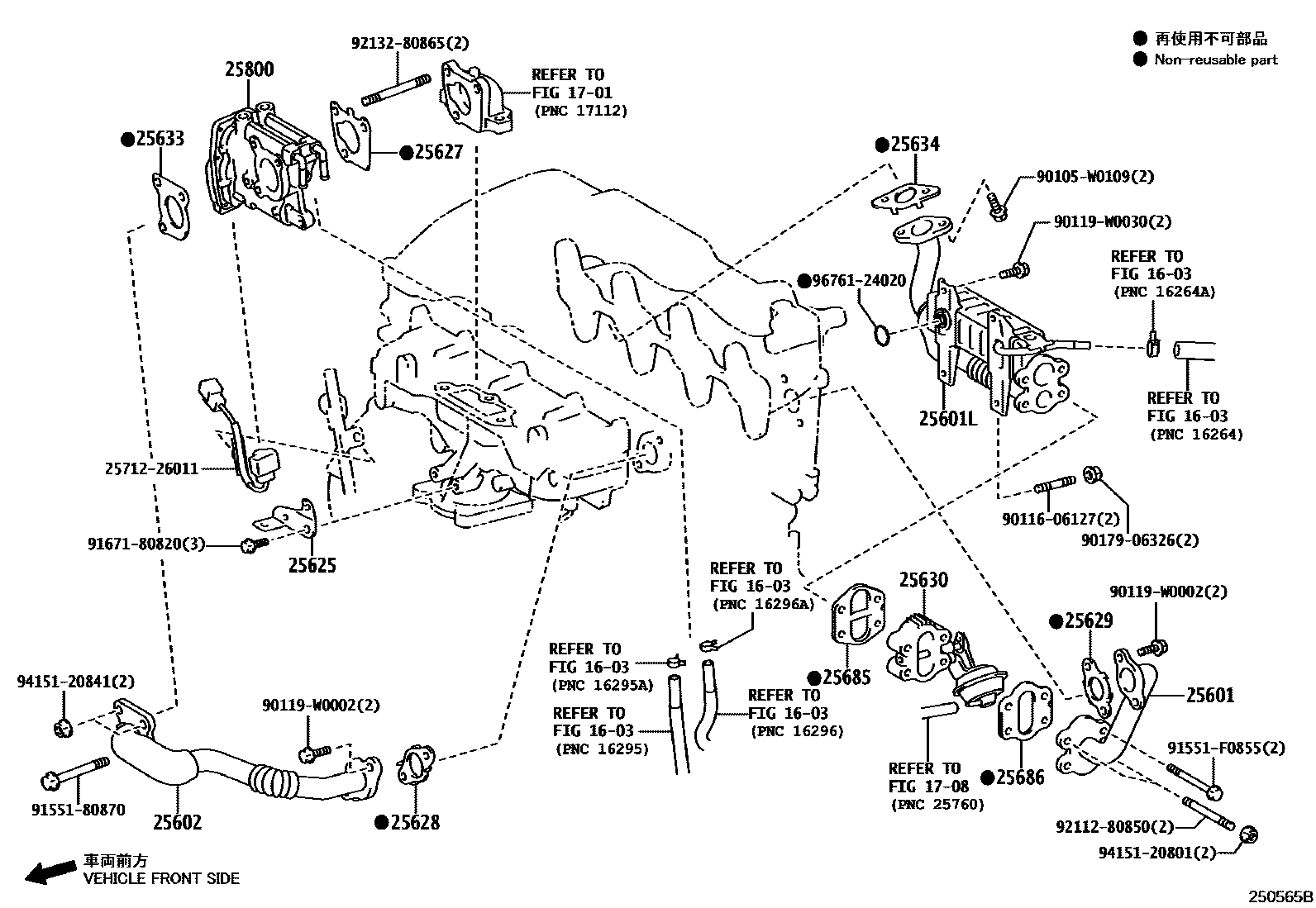

Toyota RAV4 废气再循环系统 — Figure 2501
Toyota RAV4 EPC diagram 2501, 废气再循环系统, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25611-0R020 · 25611-26030 |
| 25601L | EGR pipe assembly with cooler | 25601-0R020 |
| 25602 | No. 2 EGR pipe assembly | 25612-0R031 |
| 25611A | No. 1 EGR tube | 25611-36011 |
| 25612 | No. 2 EGR tube | 25612-36010 |
| 25620 | EGR valve assembly | 25620-36060 |
| 25620C | HOSE, WATER BY-PASS, NO.1 | 16282-36100 |
| 25620D | CLIP, WATER BY-PASS HOSE NO.1 | 90466-21001 |
| 25625 | EGR valve bracket | 25625-26010 |
| 25627 | EGR valve gasket | 25627-0R020 · 25627-36010 |
| 25628 | EGR air intake gasket | 25628-0R010 · 25628-26020 |
| 25629 | EGR valve adapter gasket | 25629-0R010 |
| 25629A | No. 2 EGR tube gasket | 25629-36010 |
| 25630 | No. 2 EGR valve assembly | 25630-26020 |
| 25633 | EGR valve gasket | 25633-0R020 |
| 25634 | EGR tube gasket | 25634-0R010 · 25634-36010 |
| 25635 | No. 1 EGR tube holder | 25635-36010 |
| 25680 | EGR cooler assembly | 25680-36012 |
| 25685 | No. 1 EGR Cooler Gasket | 25685-0R011 |
| 25686 | No. 2 EGR Cooler Gasket | 25686-0R010 |
| 25800 | Electronic EGR control valve assembly | 25800-0R010 |
