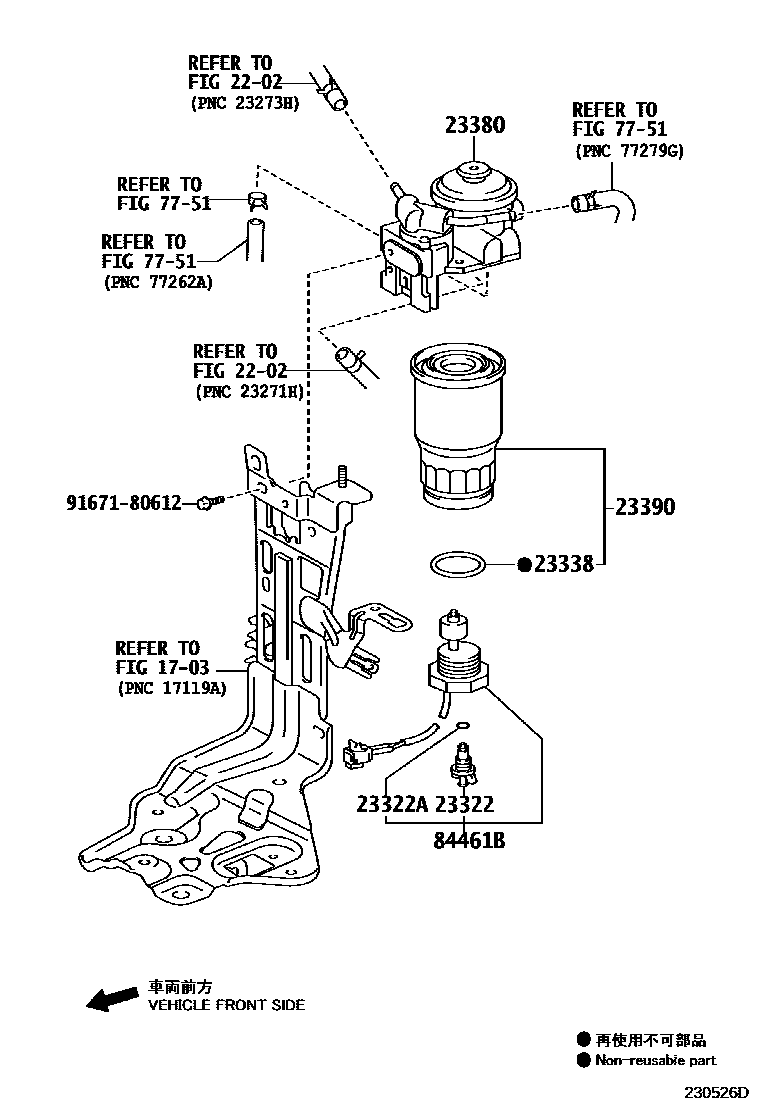

Toyota RAV4 fuel filter — Figure 2302
Toyota RAV4 EPC diagram 2302, fuel filter, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23322 | Drain plug (for fuel filter) | 23388-64470 |
| 23322A | O-ring (for drain plug) | 23344-54010 |
| 23338 | Gasket (for warning switch) | 23344-64010 |
| 23380 | Fuel filter cover assembly | 23380-26113 |
| 23390 | Fuel filter element assembly | 23390-26150 · 23390-33030 |
| 84461B | Liquid level warning switch | 84461-26092 |
