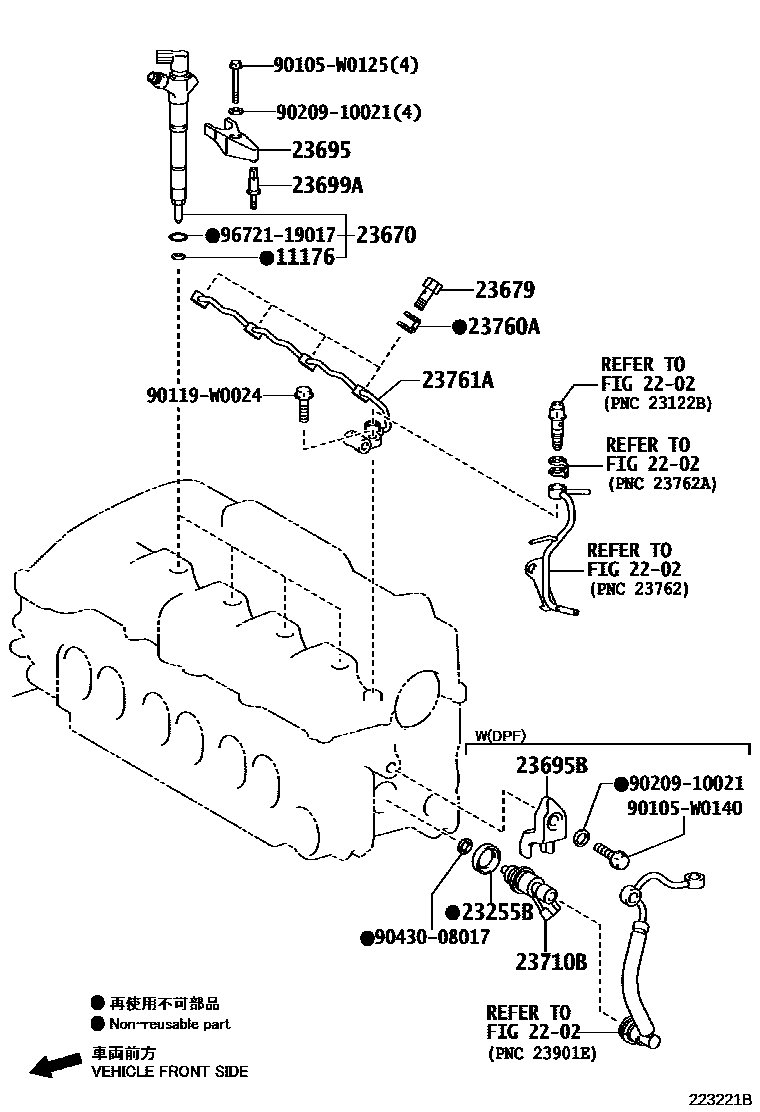

Toyota RAV4 喷油嘴 — Figure 2201
Toyota RAV4 EPC diagram 2201, 喷油嘴, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11176 | Injector seat | 11176-26020 |
| 23255B | Injector seal | 23255-26010 |
| 23670 | Fuel injector assembly | 23670-29126 |
| 23679 | Fuel injector hollow screw | 23679-26020 |
| 23695 | No. 1 injector body clamp | 23695-0R021 |
| 23695B | No. 2 injector body clamp | 23695-26011 |
| 23699A | Injector body clamp seat | 23699-0R021 |
| 23710B | Exhaust fuel addition injector assembly | 23710-26012 |
| 23760A | padding | 90904-30008 |
| 23761A | No. 1 fuel injector overflow pipe | 23761-0R040 · 23761-26030 |
