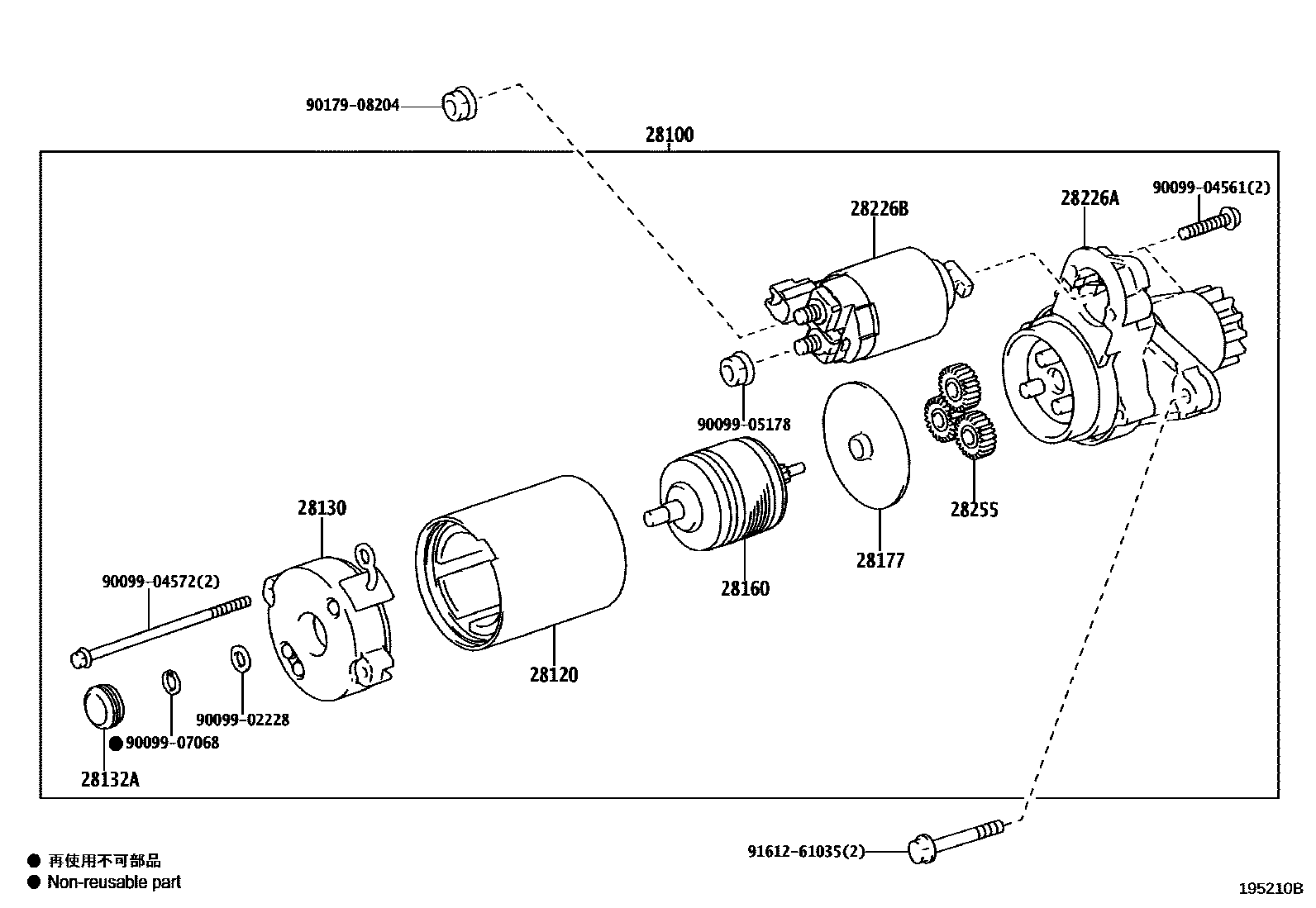

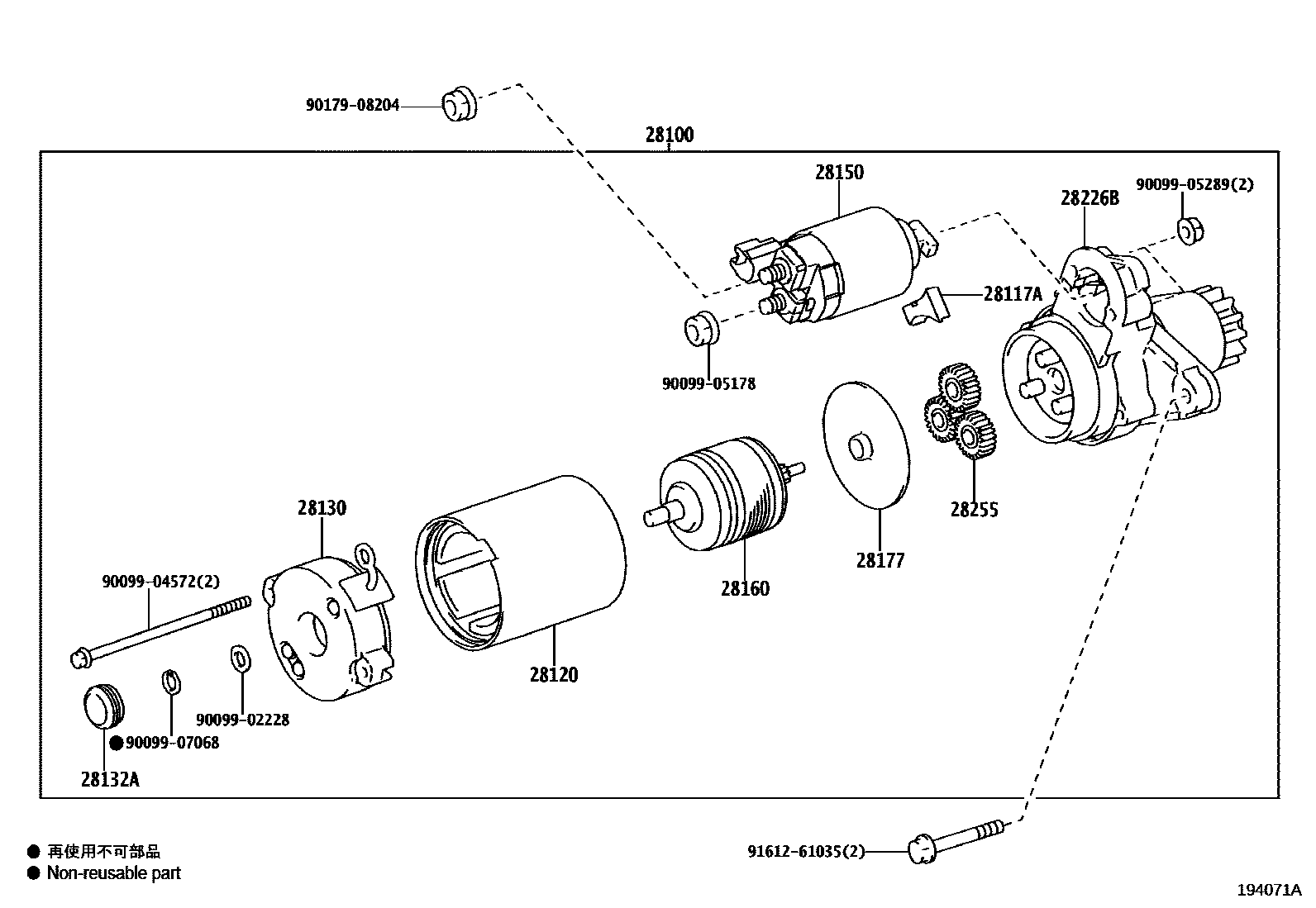

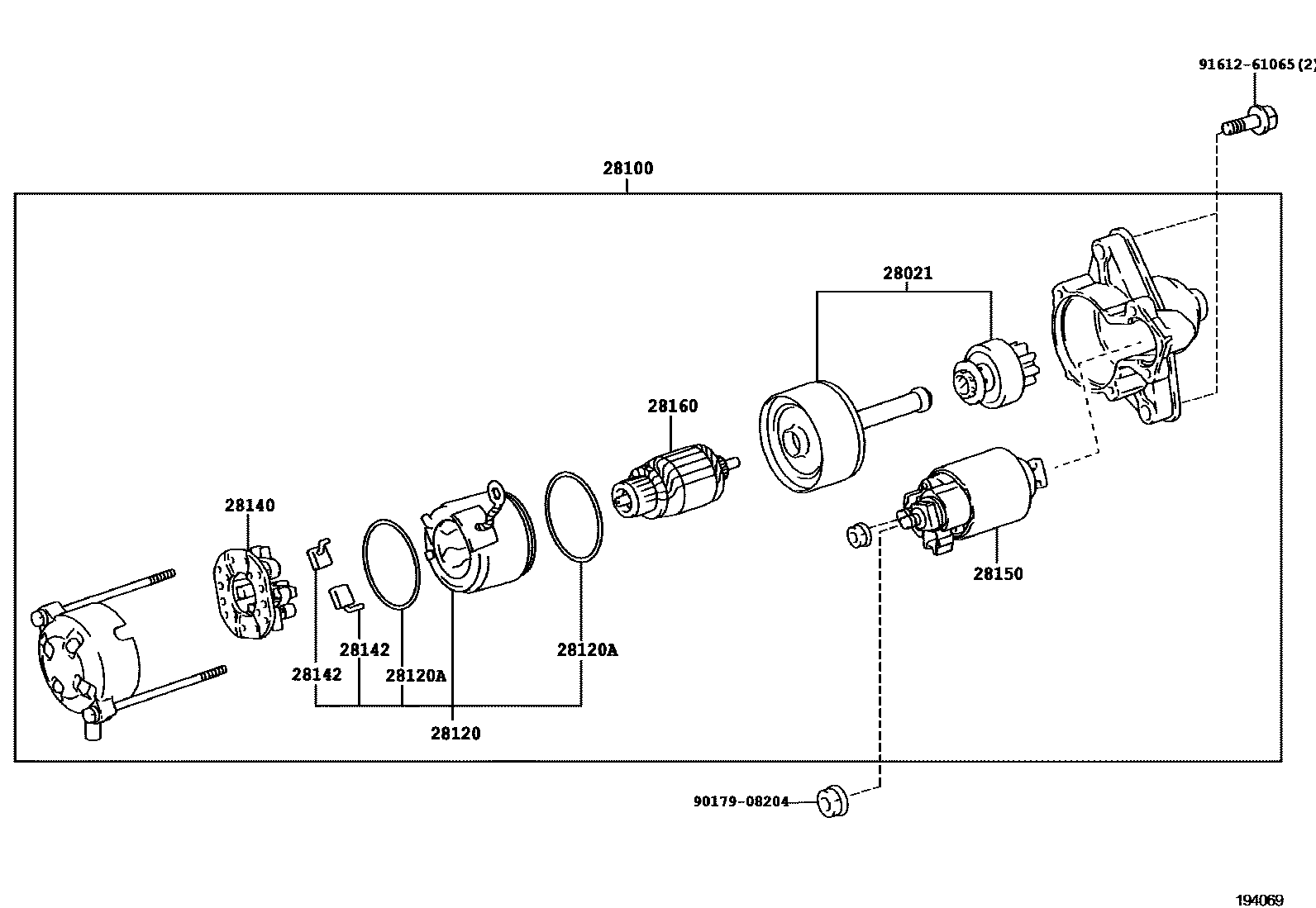

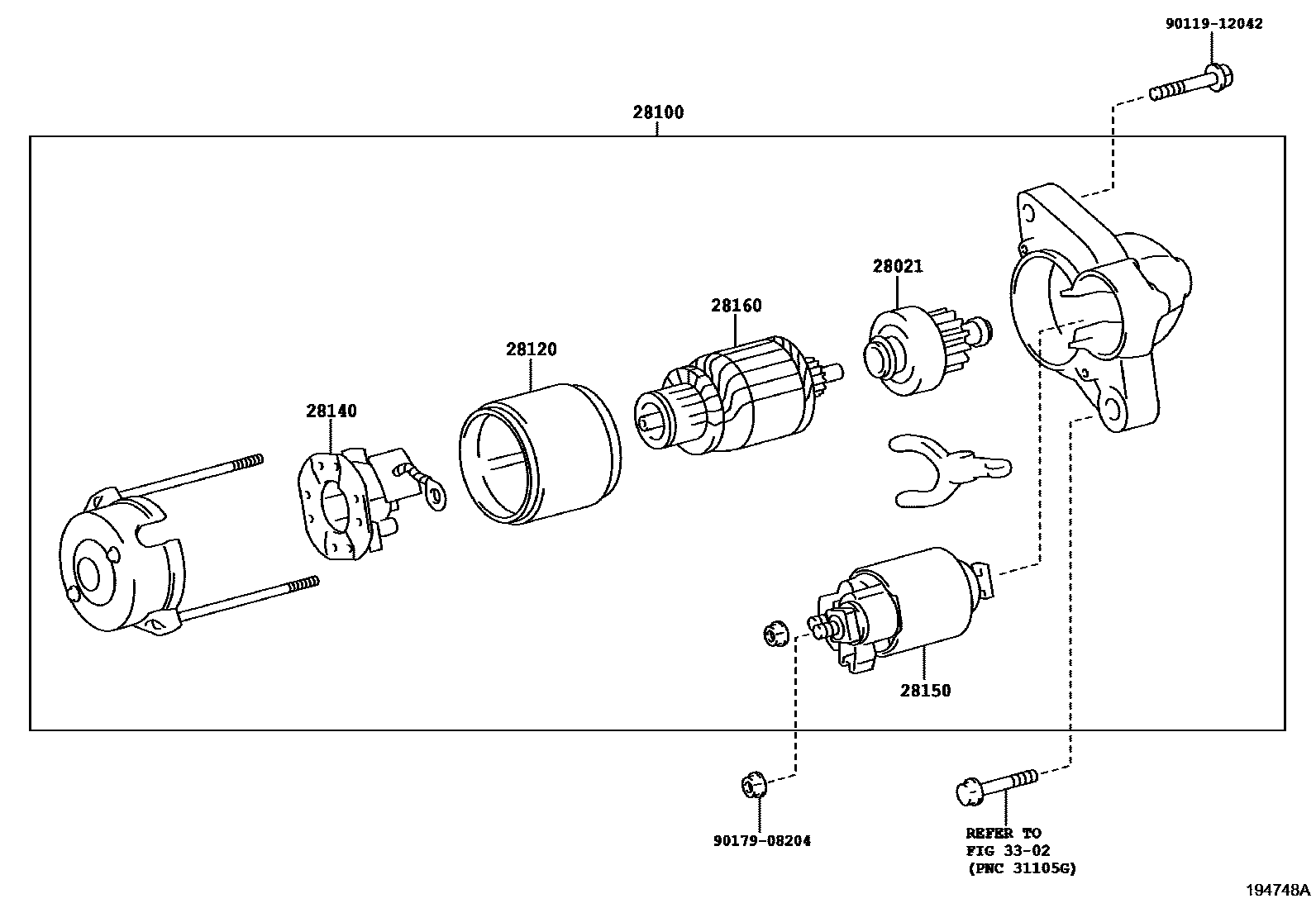

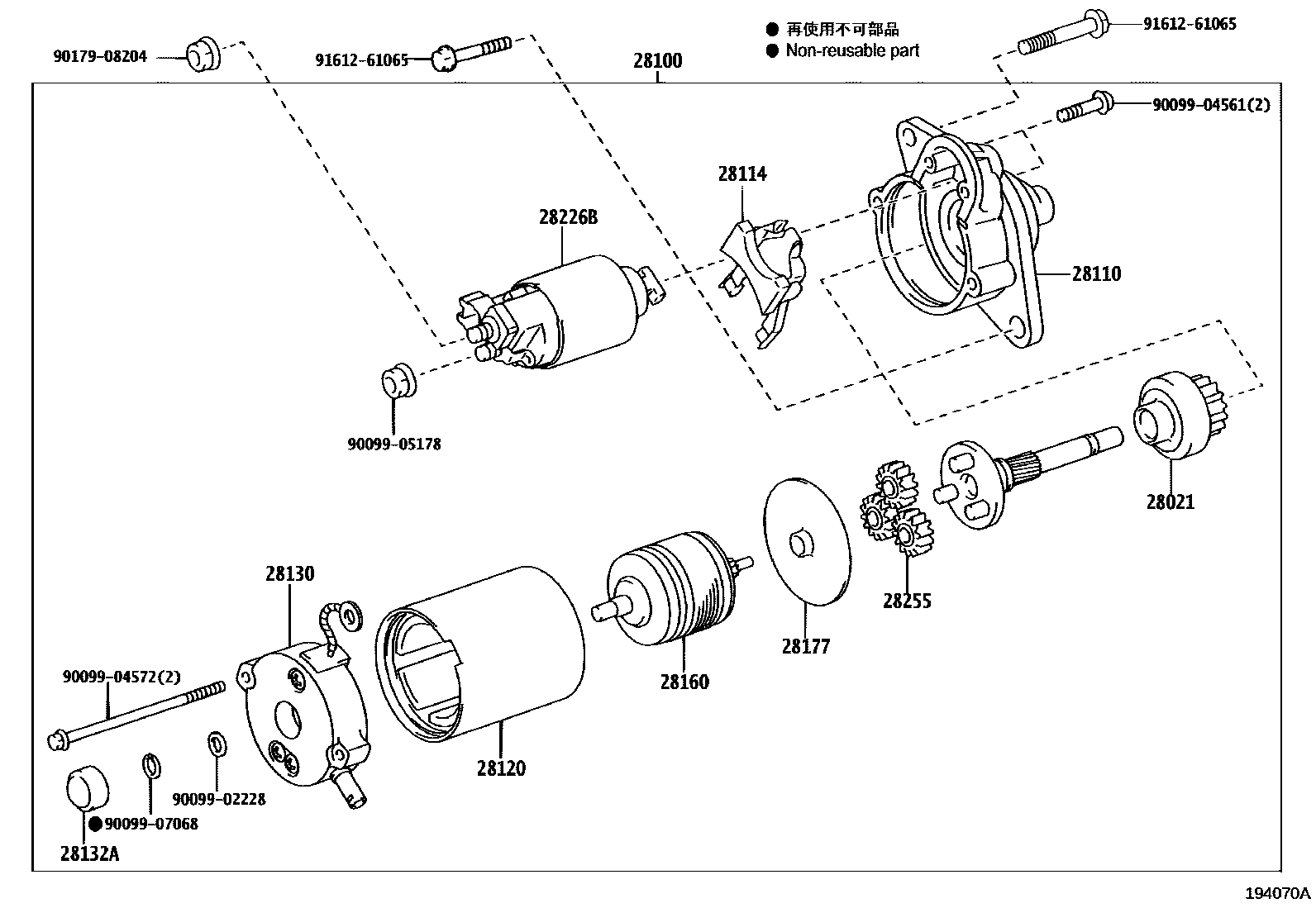

Toyota RAV4 起动机 — Figure 1904
Toyota RAV4 EPC diagram 1904, 起动机, with 5 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-21060 · 28021-26180 · 28021-70020 |
| 28100 | Starter assembly | 28100-20021 · 28100-20022 · 28100-26181 · 28100-28062 · 28100-37031 · 28100-37032 · 28100-37090 |
| 28110 | Starter drive end housing assembly | 28110-37040 |
| 28114 | starter drive lever | 28114-21060 |
| 28117A | Rubber seal | 28117-28060 |
| 28120 | Starter yoke assembly | 28120-26180 · 28120-28060 · 28120-28080 · 28120-40130 |
| 28120A | O-ring (for starter yoke) | 90099-14092 |
| 28130 | Starter commutator end frame assembly | 28130-20020 · 28130-28040 · 28130-37040 |
| 28132A | Starter commutator end frame cover | 28132-28040 |
| 28140 | Starter brush holder assembly | 28140-38070 · 28140-70020 |
| 28142 | starter brush | 28142-70020 |
| 28150 | Starter electromagnetic switch assembly | 28150-22100 · 28150-37020 · 28150-40090 · 28226-28051 |
| 28160 | Starter armature assembly | 28160-21060 · 28160-26180 · 28160-28040 · 28160-70050 |
| 28177 | Plate (for starter armature) | 28177-28040 |
| 28226B | starter magnetic switch | 28226-22061 · 28226-28041 · 28226-28060 |
| 28255 | Planetary gear | 28255-20020 · 28255-28040 |
