Toyota RAV4 Alternator — Figure 1903

Toyota RAV4 EPC diagram 1903, Alternator, with 4 images and 14 PNC and OE references.

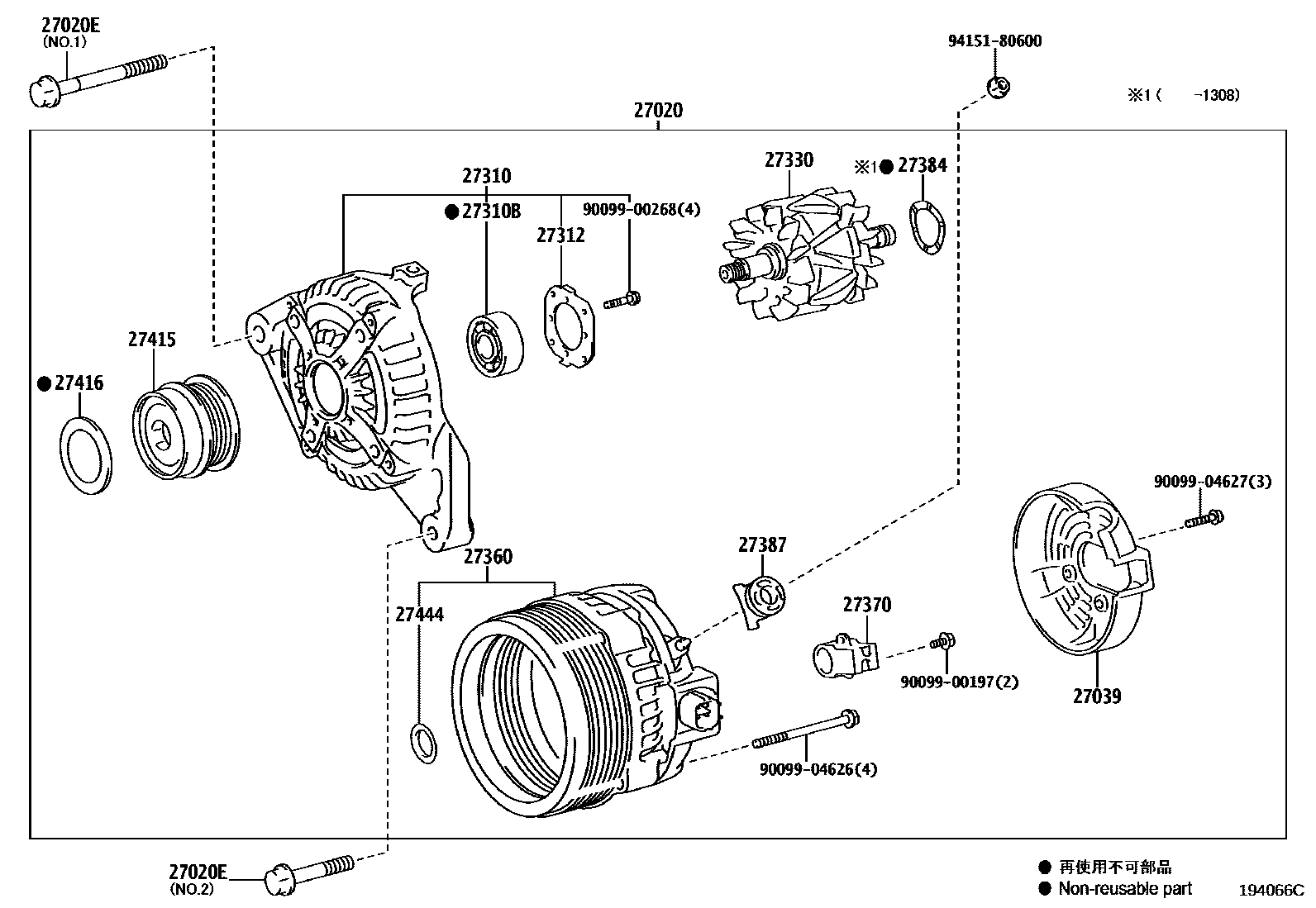

Toyota RAV4 Alternator EPC diagram — 194066C
Alternator — 194066C (201212 – 999999)

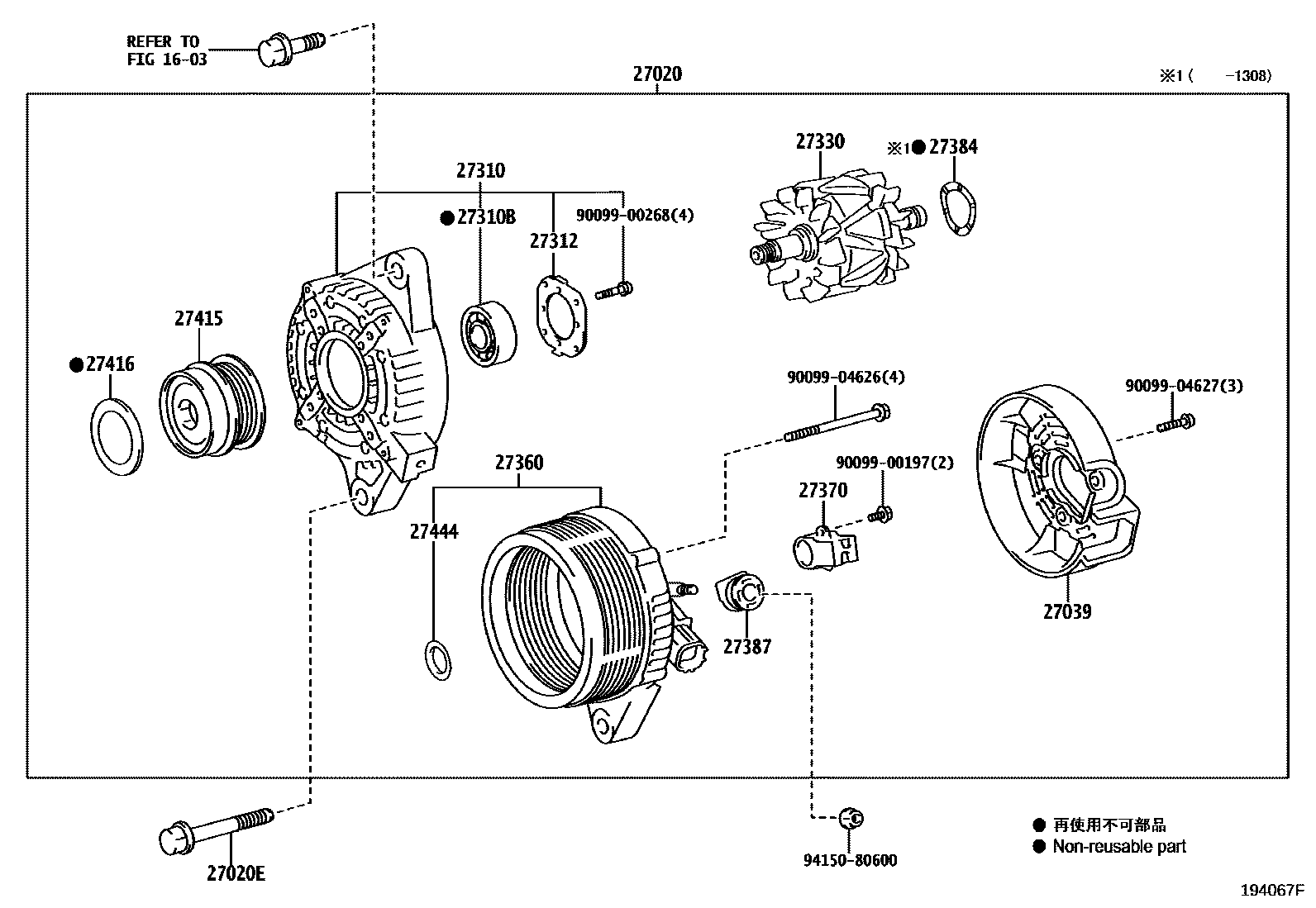

Toyota RAV4 Alternator EPC diagram — 194067F
Alternator — 194067F (201212 – 201510)

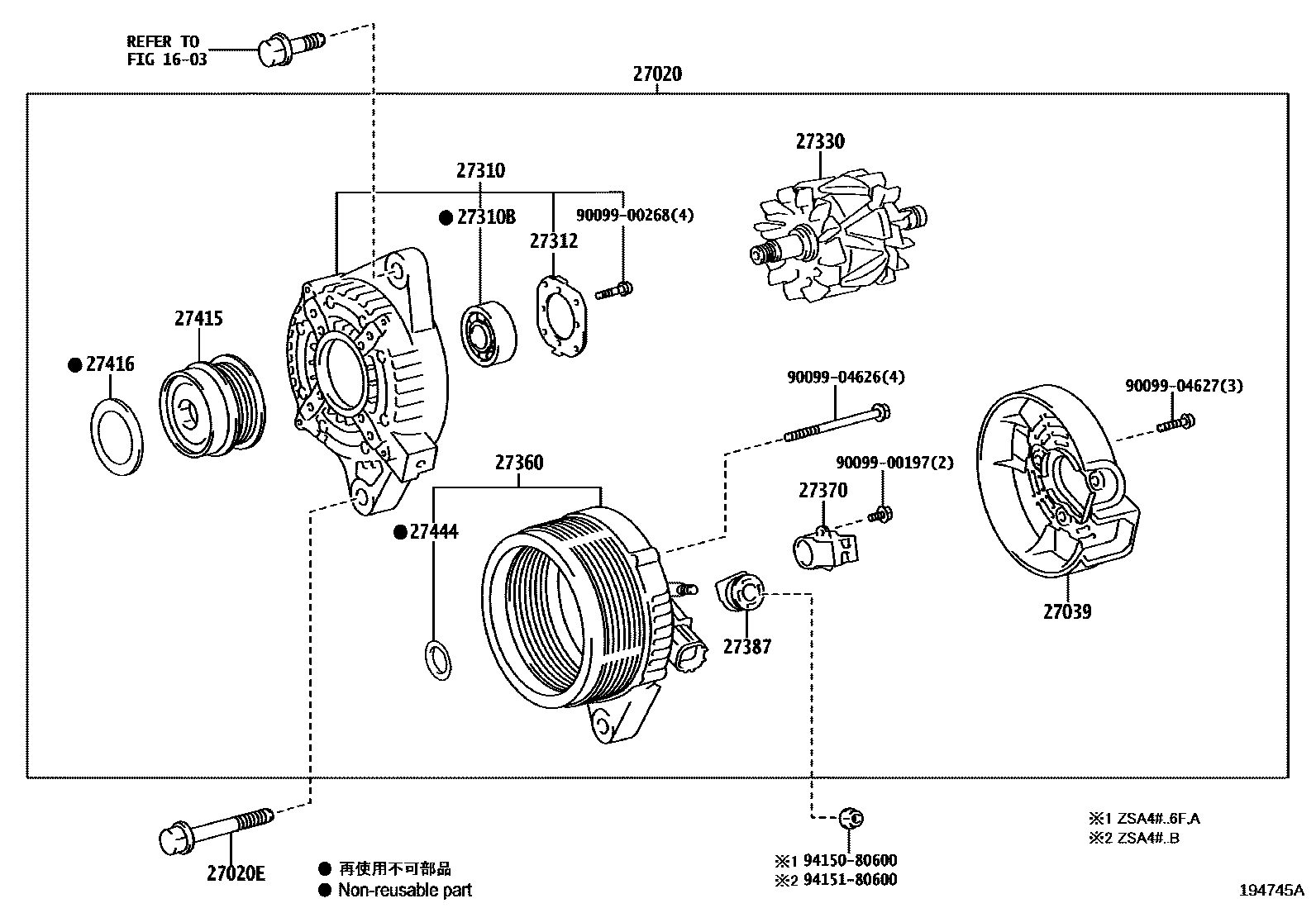

Toyota RAV4 Alternator EPC diagram — 194745A
Alternator — 194745A (201510 – 999999)

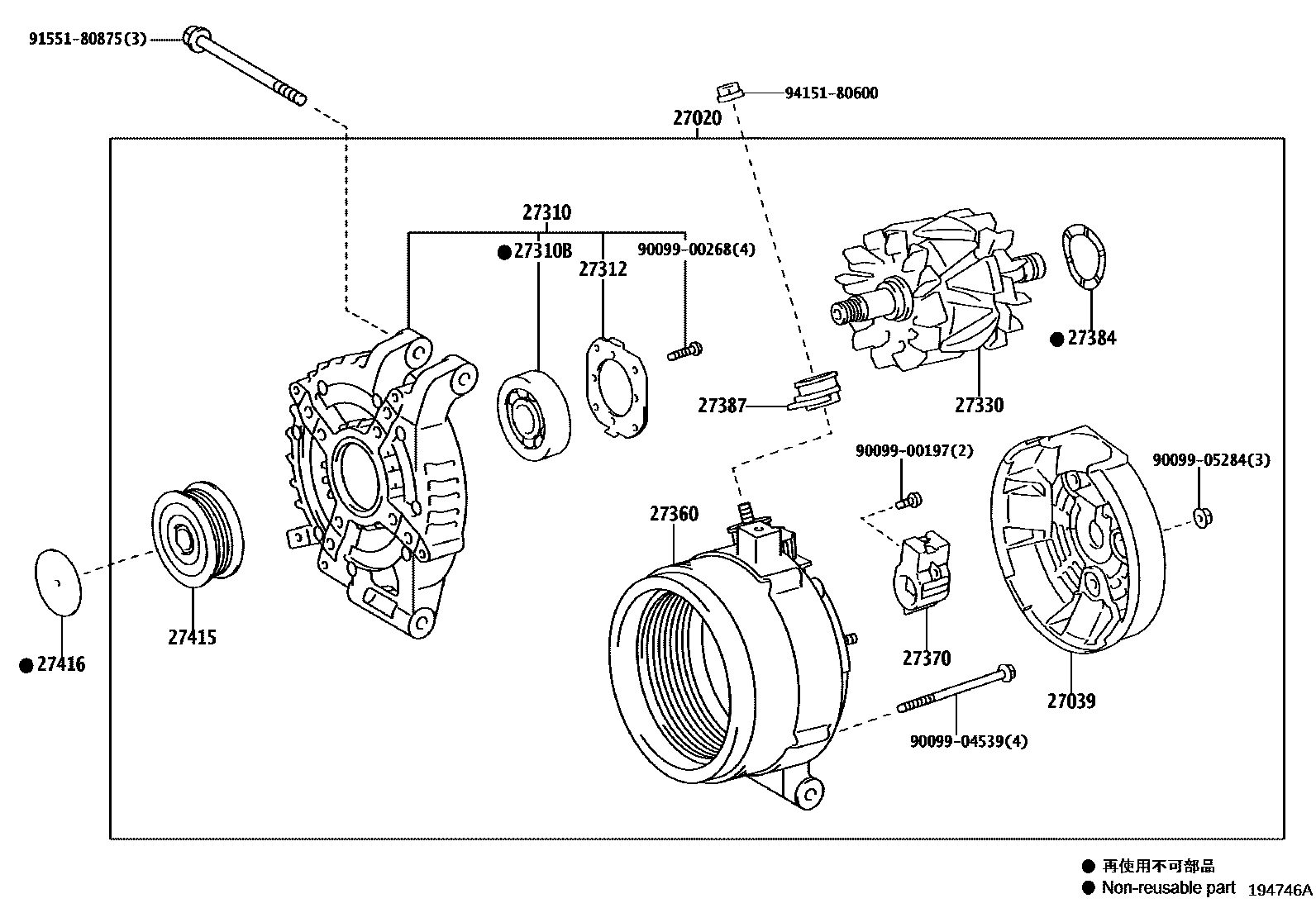

Toyota RAV4 Alternator EPC diagram — 194746A
Alternator — 194746A (201510 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-26081 · 27060-36080 · 27060-37150 · 27060-37180
27020EBolts (for generator)90105-10307 · 90105-10562 · 91552-81045
27039Alternator Rear End Cover27039-27090 · 27039-47330
27310Alternator Drive End Frame Assembly27310-27090 · 27310-36160 · 27310-37130
27310BBearing (for Alternator Drive End Frame)90099-10223
27312Retainer Plate27312-72100
27330Alternator Rotor Assembly27330-47330 · 27330-58460
27360Alternator Stator Coil Assembly27360-26260 · 27360-36160 · 27360-36161 · 27360-37180 · 27360-37181 · 27360-37211
27370Alternator Brush Holder Assembly27370-31220 · 27370-58460
27384Washer27384-38130 · 27384-50030
27387Terminal Insulator27387-20130
27415PULLEY, ALTERNATOR W/CLUTCH27415-0T011 · 27415-0T060 · 27415-0W020 · 27415-0W021 · 27415-26010
27416Generator pulley cover27416-0W020 · 27416-0W050 · 27416-27010
27444Generator bearing cap seals27444-21190
