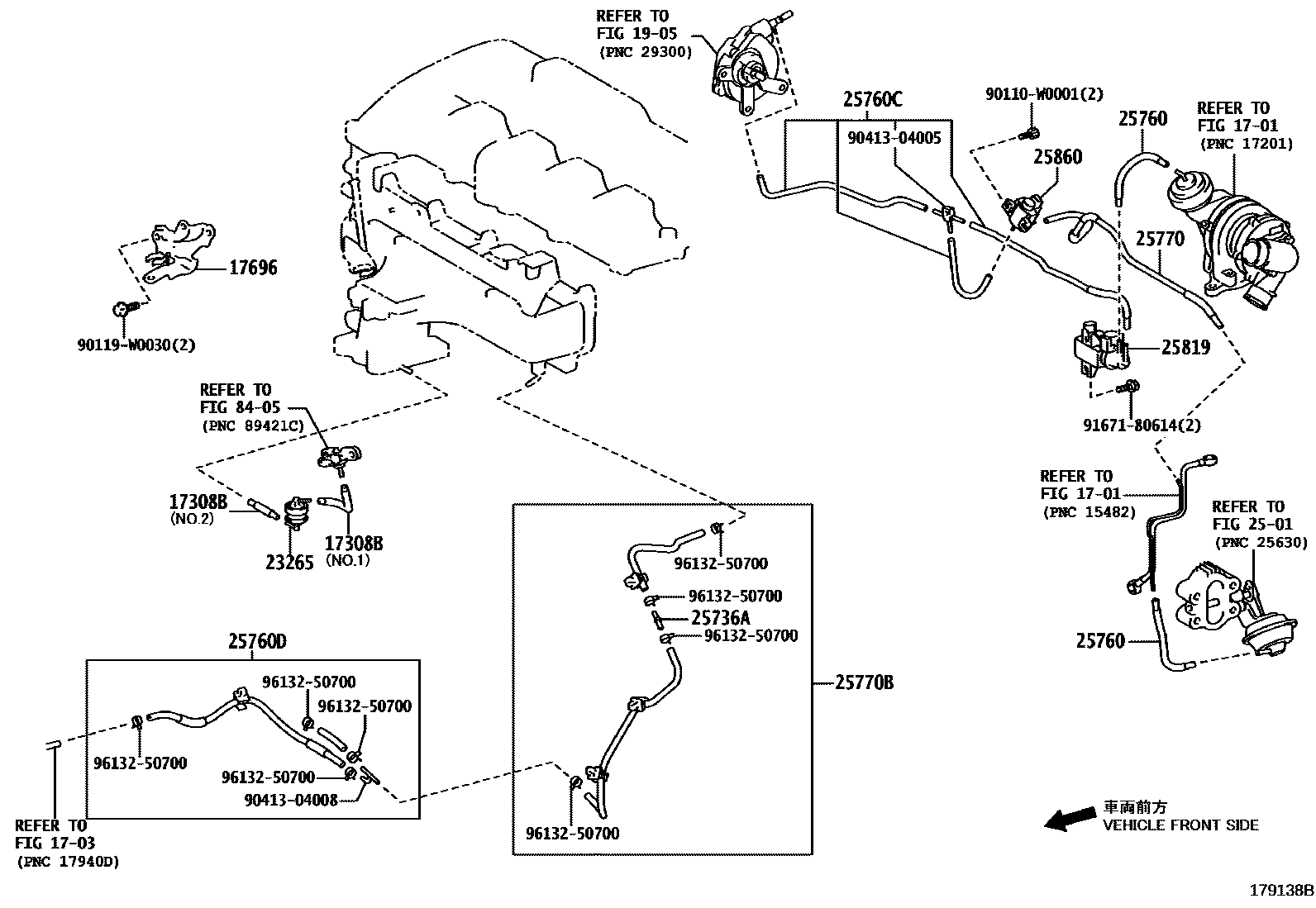

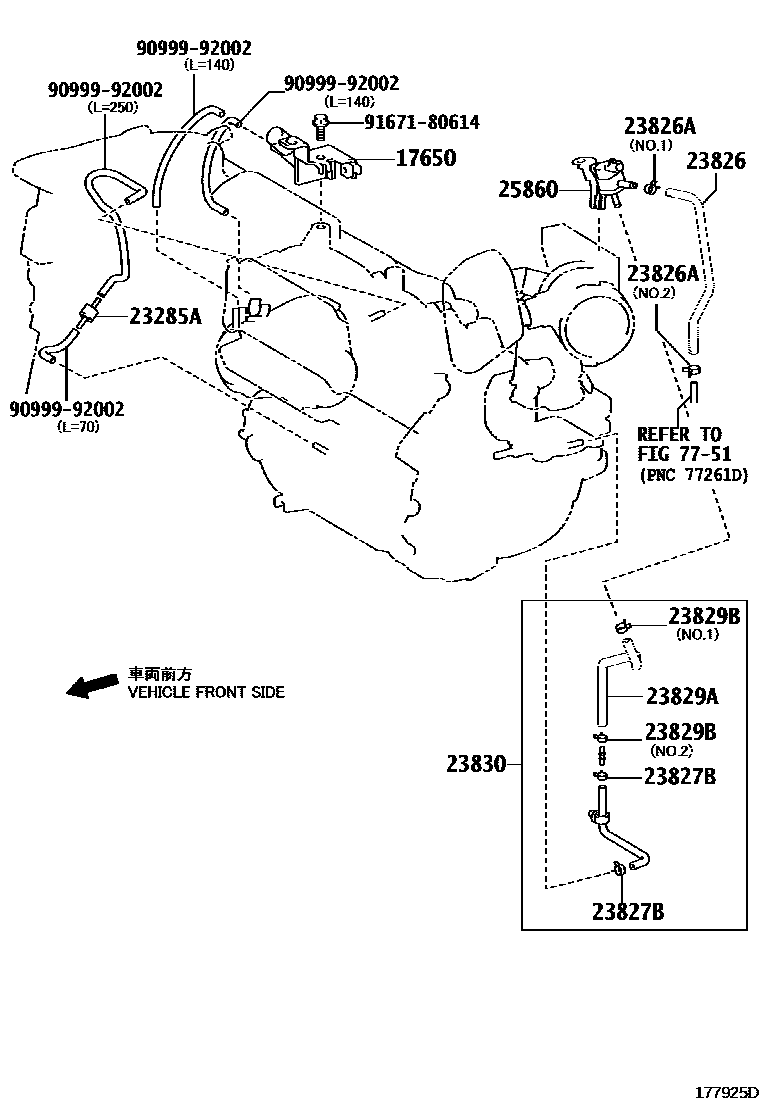

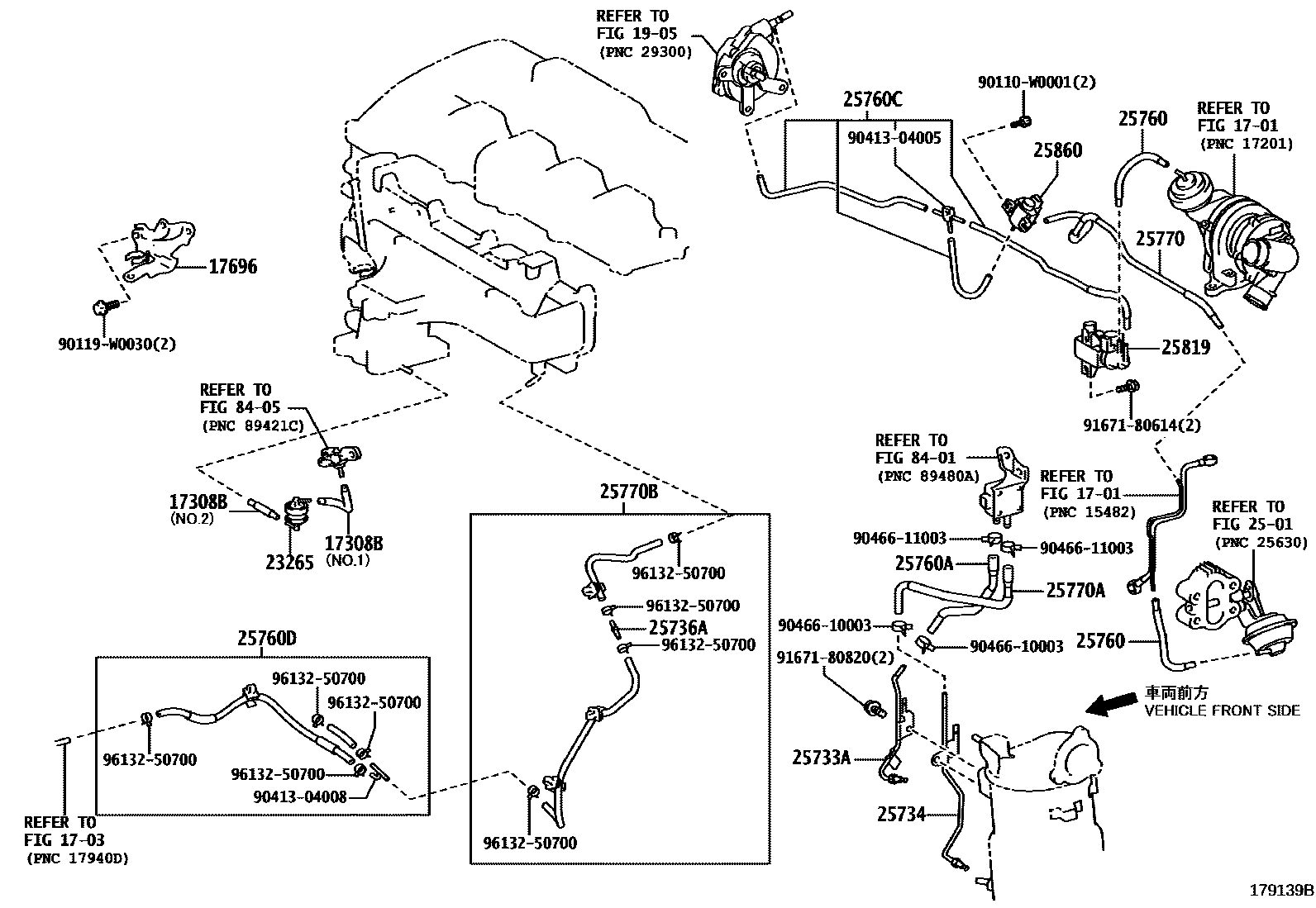

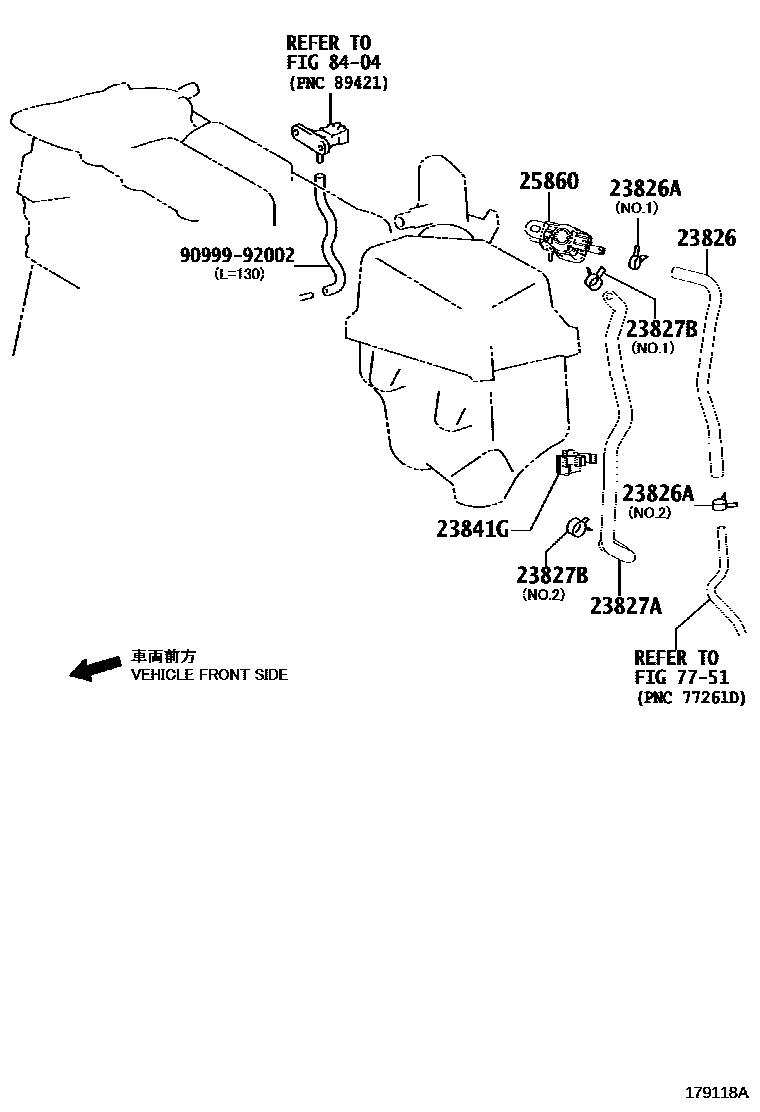

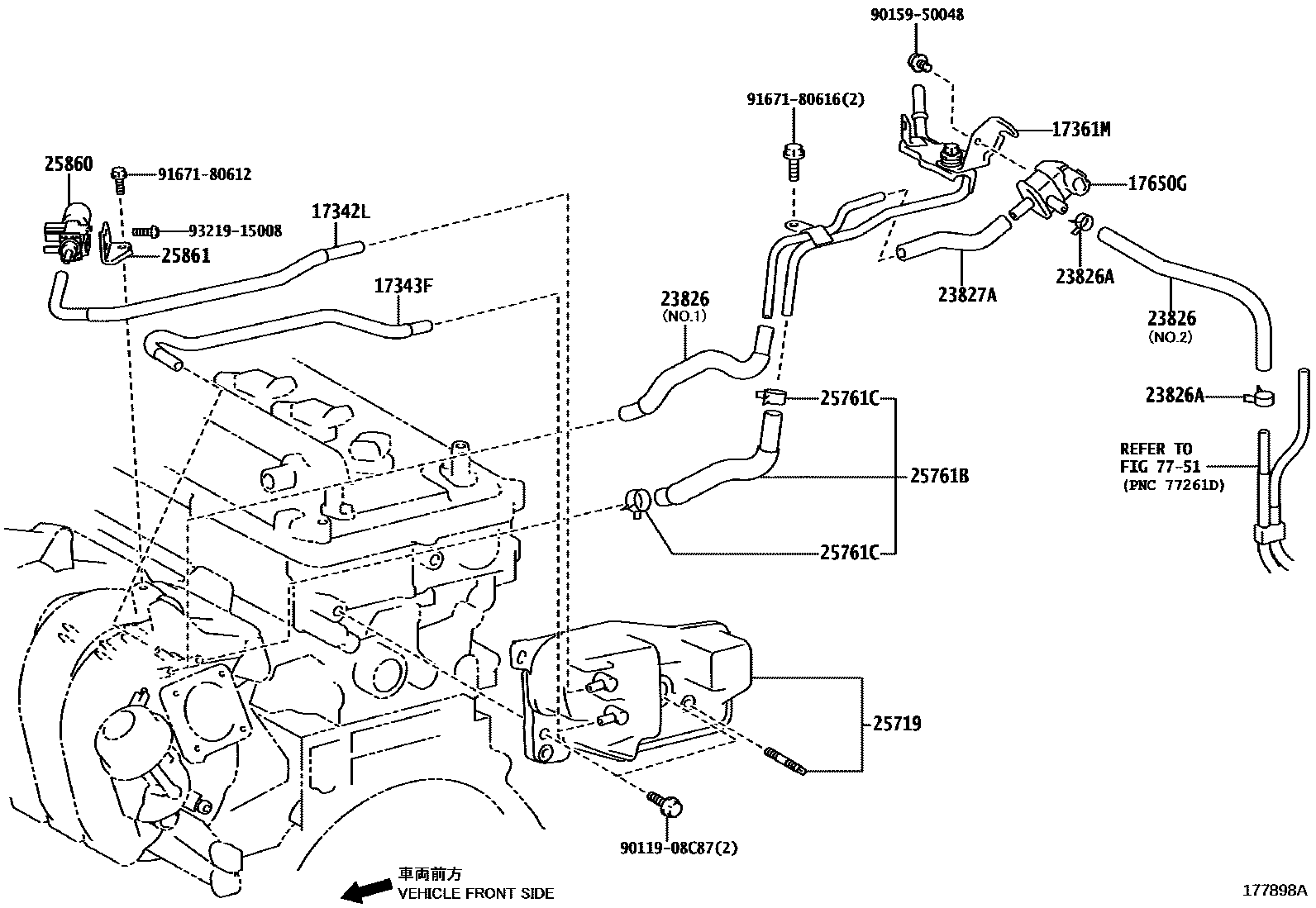

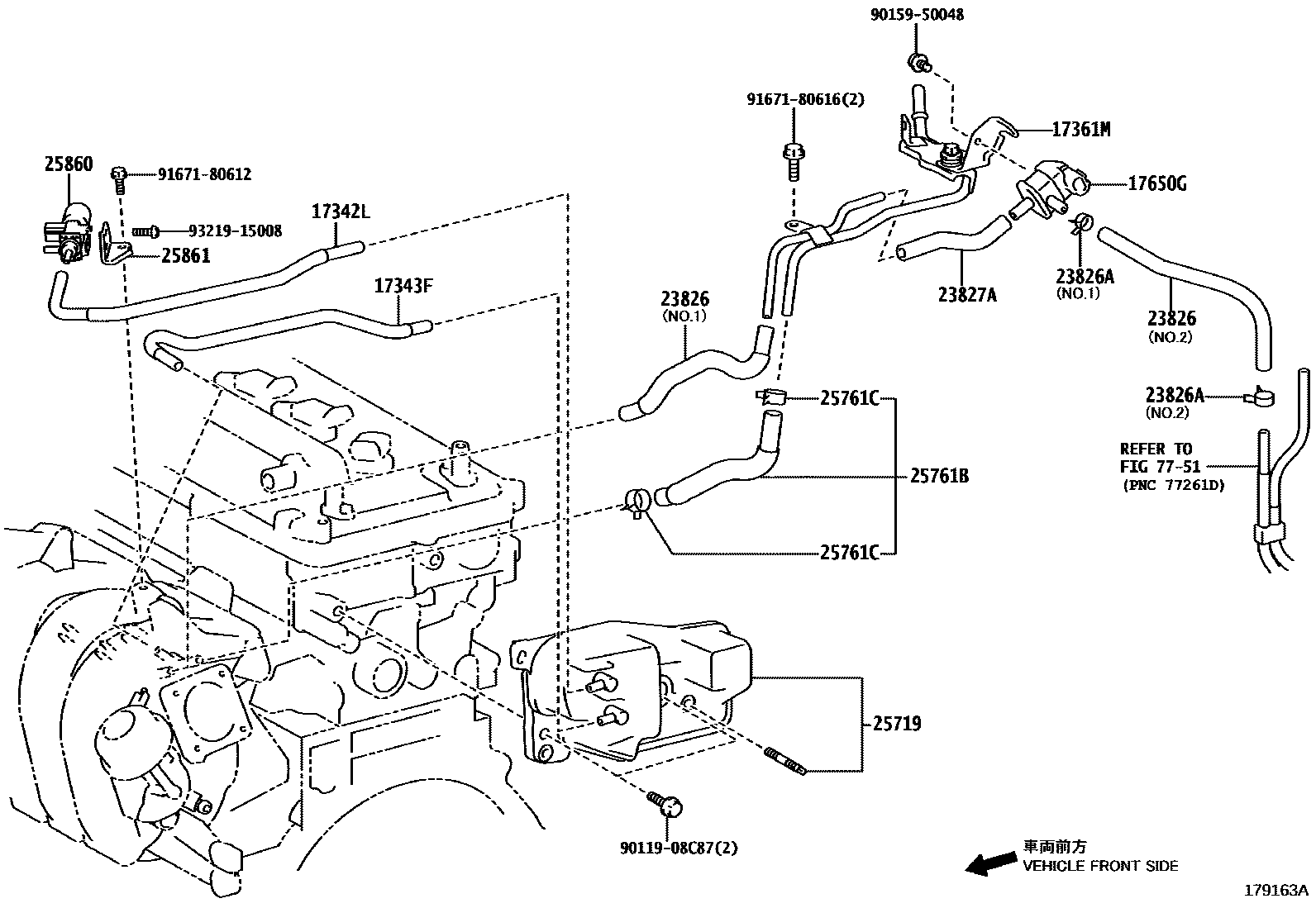

Toyota RAV4 vacuum tube — Figure 1708
Toyota RAV4 EPC diagram 1708, vacuum tube, with 6 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308B | Vacuum hose sub-assembly | 17308-26030 · 17308-26040 |
| 17342L | Air hose No. 2 | 17342-37060 |
| 17343F | No. 3 air hose | 17343-37040 |
| 17361M | air tube | 17361-37070 |
| 17650 | Vacuum switch valve assembly | 25860-36010 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 |
| 17696 | Gas filter bracket | 17696-26020 |
| 23265 | No. 1 gas filter | 90917-11044 |
| 23285A | No. 1 one-way valve | 90917-10065 |
| 23826 | No. 1 fuel vapor supply hose | 23826-36090 · 23826-36091 · 23826-36120 · 23826-37100 · 23826-37101 · 23826-37180 · 23826-37190 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 · 90467-12056 · 96136-41501 |
| 23827A | No. 2 fuel vapor supply hose | 23827-36140 · 23827-37060 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90466-13004 · 90466-16004 · 96132-51300 |
| 23829A | Fuel vapor supply hose | 23826-36100 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-13004 · 96132-51300 |
| 23830 | No. 2 fuel vapor supply hose assembly | 23830-36110 |
| 23841G | fuel hose clamp | 77281-33040 |
| 25719 | Vacuum pressure tank | 25719-37010 · 25719-37011 |
| 25733A | No. 1 vacuum tube | 25733-26060 |
| 25734 | No. 2 vacuum tube | 25734-26060 |
| 25736A | No. 1 vacuum transfer tube | 25736-26020 |
| 25760 | Vacuum transfer hose assembly | 25760-26021 |
| 25760A | Vacuum transfer hose assembly | 25760-26181 |
| 25760C | No. 3 vacuum transmission hose assembly | 25760-26200 |
| 25760D | No. 4 vacuum transmission hose assembly | 25760-26230 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-37080 |
| 25761C | Clamp (No. 1 vacuum transfer hose) | 96133-41500 |
| 25770 | No. 2 vacuum transmission hose assembly | 25770-26172 |
| 25770A | No. 2 vacuum transmission hose assembly | 25770-26130 |
| 25770B | No. 3 vacuum transmission hose assembly | 25770-26180 |
| 25819 | Vacuum regulating valve assembly | 25819-0R012 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0R011 · 25860-36090 · 90910-12281 |
| 25861 | Vacuum switch valve bracket | 25861-37010 |
