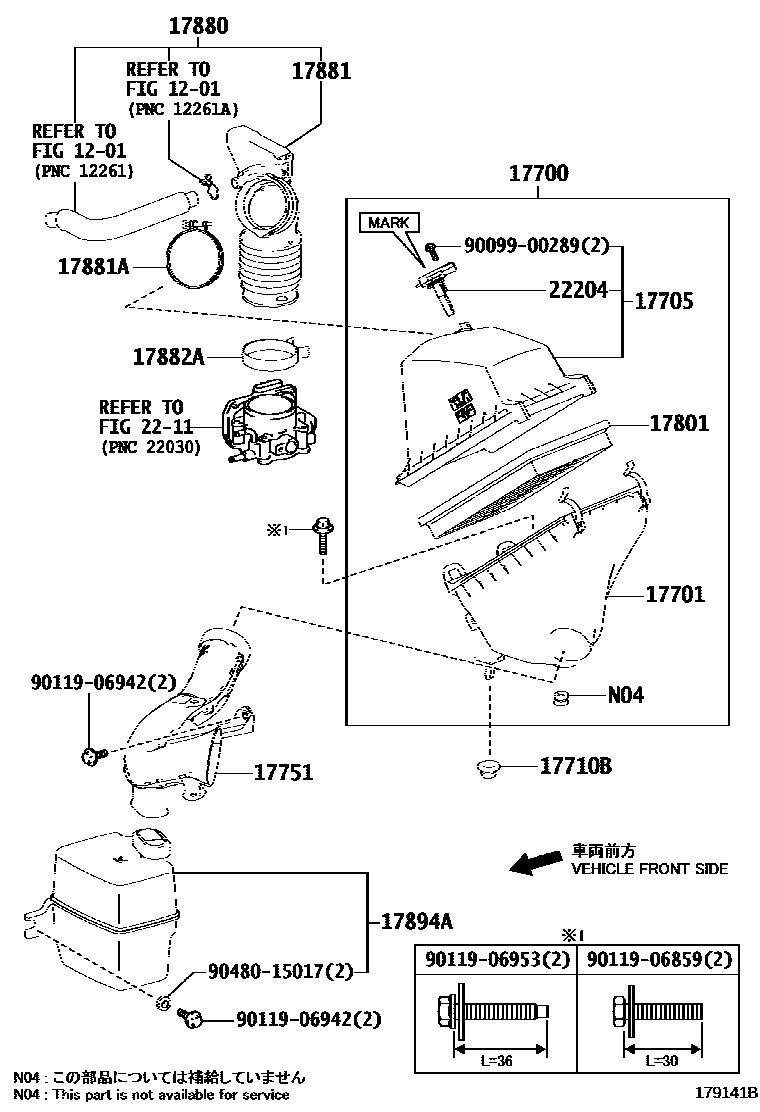

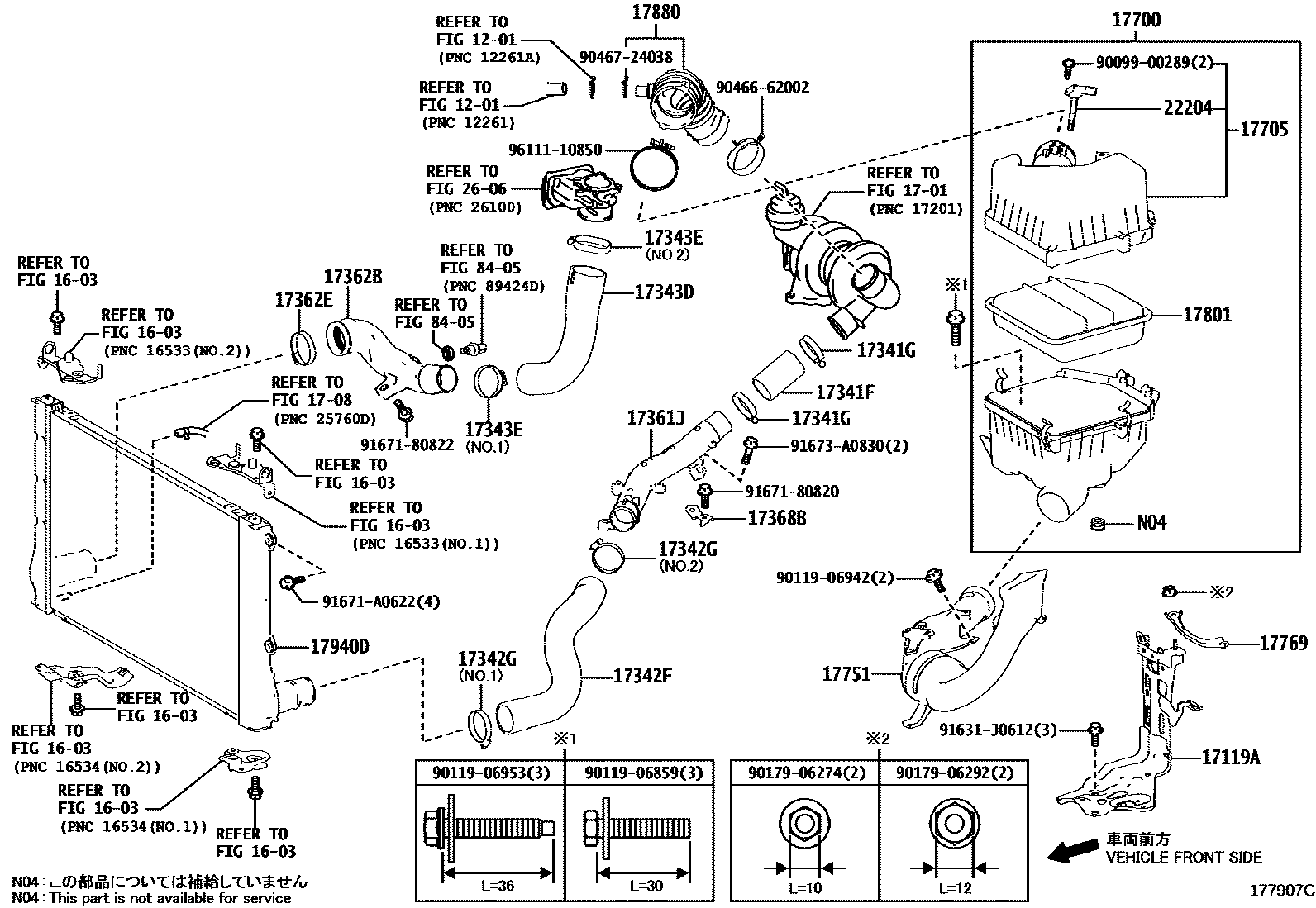

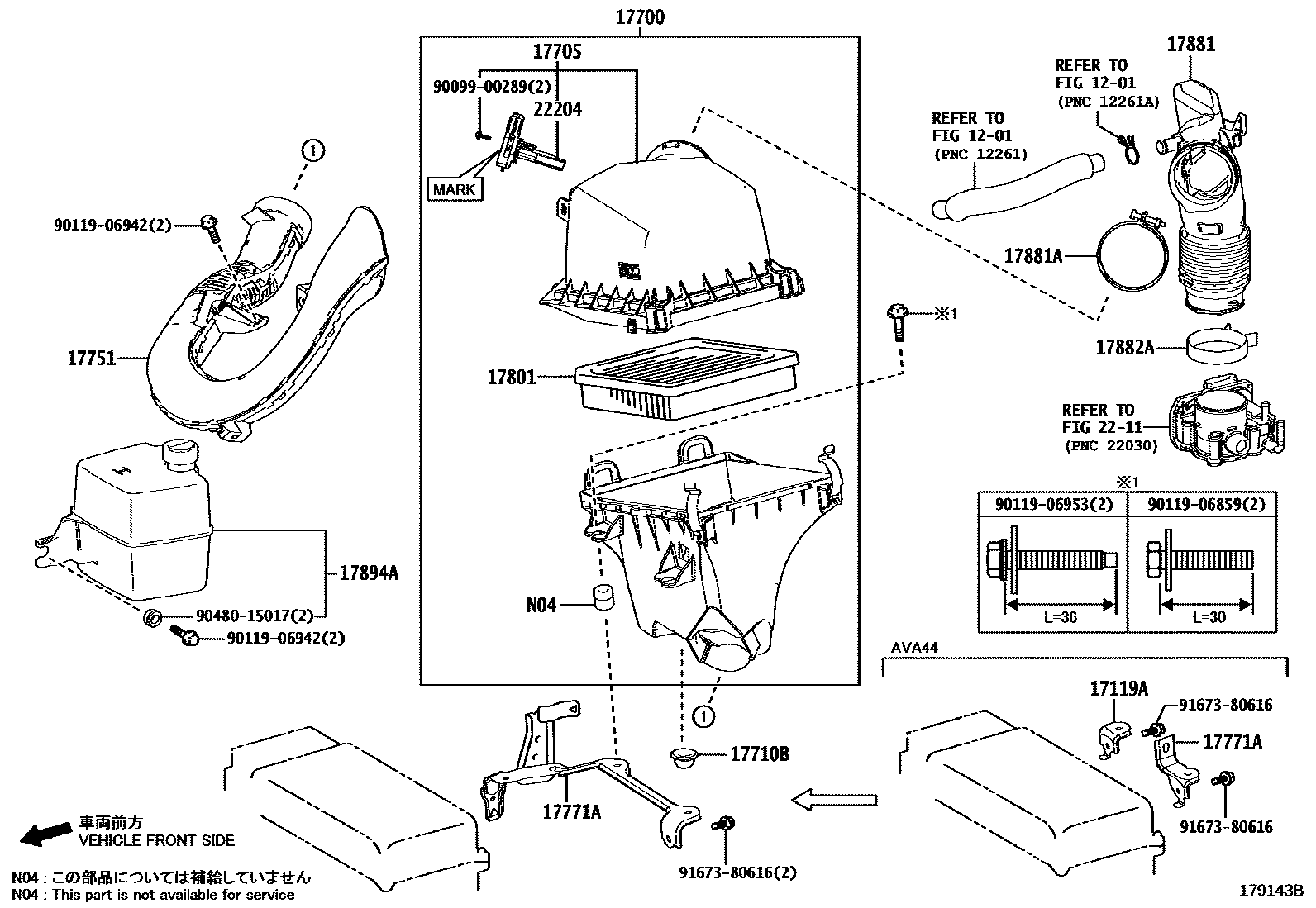

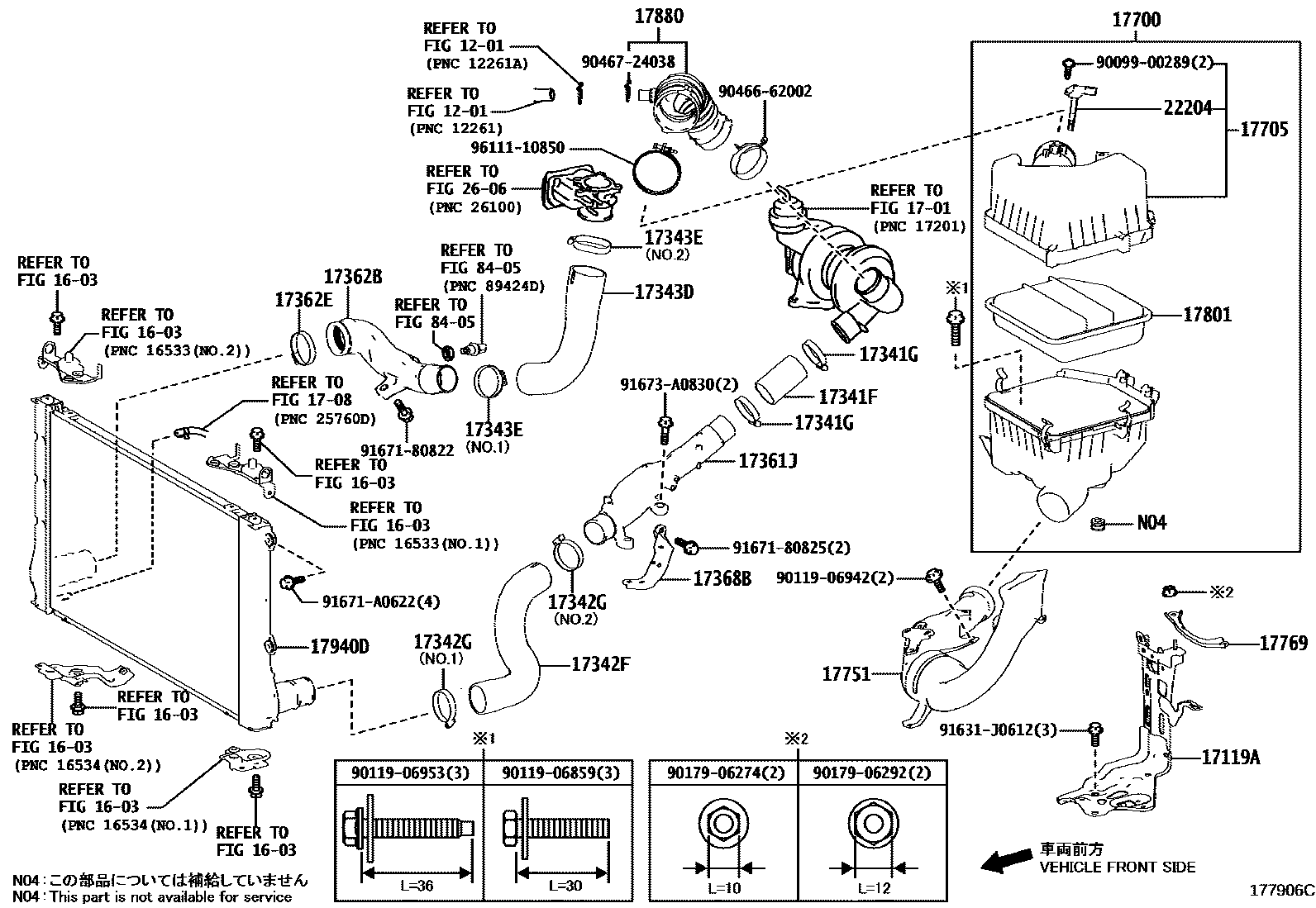

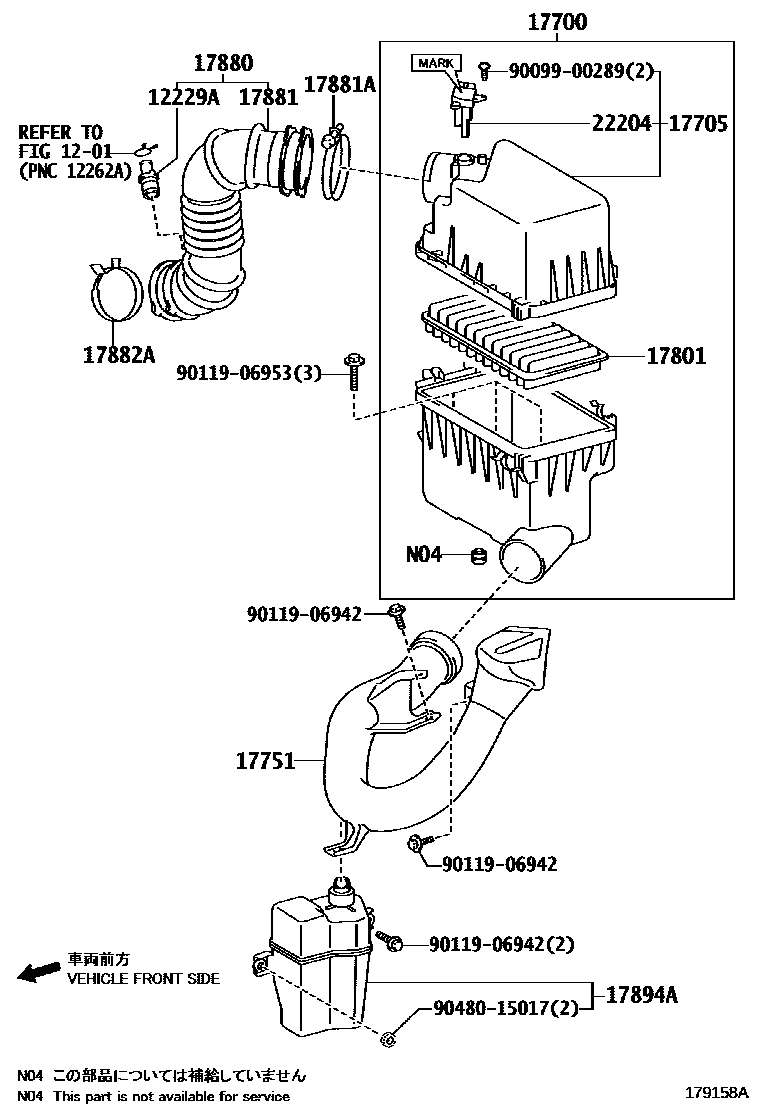

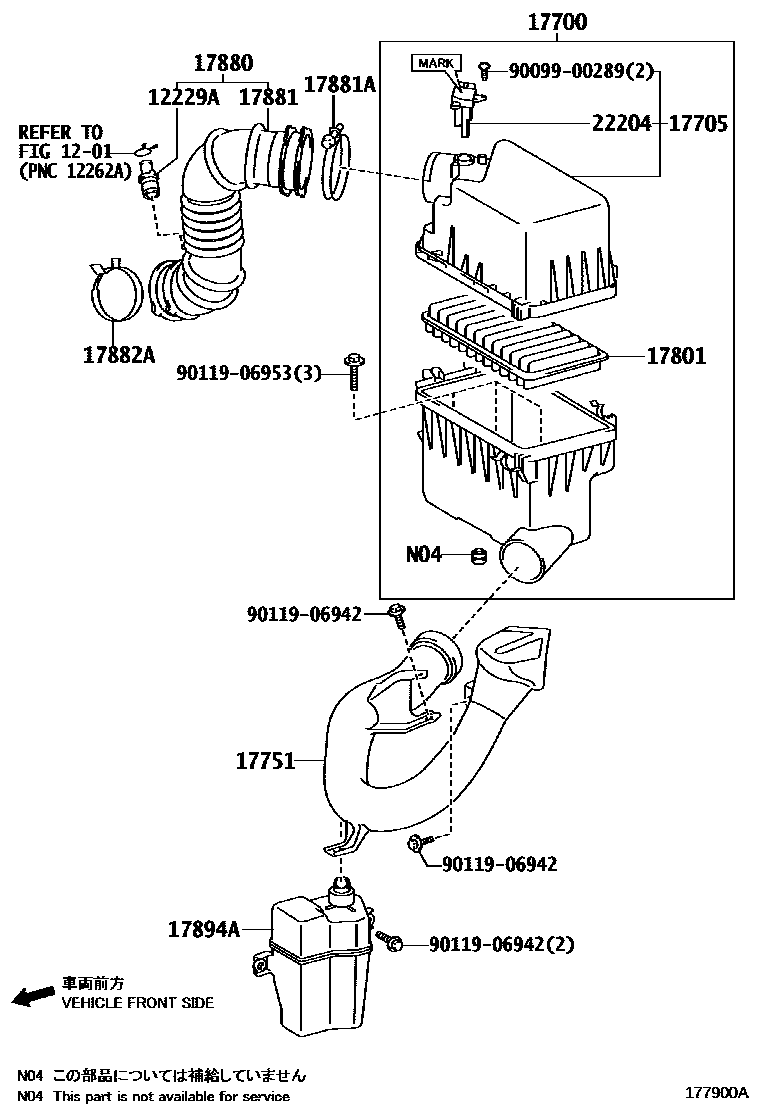

Toyota RAV4 Air Cleaner — Figure 1703
Toyota RAV4 EPC diagram 1703, Air Cleaner, with 6 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-21010 |
| 17119A | air filter bracket | 17119-26030 · 17119-36030 |
| 17341F | Air hose No. 1 | 17341-26101 |
| 17341G | Clip or clip (for No. 1 air hose) | 90460-65012 |
| 17342F | Air hose No. 2 (for intercooler) | 17342-26170 · 17342-26180 |
| 17342G | No. 2 hose clamp (for intercooler) | 90460-67008 · 90460-73011 |
| 17343D | No. 3 air hose | 17343-26110 |
| 17343E | Hose clamp (for size 3 air hose) | 90460-73011 · 90460-77002 |
| 17361J | Air tube No. 1 | 17361-26070 · 17361-26080 |
| 17362B | No. 2 air pipe | 17362-26040 |
| 17362E | Clamp No. 2 (for No. 2 air tube) | 90460-73011 |
| 17368B | Air tube support | 17368-26040 · 17368-26050 |
| 17700 | air filter assembly | 17700-26390 · 17700-36260 · 17700-36270 · 17700-36320 · 17700-37241 |
| 17701 | Air filter housing sub-assembly | 17701-36220 |
| 17705 | Air filter cover sub-assembly | 17705-26170 · 17705-36090 · 17705-36100 · 17705-36110 · 17705-37141 |
| 17710B | gasket | 90480-18006 |
| 17751 | No. 1 air filter air inlet | 17751-26060 · 17751-26070 · 17751-28060 · 17751-36051 · 17751-36080 |
| 17769 | air filter bracket | 17769-26010 |
| 17771A | air filter bracket | 17771-36060 · 17771-36070 |
| 17801 | Air filter element sub-assembly | 17801-0V020 · 17801-21050 · 17801-31170 · 17801-37021 · 17801-38011 |
| 17880 | Air cleaner hose assembly | 17880-26040 · 17880-36090 · 17880-37110 |
| 17881 | No. 1 air cleaner hose | 17881-36120 · 17881-36140 · 17881-37130 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10780 · 96111-10850 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 · 90466-71001 |
| 17894A | No. 2 intake resonator | 17894-28110 · 17894-36031 · 17894-36040 |
| 17940D | Intercooler assembly | 17940-26022 |
| 22204 | Intake air flow meter assembly | 22204-0T040 · 22204-0V010 · 22204-0V020 · 22204-26010 · 22204-28010 |
