Toyota RAV4 Manifold — Figure 1701

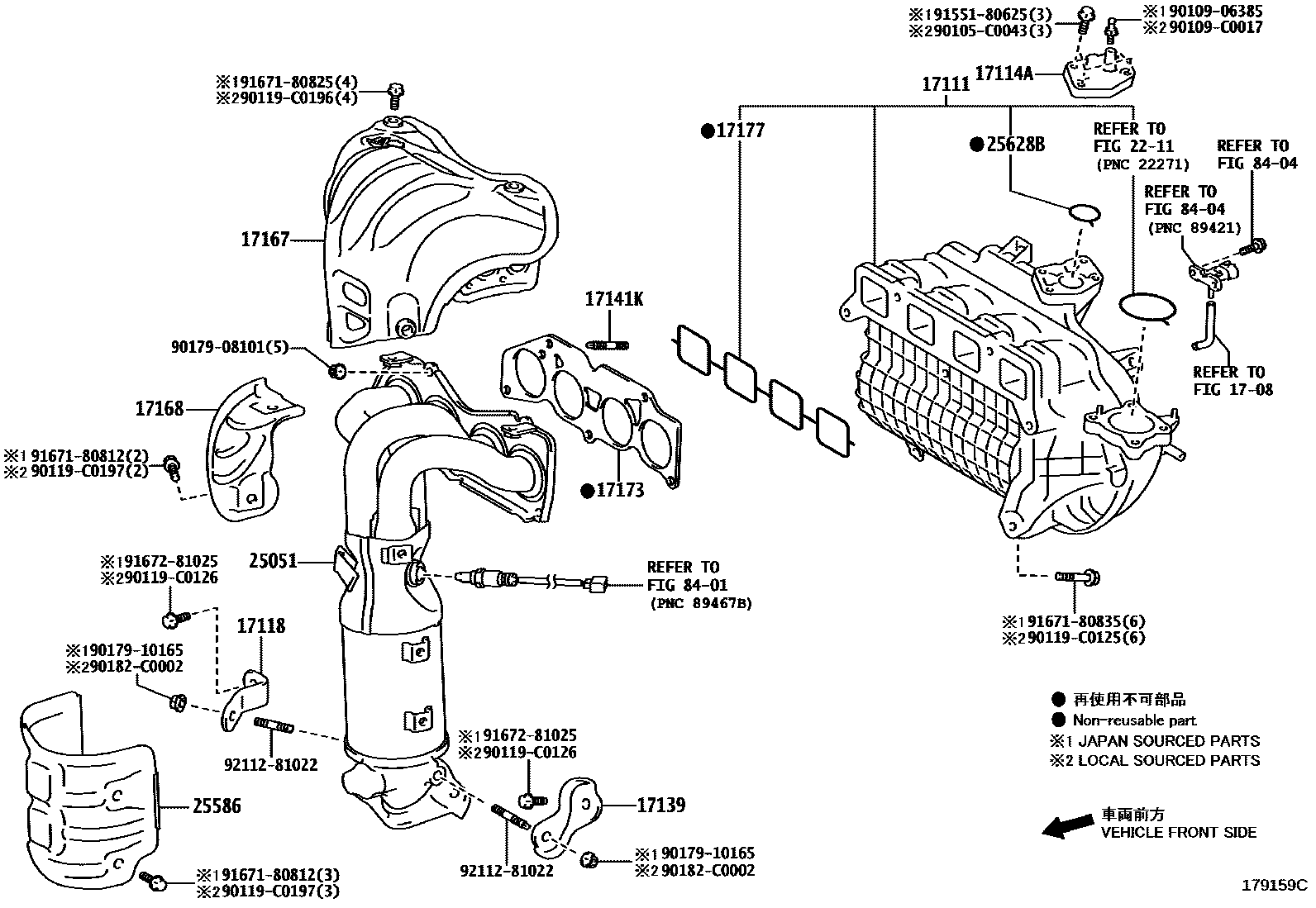

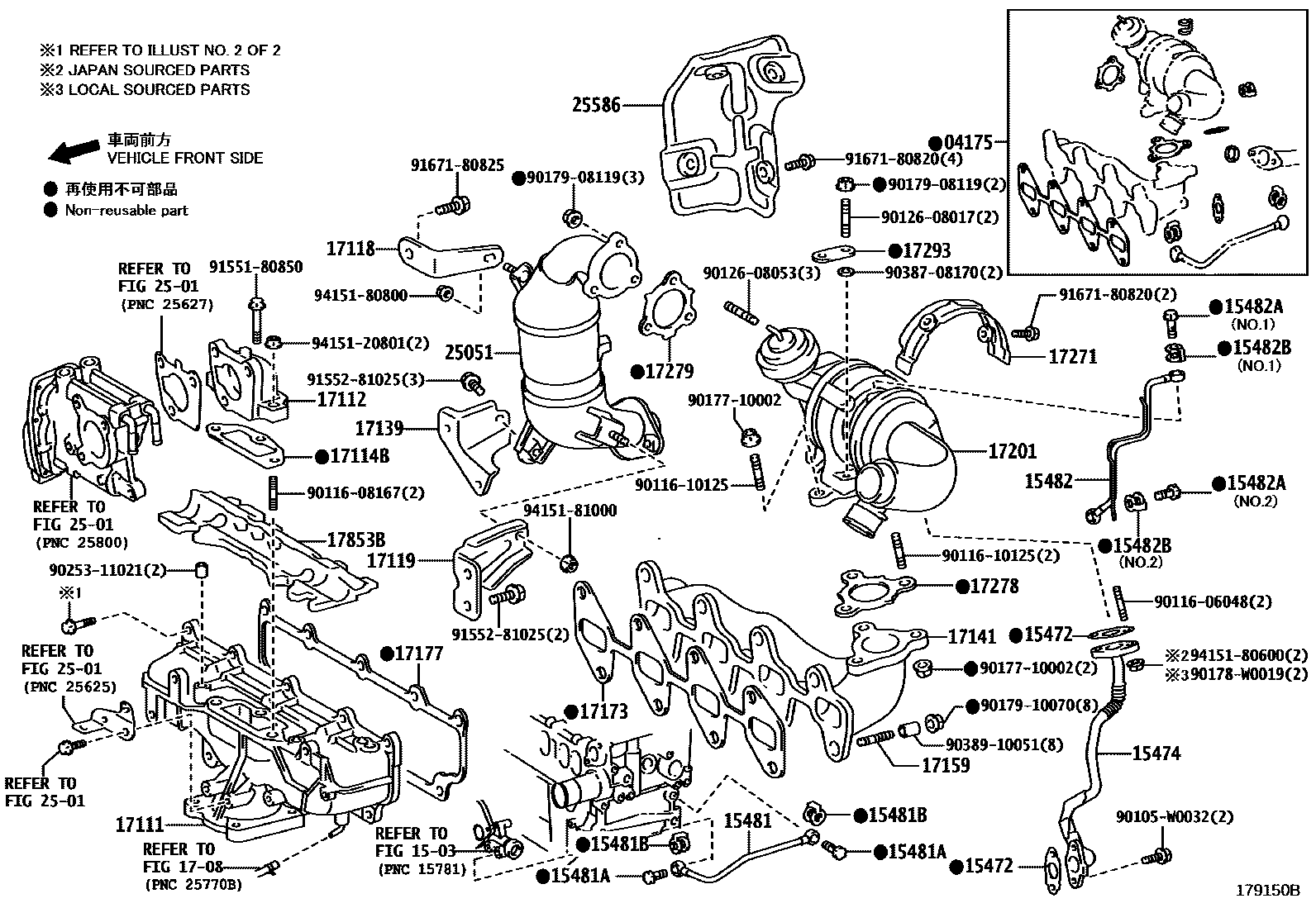

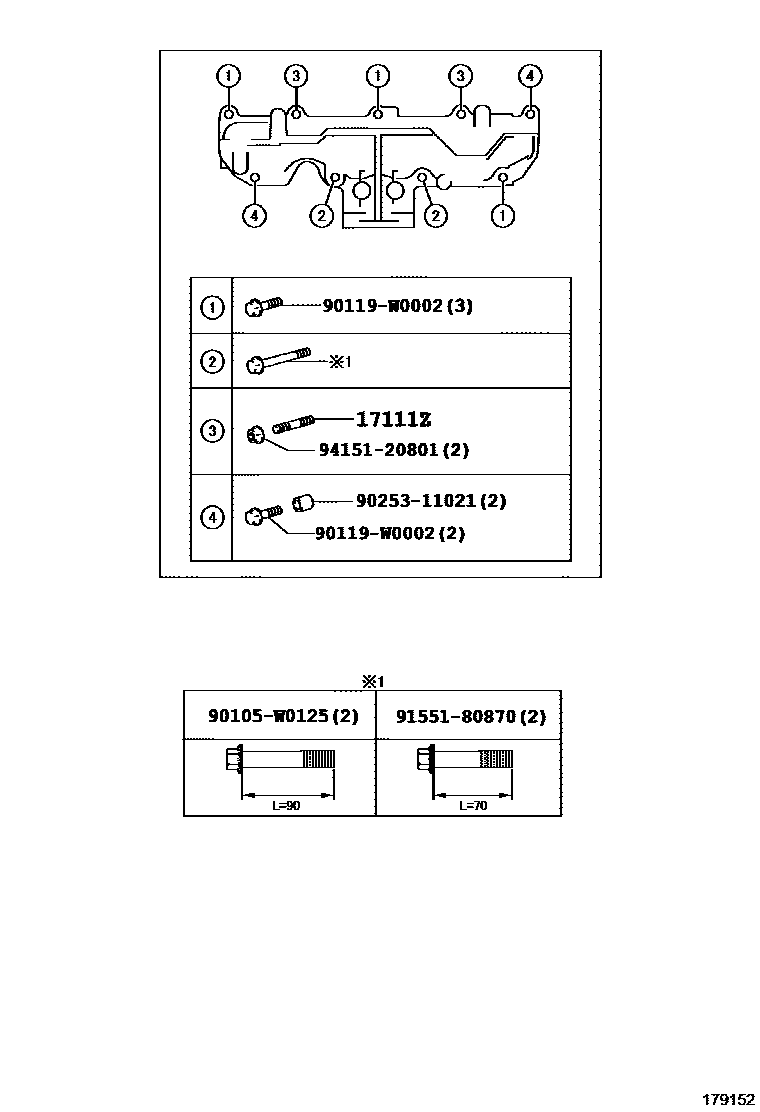

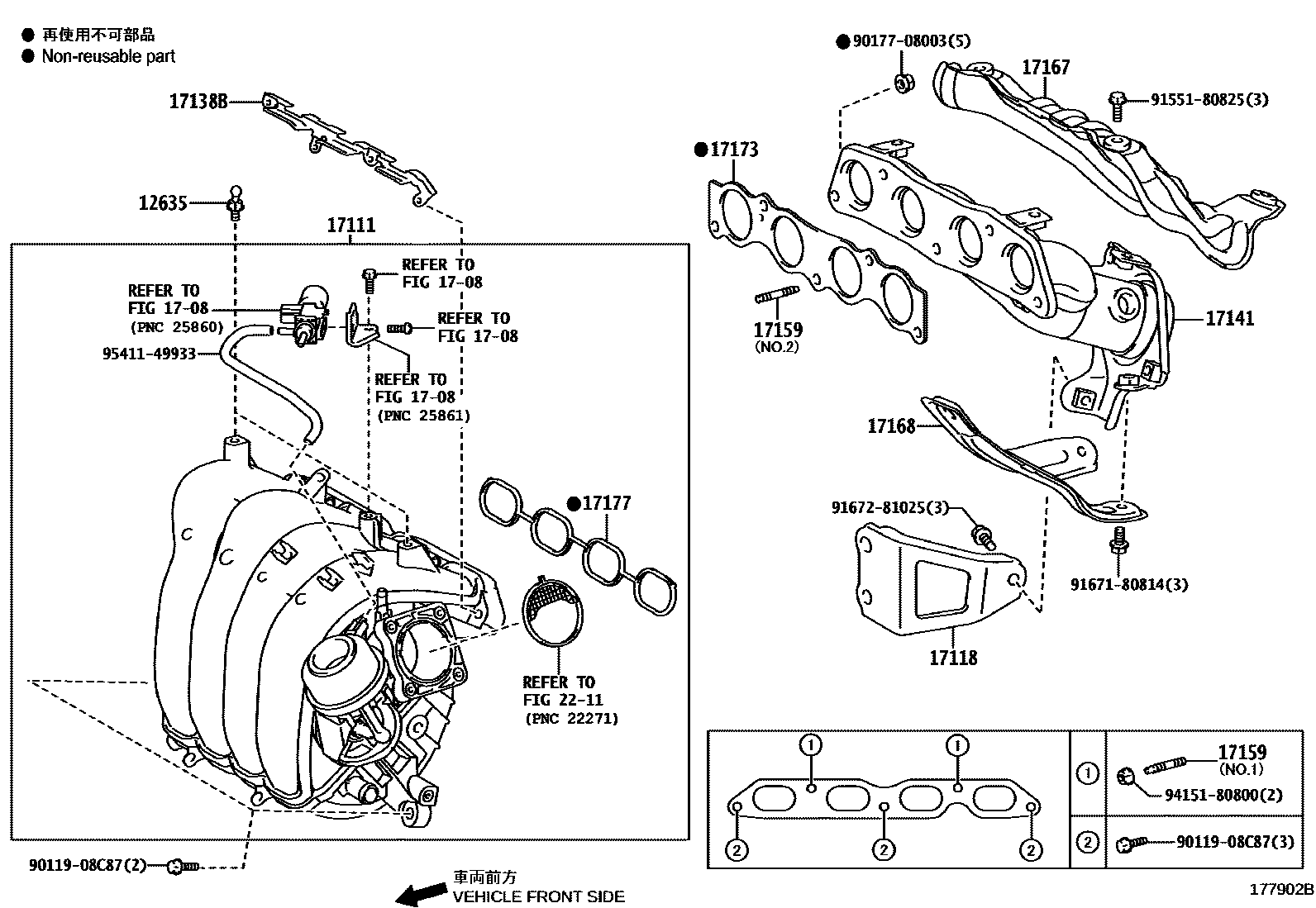

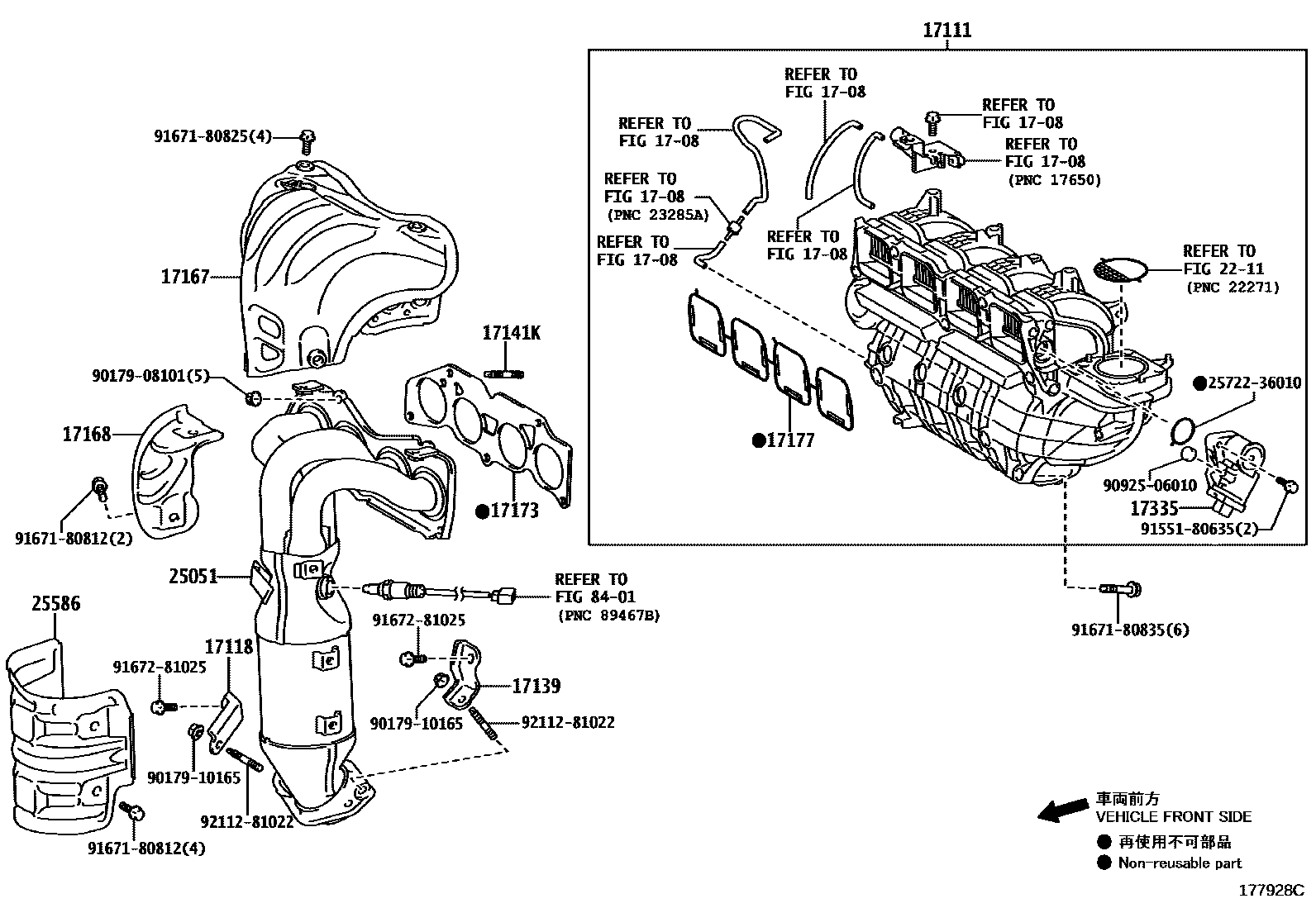

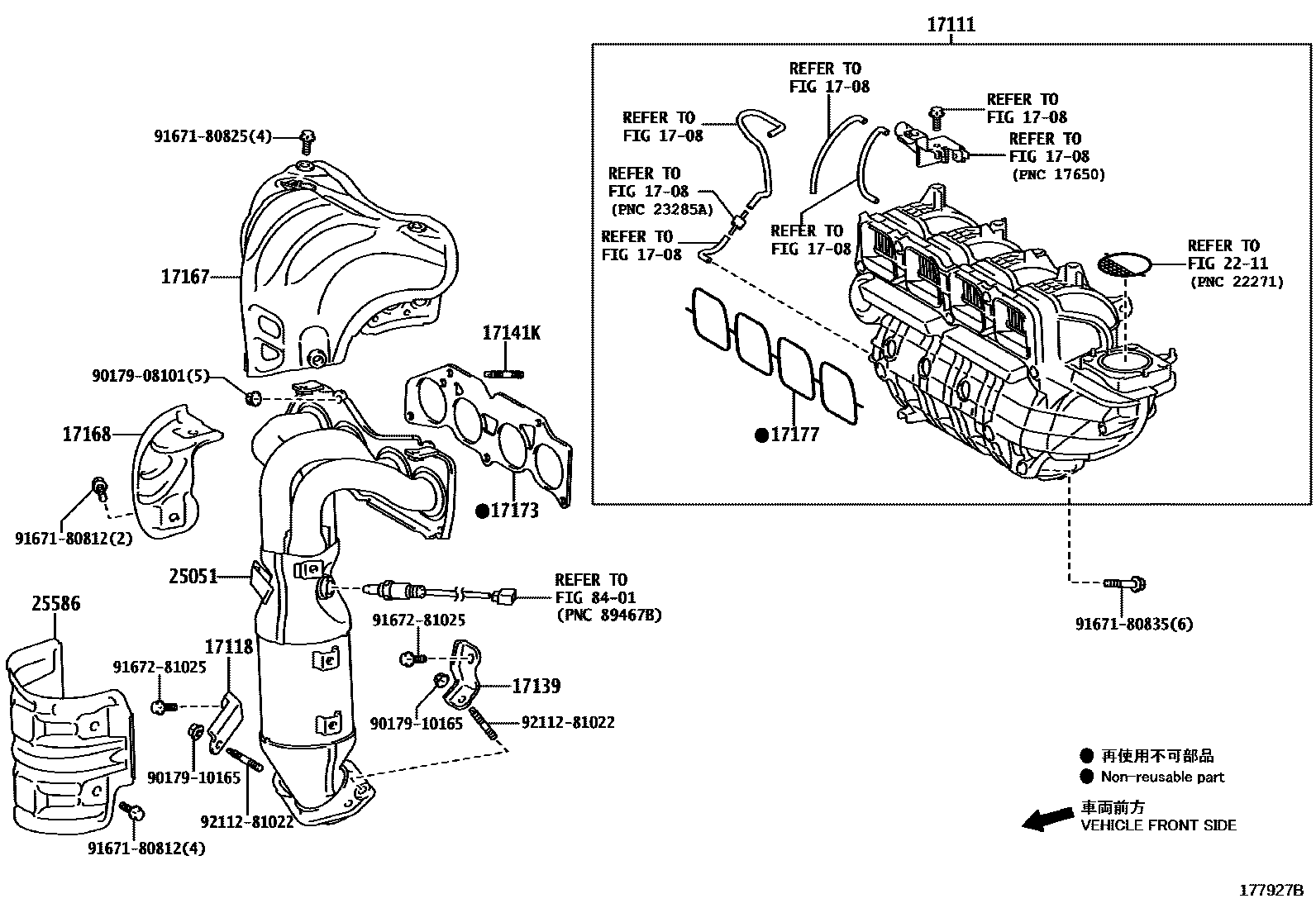

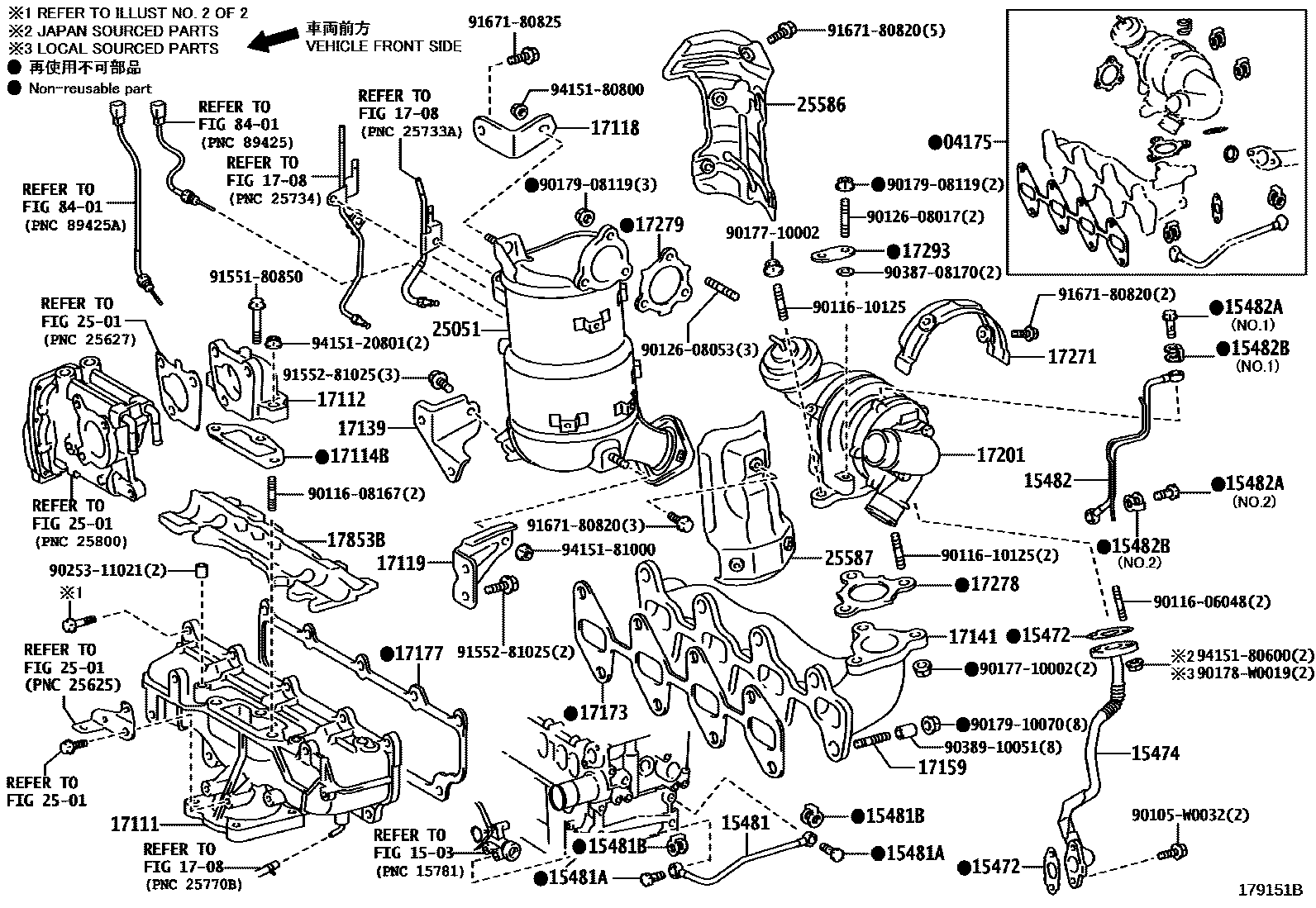

Toyota RAV4 EPC diagram 1701, Manifold, with 8 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-0R080 · 04175-0R100 |
| 12635 | hood connector | 90109-06385 |
| 15472 | No. 1 turbine oil outlet pipe gasket | 15472-0R010 |
| 15474 | Turbine oil outlet pipe | 15474-26030 |
| 15481 | No. 1 turbine oil pipe | 15481-0R010 |
| 15481A | No. 1 joint bolt | 90401-12039 |
| 15481B | Gasket (for No. 1 joint bolt) | 90430-12037 |
| 15482 | No. 2 turbine oil pipe | 15482-0R020 |
| 15482A | No. 2 joint bolt | 90401-10061 · 90401-12039 |
| 15482B | Gasket (for No. 2 joint bolt) | 90430-12037 · 90904-30011 |
| 17111 | Intake Manifold | 17101-0R020 · 17120-36010 · 17120-36011 · 17120-36050 · 17120-36070 · 17120-37070 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90116-08167 |
| 17112 | No. 2 intake manifold | 17112-26010 |
| 17114A | Intake flange | 17114-0V040 · 17114-36060 |
| 17114B | Intake flange gasket | 17116-26010 |
| 17118 | Manifold stays | 17118-0V030 · 17118-26030 · 17118-26050 · 17118-36010 · 17118-36020 · 17118-37070 |
| 17119 | No. 2 manifold stay | 17119-26060 · 17119-26071 |
| 17138B | Intake manifold stay | 17138-37010 · 17138-37011 |
| 17139 | No. 2 manifold stay | 17139-0V030 · 17139-26030 · 17139-26050 · 17139-36010 · 17139-36040 |
| 17141 | exhaust manifold | 17141-0R010 · 17141-26100 · 17141-37170 |
| 17141K | Stud bolts (for exhaust manifold to cylinder head) | 90126-08037 · 90126-08052 · 90126-C0010 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08026 · 90126-08052 · 90126-10024 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-0V020 · 17167-36011 · 17167-37070 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-0V020 · 17168-36010 · 17168-37090 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0R010 · 17173-0V020 · 17173-36020 · 17173-37010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-0R010 · 17171-36010 · 17171-36011 · 17171-36020 · 17177-37030 |
| 17201 | Turbocharger sub-assembly | 17201-0R062 · 17201-26072 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-0R020 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-0R010 · 17278-0R020 |
| 17279 | Turbine outlet elbow gasket | 17279-0R010 |
| 17293 | Turbocharger stay | 17293-26010 |
| 17335 | Intake control valve actuator | 17335-36010 |
| 17853B | Intake manifold heat shield | 17853-26030 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-0V060 · 25051-0V260 · 25051-26080 · 25051-26090 · 25051-26100 · 25051-36120 · 25051-36140 · 25051-36150 · 25051-36160 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-0R020 · 25586-0V070 · 25586-26030 · 25586-36010 · 25586-36020 |
| 25587 | No. 2 manifold three-way catalytic converter vibration isolation pad | 25587-26020 |
| 25628B | EGR air intake gasket | 25628-36010 |
