Toyota RAV4 Oil Filter — Figure 1502

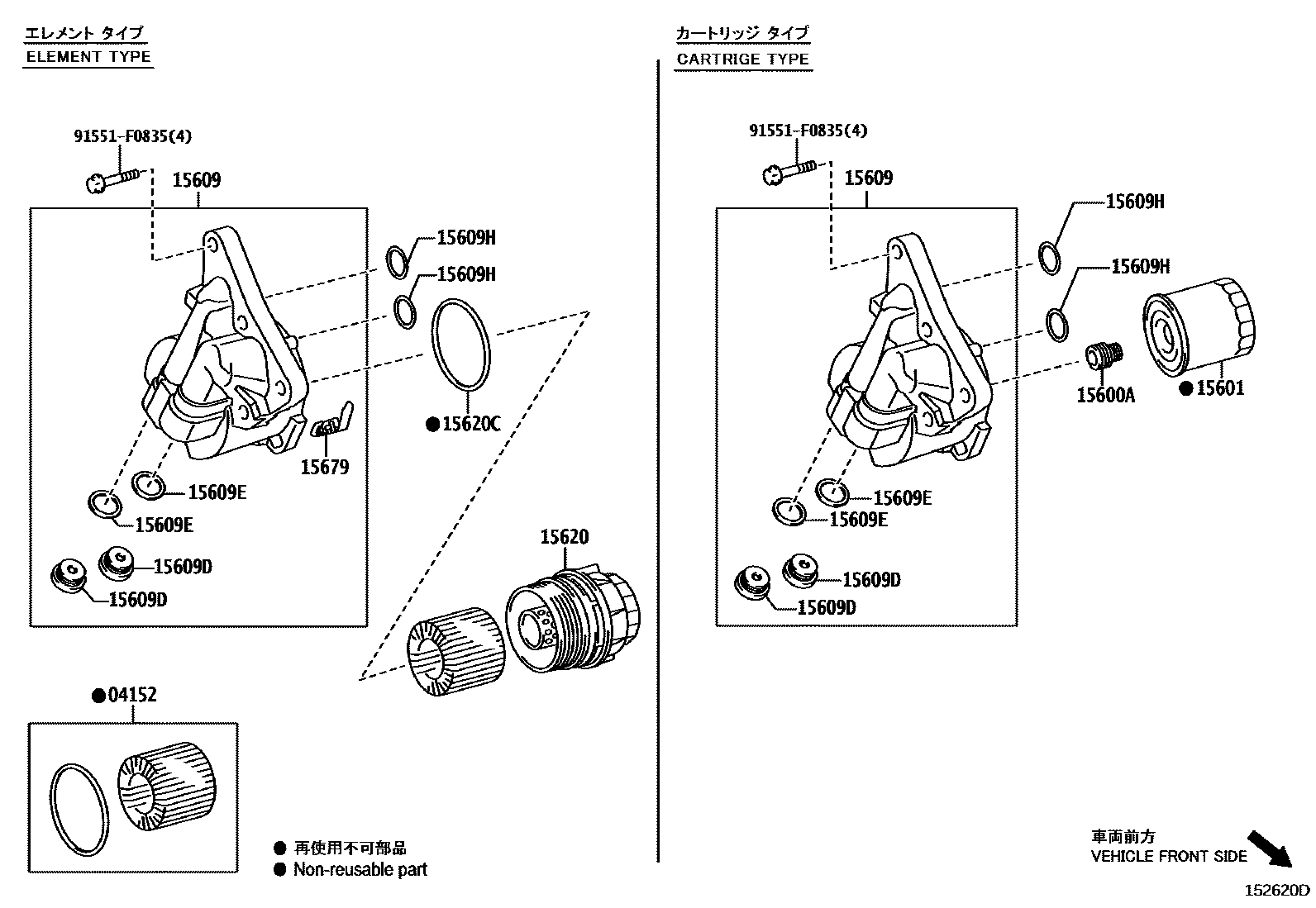

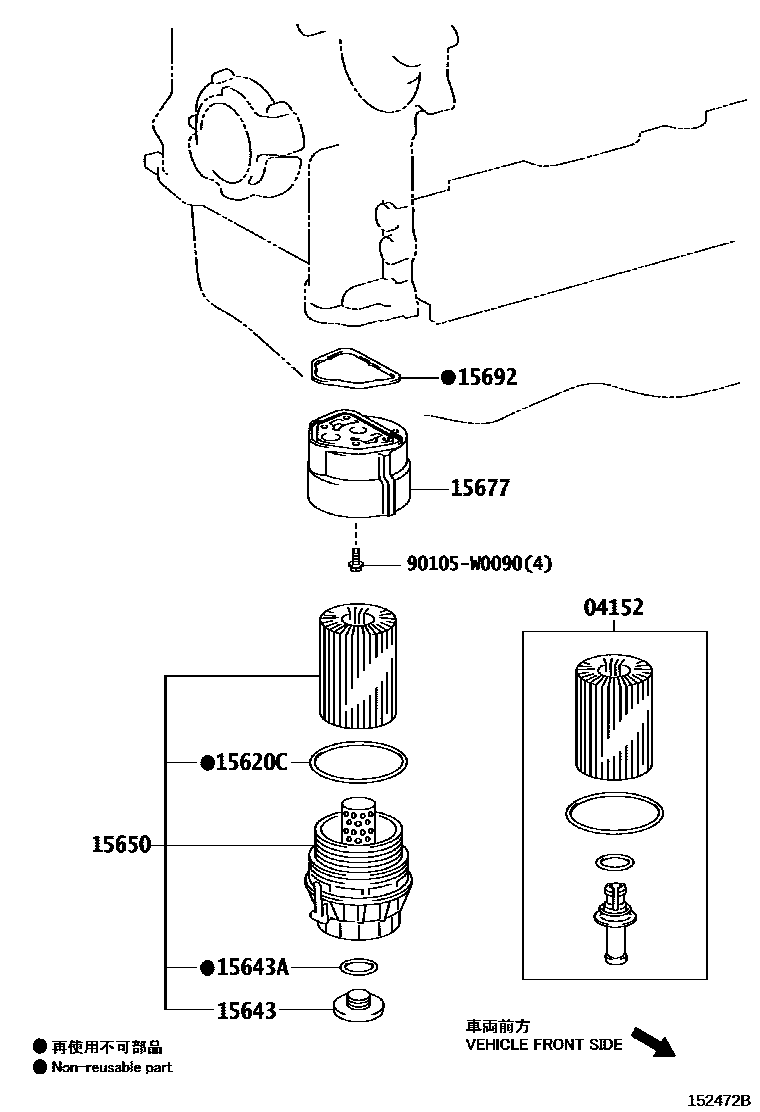

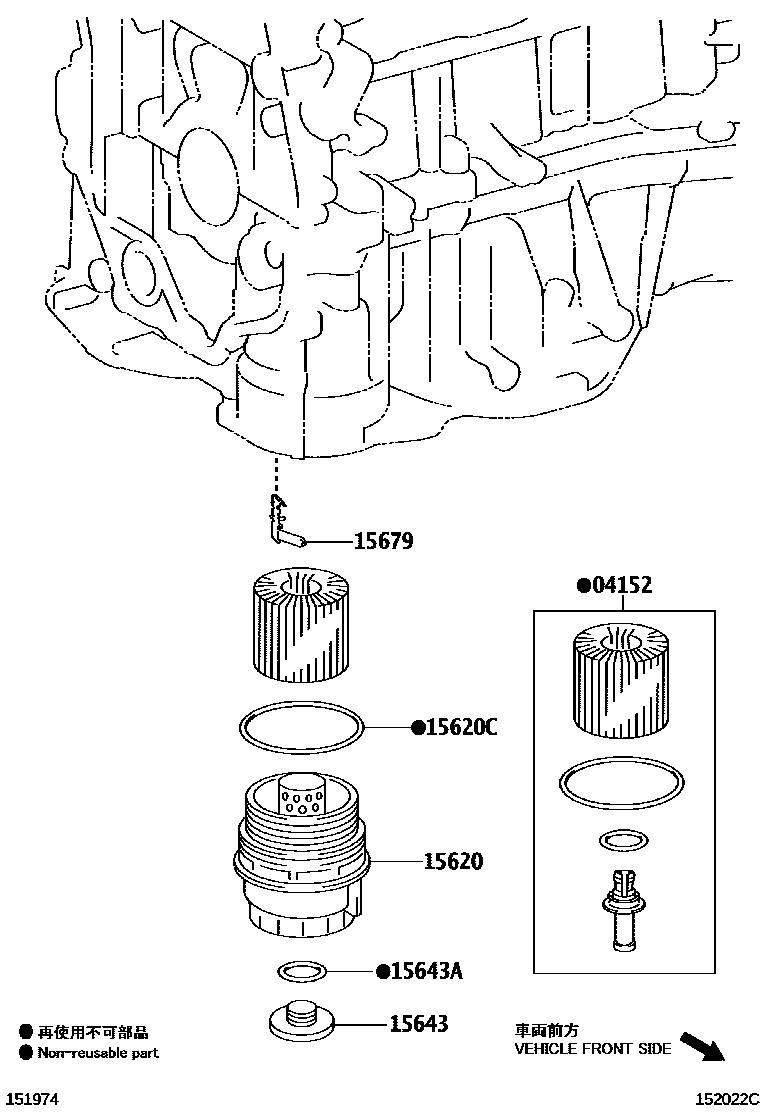

Toyota RAV4 EPC diagram 1502, Oil Filter, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04152 | Oil Filter Element Kit | 04152-0V010 · 04152-31090 · 04152-37010 · 04152-38010 |
| 15600A | Connector (for oil filter) | 90904-04006 |
| 15601 | Oil filter sub-assembly | 90915-10003 |
| 15609 | Oil filter bracket sub-assembly | 15609-37010 · 15609-37040 · 15609-37041 · 15609-37060 |
| 15609D | Straight threaded plug with head (for oil filter bracket) | 90341-20002 |
| 15609E | Headed straight thread plug liner | 90430-20004 · 90430-20018 |
| 15609H | O-ring (for oil filter bracket) | 96723-24020 |
| 15620 | Oil filter cover assembly | 15620-36020 · 15620-37010 |
| 15620C | Gasket (for oil filter cover) | 90301-69011 · 90301-79006 |
| 15643 | Oil filter drain plug | 15643-31050 |
| 15643A | O-ring (for oil filter drain plug) | 96723-35028 |
| 15650 | Oil filter cover assembly with filter element | 15650-0R020 |
| 15677 | Oil filter bracket | 15677-0R012 |
| 15679 | Oil filter bracket clip | 15679-37010 · 15679-37011 |
| 15692 | Oil filter holder gasket | 15692-26010 |
