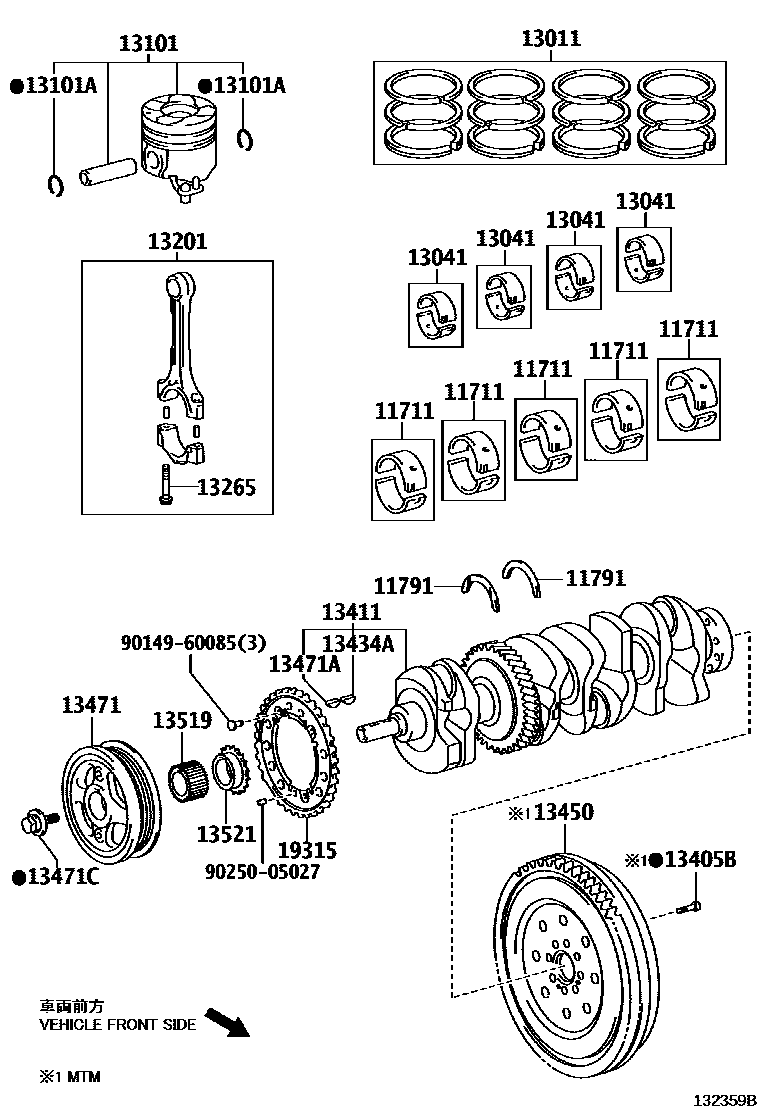

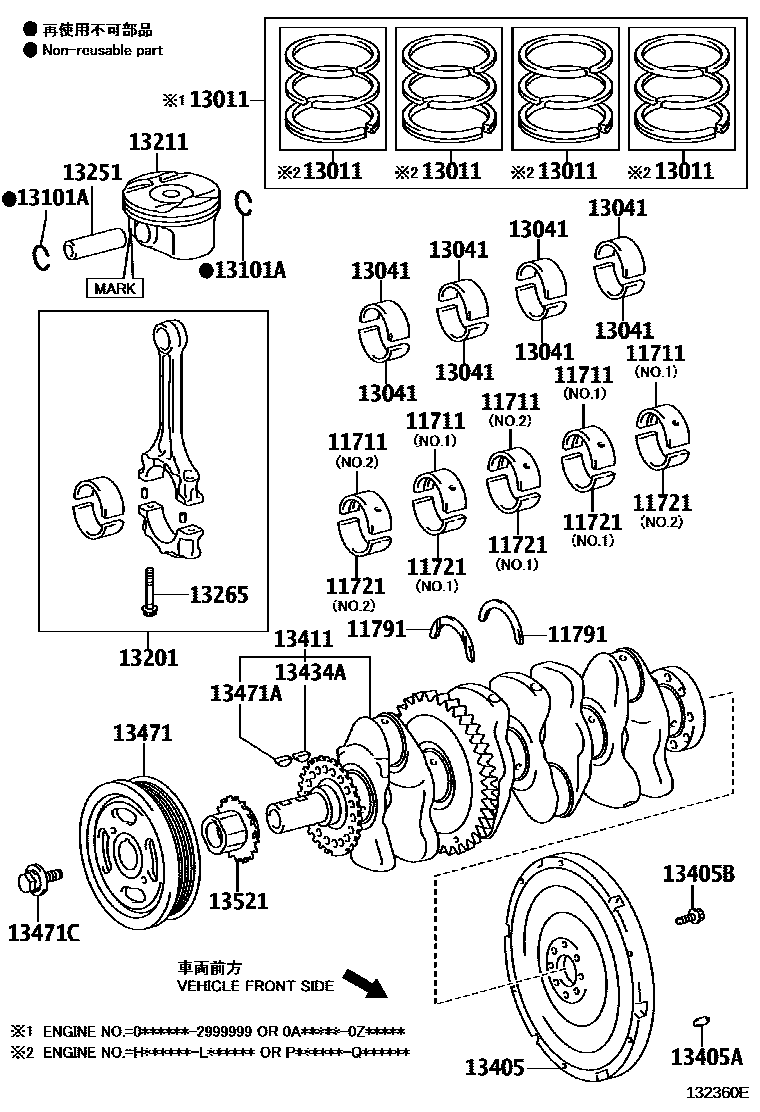

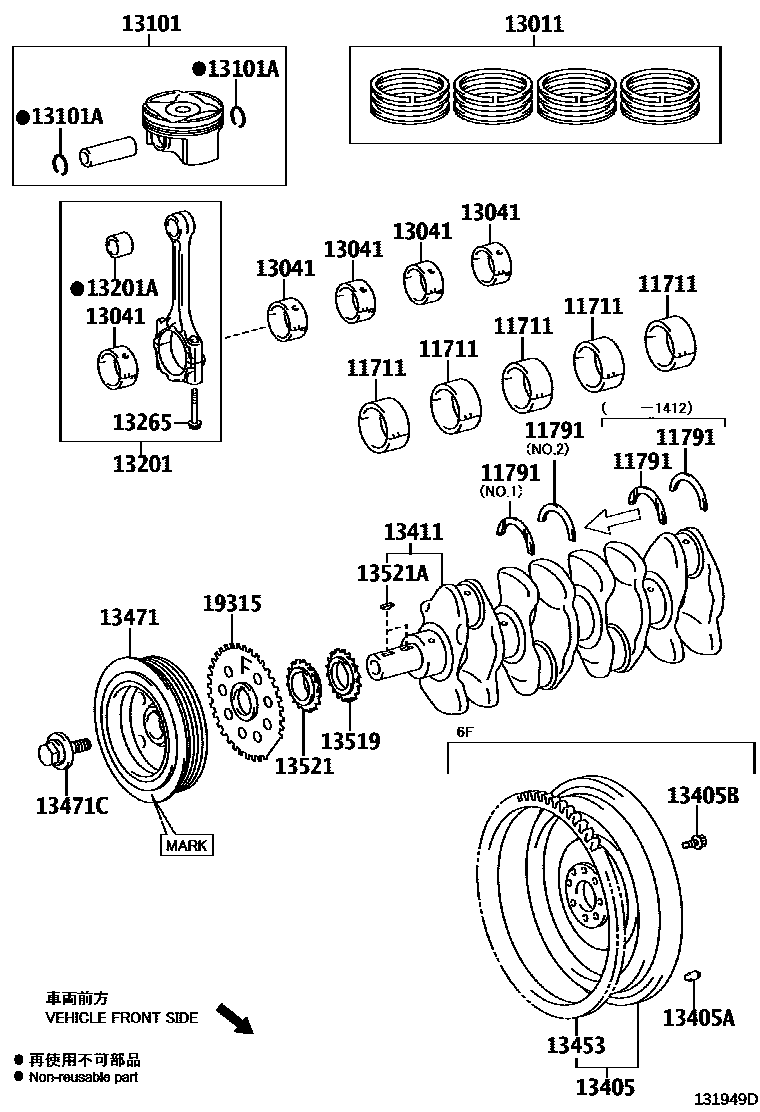

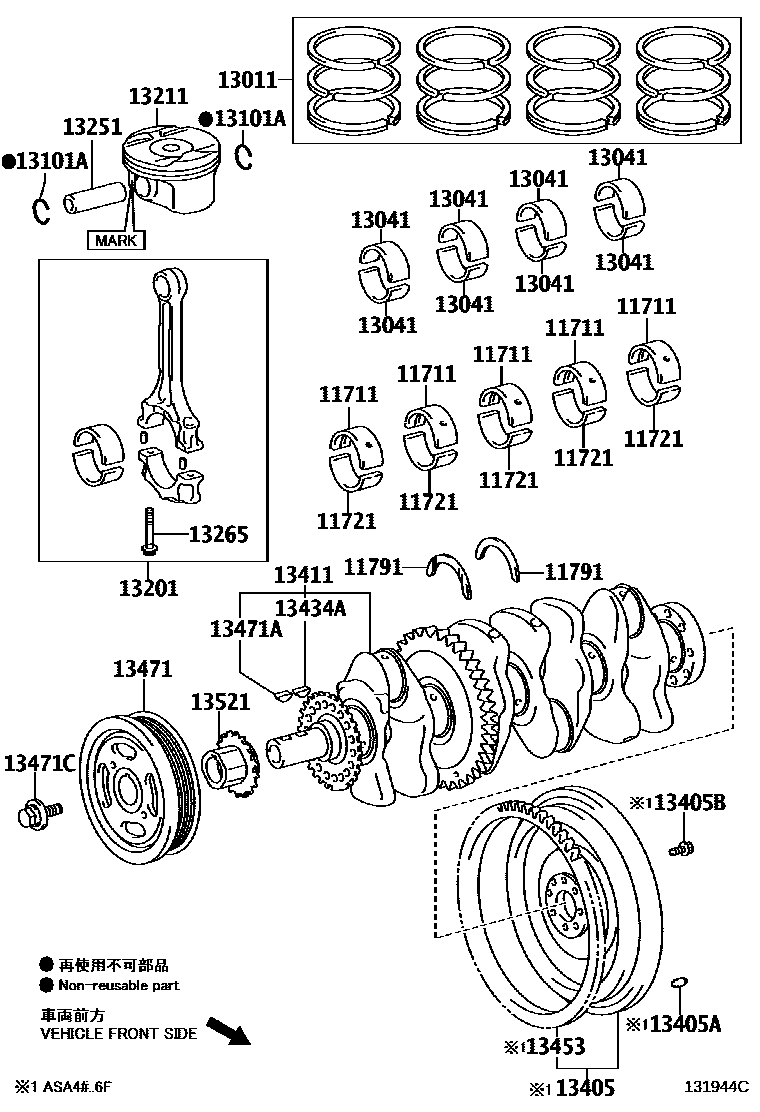

Toyota RAV4 Crankshaft & Piston — Figure 1301
Toyota RAV4 EPC diagram 1301, Crankshaft & Piston, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11791 | Thrust washer on crankshaft | 11791-0R010 · 11791-0V020 · 11791-22020 · 11791-36010 · 11791-36020 · 11791-37010 |
| 13011 | Piston ring assembly | 13011-0R050 · 13011-0R060 · 13011-0V070 · 13011-36050 · 13011-36051 · 13011-36070 · 13011-36071 · 13011-36120 · 13011-37130 · 13011-37210 · 13011-37320 · 13011-37330 |
| 13101 | Piston sub-assembly with pin | 13101-0R080 · 13101-0R081 · 13101-37090 · 13101-37170 · 13101-37310 · 13101-37320 |
| 13101A | Bore snap ring (for piston pin) | 90520-20064 · 90520-22025 · 90520-W0001 |
| 13201 | Connecting rod sub-assembly | 13201-0R011 · 13201-39205 |
| 13201A | Bushing (for connecting rod small end) | 90999-73151 |
| 13265 | Connecting rod bolts | 13265-0V010 · 13265-22020 · 13265-22031 · 13265-31020 |
| 13405 | Flywheel sub-assembly | 13405-28020 · 13405-37060 · 13451-0V010 · 13451-36040 |
| 13405A | Direct sales (for flywheel) | 90250-08054 · 90250-08120 · 90250-C0011 |
| 13405B | Flywheel fixing bolt | 90105-12322 · 90105-12384 · 90105-C0224 · 90148-10004 · 90913-01027 |
| 13411 | crankshaft | 13401-0R021 · 13401-0V021 · 13401-36011 · 13401-37031 · 13401-37032 |
| 13434A | Key (for oil pump active spline) | 90280-C0001 · 95161-30516 |
| 13450 | Flywheel assembly with shock absorber | 13450-0R010 |
| 13453 | flywheel ring gear | 13453-20010 · 13453-74011 |
| 13471 | crankshaft pulley | 13408-0R030 · 13470-36010 · 13470-36040 · 13470-37041 · 13470-37042 · 13470-37050 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-C0001 · 95161-30516 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-14106 · 90119-14175 · 90119-16020 · 90119-18003 · 90119-C0429 |
| 13519 | Oil pump driving gear | 13519-26010 · 13519-37010 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0V020 · 13521-26010 · 13521-36010 · 13521-37020 |
| 13521A | Key (for crankshaft timing gear) | 90280-04003 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-0R011 · 19315-37020 |
