Toyota RAV4 Ventilation Hose — Figure 1201

Toyota RAV4 EPC diagram 1201, Ventilation Hose, with 4 images and 10 PNC and OE references.

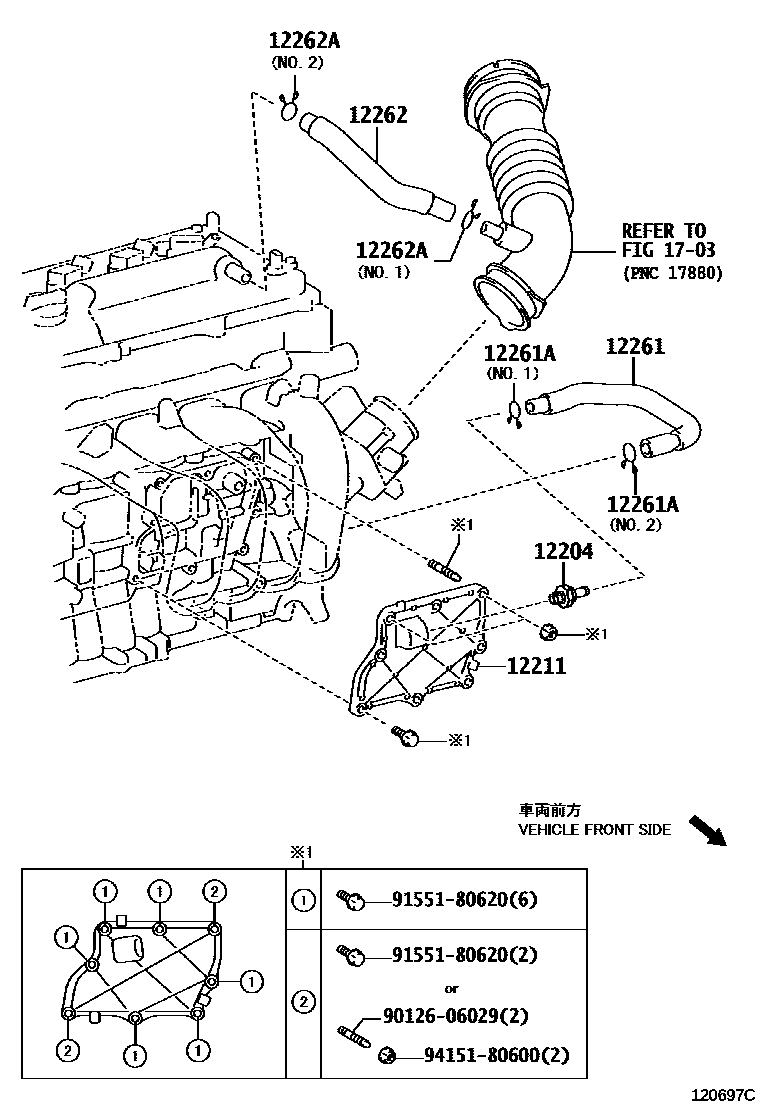

Toyota RAV4 Ventilation Hose EPC diagram — 120697C
Ventilation Hose — 120697C (201212 – 999999)

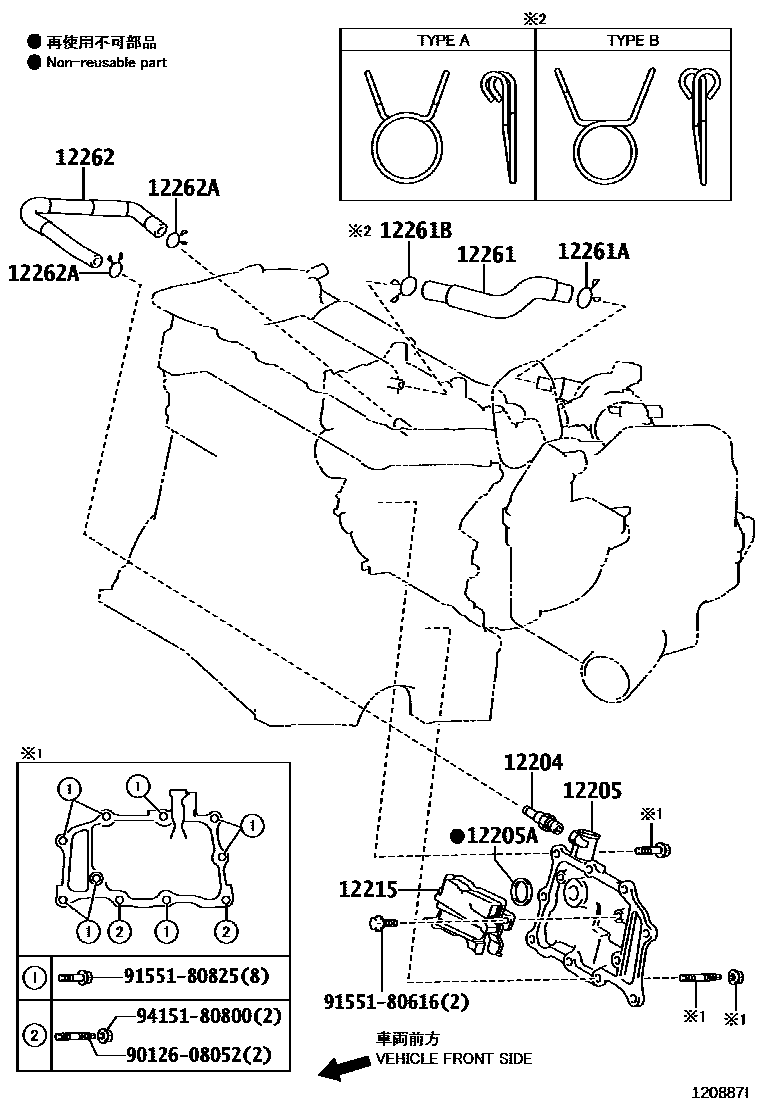

Toyota RAV4 Ventilation Hose EPC diagram — 120887I
Ventilation Hose — 120887I (201212 – 999999)

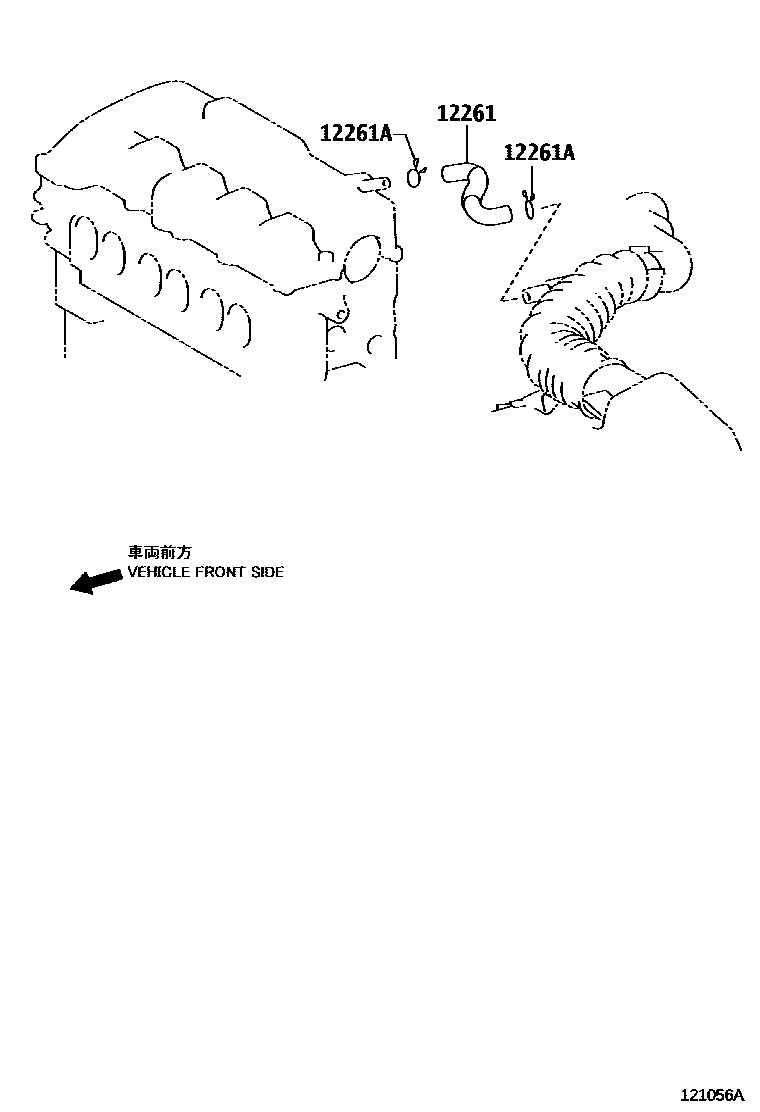

Toyota RAV4 Ventilation Hose EPC diagram — 121056A
Ventilation Hose — 121056A (201510 – 999999)

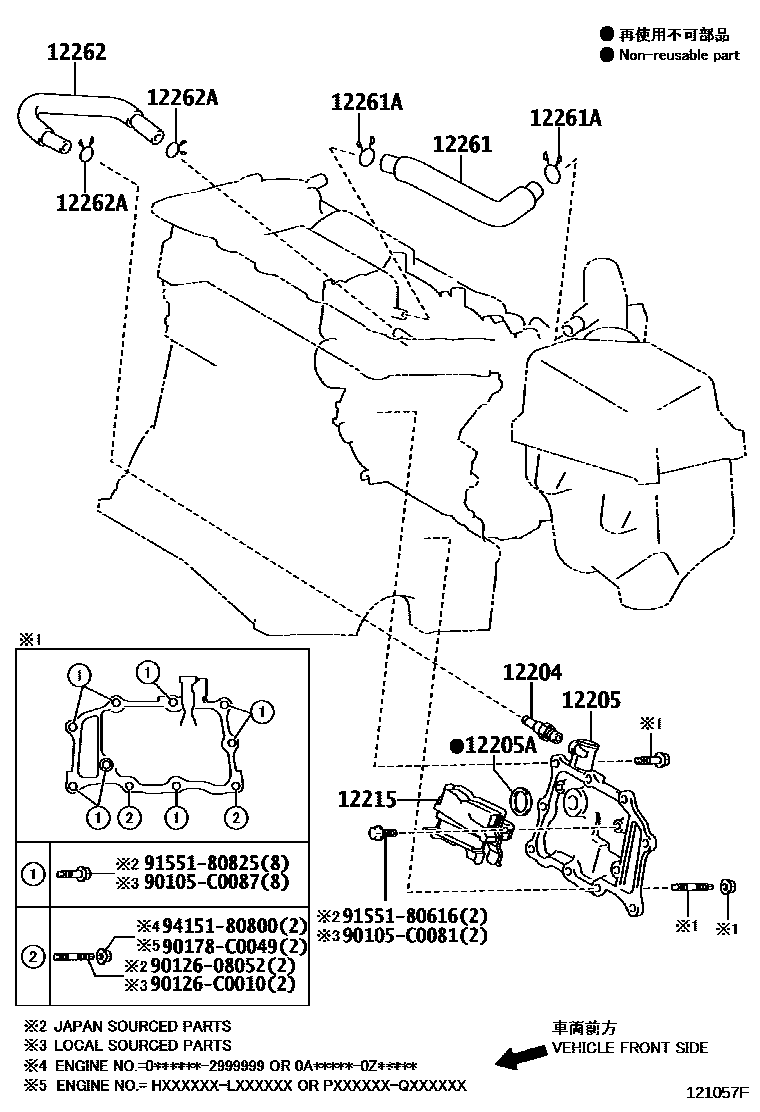

Toyota RAV4 Ventilation Hose EPC diagram — 121057F
Ventilation Hose — 121057F (201510 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-36020 · 12204-36030 · 12204-37010 · 12204-37040
12205Ventilation box sub-assembly12205-0V020 · 12205-36010
12205AO-ring (for ventilation box)12273-0V010 · 12273-36010
12211Ventilation box No. 112211-37010
12215Ventilation box isolation device12215-36010
12261Ventilation Hose12261-26030 · 12261-36050 · 12261-36060 · 12261-37050
12261AClip or clip (for vent hose)90466-22005 · 90466-23003 · 90467-15120 · 90467-21004
12261BClip or clip (for vent hose)90467-19003 · 90467-21004
12262Ventilation hose No. 212262-0V040 · 12262-36040 · 12262-36080 · 12262-37030
12262AClamp (for vent hose No. 2)90467-16035 · 90467-19003 · 90467-21004
