Toyota RAV4 Engine Mounting — Figure 1107

Toyota RAV4 EPC diagram 1107, Engine Mounting, with 13 images and 14 PNC and OE references.

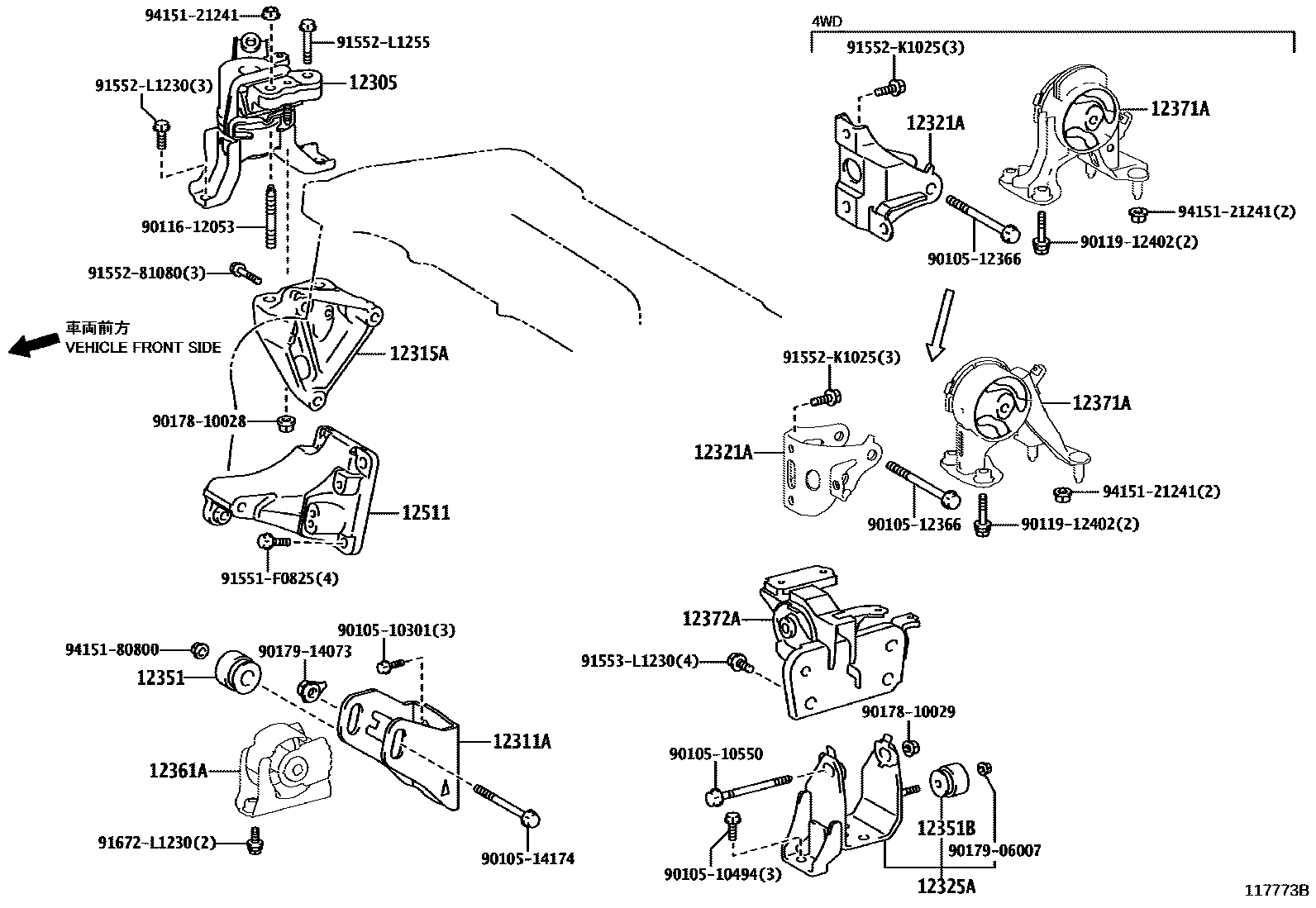

Toyota RAV4 Engine Mounting EPC diagram — 117773B — Engine Mounting — 117773B (201212 – 201510)

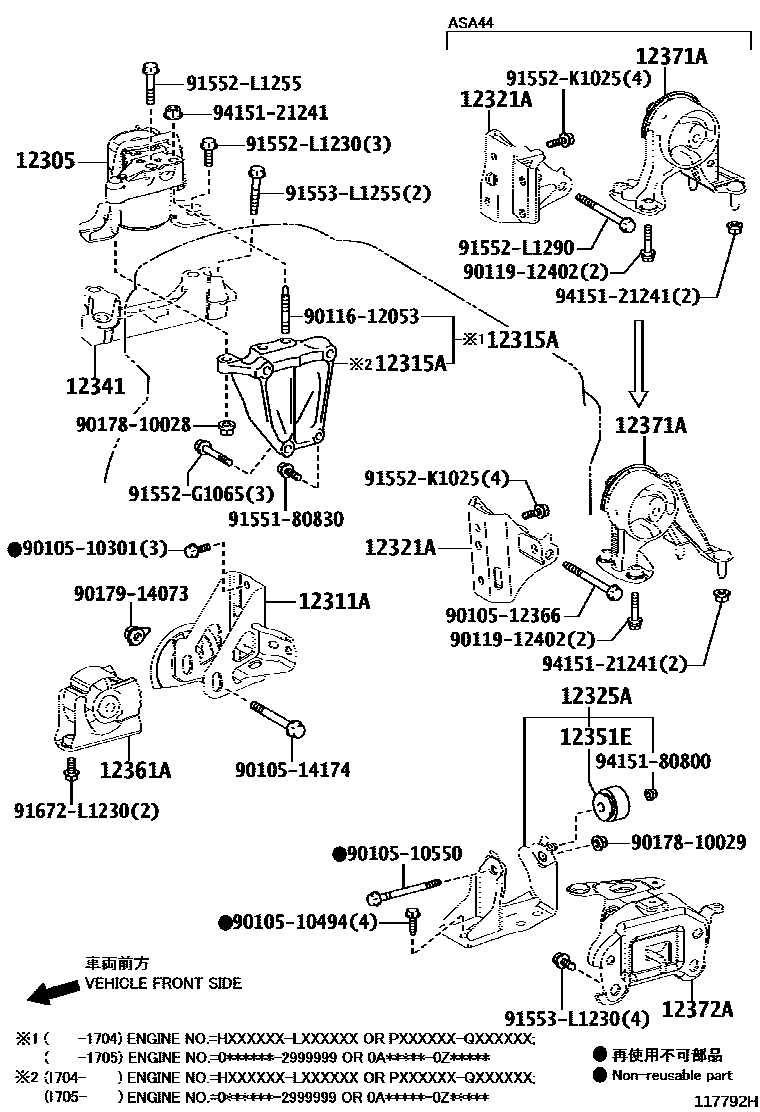

Toyota RAV4 Engine Mounting EPC diagram — 117792H — Engine Mounting — 117792H (201212 – 999999)

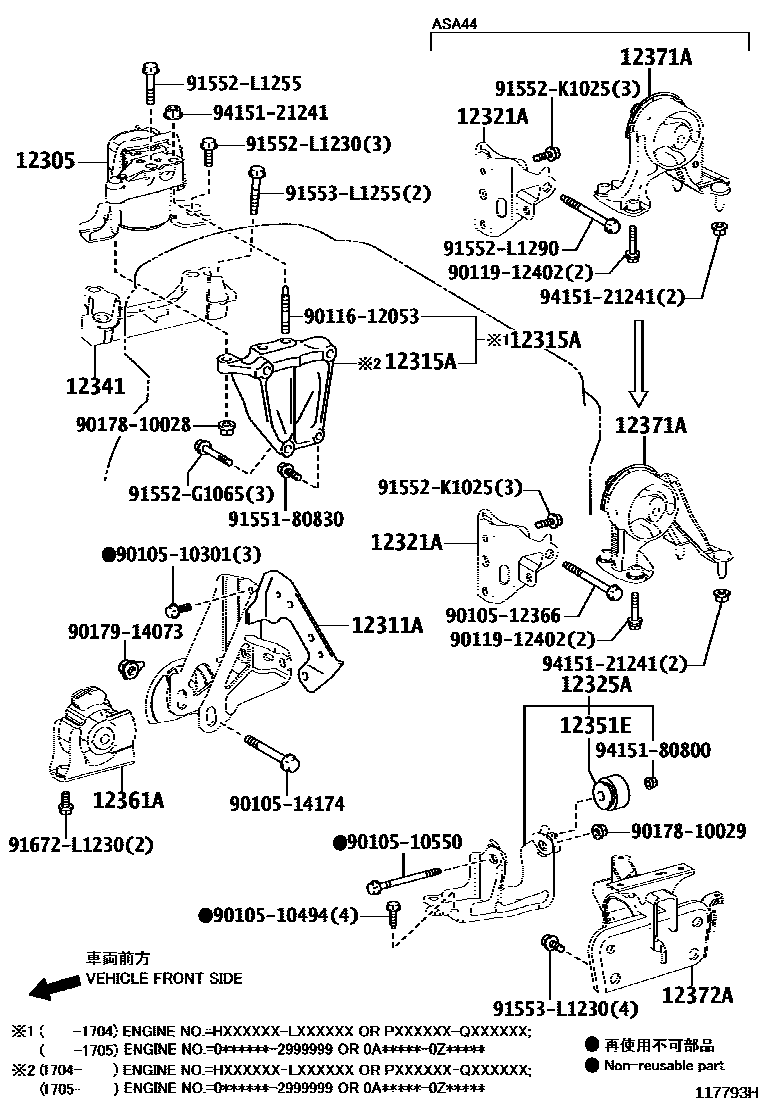

Toyota RAV4 Engine Mounting EPC diagram — 117793H — Engine Mounting — 117793H (201212 – 999999)

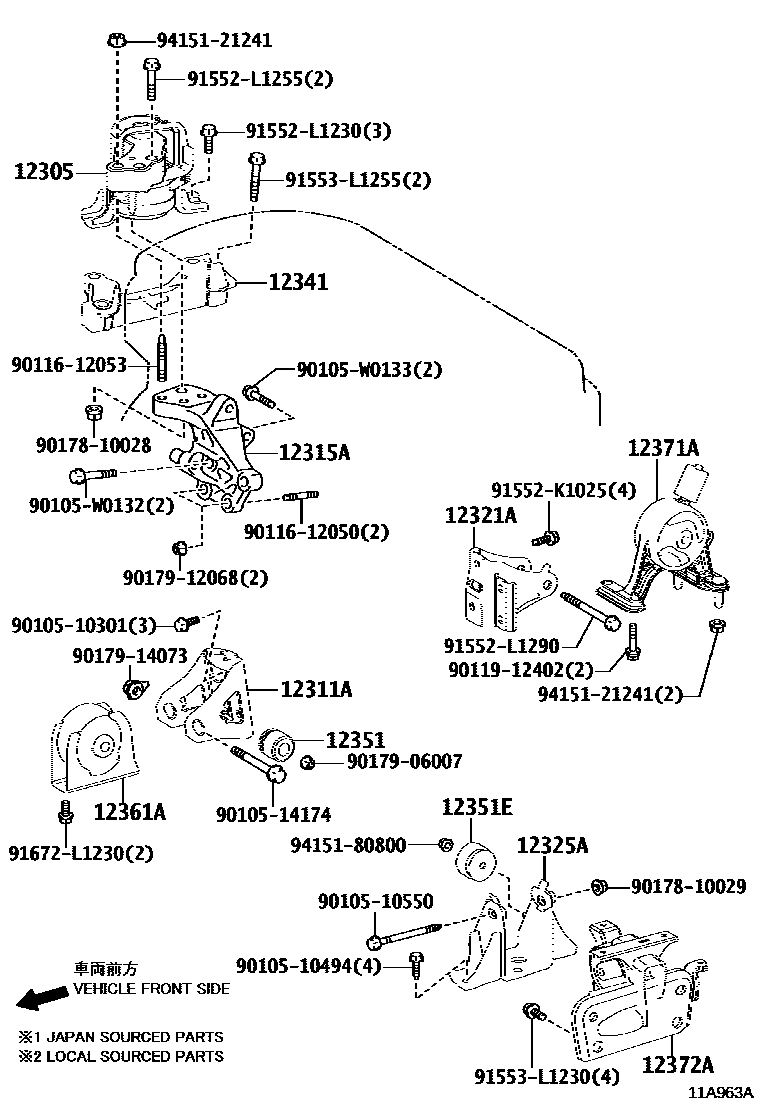

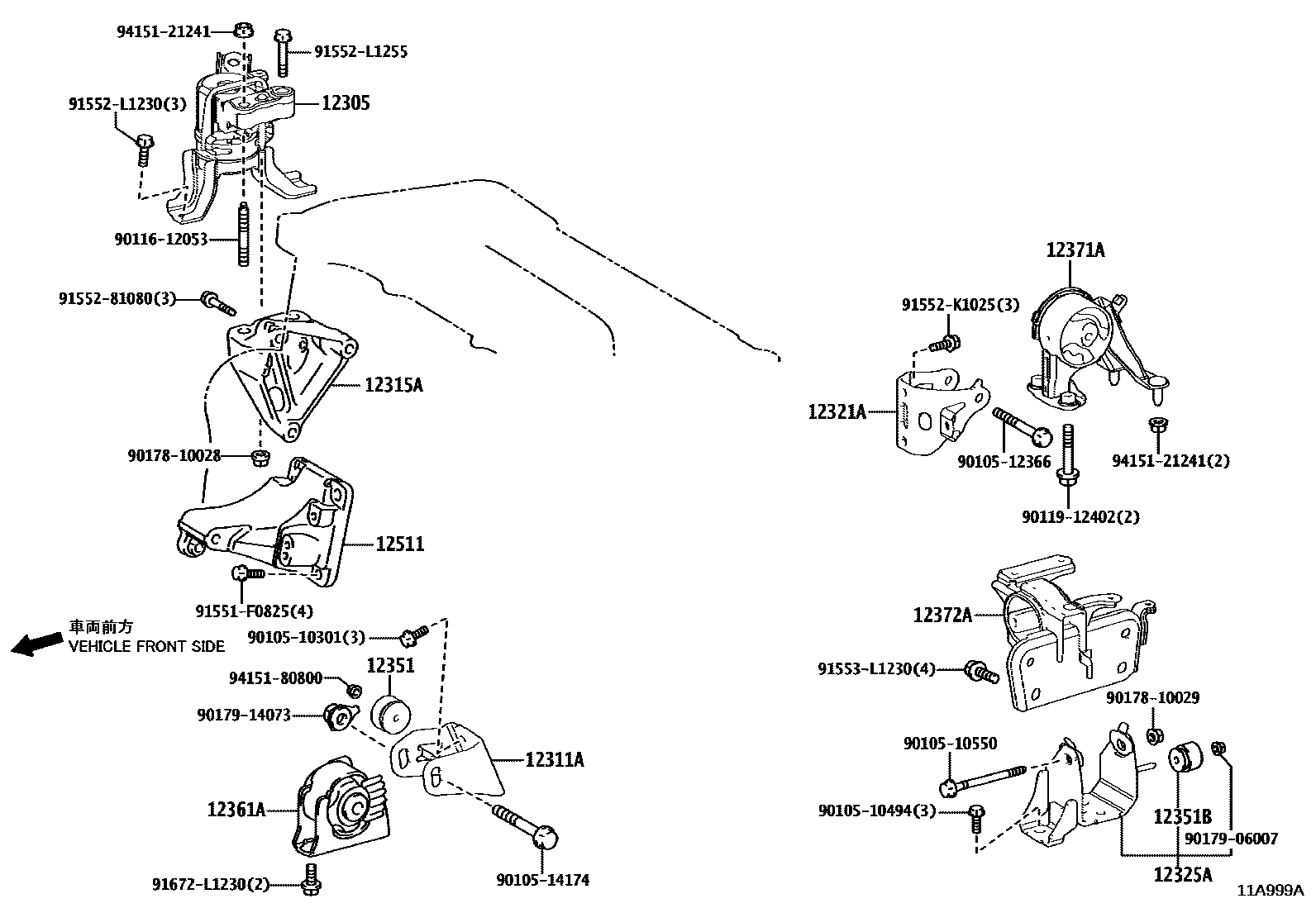

Toyota RAV4 Engine Mounting EPC diagram — 11A963A — Engine Mounting — 11A963A (201510 – 999999)

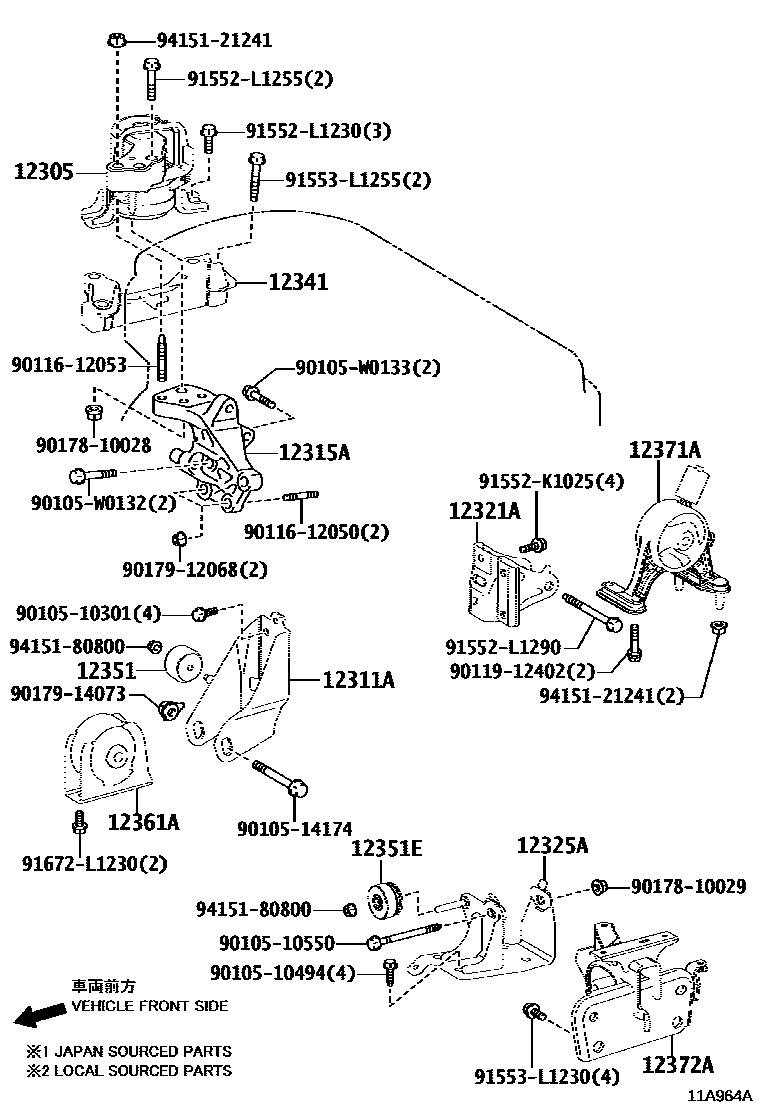

Toyota RAV4 Engine Mounting EPC diagram — 11A964A — Engine Mounting — 11A964A (201510 – 999999)

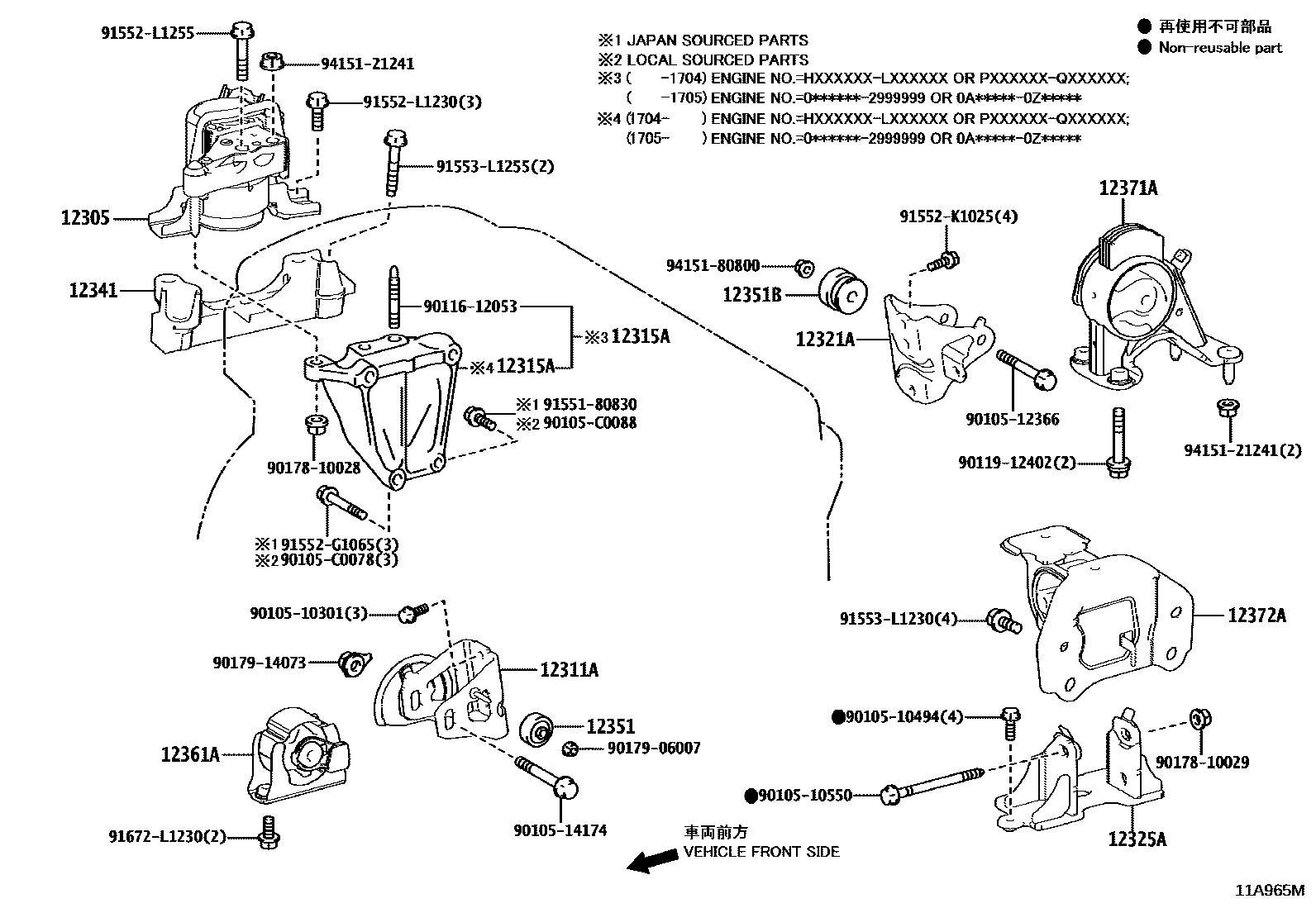

Toyota RAV4 Engine Mounting EPC diagram — 11A965M — Engine Mounting — 11A965M (201510 – 999999)

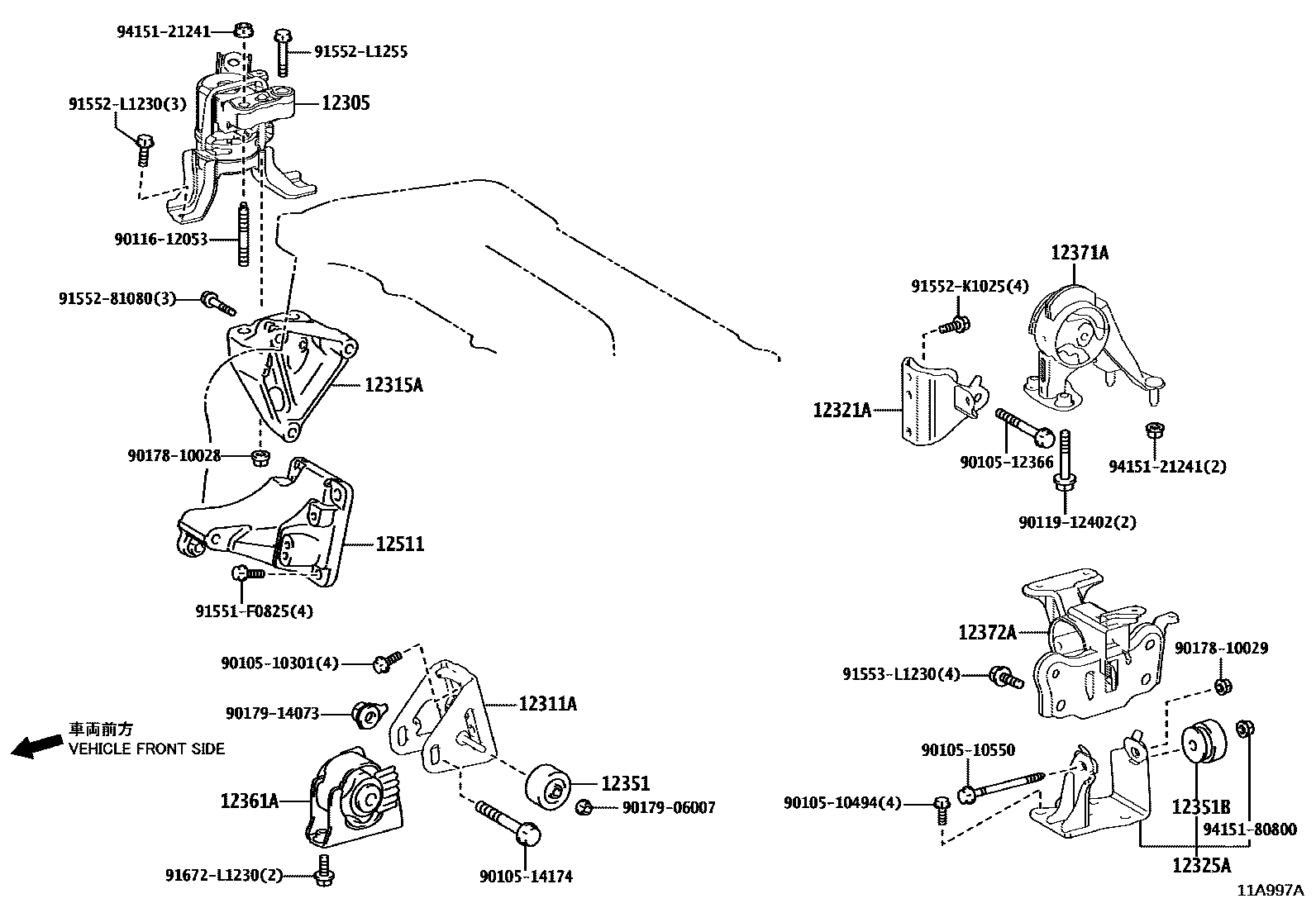

Toyota RAV4 Engine Mounting EPC diagram — 11A997A — Engine Mounting — 11A997A (201510 – 999999)

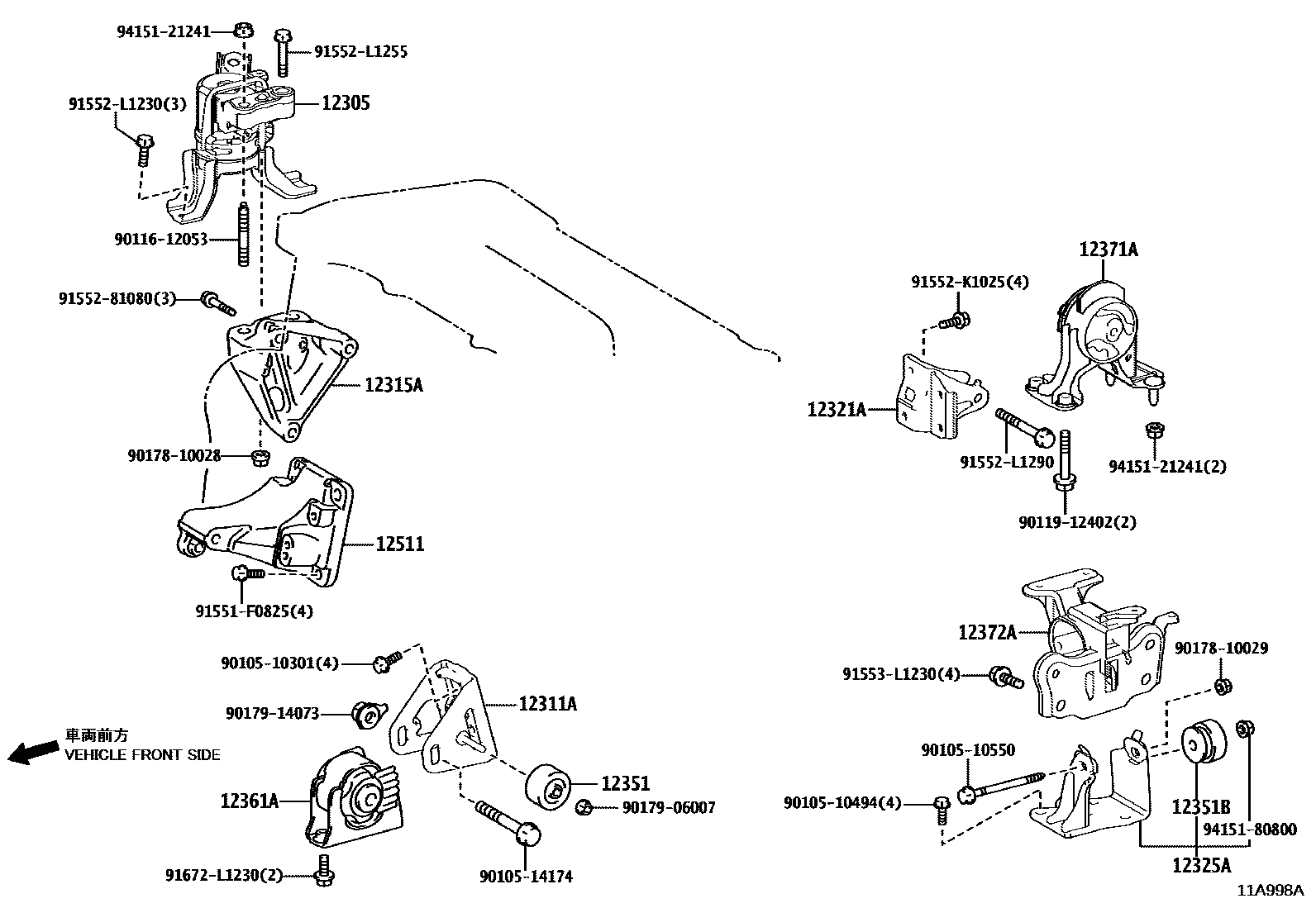

Toyota RAV4 Engine Mounting EPC diagram — 11A998A — Engine Mounting — 11A998A (201510 – 999999)

Toyota RAV4 Engine Mounting EPC diagram — 11A999A — Engine Mounting — 11A999A (201510 – 999999)

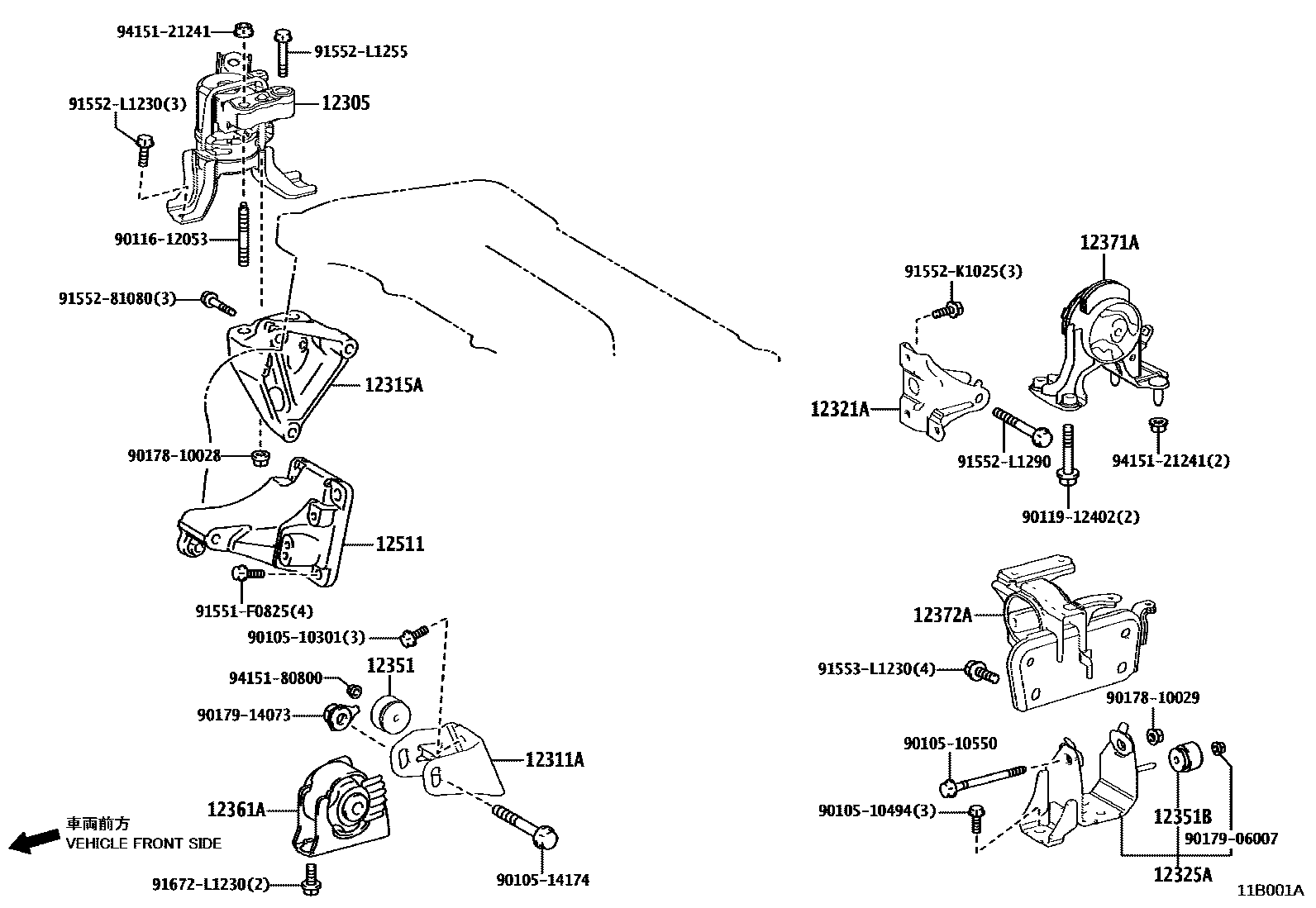

Toyota RAV4 Engine Mounting EPC diagram — 11B001A — Engine Mounting — 11B001A (201510 – 999999)

Toyota RAV4 Engine Mounting EPC diagram — 11B002B — Engine Mounting — 11B002B (201510 – 999999)

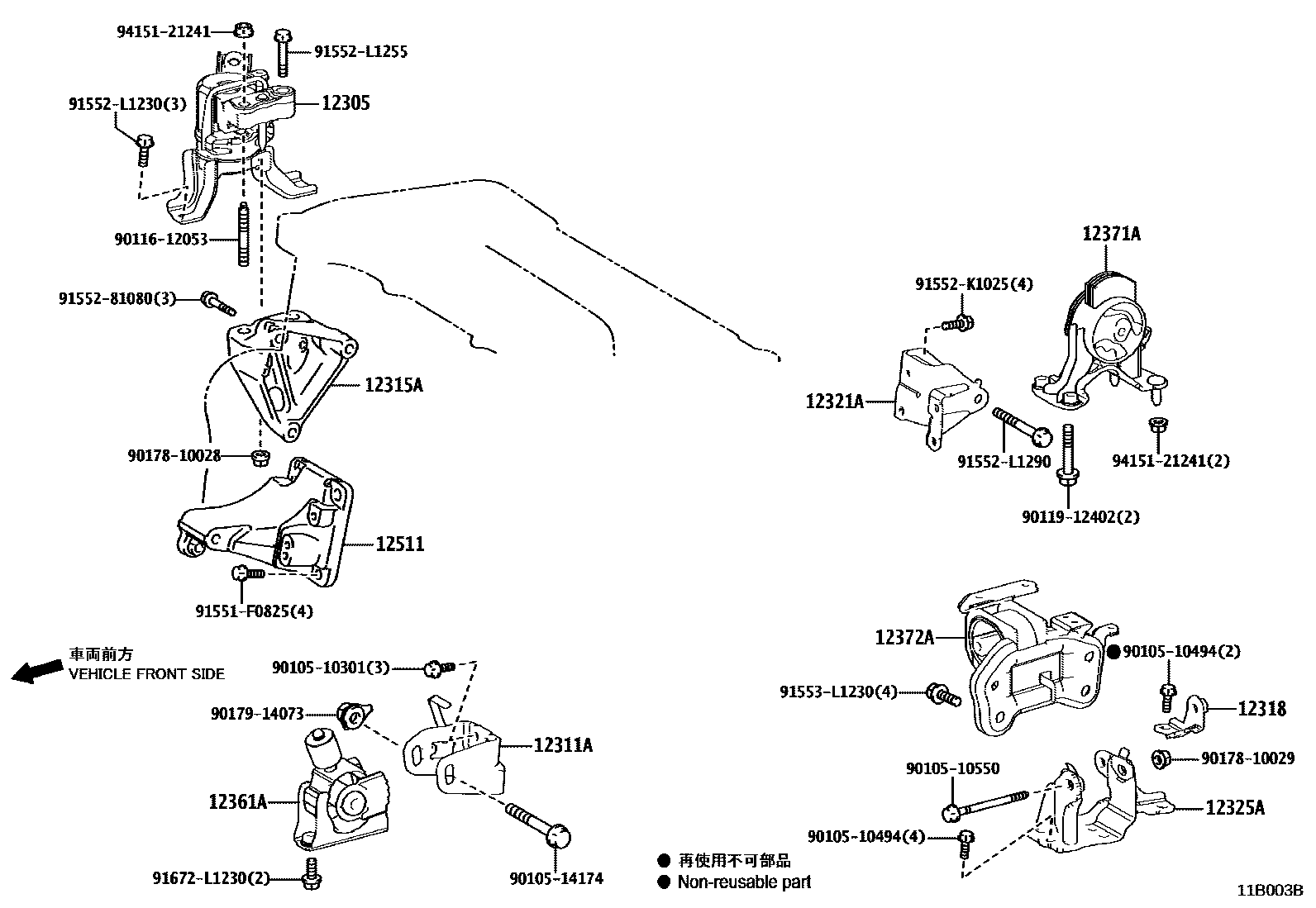

Toyota RAV4 Engine Mounting EPC diagram — 11B003B — Engine Mounting — 11B003B (201510 – 999999)

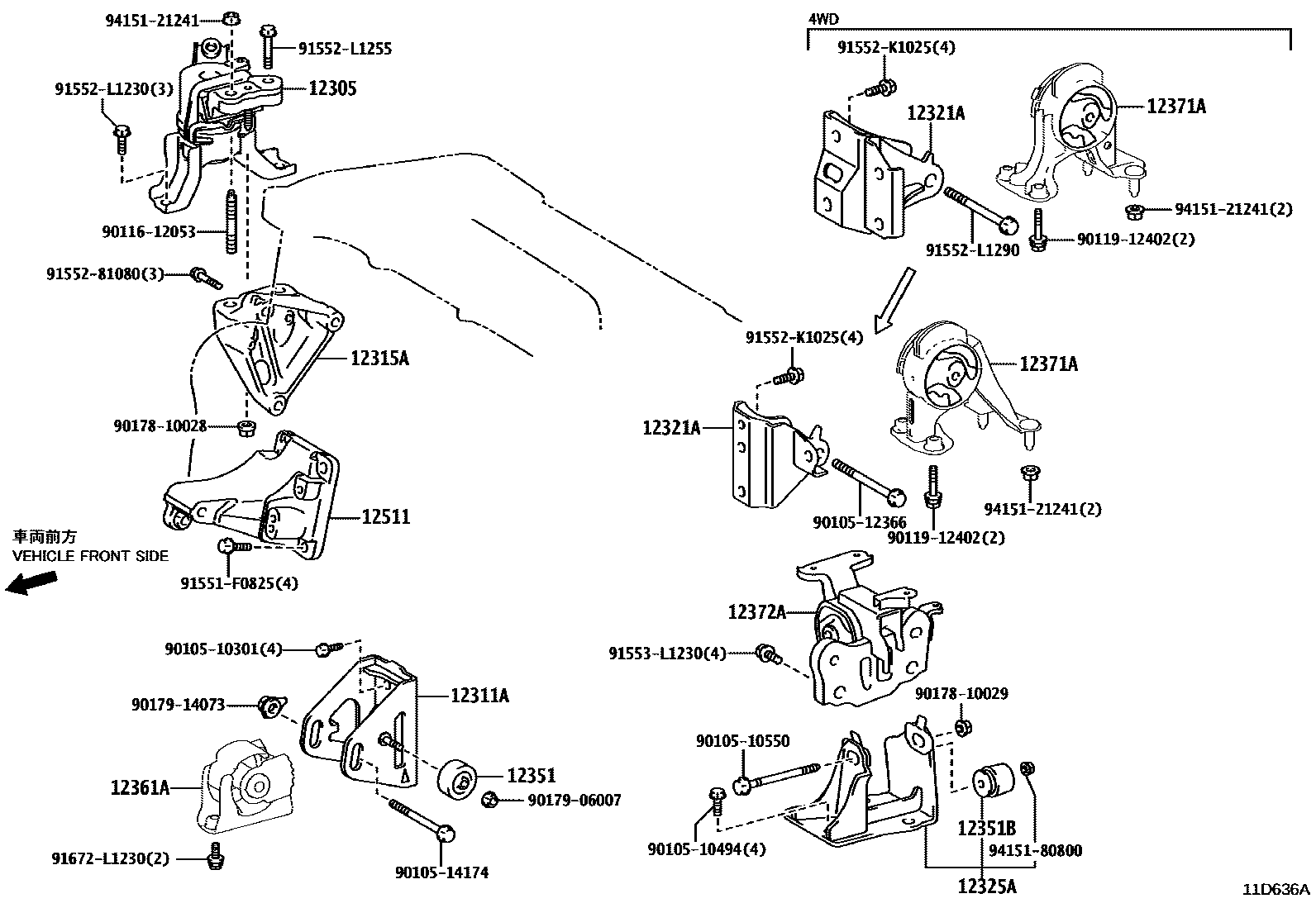

Toyota RAV4 Engine Mounting EPC diagram — 11D636A — Engine Mounting — 11D636A (201212 – 201510)

PNC and OE references

PNC	Part name	OE numbers
12305	Engine right side mounting vibration isolation pad sub-assembly	12305-26072 · 12305-26101 · 12305-36040 · 12305-36090 · 12305-37280 · 12305-37330
12311A	Engine front mounting bracket (for transverse engine)	12311-26130 · 12311-26150 · 12311-36080 · 12311-36090 · 12311-36091 · 12311-36110 · 12311-37100 · 12311-37180 · 12311-37200
12315A	Engine right side mounting bracket (for transversely mounted engine)	12315-0R020 · 12315-0V030 · 12315-0V031 · 12315-36010 · 12315-36011 · 12315-37030
12318	Engine left mounting bracket	12318-37020
12321A	Rear engine mounting bracket (for transverse engine)	12321-26050 · 12321-26060 · 12321-36050 · 12321-36060 · 12321-36070 · 12321-36080 · 12321-36090 · 12321-37070 · 12321-37080 · 12321-37090 · 12321-37110 · 12321-37200 · 12321-37210
12325A	Engine left side mounting bracket (for transversely mounted engine)	12304-36030 · 12304-36040 · 12304-36041 · 12304-37070 · 12304-37110 · 12325-26030 · 12325-26040 · 12325-36070 · 12325-37200
12341	engine mounting spacer	12341-26011
12351	engine mount shock absorber	12351-11023 · 12351-27030 · 12351-28110 · 12351-37080 · 12351-63010
12351B	engine mount shock absorber	12351-11023 · 12351-23040 · 12351-28090
12351E	engine mount shock absorber	12351-22090 · 12351-23010 · 12351-23040 · 12351-33020 · 12351-37020
12361A	Engine front mounting vibration isolation pad (for transversely mounted engine)	12361-26120 · 12361-28280 · 12361-36120 · 12361-36130 · 12361-36150 · 12361-37180 · 12361-37190 · 12361-37240
12371A	Engine rear mount vibration isolation pad	12371-26070 · 12371-26080 · 12371-36070 · 12371-36080 · 12371-36090 · 12371-36100 · 12371-36180 · 12371-36190 · 12371-37170 · 12371-37180 · 12371-37190 · 12371-37200 · 12371-37330 · 12371-37340
12372A	Engine left-side mounting vibration isolation pad (for transversely mounted engines)	12372-26050 · 12372-26060 · 12372-36050 · 12372-36060 · 12372-36070 · 12372-37250 · 12372-37260 · 12372-37270
12511	No. 1 generator bracket	12511-37010
