Toyota RAV4 Short Block Assembly — Figure 1102

Toyota RAV4 EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

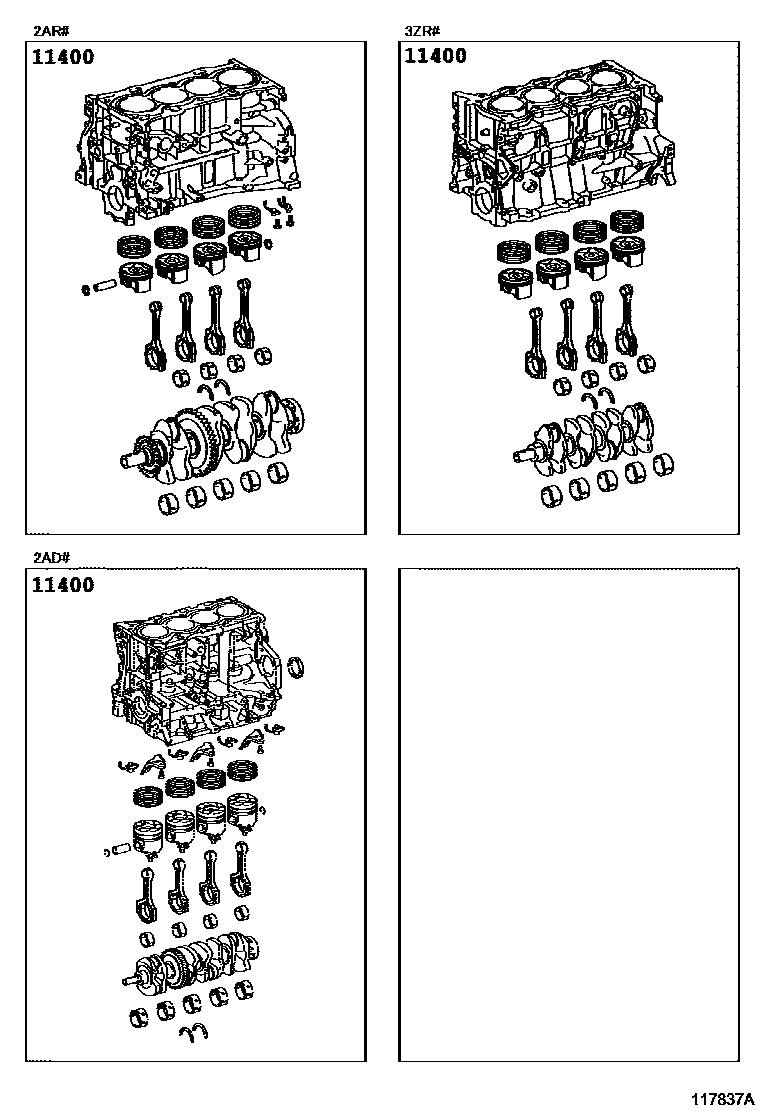

Toyota RAV4 Short Block Assembly EPC diagram — 117837A
Short Block Assembly — 117837A (201212 – 201812)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0R051 · 11400-0V130 · 11400-36060 · 11400-36061 · 11400-36080 · 11400-36110 · 11400-37090 · 11400-37210
