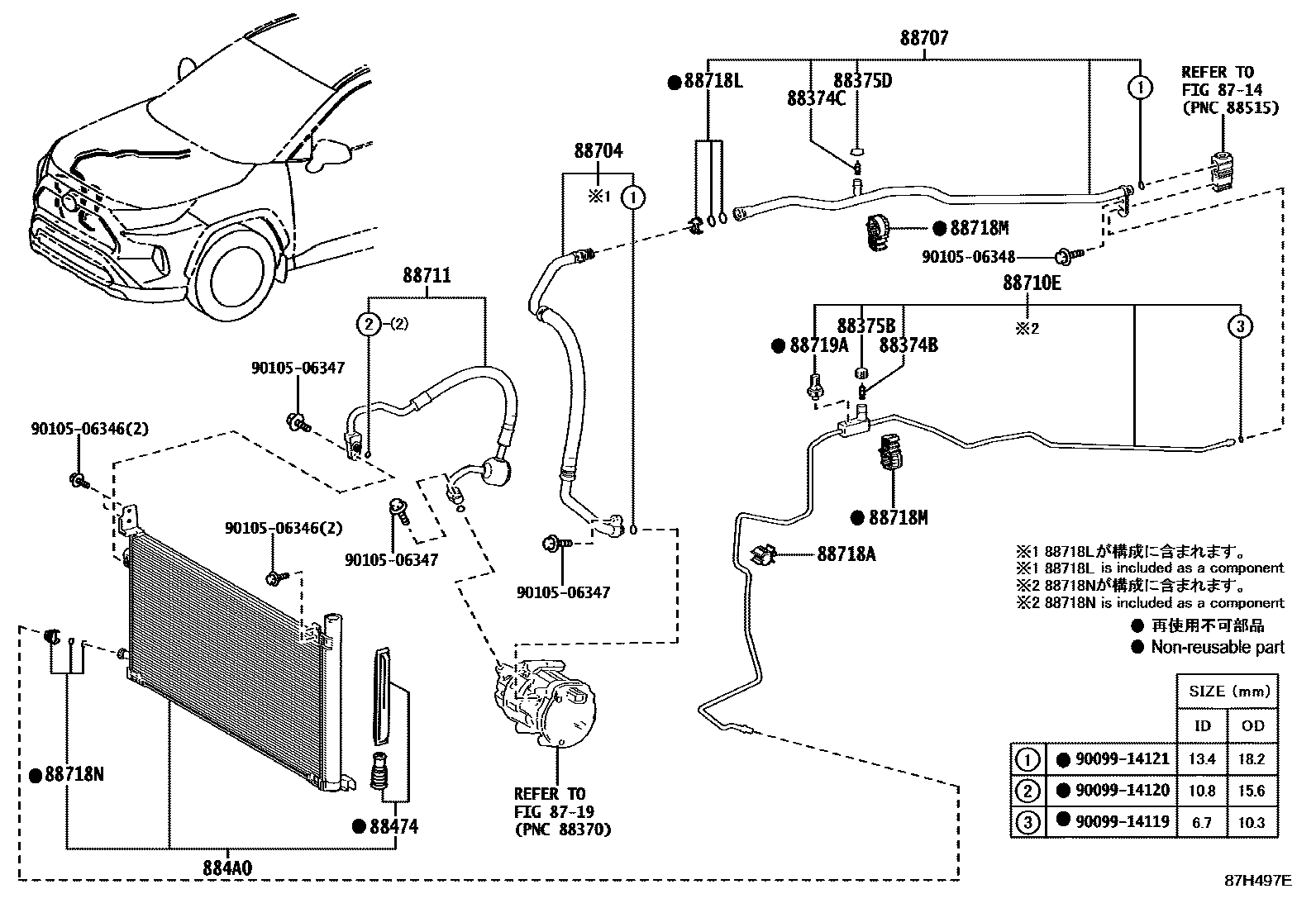

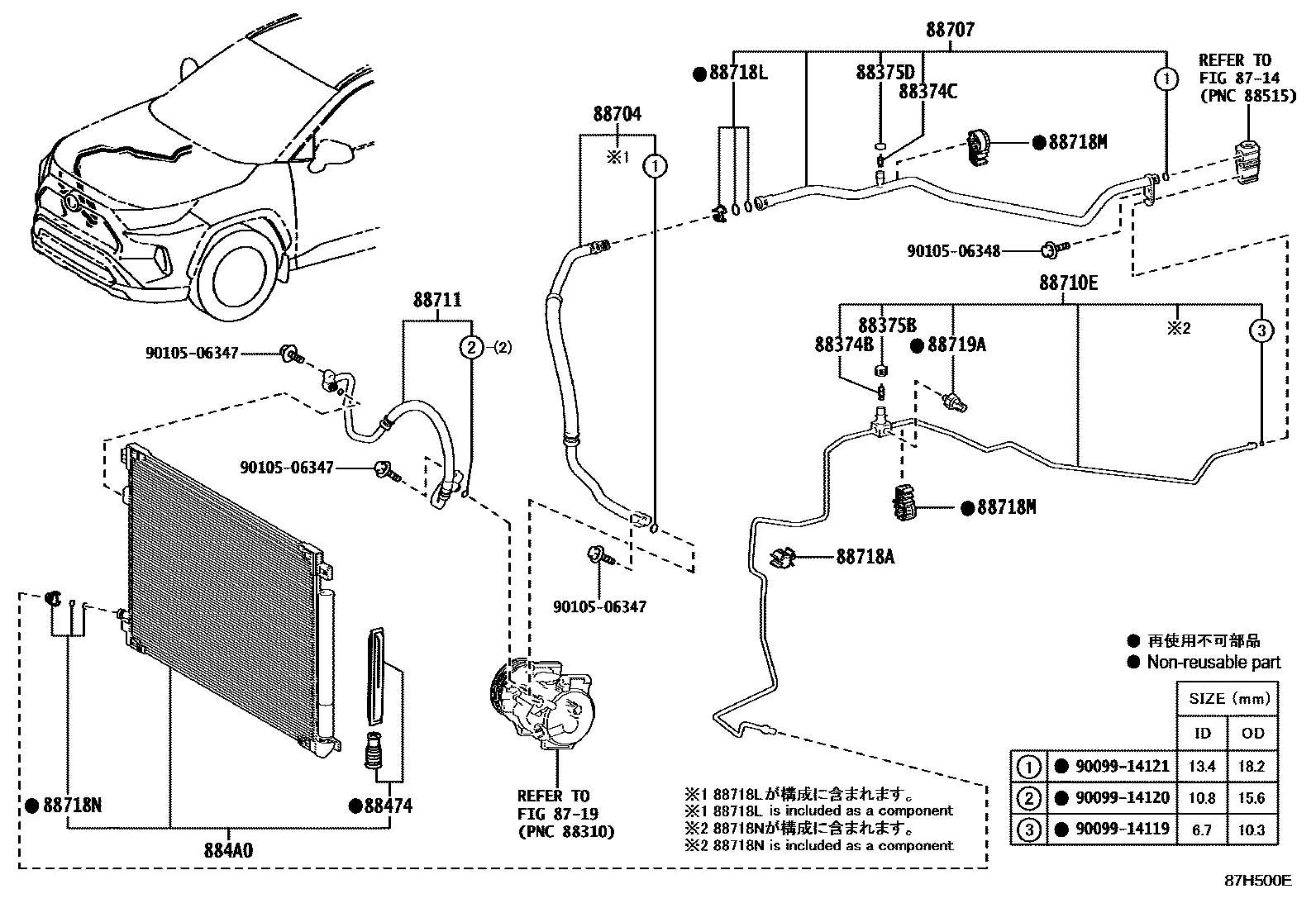

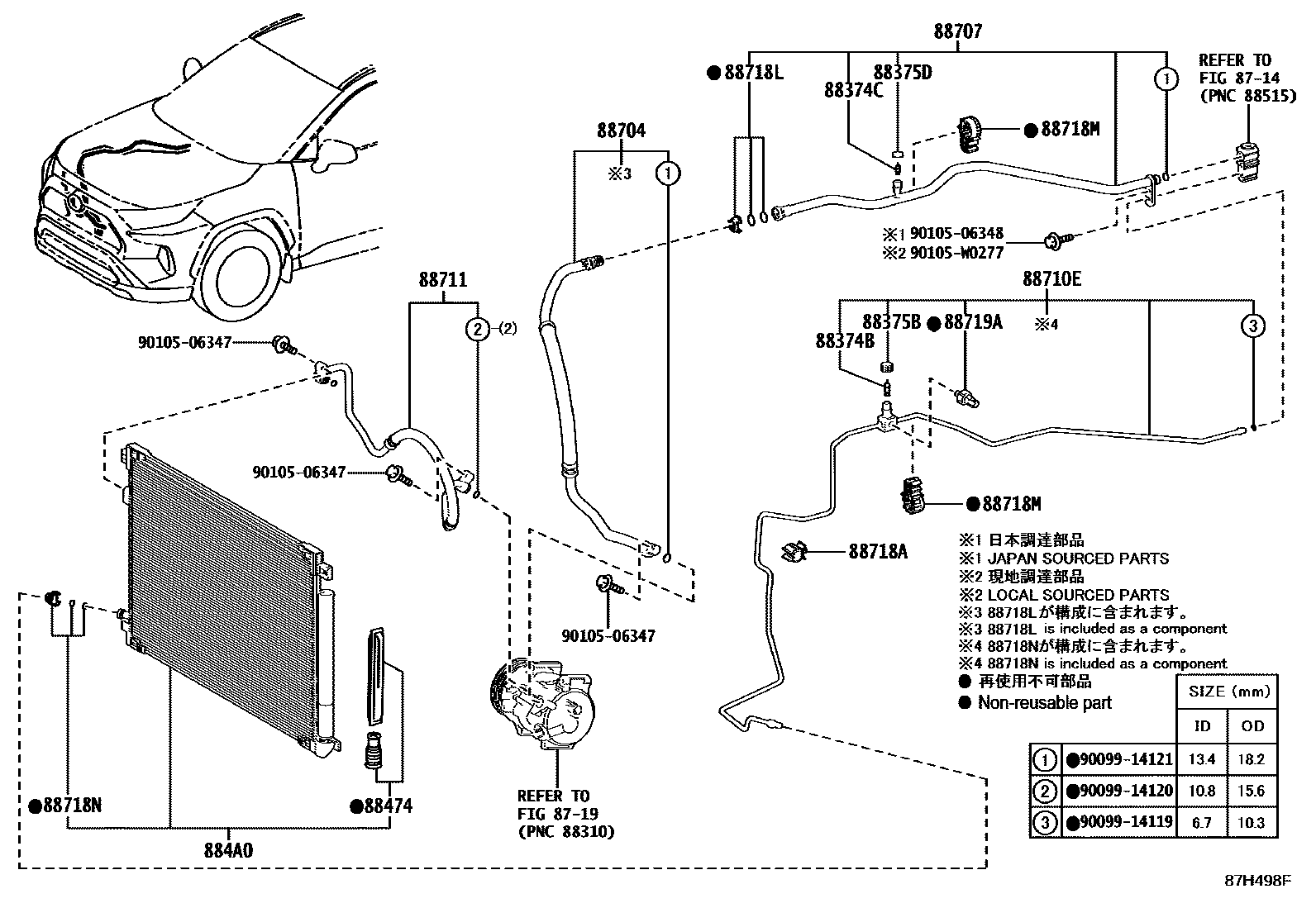

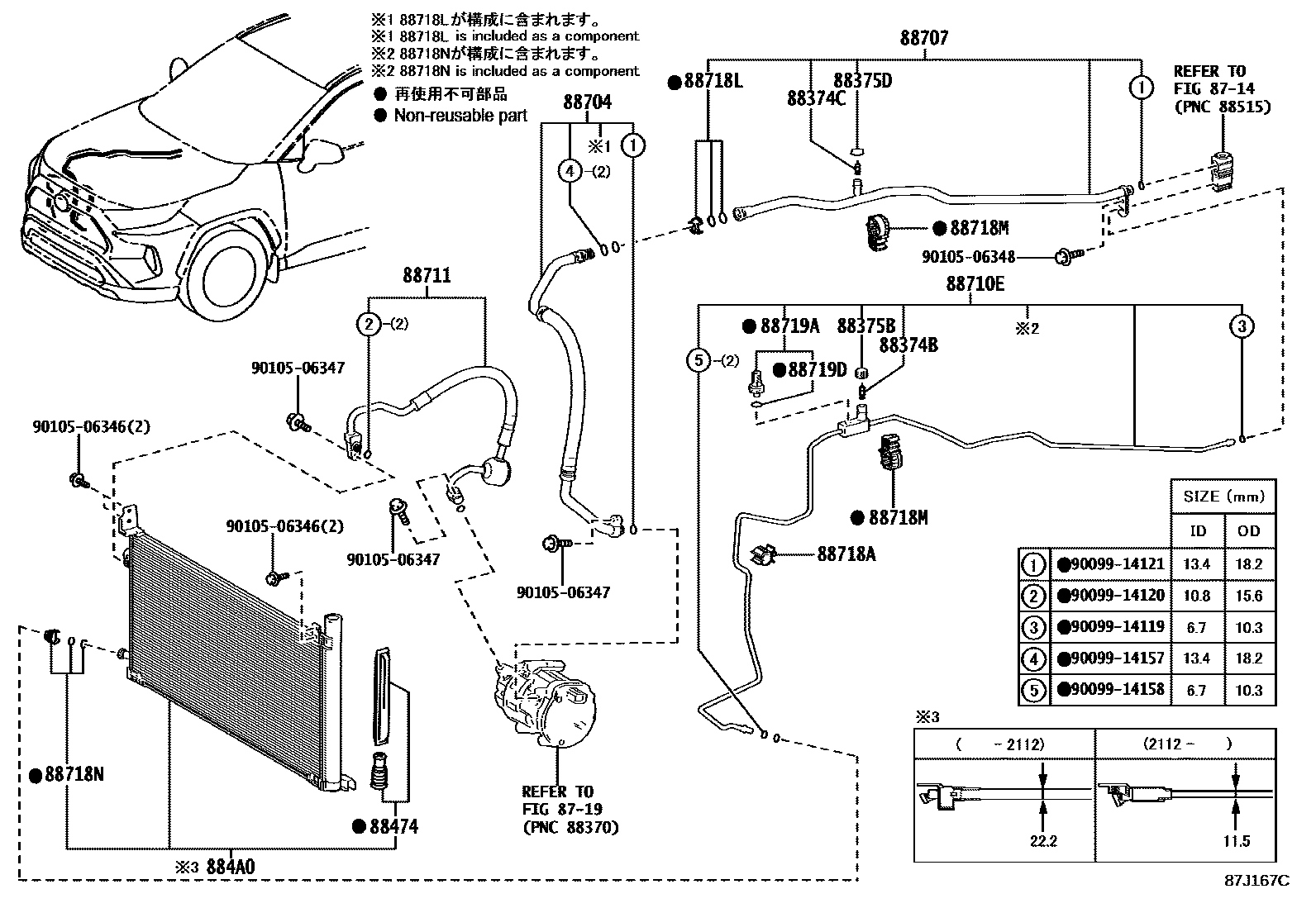

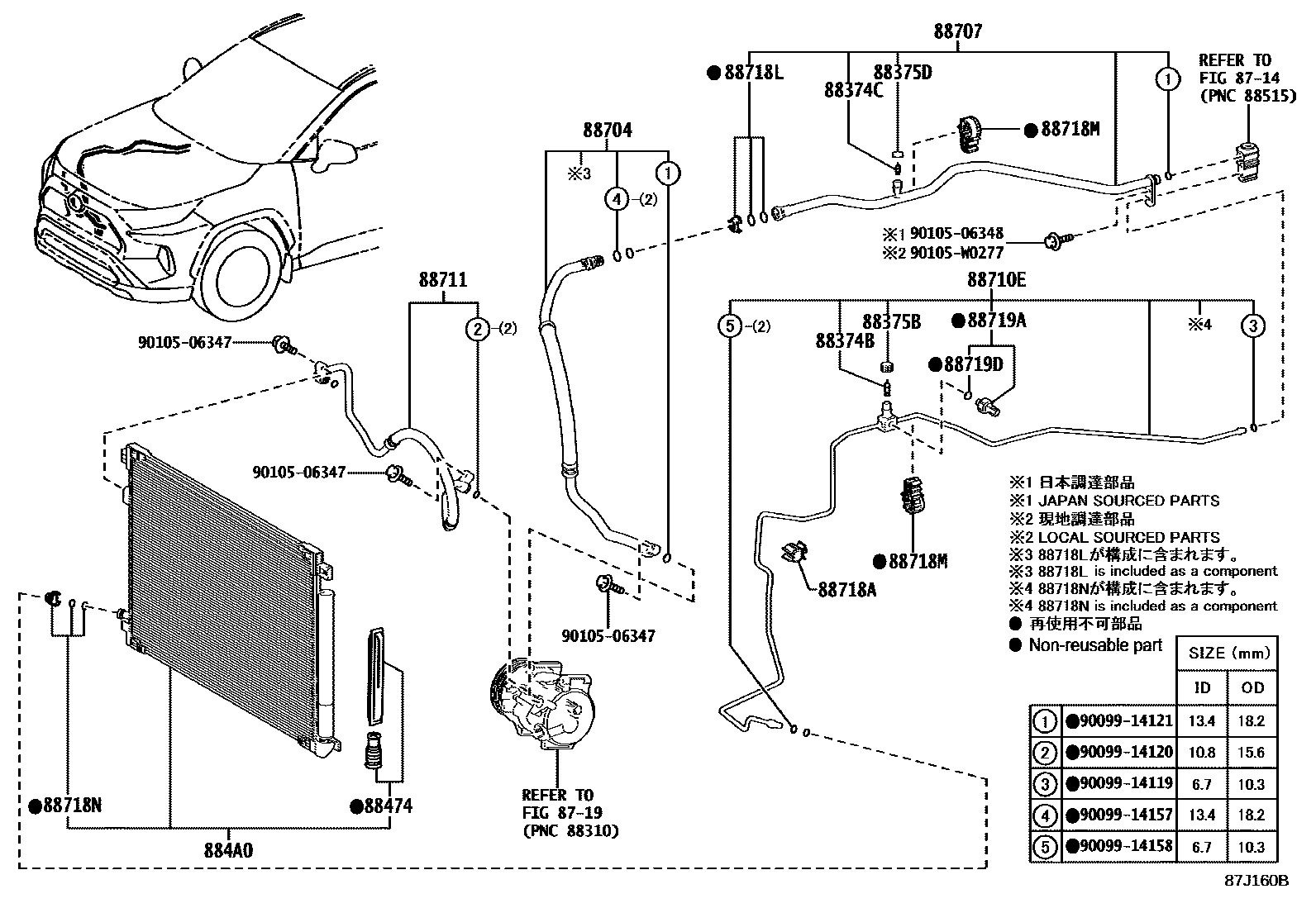

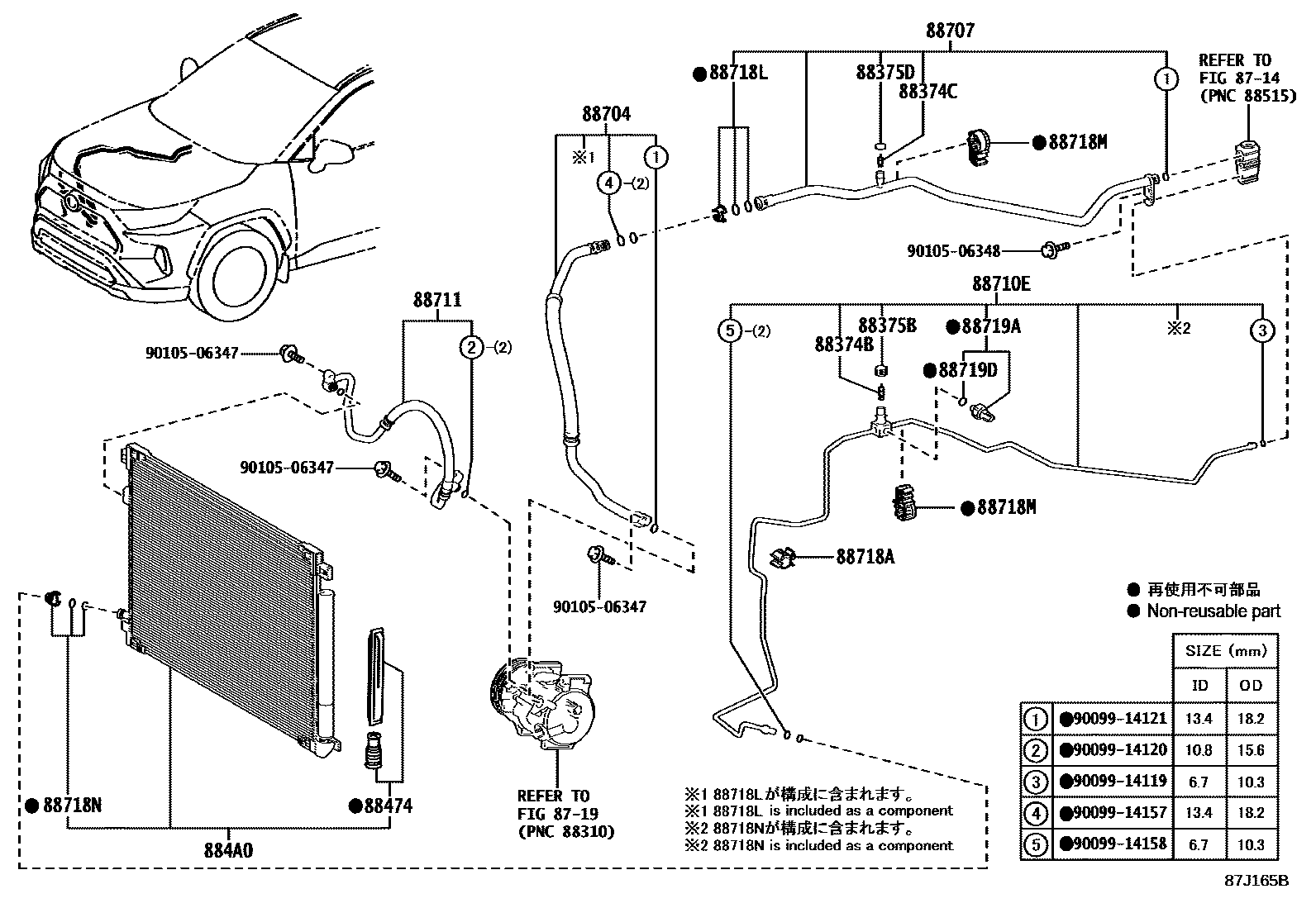

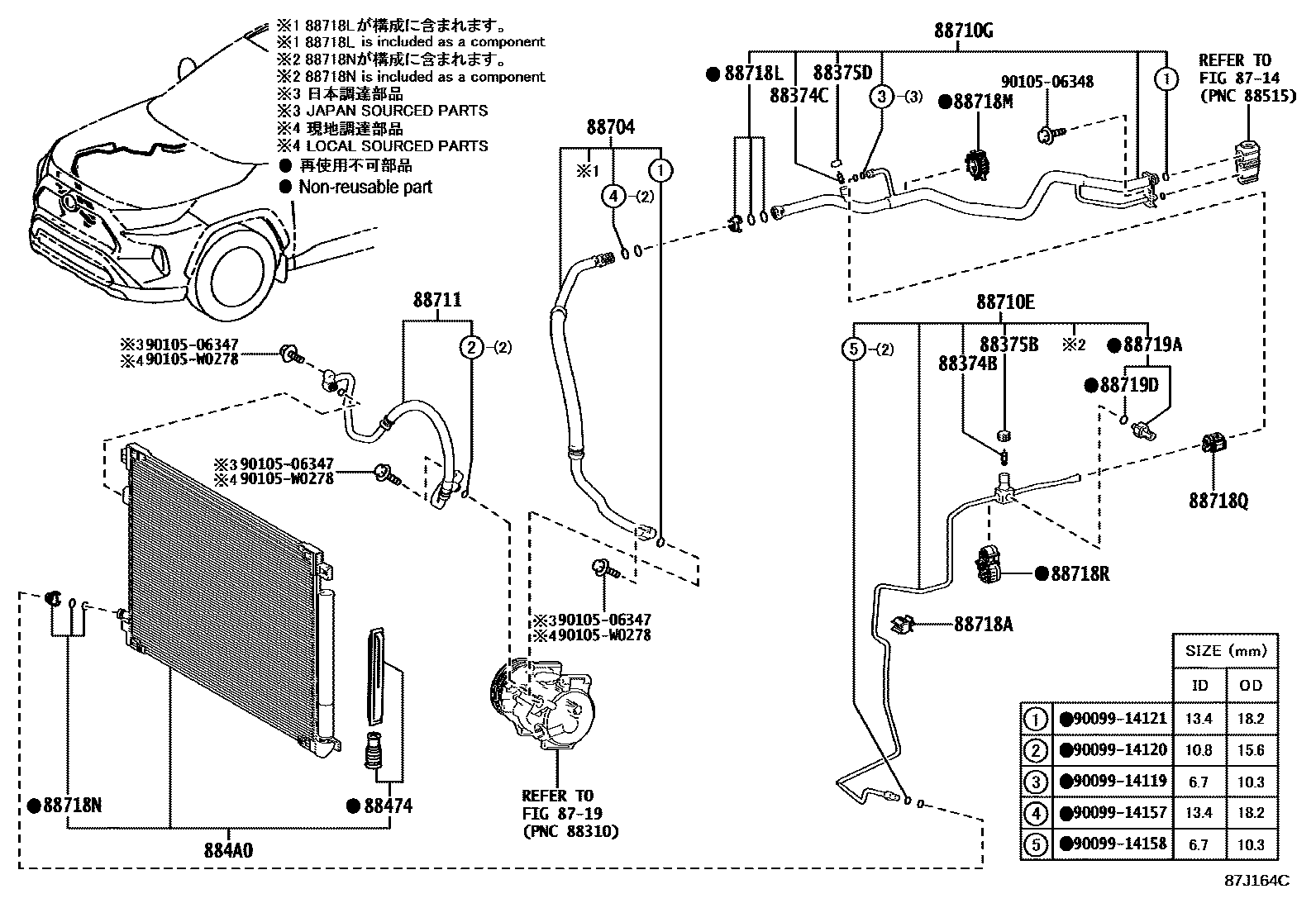

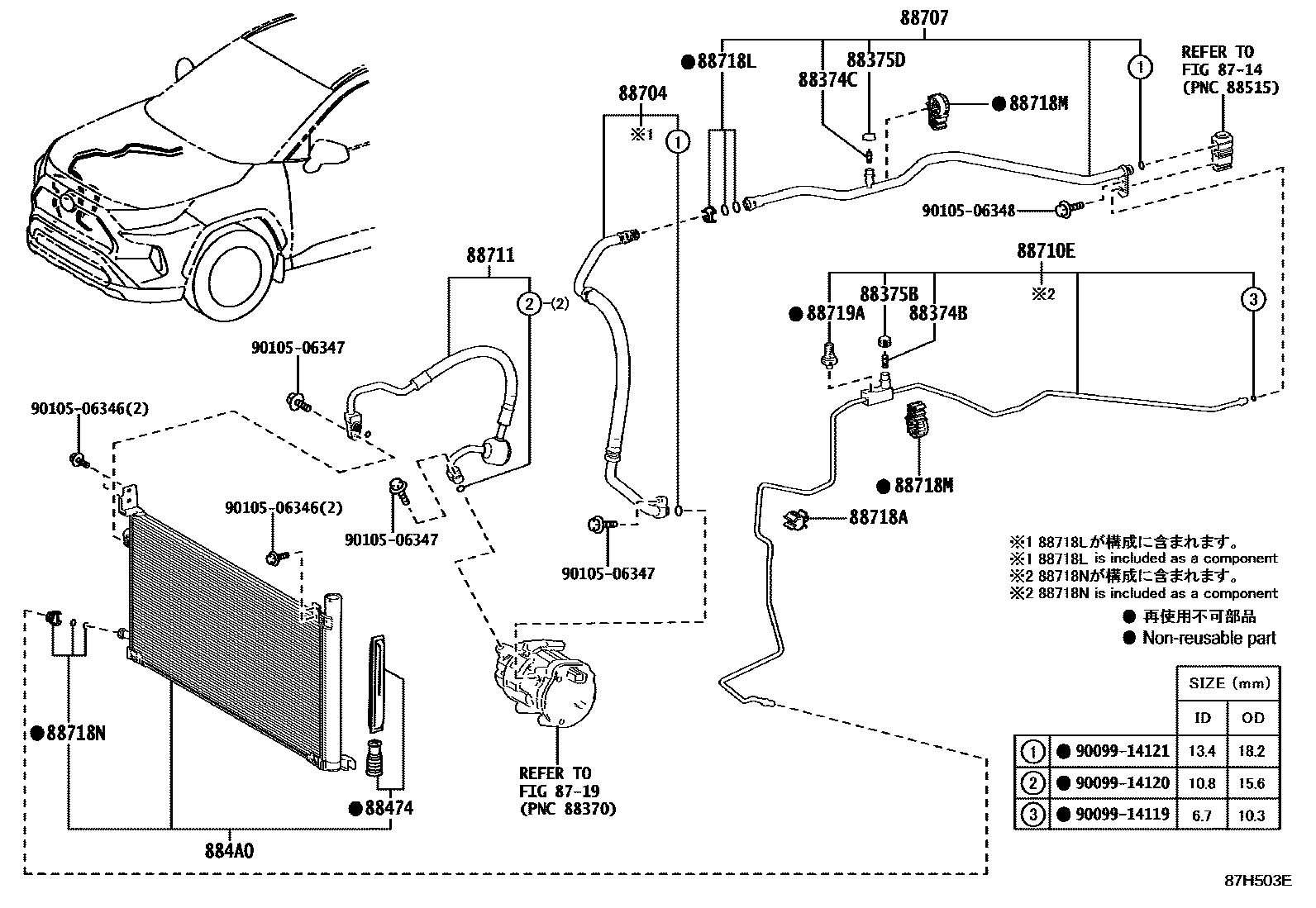

Toyota RAV4 Heating & Air Conditioning - Cooler Piping — Figure 8718

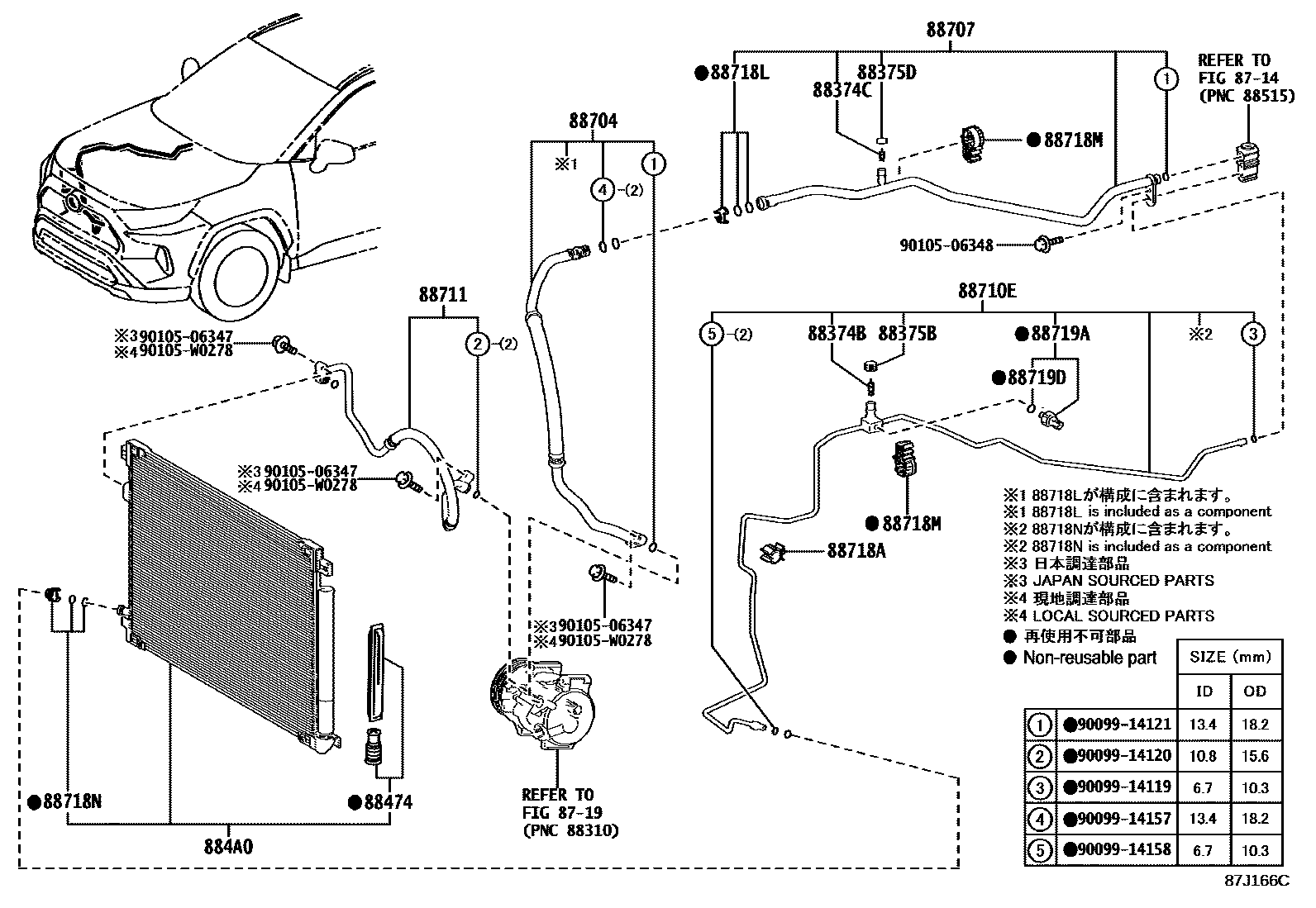

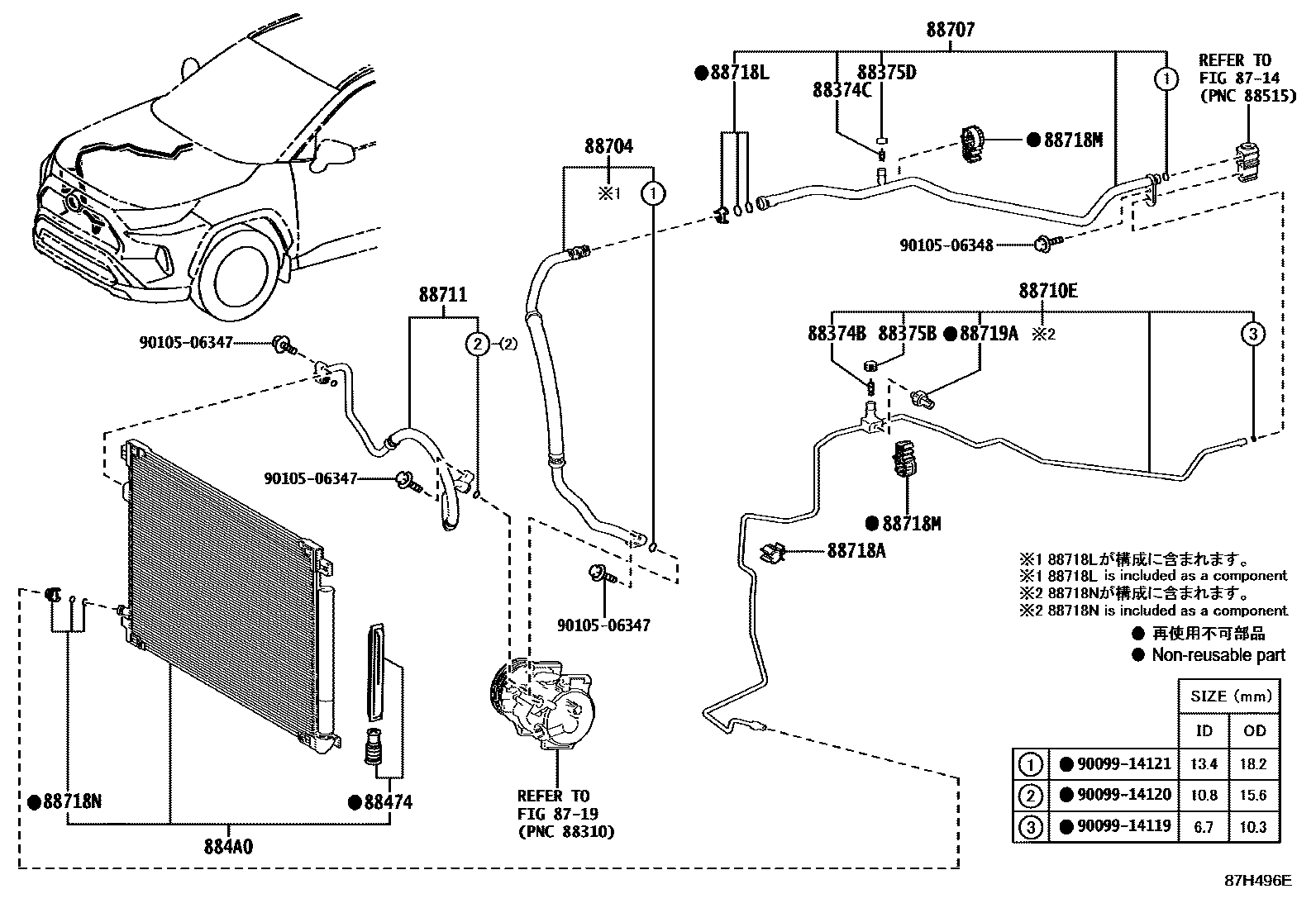

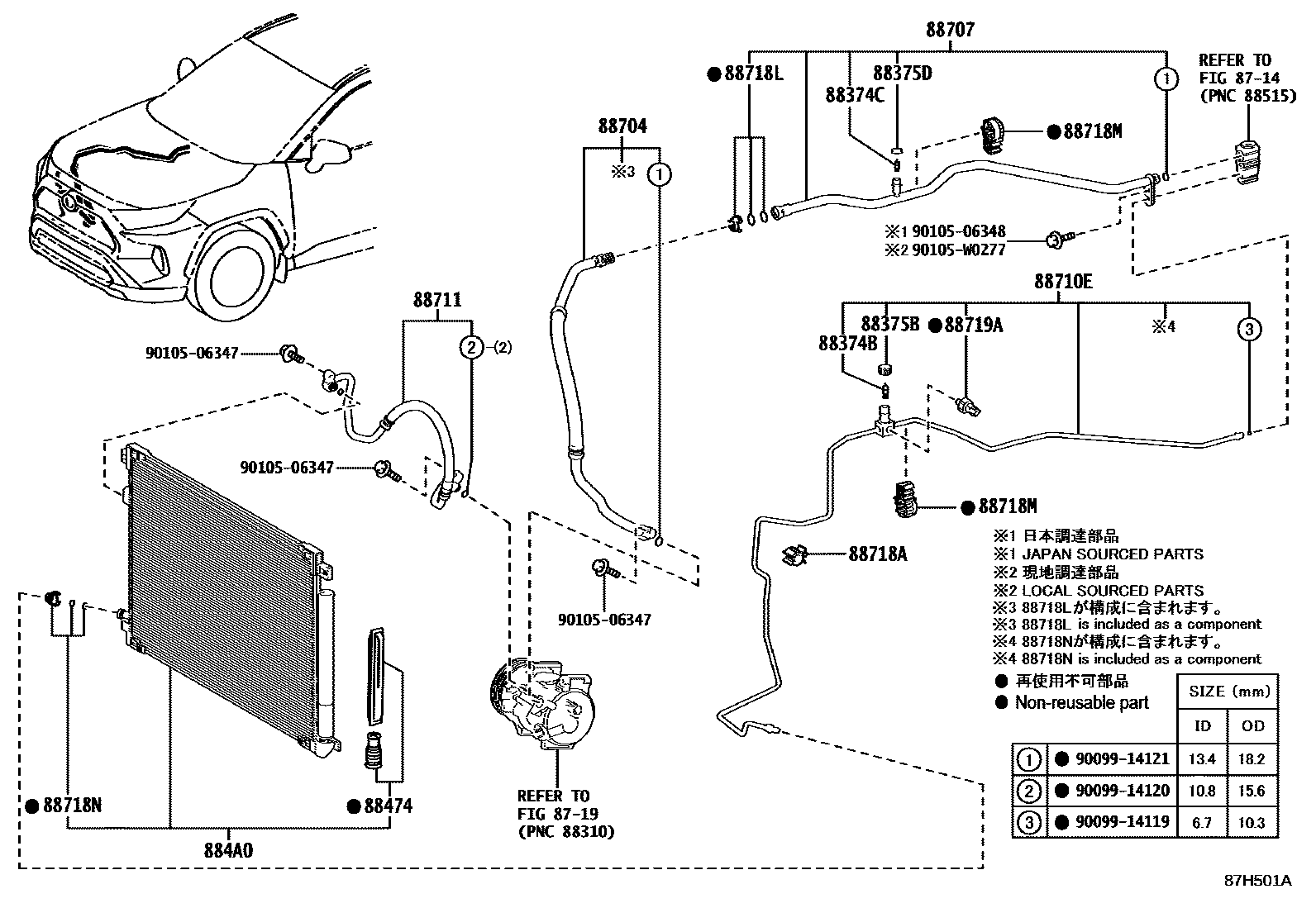

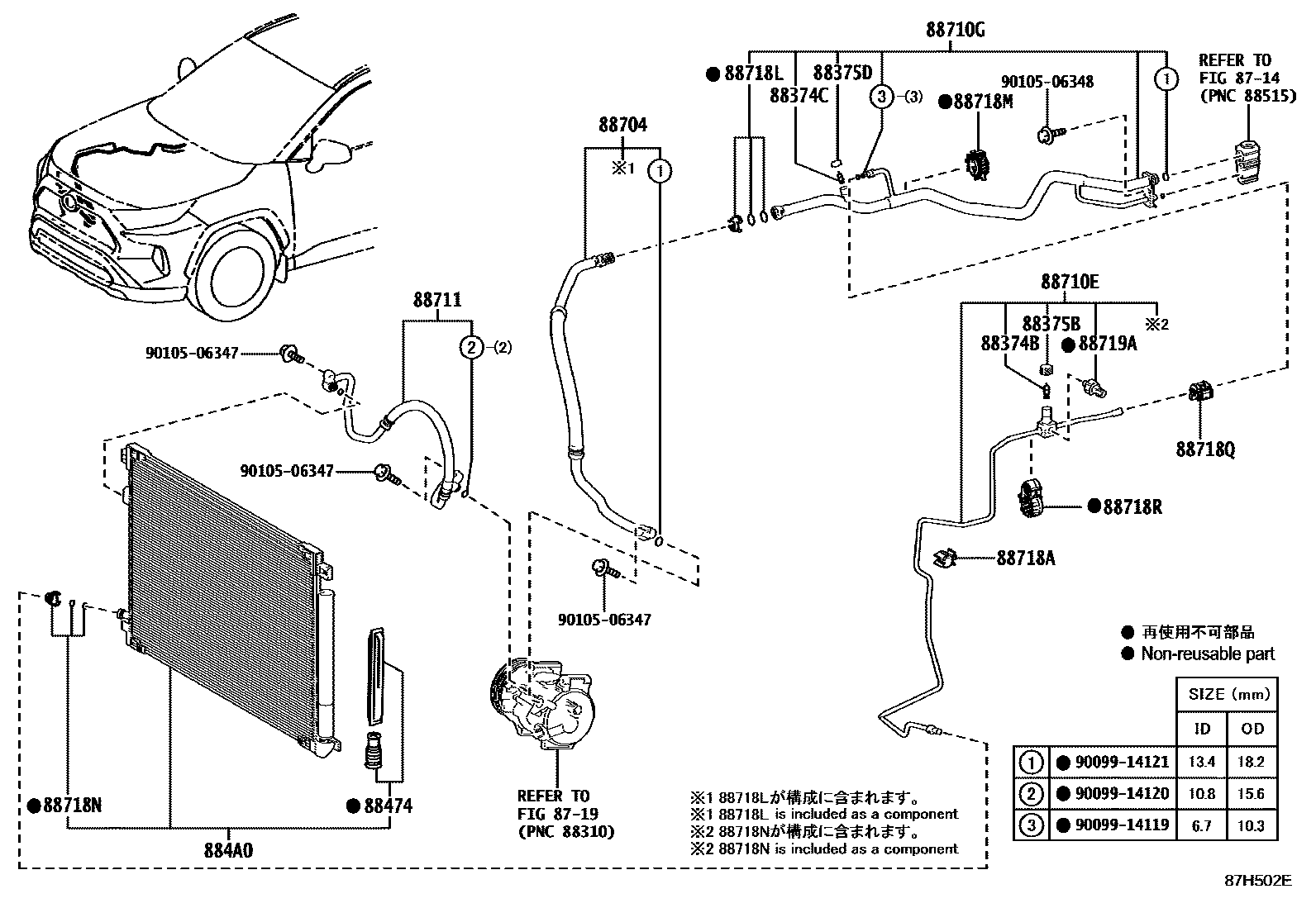

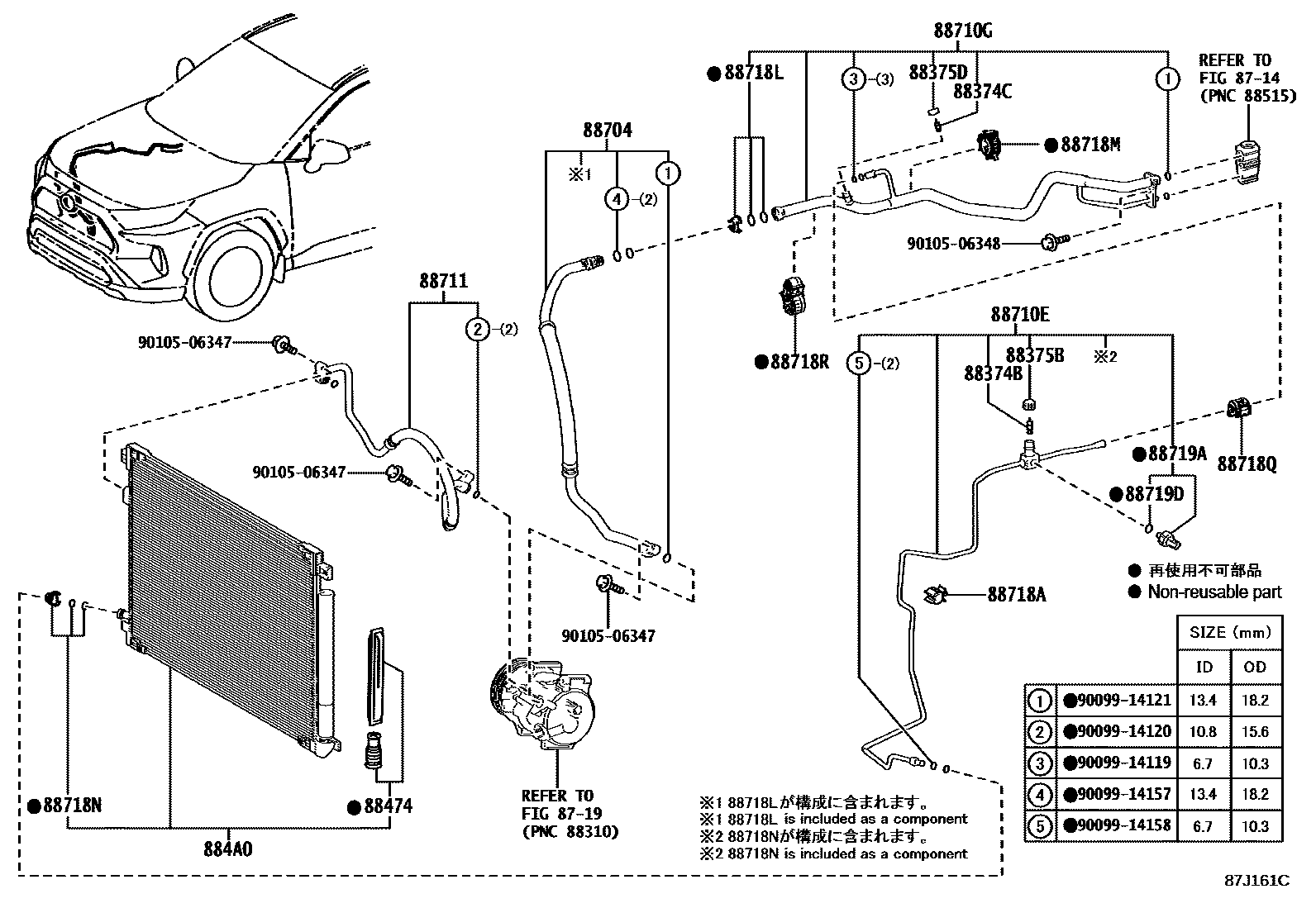

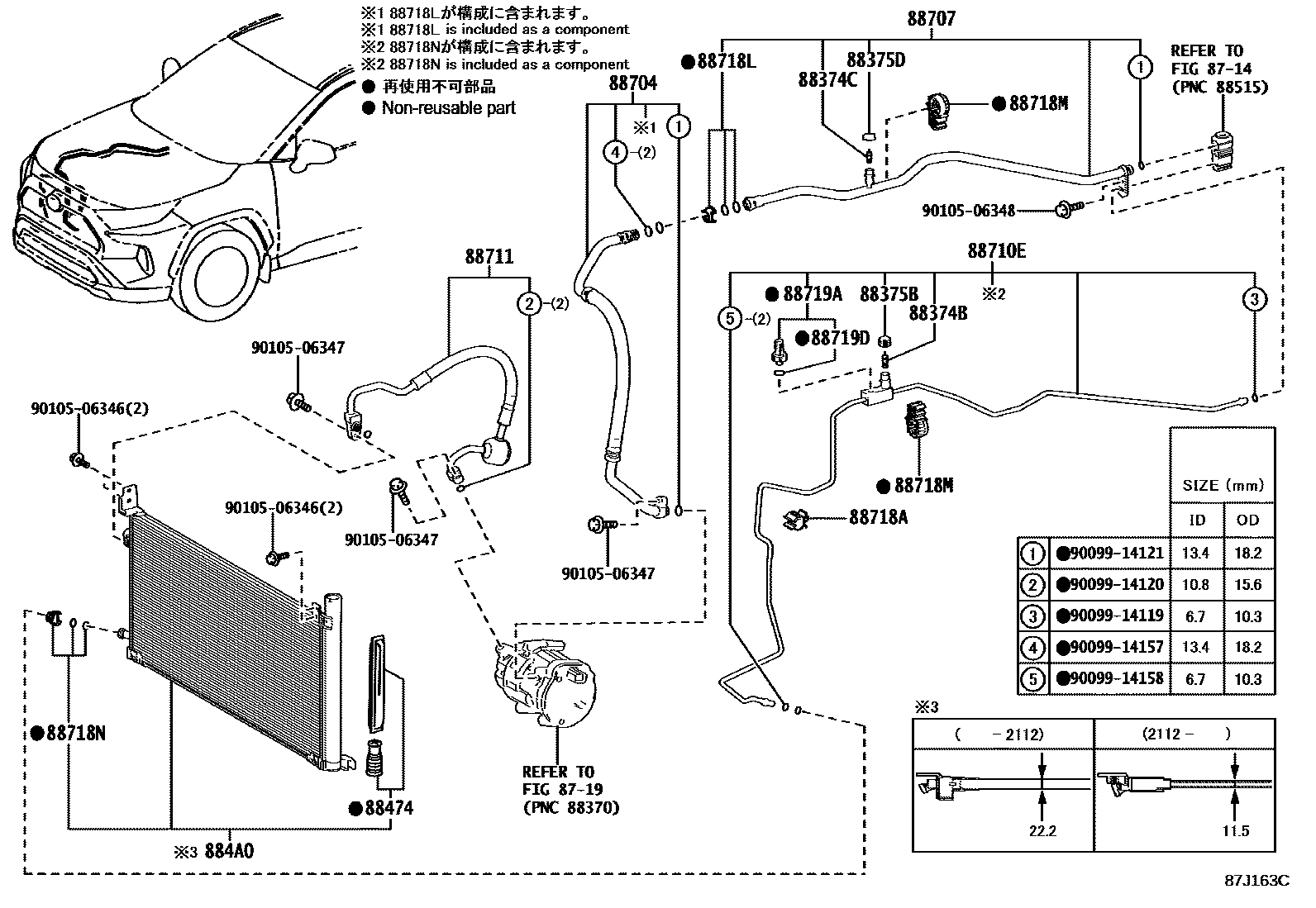

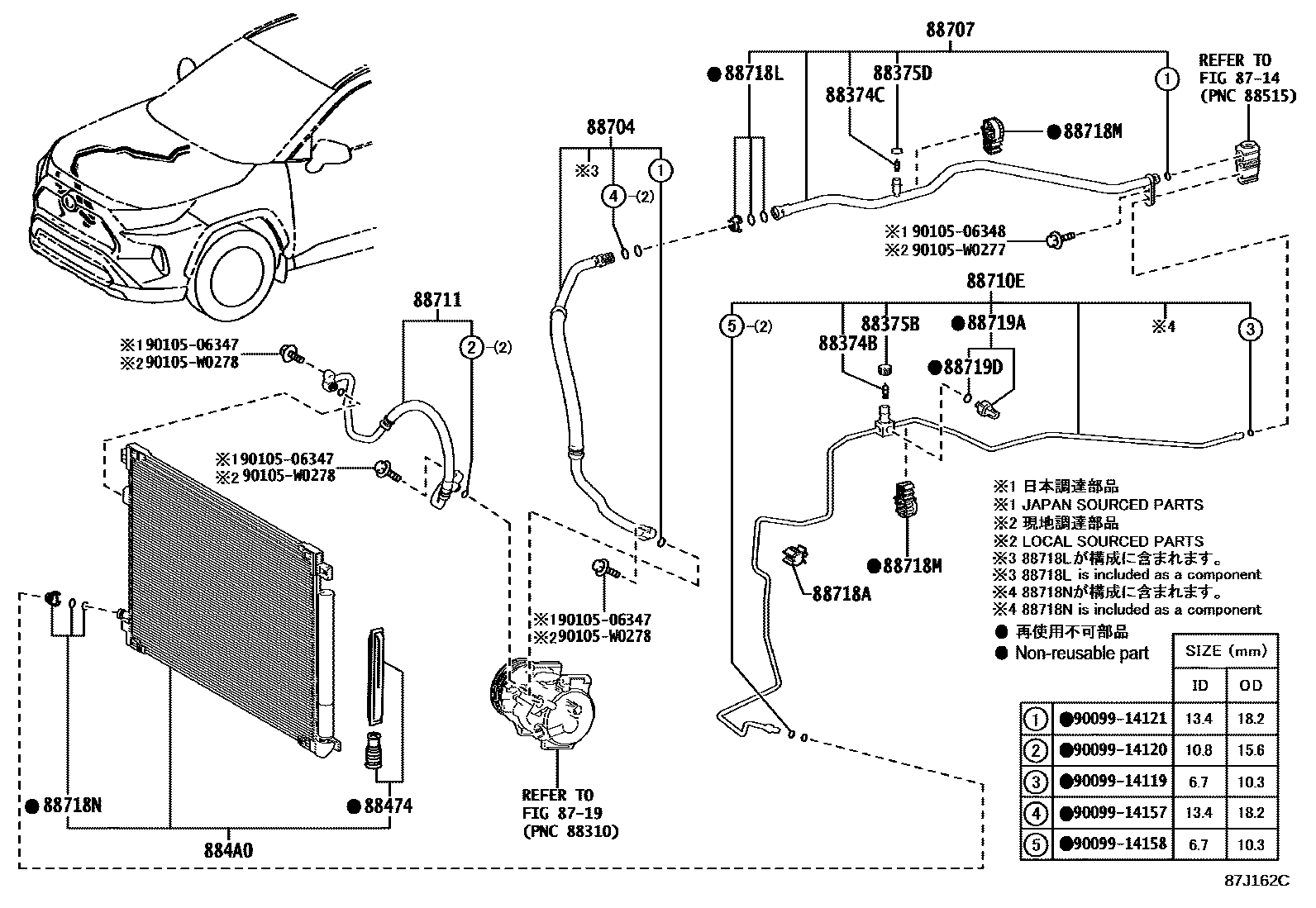

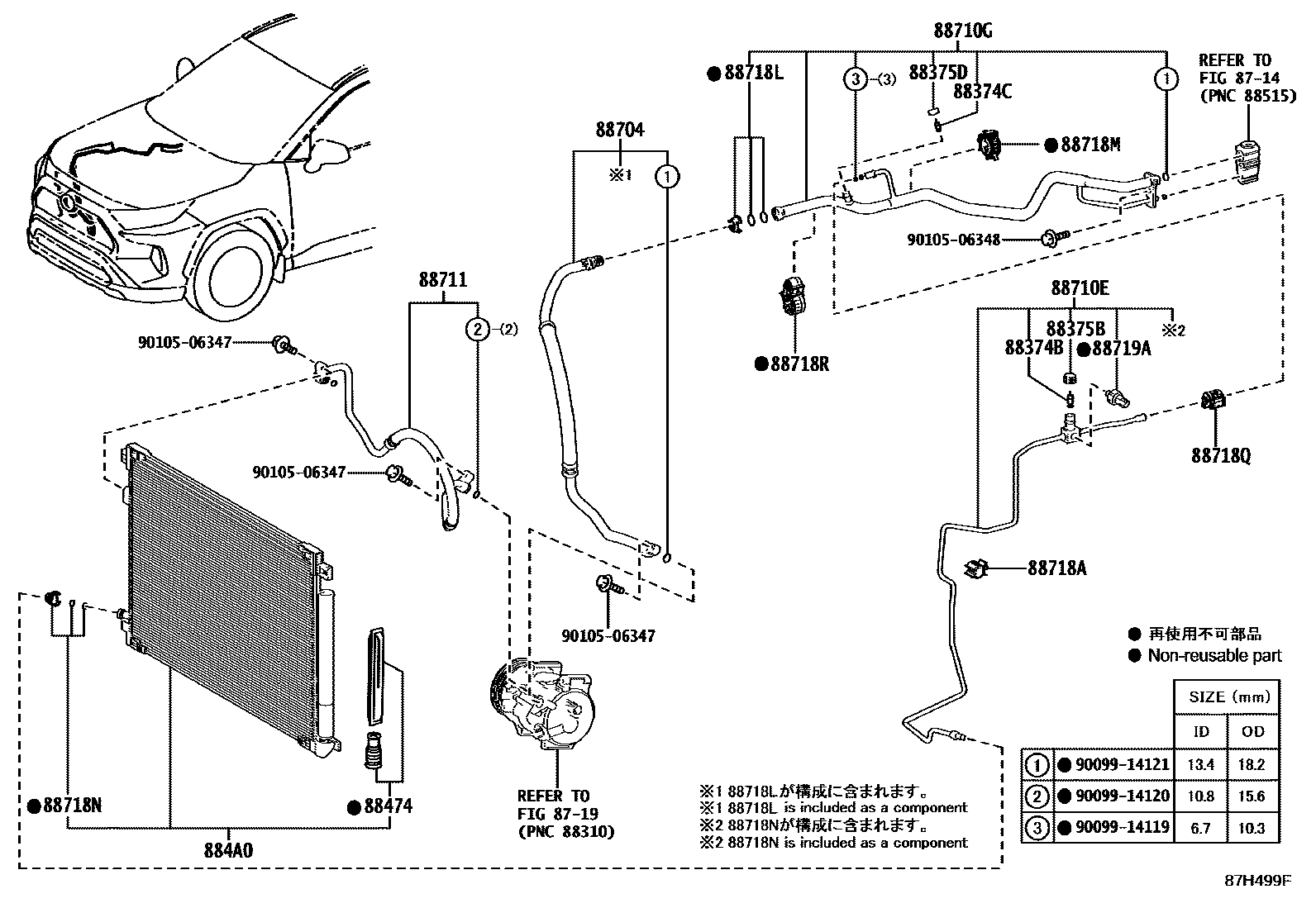

Toyota RAV4 EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 16 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 · 88374-33070 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30280 · 88375-30320 |
| 88375D | No. 2 maintenance valve cover | 88375-30290 · 88375-30310 |
| 88474 | cooler dryer | 88474-12010 · 88474-12020 |
| 884A0 | Air conditioning condenser assembly | 884A0-33010 · 884A0-33020 · 884A0-42010 · 884A0-42040 · 884A0-42060 · 884A0-42070 |
| 88704 | Oil suction hose sub-assembly | 88704-42720 · 88704-42730 · 88704-42740 · 88704-42840 · 88704-42841 |
| 88707 | Suction pipe sub-assembly | 88707-0R160 · 88707-42170 · 88707-42180 · 88707-42210 · 88707-42220 · 88707-42230 · 88707-42240 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-0R260 · 88710-42110 · 88710-42120 · 88710-42140 · 88710-42150 · 88710-42160 · 88710-42180 · 88710-42190 · 88710-42200 · 88710-42210 · 88710-42440 · 88710-42450 · 88710-42470 · 88710-42490 · 88710-42510 · 88710-42520 · 88710-42530 · 88710-42550 |
| 88710G | No. 2 air conditioning pipe and accessories assembly | 88710-42230 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-42040 · 88711-42050 · 88711-42060 · 88711-48350 · 88711-78040 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-2F110 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718M | Pipe clamp | 88718-33490 · 88718-33530 · 88718-33540 |
| 88718N | Pipe clamp | 88718-1E150 |
| 88718Q | Pipe clamp | 88718-2D150 |
| 88718R | Pipe clamp | 88718-42120 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
| 88719D | O-ring (for air conditioning pressure sensor) | 90099-14122 |
