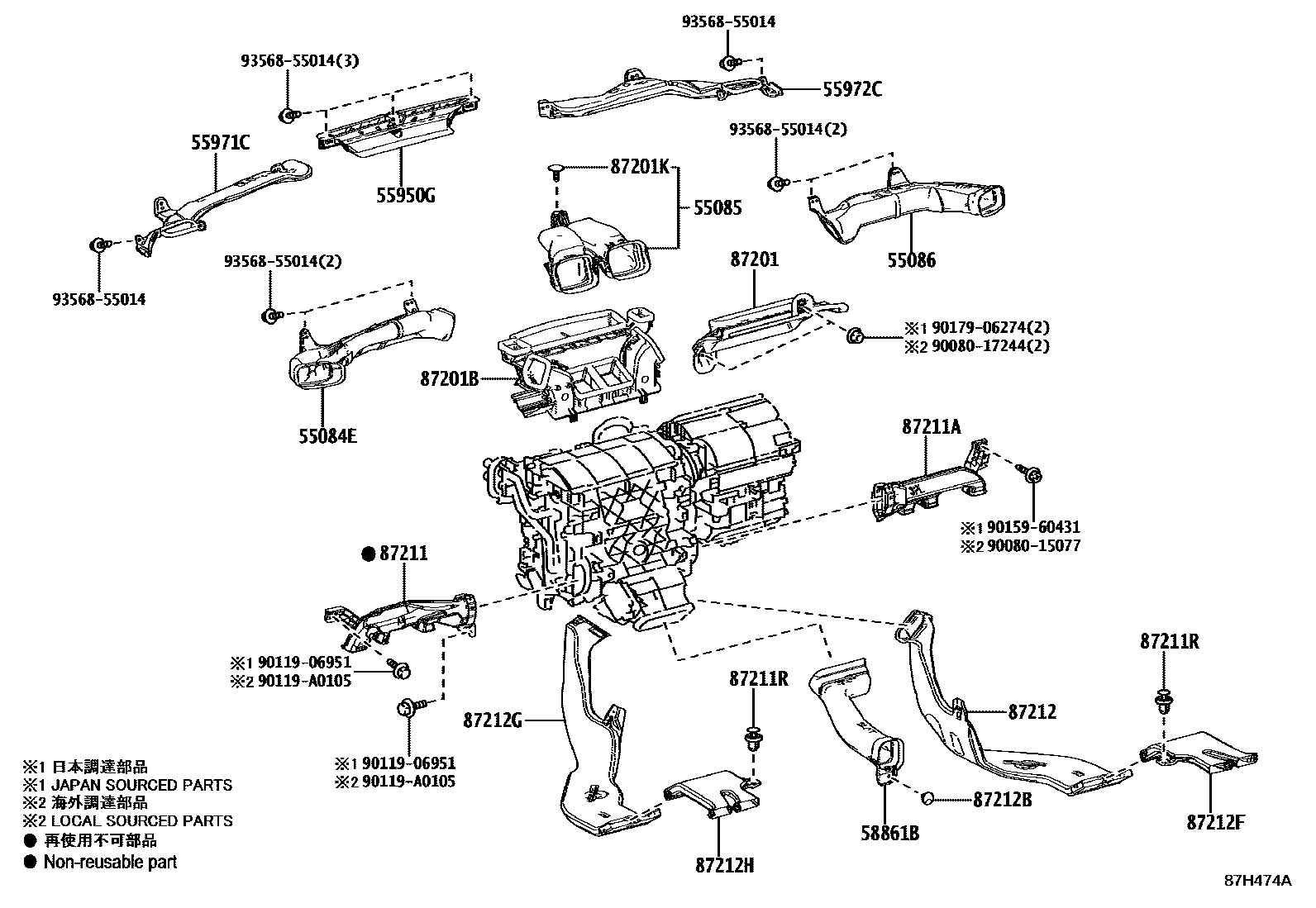

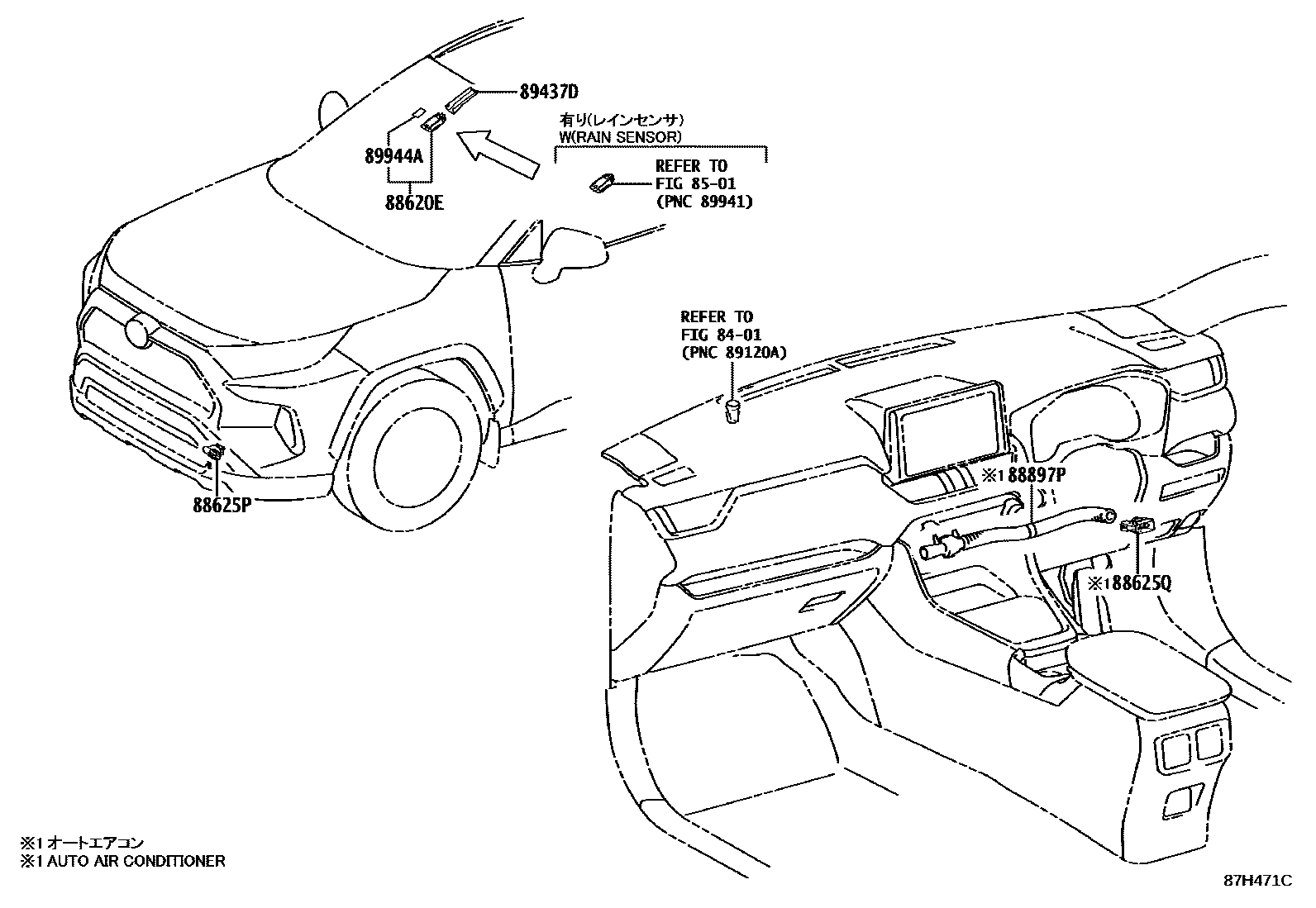

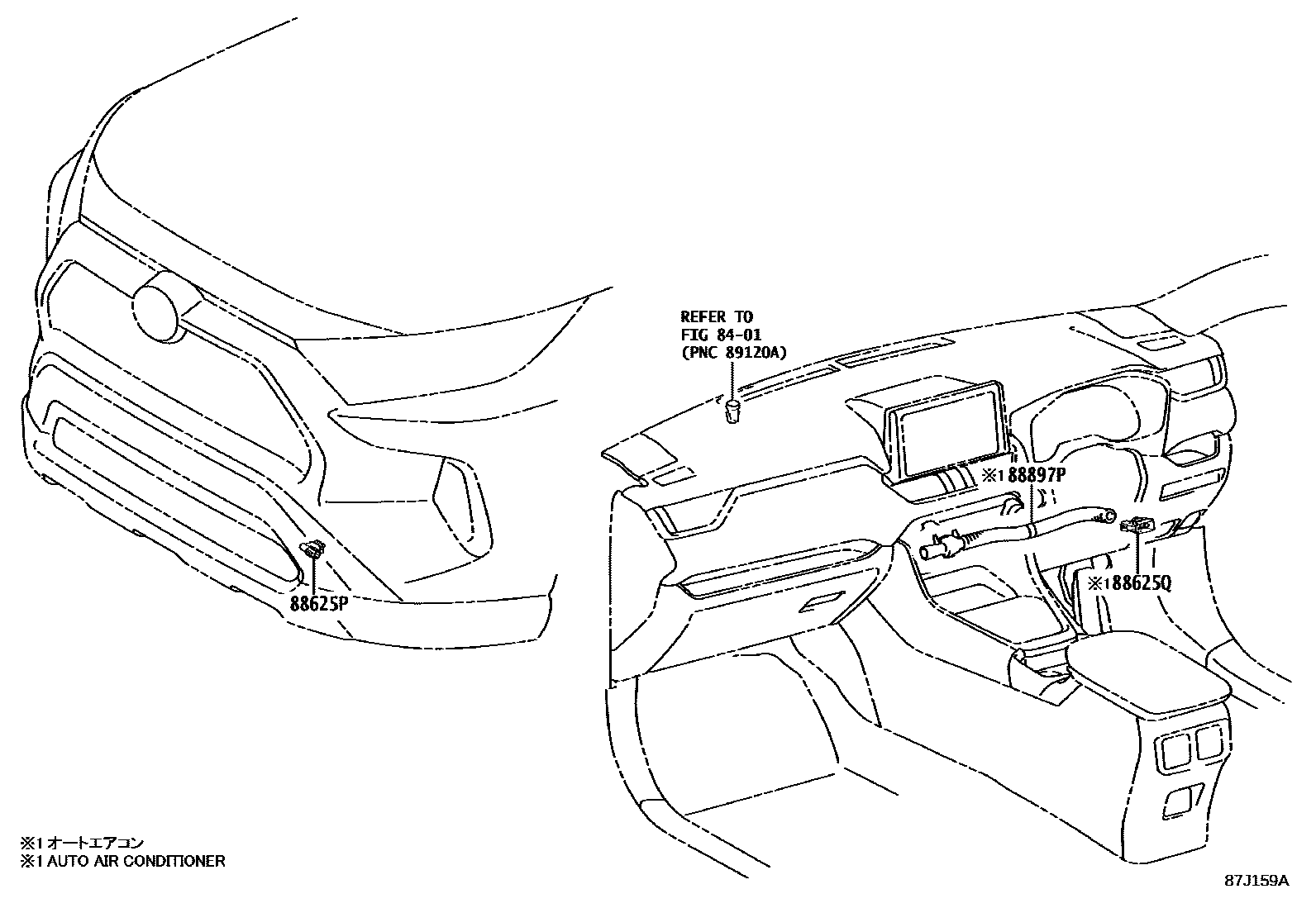

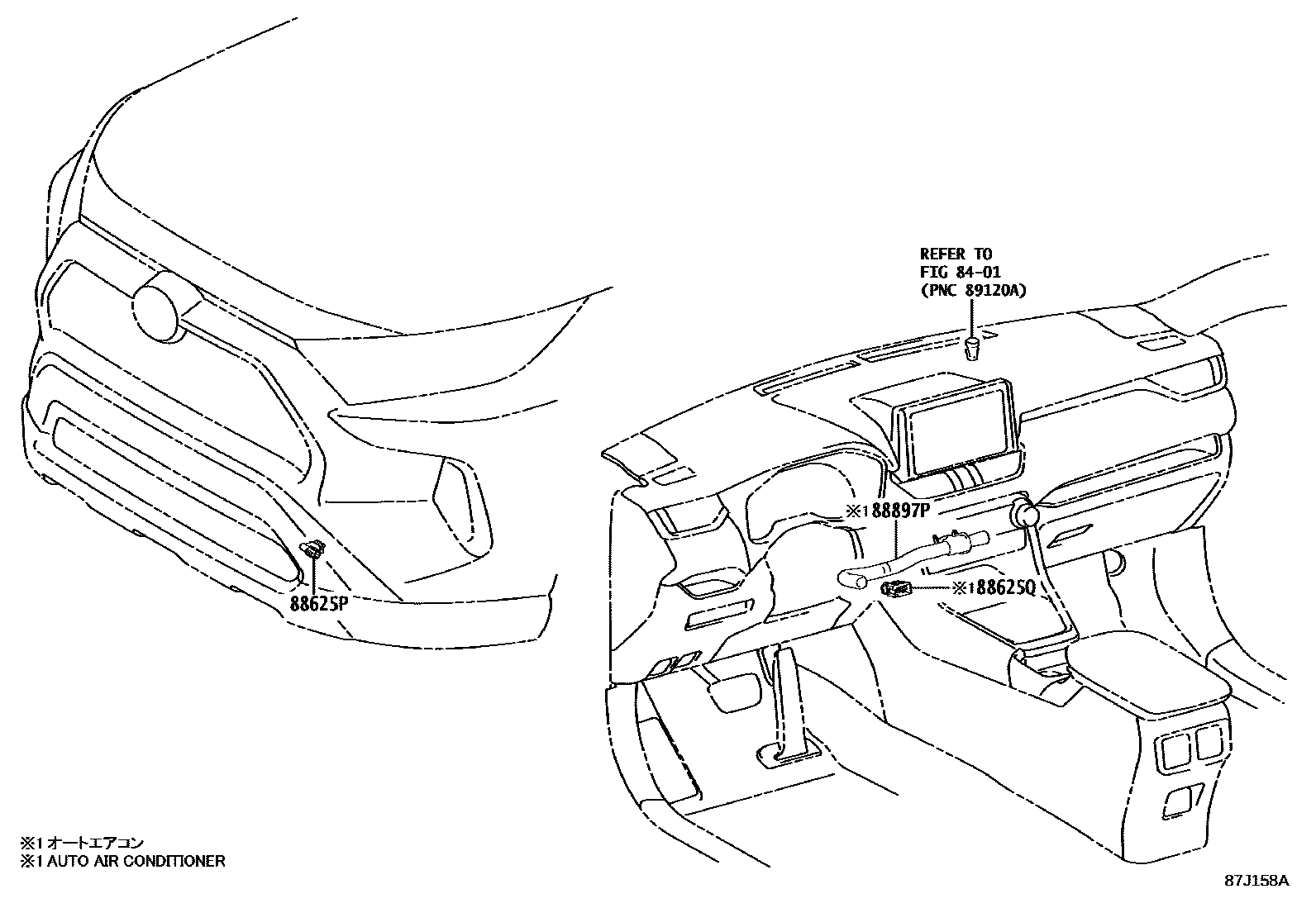

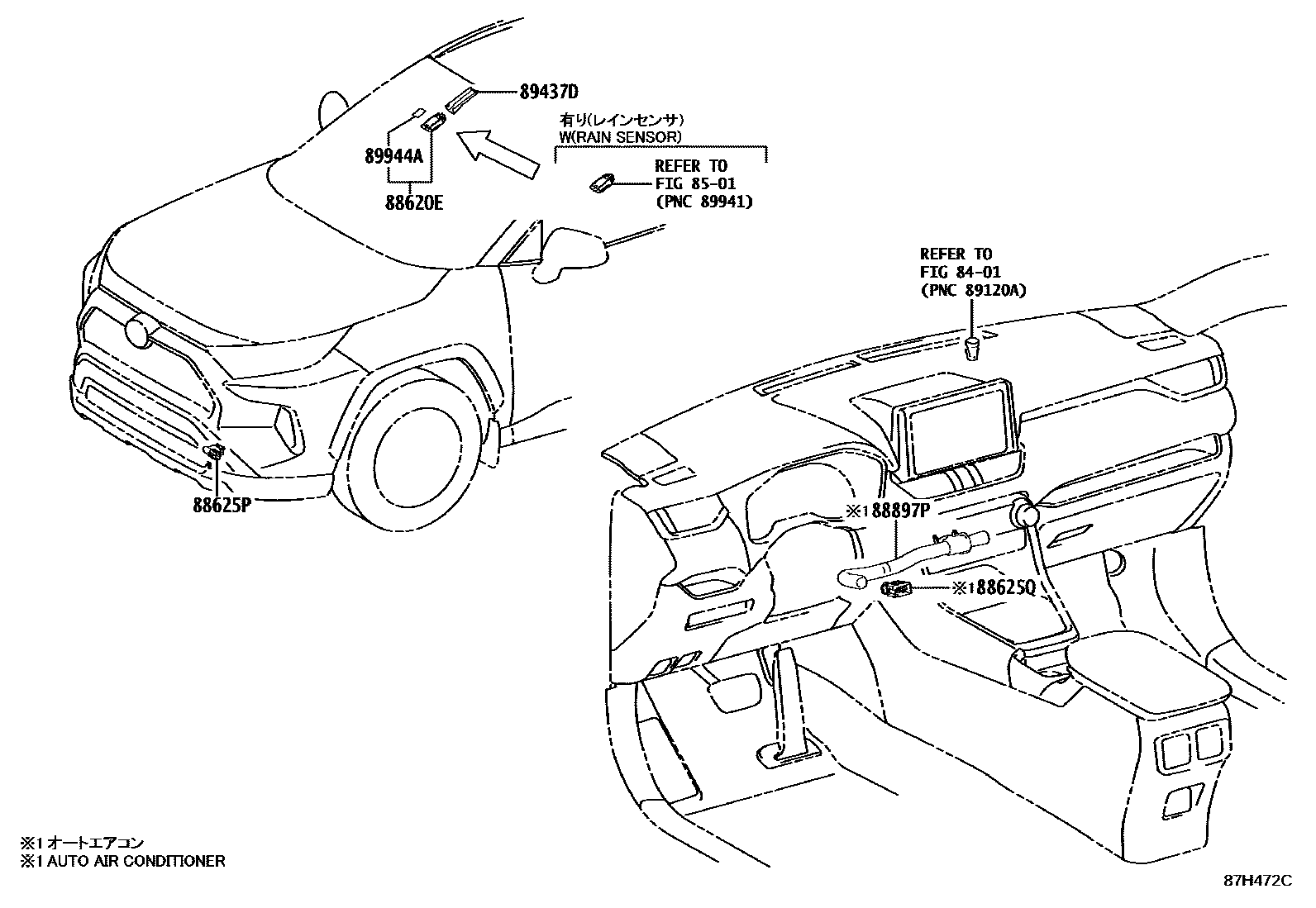

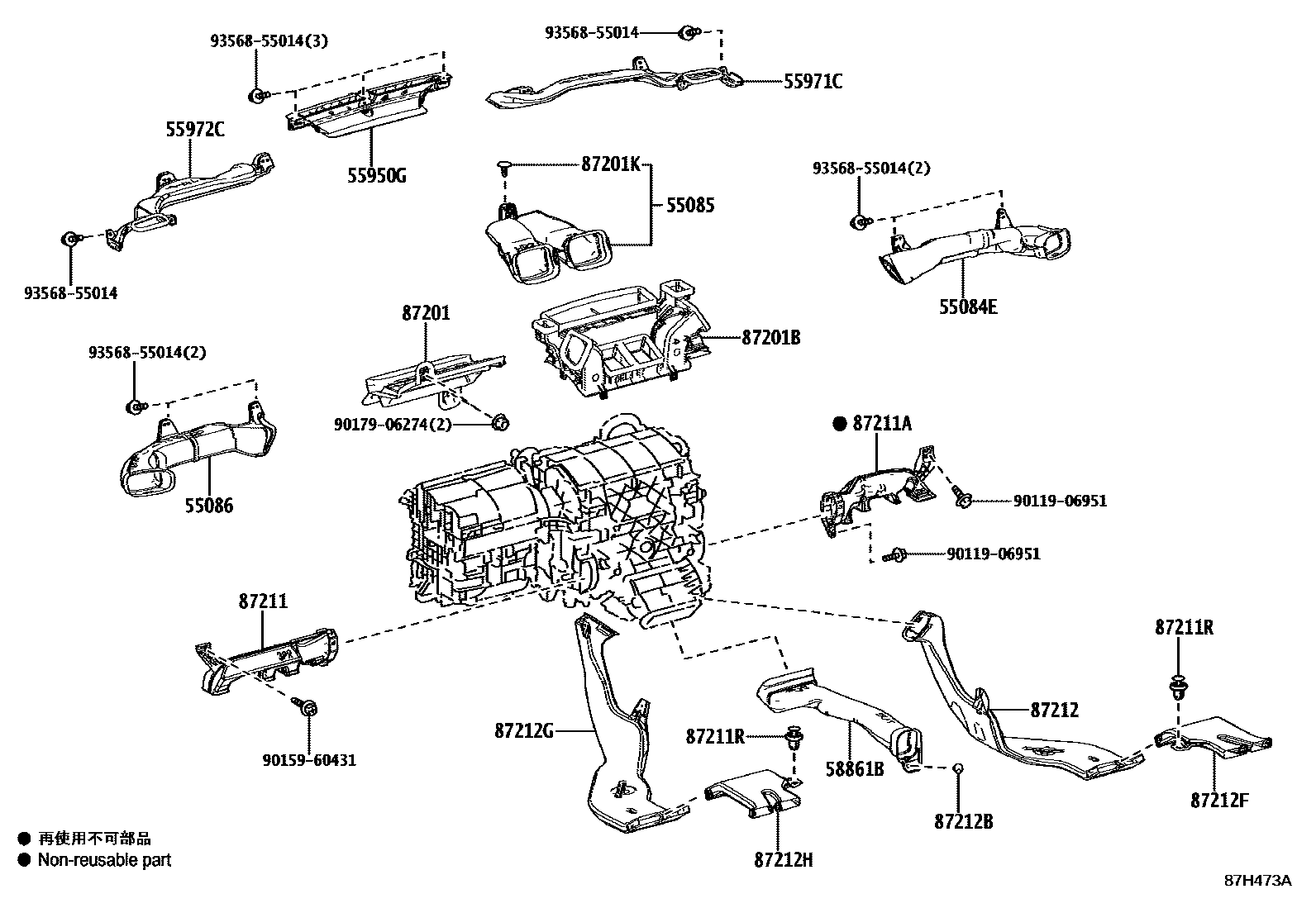

Toyota RAV4 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota RAV4 EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 7 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55843-0R130 · 55843-42100 · 55843-42110 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55844-0R090 · 55844-42110 · 55844-42120 |
| 55086 | Heater to air regulator No. 3 air duct sub-assembly | 55845-0R090 · 55845-42090 · 55845-42100 · 55845-42130 |

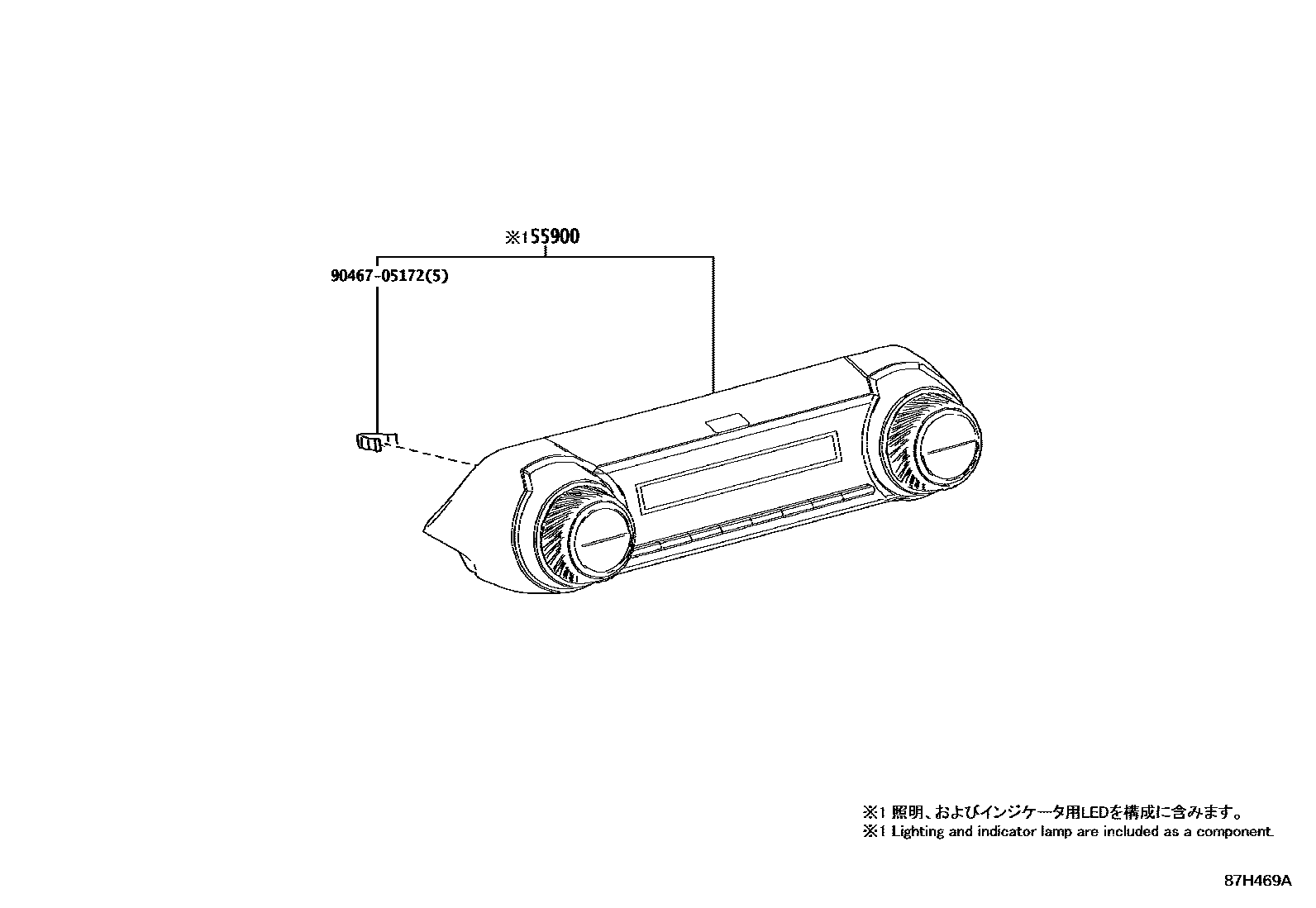

| 55900 | Air conditioning control assembly | 55900-42480 · 55900-42481 · 55900-42490 · 55900-42491 · 55900-42550 · 55900-42570 · 55900-42580 · 55900-42590 · 55900-42600 · 55900-42610 · 55900-42641 · 55900-42651 · 55900-42661 · 55900-42671 · 55900-42D50 · 55900-42D60 · 55900-42D70 · 55900-42D80 · 55900-42D90 |
| 55950G | Defroster nozzle assembly | 55950-0R080 · 55950-42070 · 55950-42080 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-0R090 · 55971-42070 · 55971-42080 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-0R090 · 55972-42070 · 55972-42080 |
| 58861B | Air duct No. 1 for armrest box | 58861-0R050 · 58861-42020 · 58861-42030 · 58861-42040 · 58861-42050 |
| 87201 | No. 1 air duct sub-assembly | 87201-42060 · 87201-42100 |
| 87201B | No. 2 air duct sub-assembly | 87201-42120 · 87201-42130 |
| 87201K | Clip (for air duct) | 90467-05161-C9 |
| 87211 | No. 1 air duct | 87201-42040 · 87201-42090 |
| 87211A | Duct No. 2 | 87201-42050 · 87201-42080 |
| 87211R | Air duct clip | 90467-07215 |
| 87212 | No. 1 rear air duct | 87212-0R120 · 87212-42080 · 87212-42090 |
| 87212B | Air duct clip | 90467-05161-C9 |
| 87212F | No. 2 rear air duct | 87215-0R060 · 87215-42060 |
| 87212G | No. 3 rear air duct | 87213-0R110 · 87213-42070 · 87213-42080 |
| 87212H | No. 4 rear air duct | 87216-0R040 · 87216-42030 |
| 88620E | Air conditioning thermistor assembly | 89941-76010 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-28100 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88897P | aspirator | 87201-42070 · 87201-42110 |
| 89437D | sensor cover | 89943-42040 |
| 89944A | Tape (for air conditioner thermistor) | 89944-42020 |
