Toyota RAV4 预碰撞安全系统 — Figure 8617

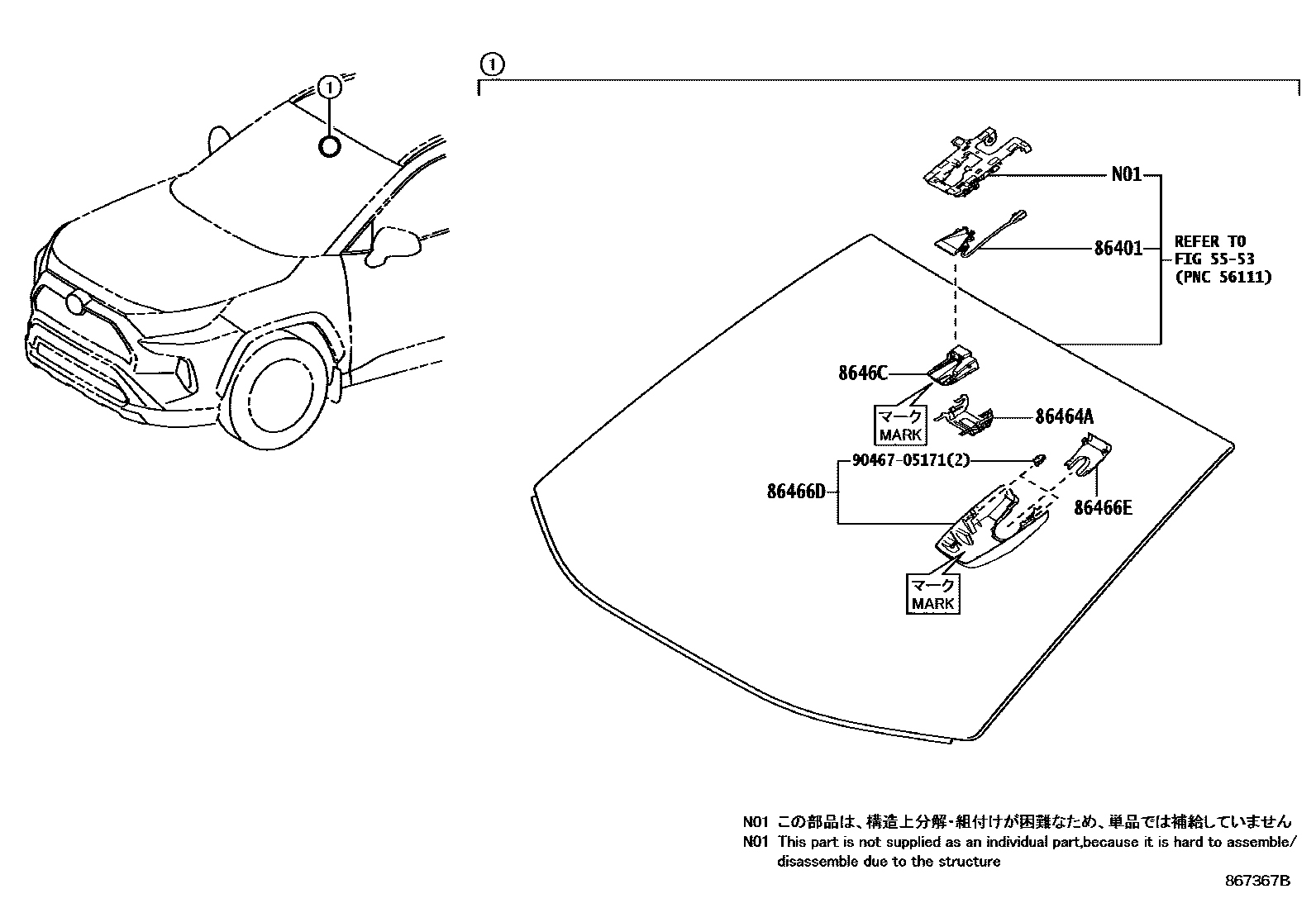

Toyota RAV4 EPC diagram 8617, 预碰撞安全系统, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86401 | Front identification hood sub-assembly with heater | 86401-10010 · 86401-42040 · 86401-42041 |
| 86464A | Front identification lock | 86464-26010 · 86464-K0010 |
| 86466D | Front identification cover No. 1 | 86466-42060 · 86466-42120 |
| 86466E | Front identification cover No. 2 | 86466-42070 · 86466-42130 |
| 8646C | front recognition camera | 8646C-0R090 · 8646C-0R140 · 8646C-0R141 · 8646C-0R142 · 8646C-42030 · 8646C-42031 · 8646C-42032 · 8646C-42150 · 8646C-42151 |
