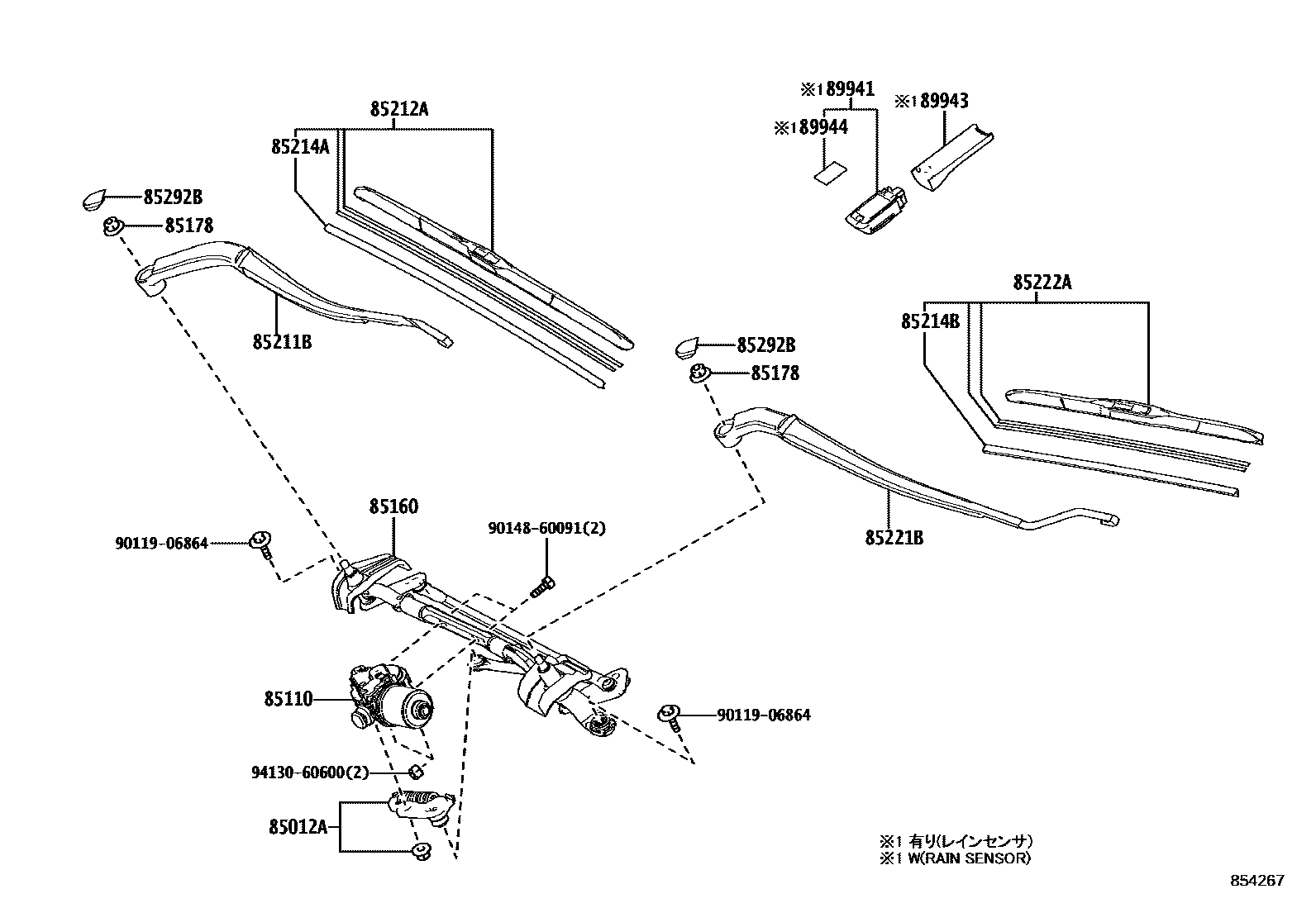

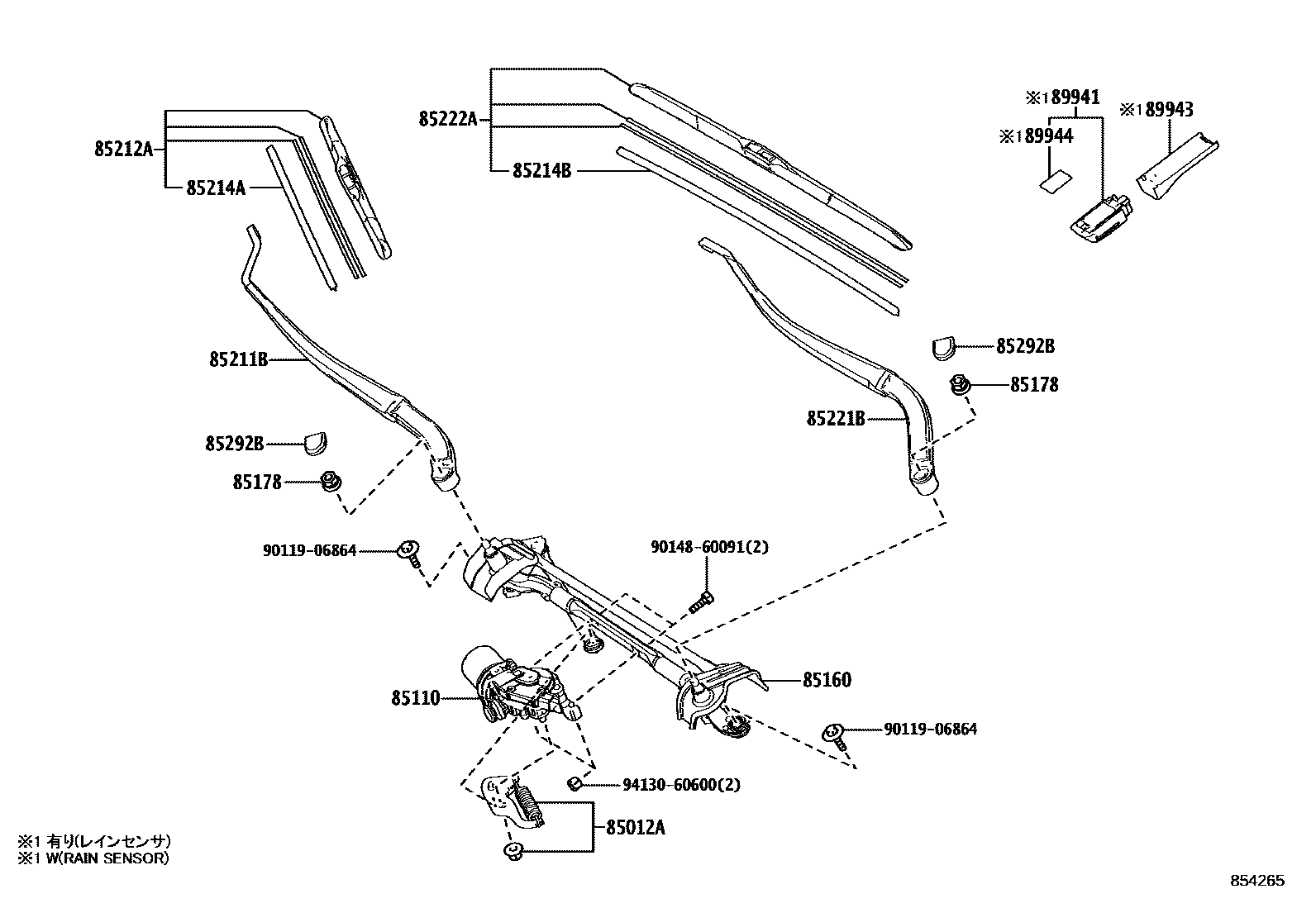

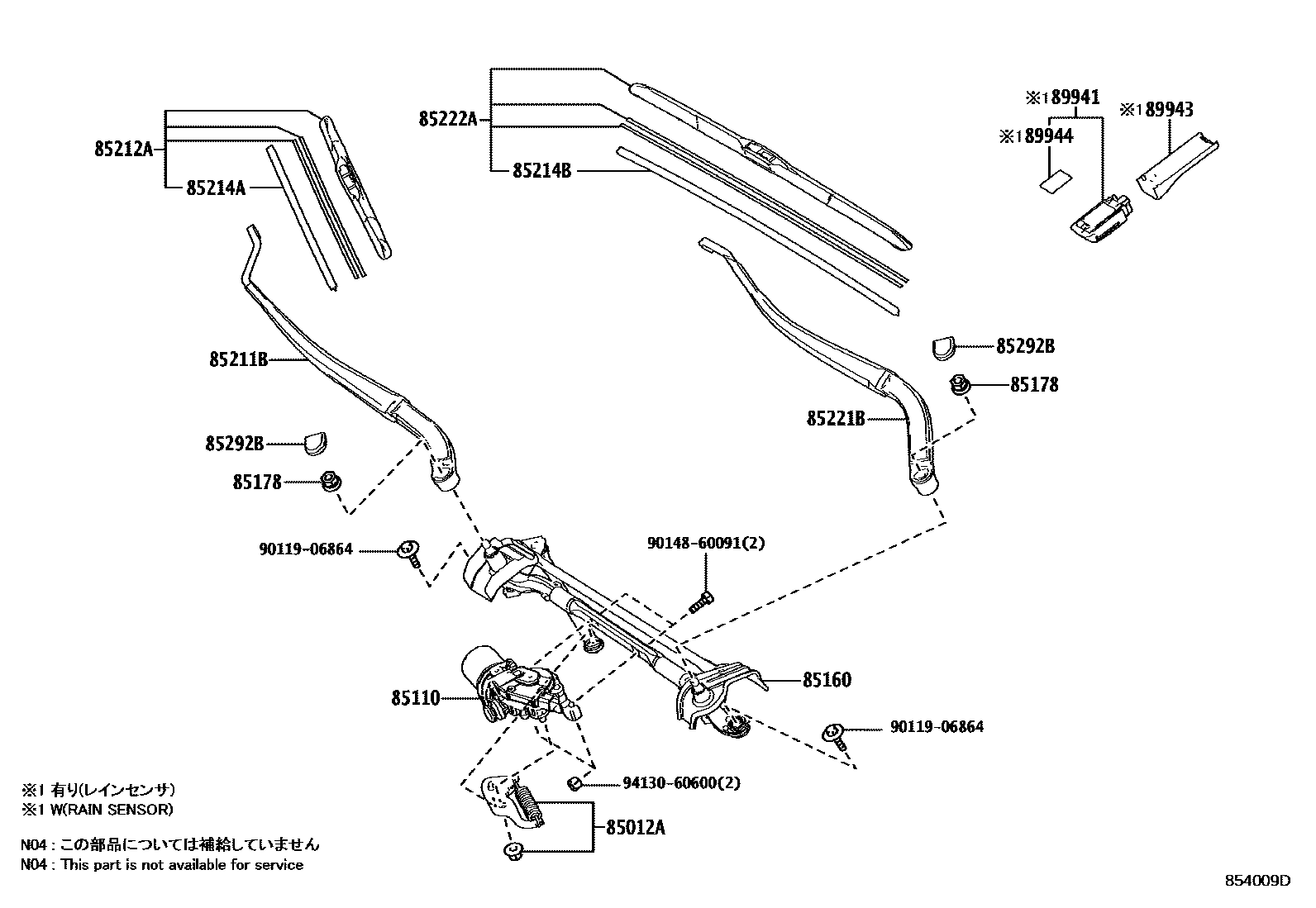

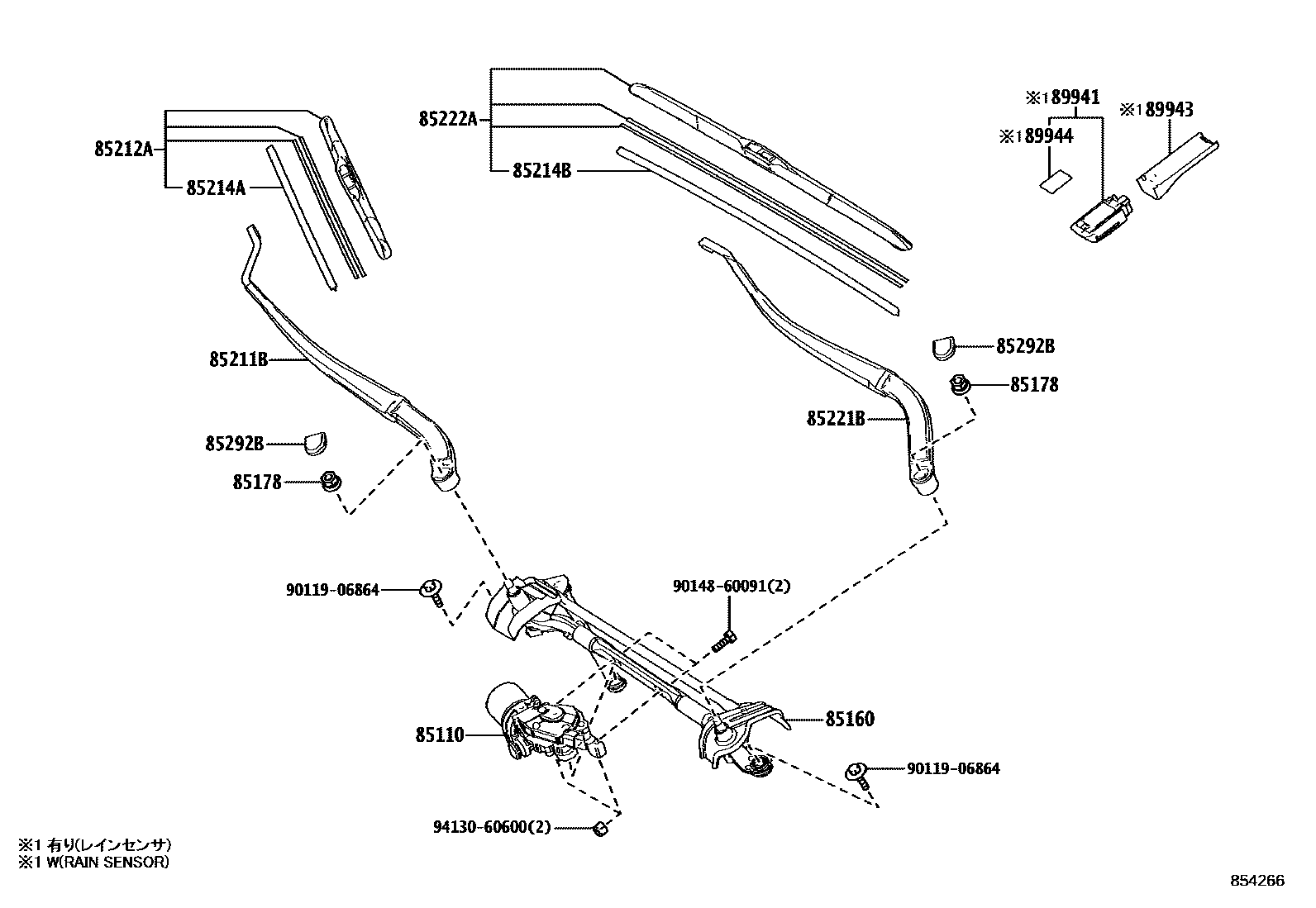

Toyota RAV4 挡风玻璃刮水器 — Figure 8501
Toyota RAV4 EPC diagram 8501, 挡风玻璃刮水器, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85012A | Front wiper elbow tie rod sub-assembly | 85012-50010 · 85012-58030 |
| 85110 | Windshield wiper motor assembly | 85110-42260 · 85110-42270 · 85110-42280 |
| 85160 | Windshield wiper connecting rod assembly | 85150-0R110 · 85150-42240 · 85150-42260 |
| 85178 | Nut (for securing front wiper arm) | 90182-10006 |
| 85211B | Right front wiper arm | 85211-0R100 · 85211-42210 · 85211-42220 · 85211-42221 |
| 85212A | Right front wiper blade | 85212-42190 · 85212-42200 · 85212-42210 |
| 85214A | Right wiper rubber strip | 85214-28090 · 85214-52110 |
| 85214B | Left wiper rubber strip | 85214-28090 · 85214-52110 |
| 85221B | Left front wiper arm | 85221-0R100 · 85221-42210 · 85221-42220 · 85221-42221 · 85221-42230 |
| 85222A | Left front wiper blade | 85222-42180 · 85222-42190 · 85222-42200 |
| 85292B | Front wiper arm cap | 85292-13010 |
| 89941 | rain sensor | 89941-30040 · 89941-42020 |
| 89943 | Rain sensor cover | 89943-42040 |
| 89944 | Rain sensor tape | 89944-42020 |
