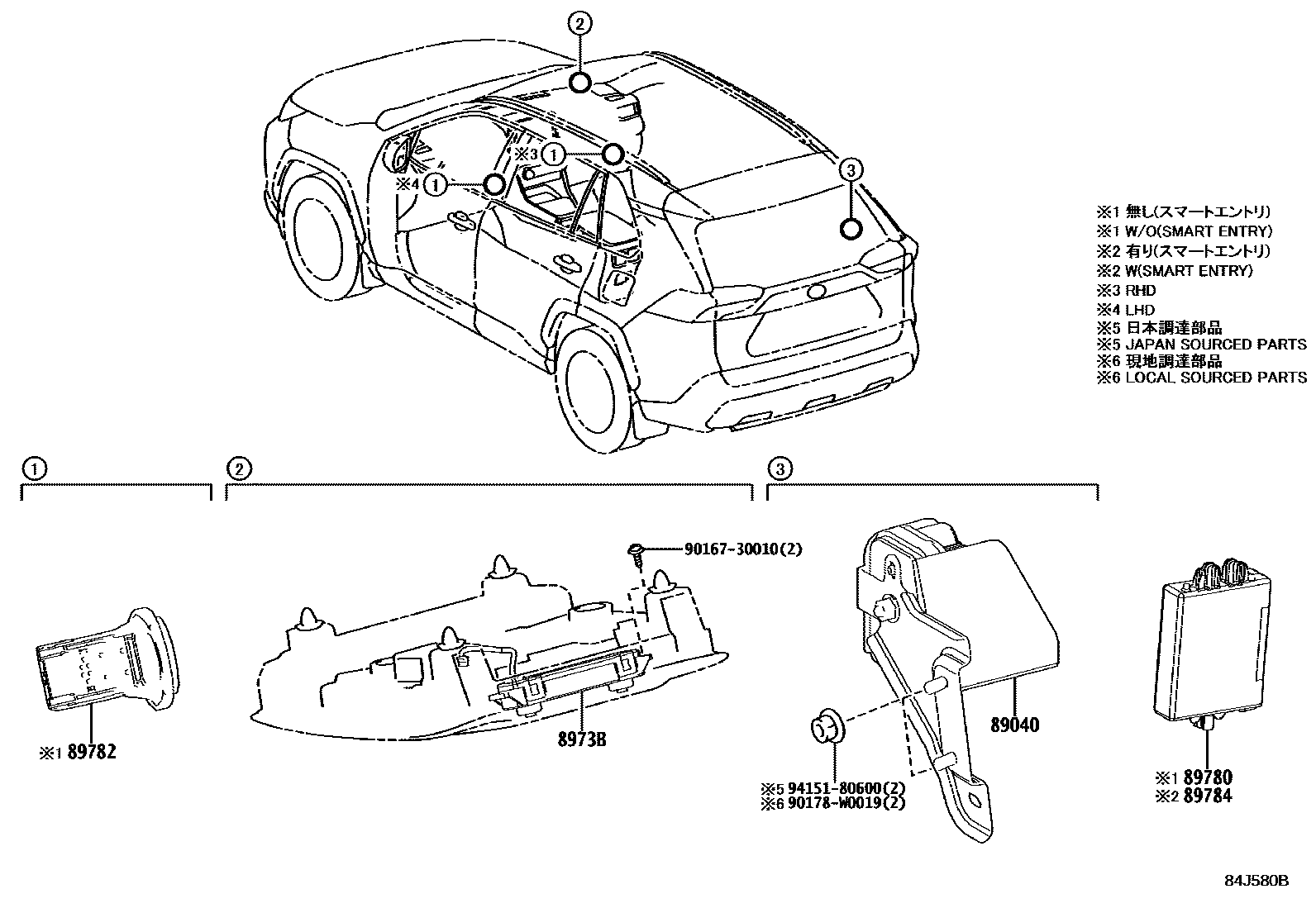

Toyota RAV4 防盗装置 — Figure 8424
Toyota RAV4 EPC diagram 8424, 防盗装置, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89040 | Anti-theft alarm assembly | 89040-0R010 · 89040-42020 · 89040-42070 |
| 8973B | Ultrasonic anti-theft warning and tilt alarm sensor | 8973B-42010 · 8973B-42020 |
| 89780 | Transceiver key ECU assembly | 897H0-02010 · 897H0-12020 · 897H0-12021 |
| 89782 | transceiver key coil | 89782-0R050 · 89782-33070 |
| 89784 | Shutdown code system ECU | 89784-02100 · 89784-12040 · 89784-42060 · 89784-60210 · 89784-60220 · 89784-K0021 · 89784-V1010 |
