Toyota RAV4 电子控制系统 — Figure 8407

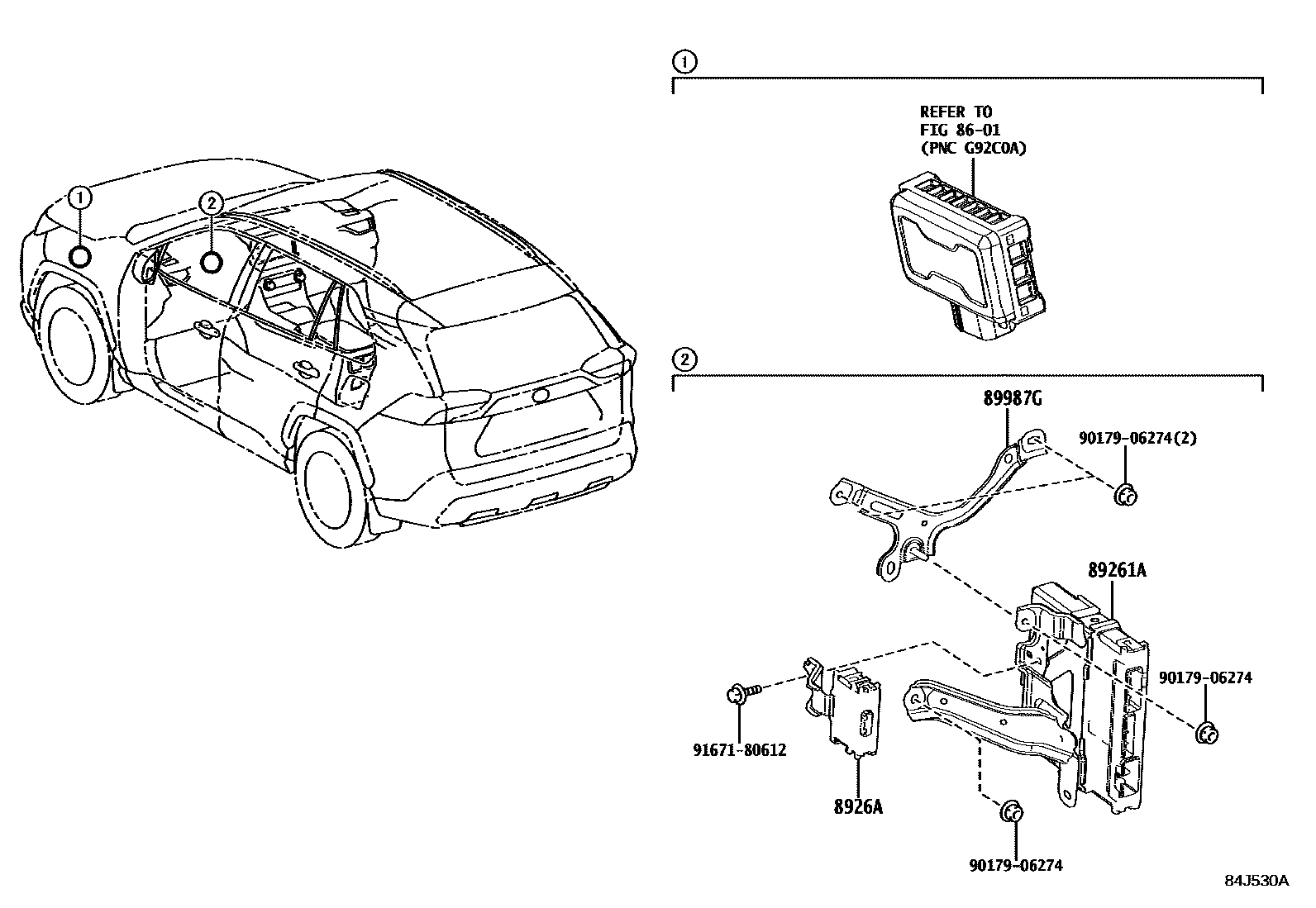

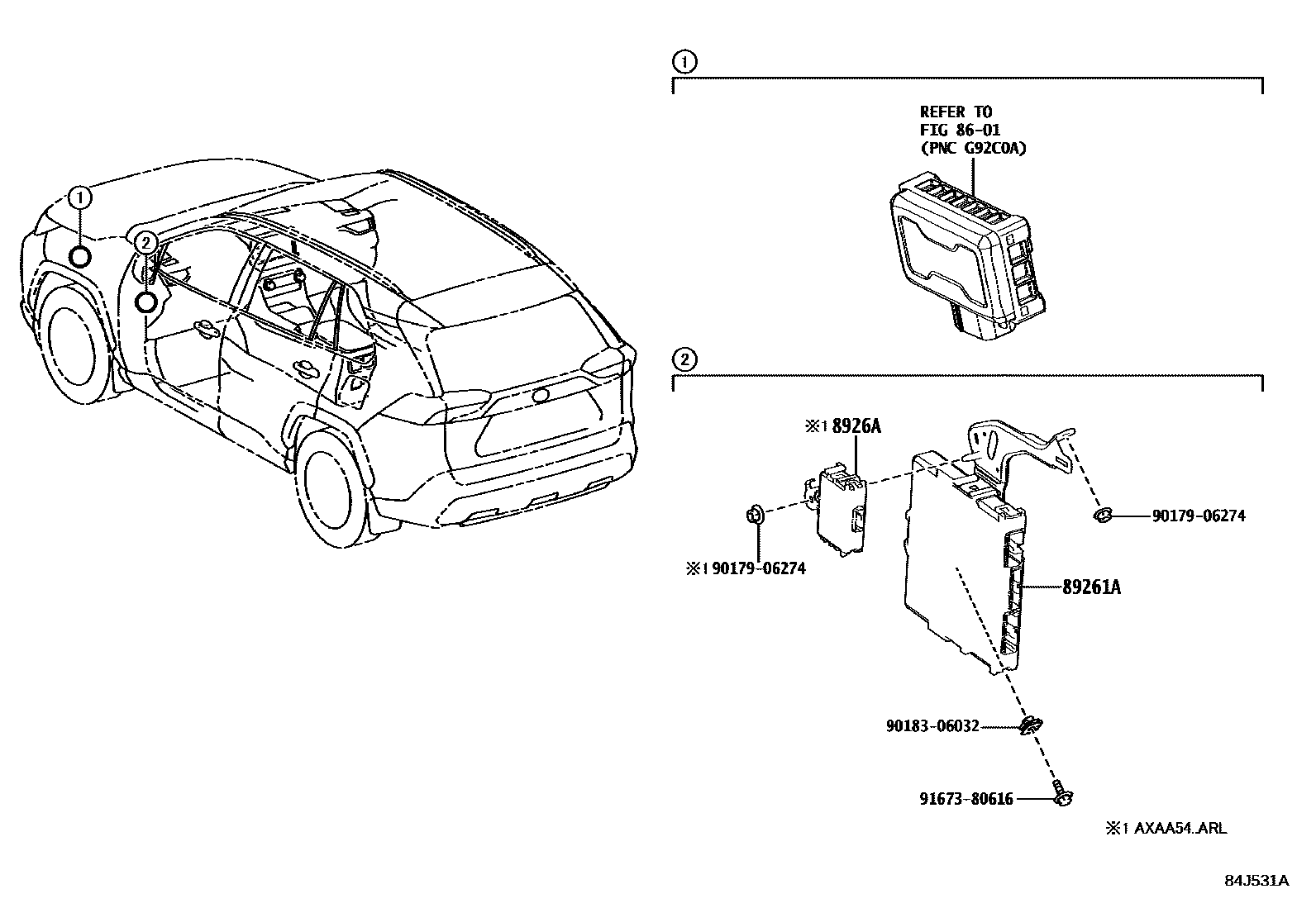

Toyota RAV4 EPC diagram 8407, 电子控制系统, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89261A | Engine stop and start ECU | 89260-42030 · 89260-42031 · 89260-42040 · 89260-42041 · 89260-42050 · 89260-42060 · 89260-42061 · 89260-42160 · 89260-42170 · 89260-42180 · 89260-42190 · 89260-42210 · 89260-42220 |
| 8926A | Engine stop and start solenoid filter | 8926A-42010 · 8926A-42020 |
| 89987G | No.1 ECU bracket | 89987-42030 |
