Toyota RAV4 后门锁和后门把手 — Figure 6756

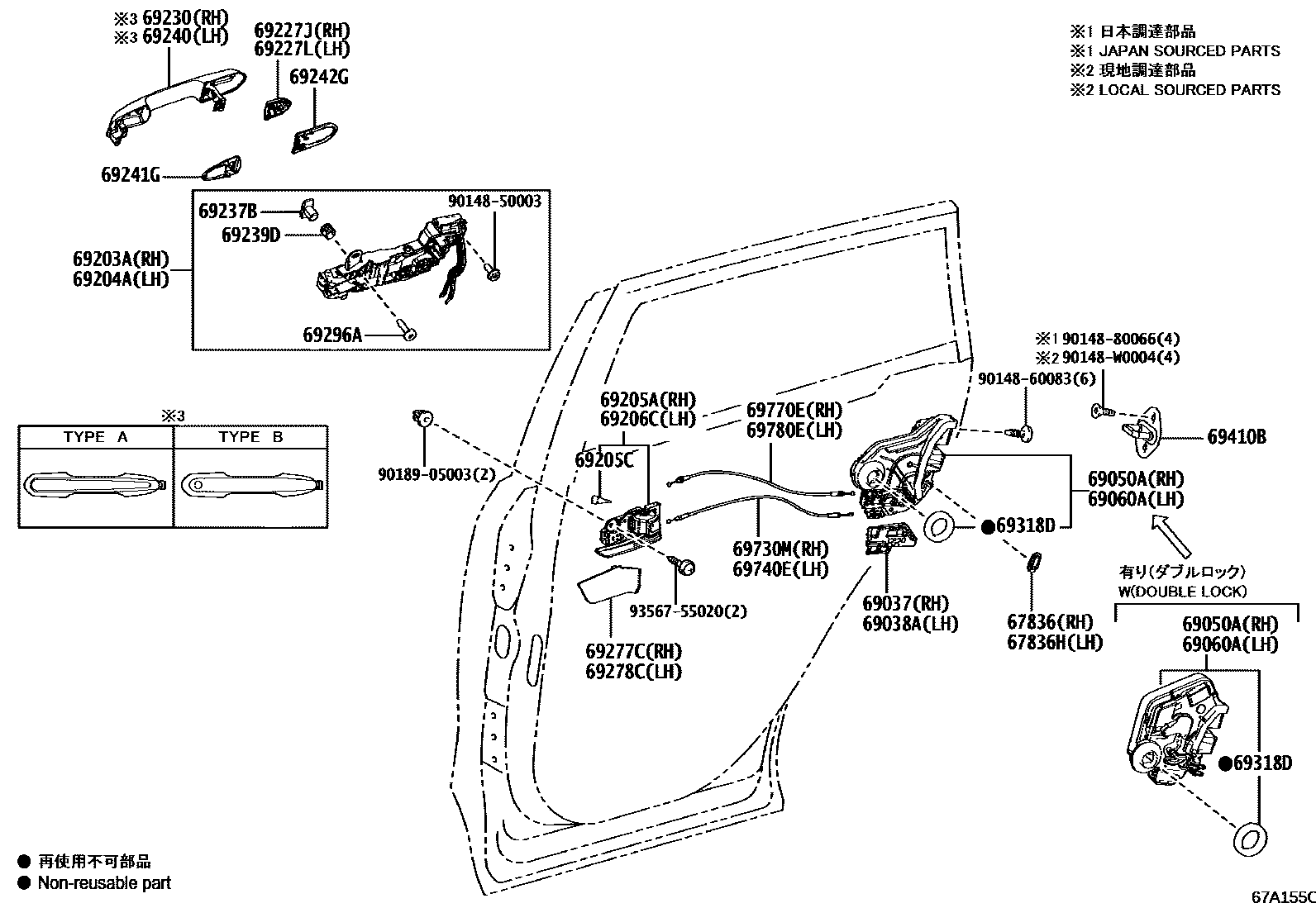

Toyota RAV4 EPC diagram 6756, 后门锁和后门把手, with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836 | Right rear door lock child restraint cover | 67836-60010 |
| 67836H | Left rear door lock child restraint cover | 67836-60010 |
| 69037 | Right rear door door lock cover sub-assembly | 69037-30010 |
| 69038A | Left rear door door lock cover sub-assembly | 69038-30010 |
| 69050A | Right rear door lock assembly with motor | 69050-12410 · 69050-48060 |
| 69060A | Left rear door lock assembly with motor | 69060-12410 · 69060-48060 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-42060 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-42060 |
| 69205A | Right rear door inner handle sub-assembly | 69205-15010-C1 · 69205-33140-C0 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04014 |
| 69206C | Left rear door inner handle sub-assembly | 69206-15010-C1 · 69206-33150-C0 |
| 69227J | Right rear door outer handle cover | 69227-30130 |
| 69227L | Left rear door outer handle cover | 69227-30130 |
| 69230 | Right rear door outer handle assembly | 69210-42130-A0 · 69210-42130-A1 · 69210-42130-A3 · 69210-42130-B0 · 69210-42130-B1 · 69210-42130-C0 · 69210-42130-D0 · 69210-42130-G0 · 69210-42130-J0 · 69210-42130-J1 · 69210-42130-J5 · 69210-42160-A0 · 69210-42160-A1 · 69210-42160-A2 · 69210-42160-B0 · 69210-42160-B1 · 69210-42160-B2 · 69210-42160-C0 · 69210-42160-C1 · 69210-42160-D0 · 69210-42160-D1 · 69210-42160-E0 · 69210-42160-G0 · 69210-42160-J0 · 69210-42160-J1 · 69210-42160-J2 · 69211-42080-A0 · 69211-42080-A1 · 69211-42080-A3 · 69211-42080-B0 · 69211-42080-B1 · 69211-42080-B2 · 69211-42080-C0 · 69211-42080-C3 · 69211-42080-D0 · 69211-42080-D3 · 69211-42080-D5 · 69211-42080-E1 · 69211-42080-G0 · 69211-42080-J0 · 69211-42080-J1 · 69211-42080-J3 · 69211-42080-J5 |
| 69237B | Rear door handle nut | 69237-62010 |
| 69239D | Rear door handle bushing | 69239-47010 |
| 69240 | Left rear door outer handle assembly | 69210-42130-A0 · 69210-42130-A1 · 69210-42130-A3 · 69210-42130-B0 · 69210-42130-B1 · 69210-42130-C0 · 69210-42130-D0 · 69210-42130-G0 · 69210-42130-J0 · 69210-42130-J1 · 69210-42130-J5 · 69210-42160-A0 · 69210-42160-A1 · 69210-42160-A2 · 69210-42160-B0 · 69210-42160-B1 · 69210-42160-B2 · 69210-42160-C0 · 69210-42160-C1 · 69210-42160-D0 · 69210-42160-D1 · 69210-42160-E0 · 69210-42160-G0 · 69210-42160-J0 · 69210-42160-J1 · 69210-42160-J2 · 69211-42080-A0 · 69211-42080-A1 · 69211-42080-A3 · 69211-42080-B0 · 69211-42080-B1 · 69211-42080-B2 · 69211-42080-C0 · 69211-42080-C3 · 69211-42080-D0 · 69211-42080-D3 · 69211-42080-D5 · 69211-42080-E1 · 69211-42080-G0 · 69211-42080-J0 · 69211-42080-J1 · 69211-42080-J3 · 69211-42080-J5 |
| 69241G | Rear door front exterior handle pad | 69241-30130 |
| 69242G | Rear door rear outer handle pad | 69242-30110 |
| 69277C | Right rear door inner handle frame | 69277-0R050 · 69277-42010-C0 |
| 69278C | Left rear door inner handle frame | 69278-0R050 · 69278-42010-C0 |
| 69296A | Car door inner handle screws | 69296-30010 · 90148-50006 |
| 69318D | door lock harness seal | 69318-51010 |
| 69410B | Rear door lock plate assembly | 69410-20110 |
| 69730M | Right rear door lock remote control cable (for opening lever) | 69730-42050 · 69730-42060 |
| 69740E | Left rear door lock remote control cable (for opening lever) | 69730-42050 · 69730-42060 |
| 69770E | Right rear door inner locking cable (for locking/unlocking handle) | 69770-42110 · 69770-42120 |
| 69780E | Left rear door inner lock cable (for locking/unlocking handle) | 69770-42110 · 69770-42120 |
