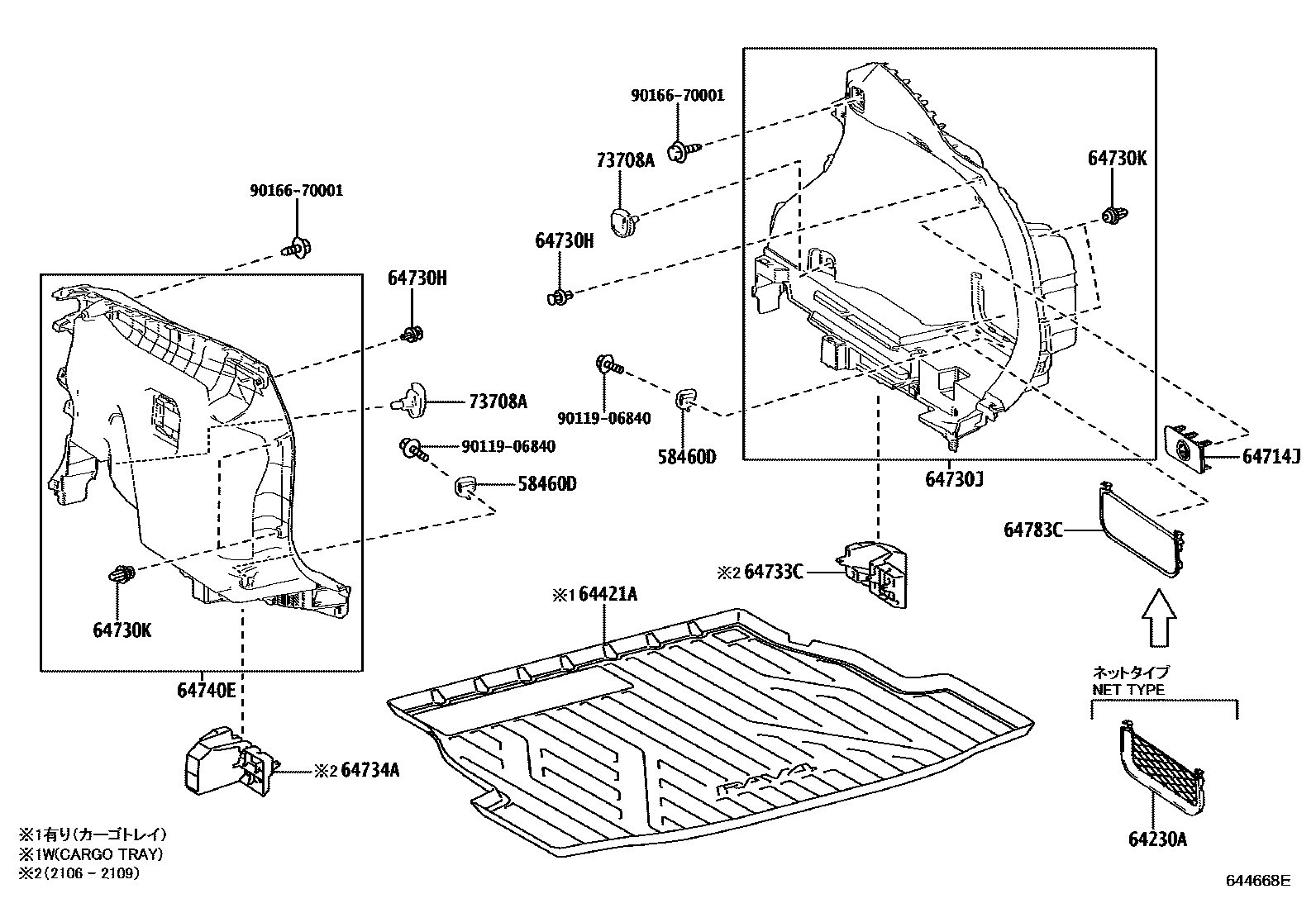

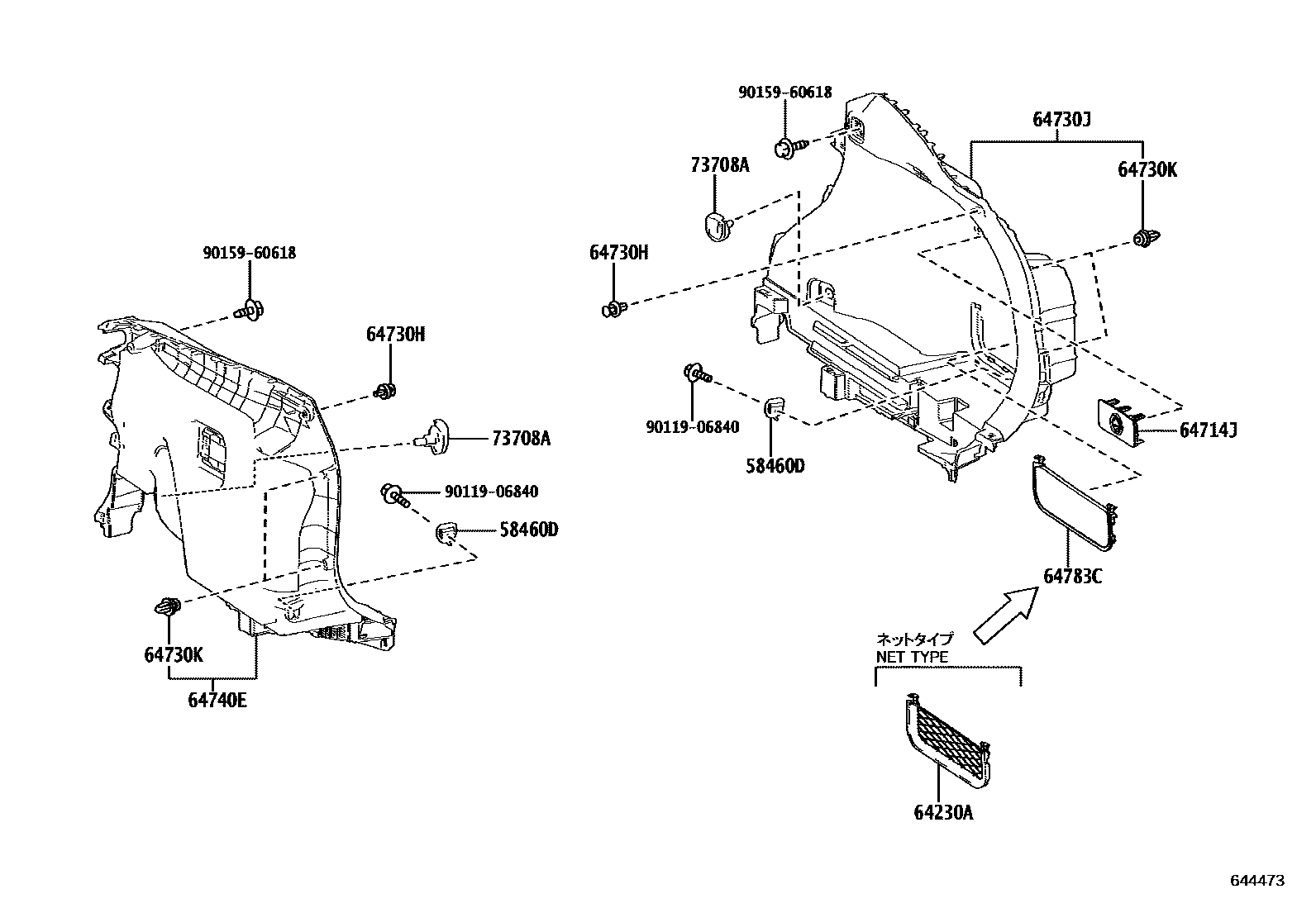

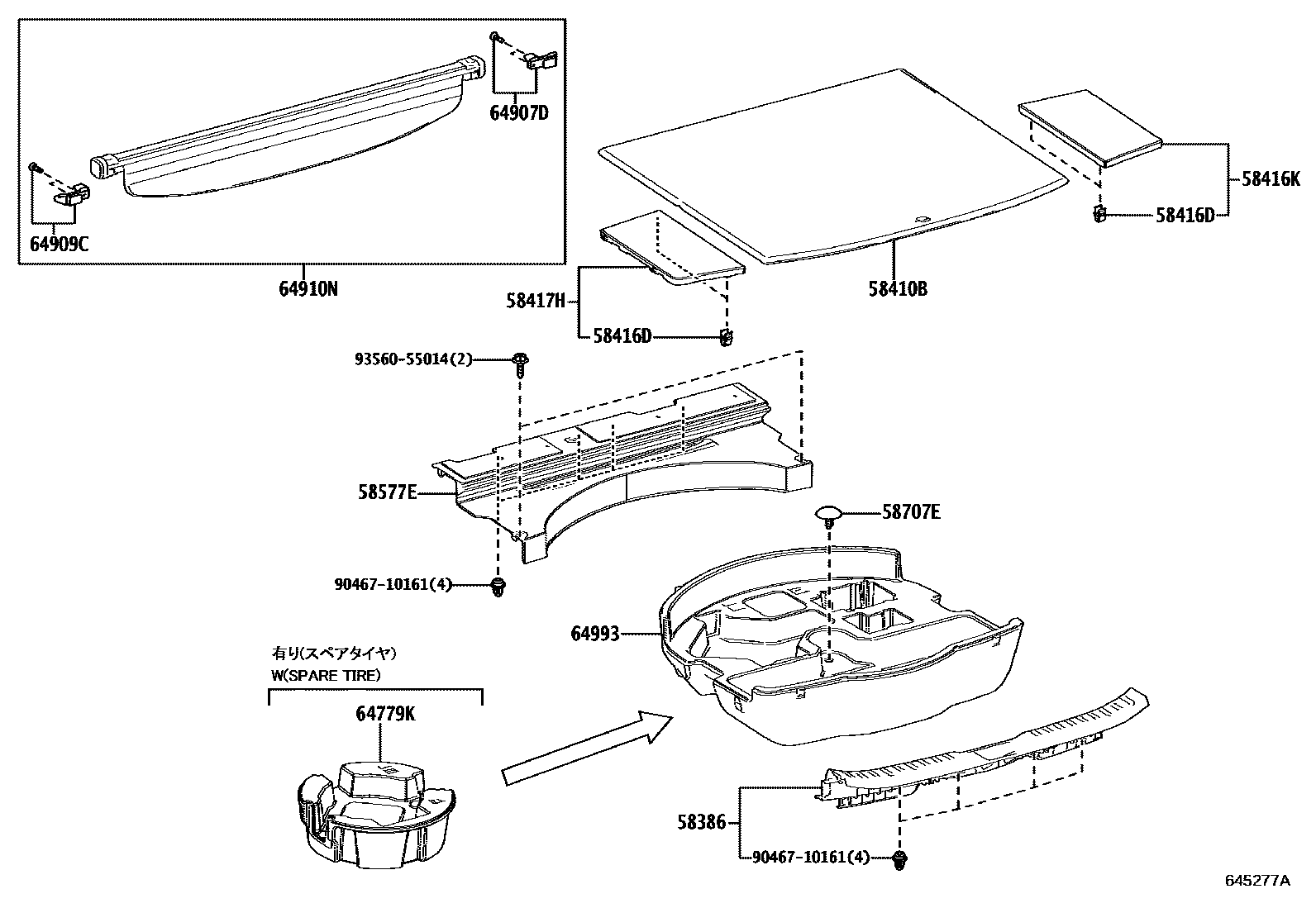

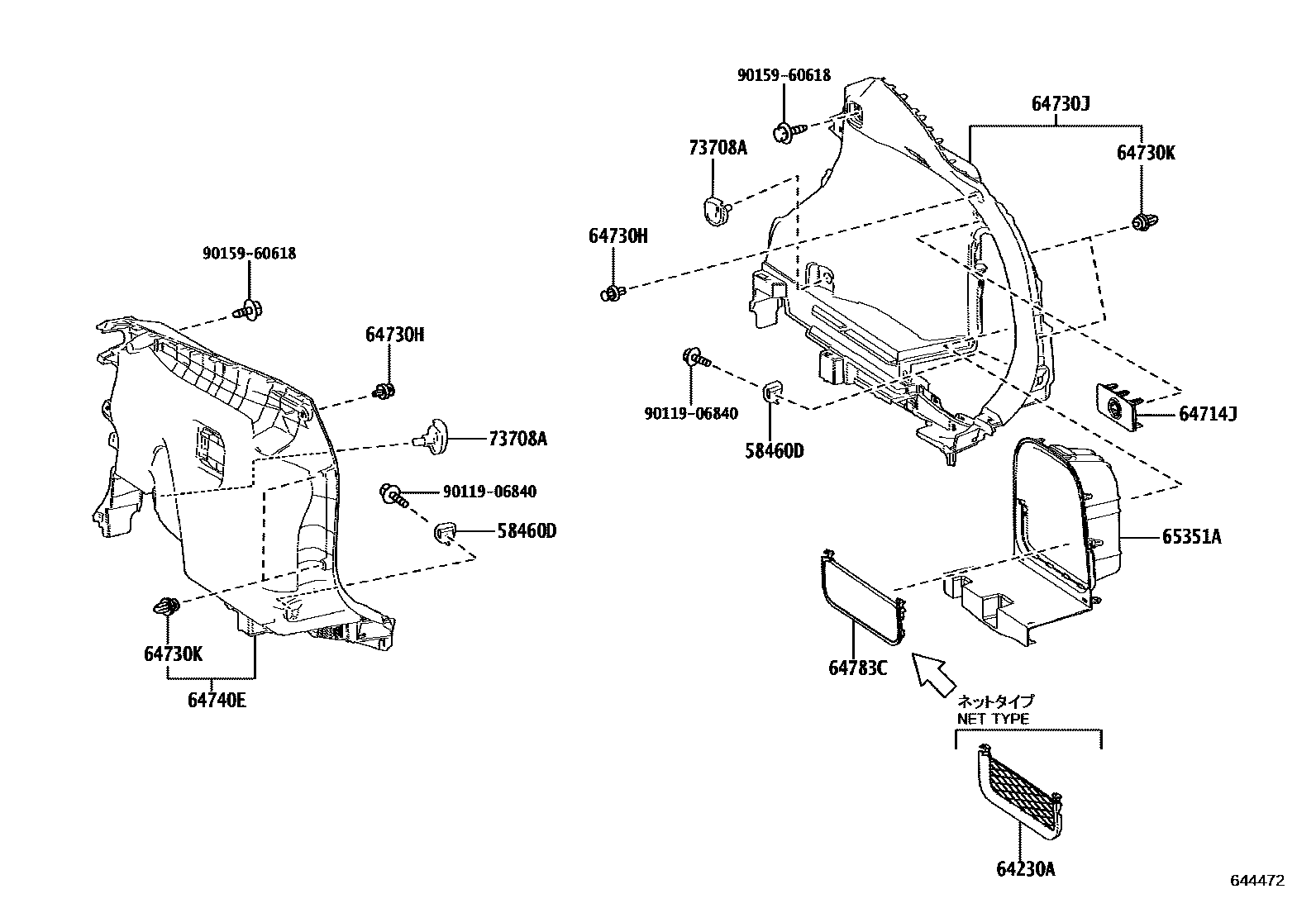

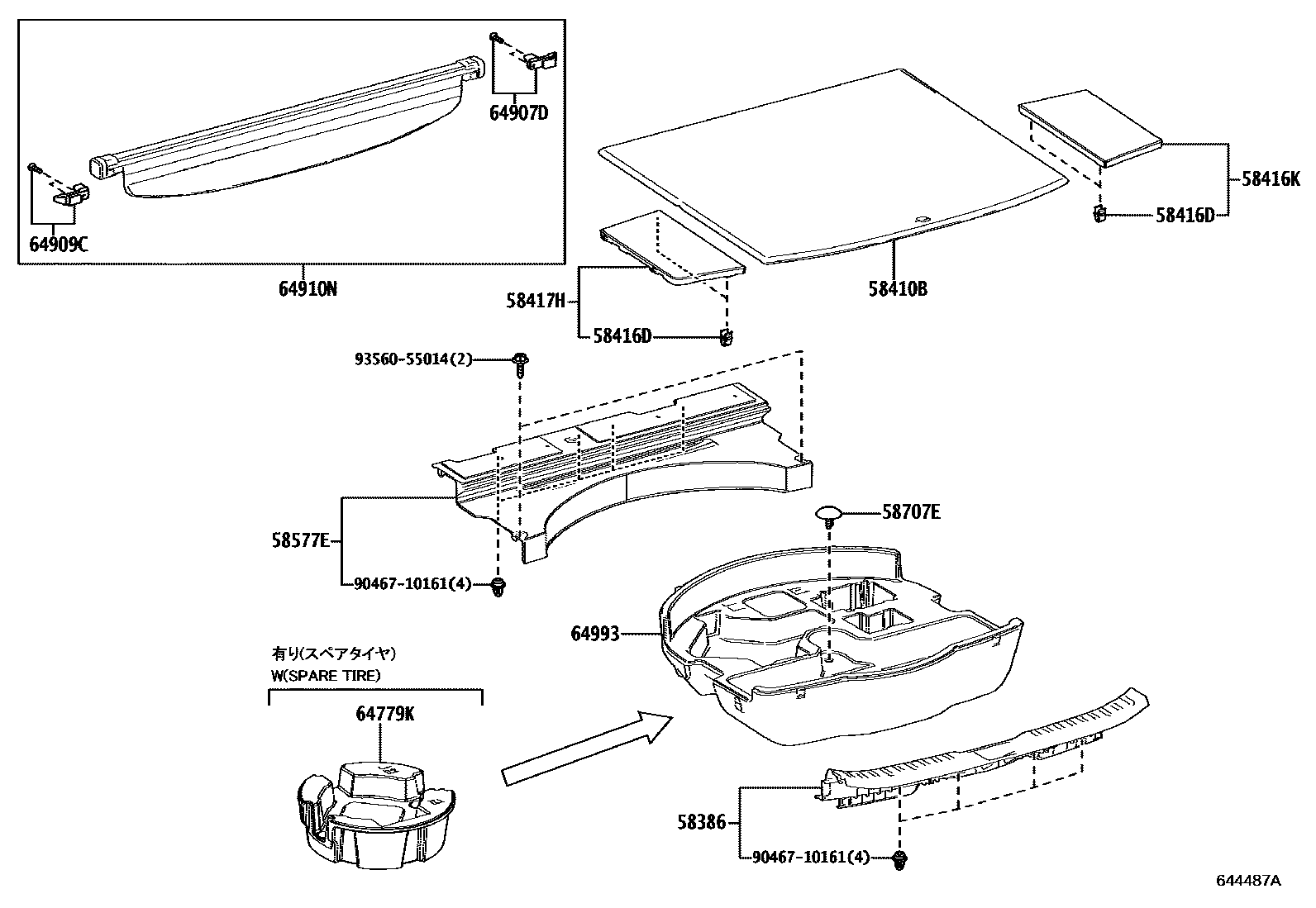

Toyota RAV4 底板和底板装饰罩 — Figure 6455
Toyota RAV4 EPC diagram 6455, 底板和底板装饰罩, with 5 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58386 | Rear floor decorative panel | 58387-42090-C0 · 58387-42130-C0 |
| 58410B | Base plate assembly | 58410-42110-C1 · 58410-42120-C1 |
| 58416D | Rear floor clip | 90467-10201 |
| 58416K | Rear floor panel No. 2 | 58416-0R090-C0 · 58416-42070-C0 |
| 58417H | Rear floor panel No. 3 | 58417-0R080-C0 · 58417-42070-C0 |
| 58460D | Luggage fixing belt lock assembly | 58460-33020 |
| 58577E | Rear floor mat No. 1 side support plate | 58577-0R100-C0 · 58577-0R101-C0 · 58577-42150-C0 |
| 58707E | hole plug assembly | 58707-50060 |
| 64230A | Car partition net assembly | 64230-42030-C0 |
| 64421A | luggage carrier | 64421-YY140 |
| 64714J | Decorative cover on the right side of the floor | 64714-42050-C0 · 64714-42070-C0 |
| 64730H | Clip (for bottom panel side decorative panel) | 65487-53020 · 90467-09242 |
| 64730J | Bottom panel right decorative panel assembly | 64730-0R230-C0 · 64730-0R231-C0 · 64730-0R240-C0 · 64730-0R241-C0 · 64730-42140-C0 · 64730-42141-C0 · 64730-42150-C0 · 64730-42151-C0 · 64730-42220-C0 · 64730-42221-C0 · 64730-42230-C0 · 64730-42231-C0 |
| 64730K | Clip (for bottom panel side decorative panel) | 90467-10161 |
| 64733C | No. 1 base plate side decorative pad | 64733-0R050 |
| 64734A | No. 2 base plate side decorative pad | 64734-0R030 |
| 64740E | Floor left decorative panel assembly | 64740-0R200-C0 · 64740-0R201-C0 · 64740-0R210-C0 · 64740-0R211-C0 · 64740-42140-C0 · 64740-42141-C0 · 64740-42160-C0 · 64740-42161-C0 · 64740-42170-C0 · 64740-42171-C0 |
| 64779K | Spare tire cover stop | 64779-0R160 · 64779-0R170 · 64779-42020 · 64779-42030 · 64779-42040 · 64779-42050 |
| 64783C | Base panel decorative pocket cover panel | 64783-42030-C0 |
| 64907D | Trunk trim cover right block sub-assembly | 64907-42030 |
| 64909C | Trunk trim cover left block sub-assembly | 64909-42030 |
| 64910N | Trunk cover assembly | 64910-42060-C0 |
| 64993 | Bottom floor box | 64993-42010 · 64993-42011 |
| 65351A | Battery hole cover | 65351-42010-C0 |
| 73708A | Tie anchor bracket assembly | 73708-42060-C1 |
