Toyota RAV4 车内装饰板 — Figure 6451

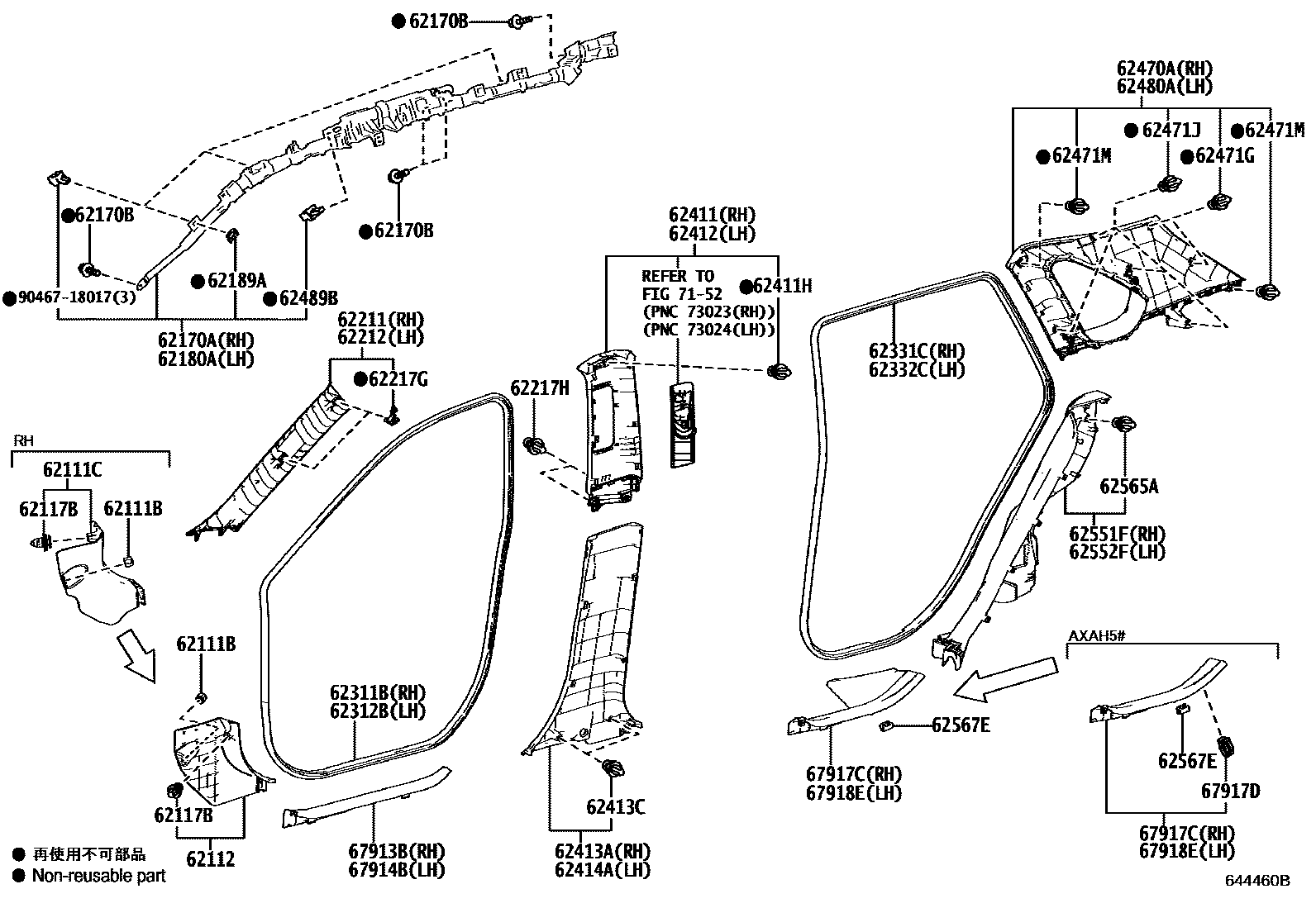

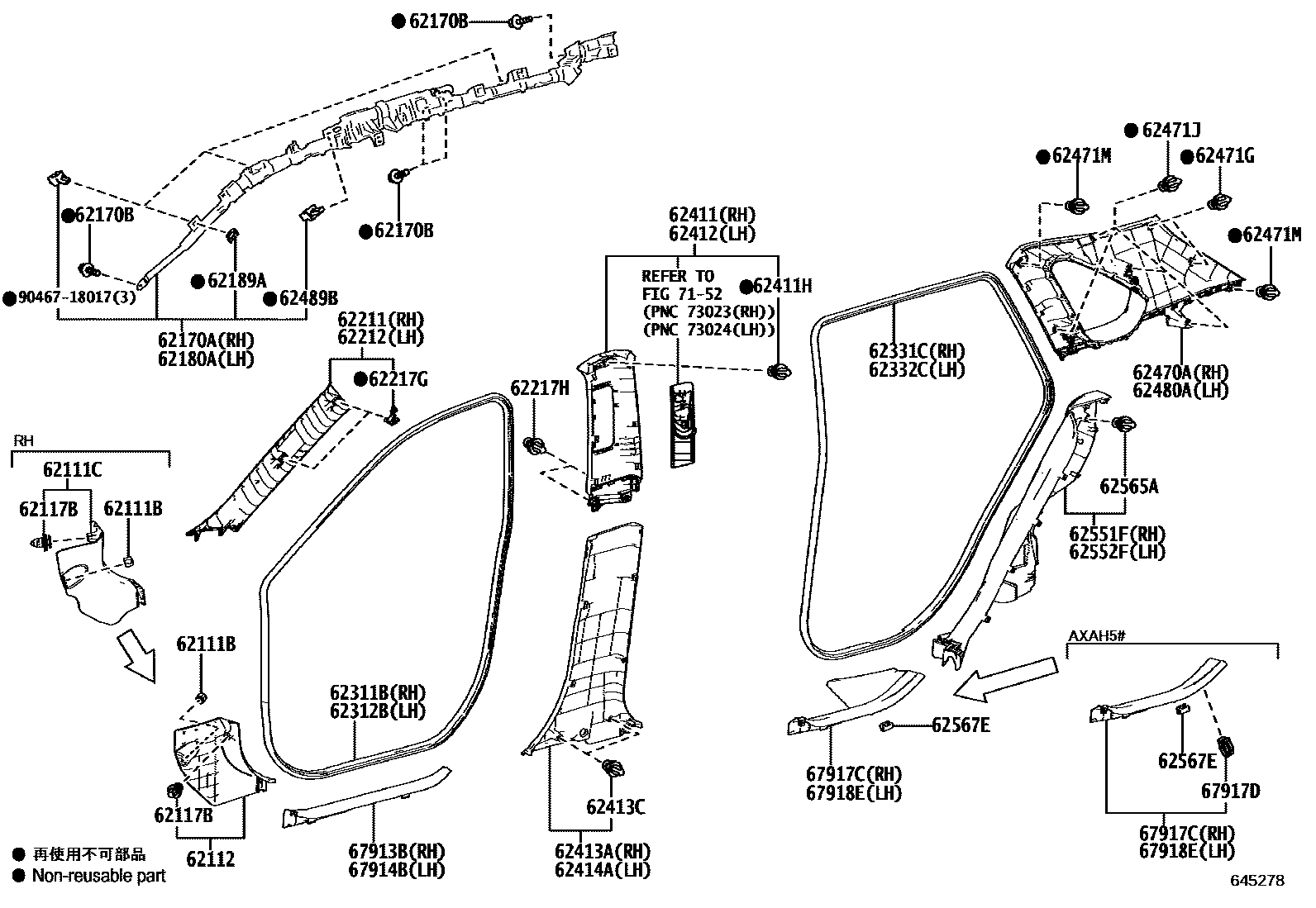

Toyota RAV4 EPC diagram 6451, 车内装饰板, with 2 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-06155 |
| 62111C | Right front panel | 62111-0R090-C0 · 62111-42070-C0 · 62111-42080-C0 |
| 62112 | Left front wall side trim panel | 62112-0R090-C0 · 62112-42070-C0 |
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-10161 |
| 62170A | Right curtain air bag assembly | 62170-0R120 · 62170-42070 · 62170-42071 |
| 62170B | Bolts with washers | 90119-W0037 · 91673-80616 |
| 62180A | Left curtain air bag assembly | 62180-0R120 · 62180-42070 · 62180-42071 |
| 62189A | Curtain air bag clip spacer | 62189-42010 |
| 62211 | Right front pillar trim | 62210-42100-B0 · 62210-42110-B1 · 62210-42120-C1 · 62210-42130-C2 |
| 62212 | Left front pillar trim | 62220-42090-B0 · 62220-42100-B1 · 62220-42110-C1 · 62220-42120-C2 |
| 62217G | Front pillar decorative plate clip | 62217-42050 · 62217-42060 |
| 62217H | Center pillar decorative plate clip | 90467-10216 |
| 62311B | Right front door opening waterproof tape | 62311-42110 |
| 62312B | Left front door opening waterproof tape | 62312-42110 |
| 62331C | Right rear door opening waterproof tape | 62331-42100 |
| 62332C | Left rear door opening waterproof tape | 62332-42090 |
| 62411 | Right center pillar decorative panel | 62410-0R100-B0 · 62410-42100-B1 · 62410-42110-C2 |
| 62411H | clip | 90467-10167 |
| 62412 | Left center pillar decorative panel | 62420-0R100-B0 · 62420-42100-B1 · 62420-42110-C2 |
| 62413A | Decorative panel under right center pillar | 62413-0R090-C0 · 62413-42090-C0 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10161 |
| 62414A | Decorative panel under left center pillar | 62414-0R090-C0 · 62414-42090-C0 |
| 62470A | Roof right interior panel assembly | 62470-0R110-B0 · 62470-0R111-B0 · 62470-42170-B0 · 62470-42180-C0 |
| 62471G | Roof side interior panel clips | 90467-10167 |
| 62471J | Clips (for roof side trim panels) | 90467-09240 |
| 62471M | clip | 90467-10161 |
| 62480A | Roof left interior panel assembly | 62480-0R130-B0 · 62480-0R131-B0 · 62480-42180-B0 · 62480-42190-C0 |
| 62489B | Roof side interior panel clips | 62489-28010 |
| 62551F | Rear right seat side trim panel | 62555-42050-C0 · 62555-42070-C0 |
| 62552F | Rear left seat side trim panel | 62556-42050-C0 · 62556-42070-C0 |
| 62565A | Clips (for rear seat side trim panels) | 90467-09240 |
| 62567E | No. 2 door inner sill guard strip clip | 62567-33040 |
| 67913B | Right front door wear plate | 67913-0R050-C0 · 67913-42130-C0 |
| 67914B | Left front door wear plate | 67914-0R050-C0 · 67914-42130-C0 |
| 67917C | Right rear door wear plate | 67917-0R050-C0 · 67917-42100-C0 · 67917-42110-C0 |
| 67917D | Rear door wear plate clip | 90467-05171 |
| 67918E | Left rear door wear plate | 67918-0R050-C0 · 67918-42100-C0 · 67918-42110-C0 |
