Toyota RAV4 中央扶手箱和支架 — Figure 5855

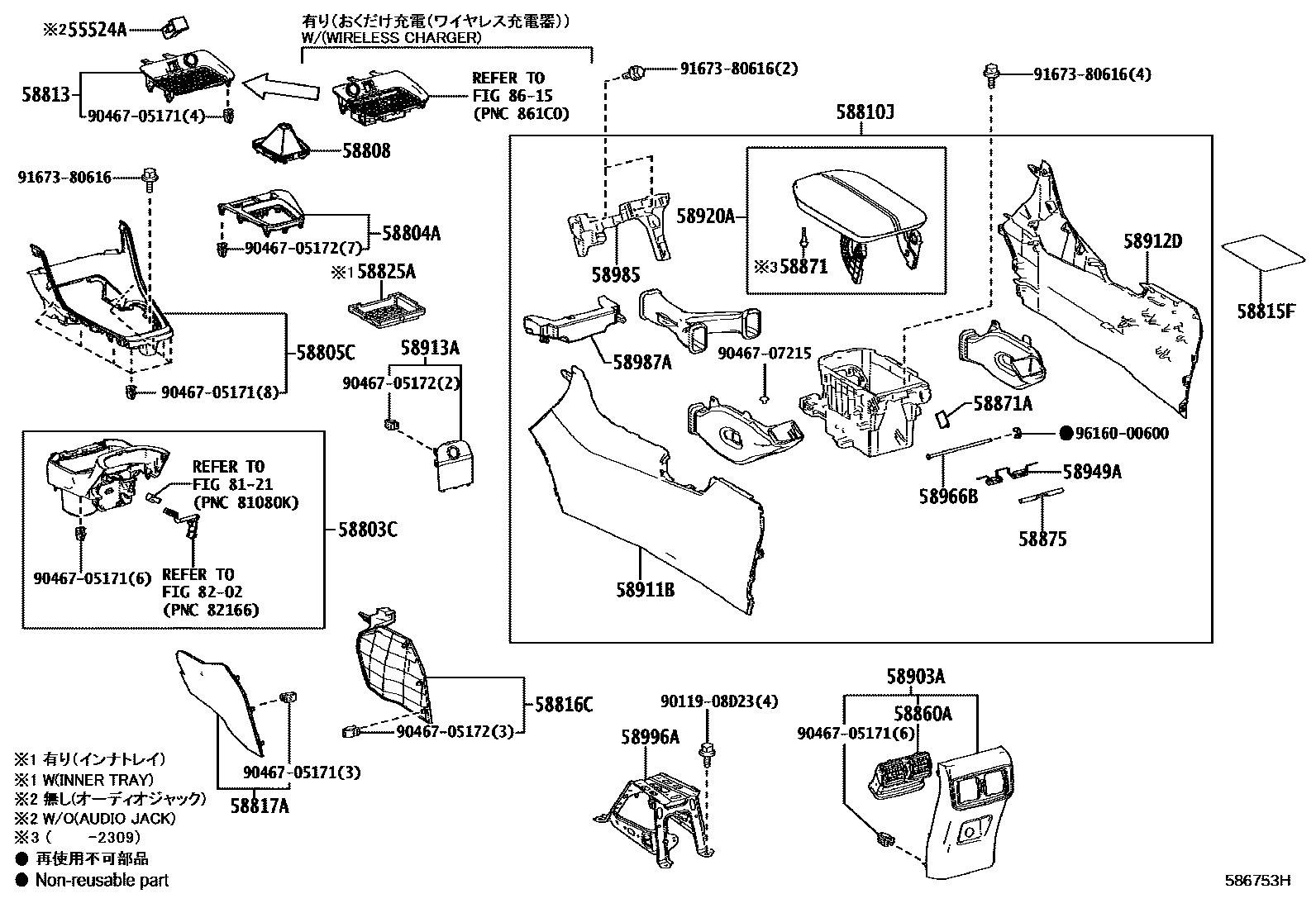

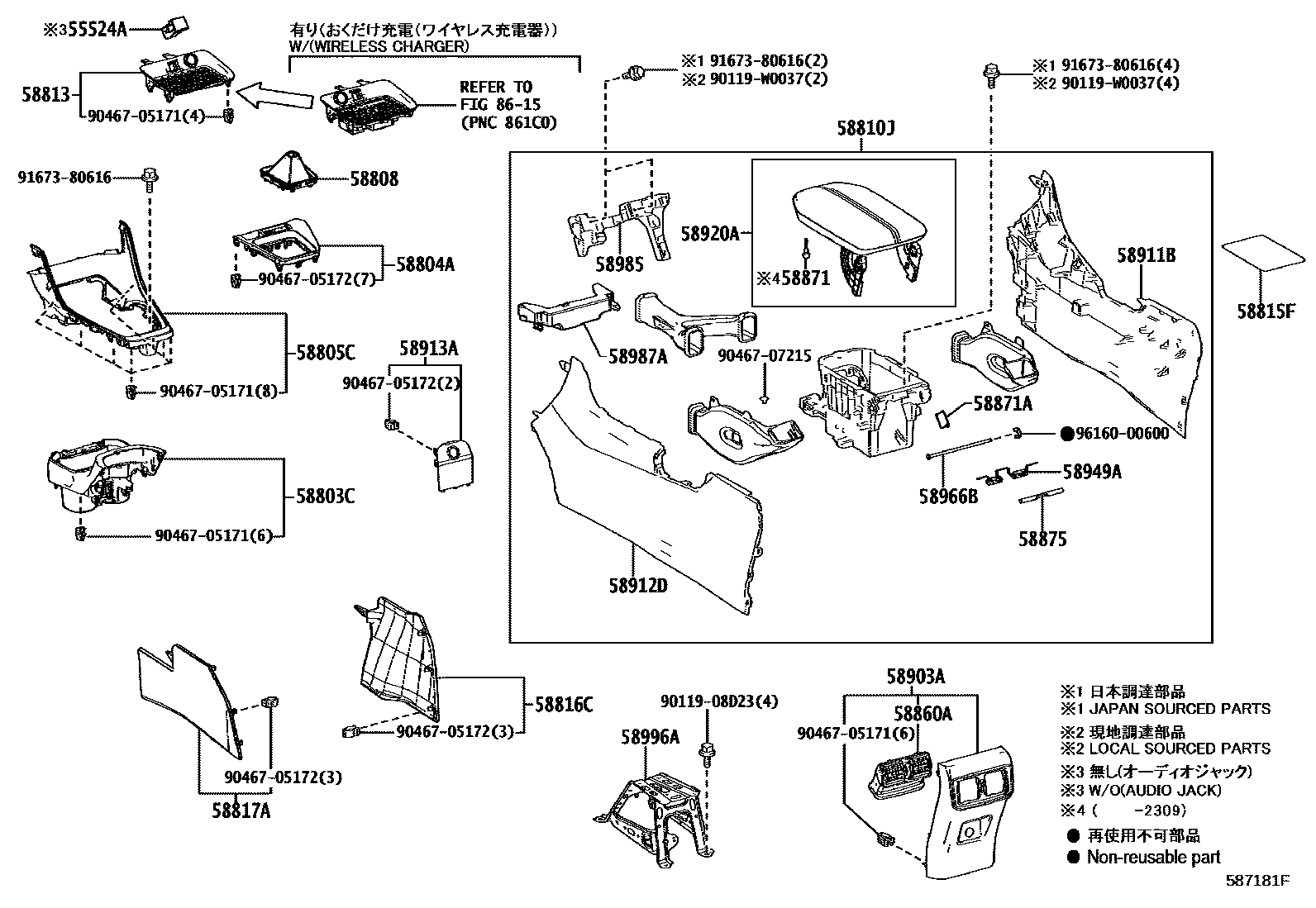

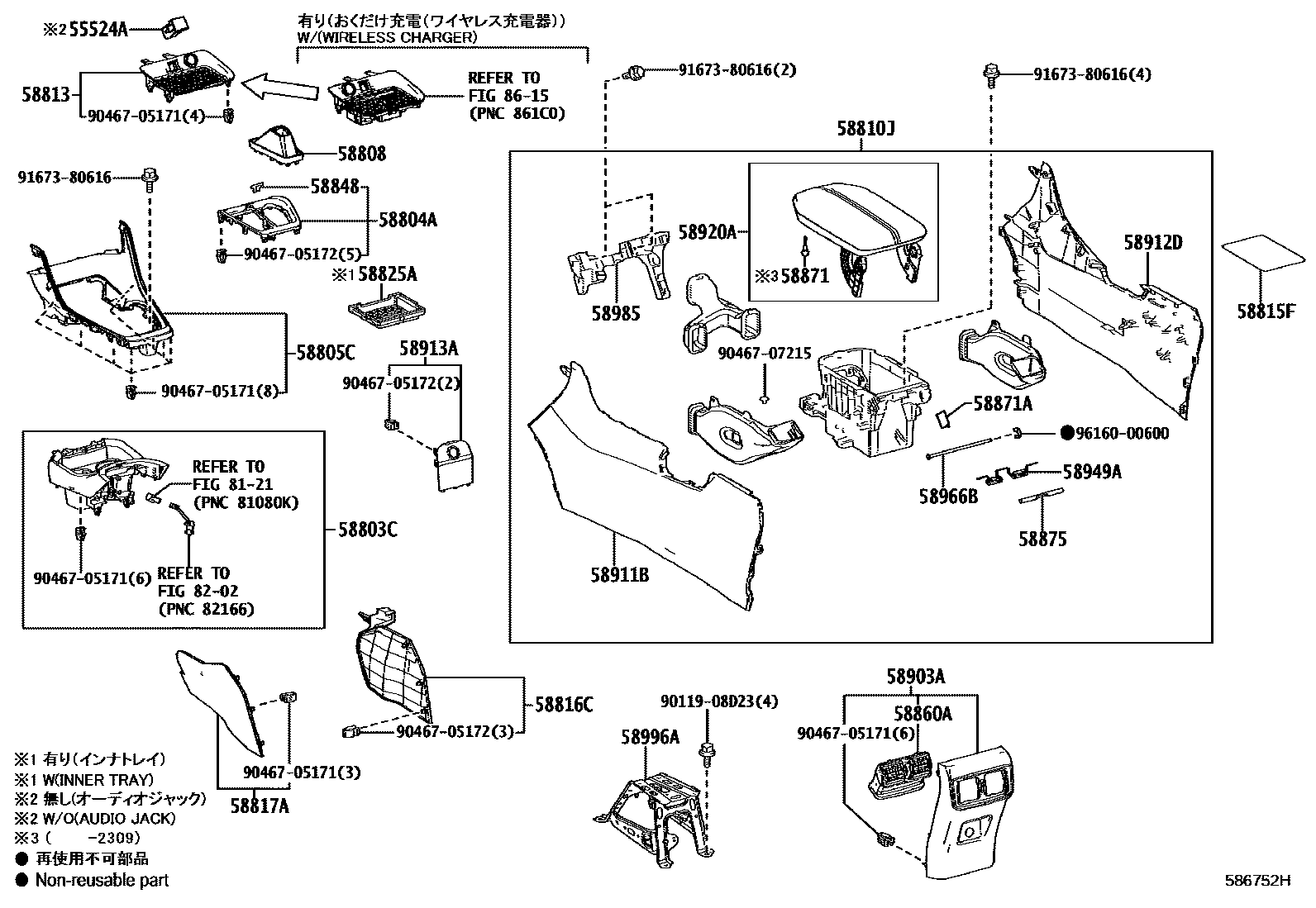

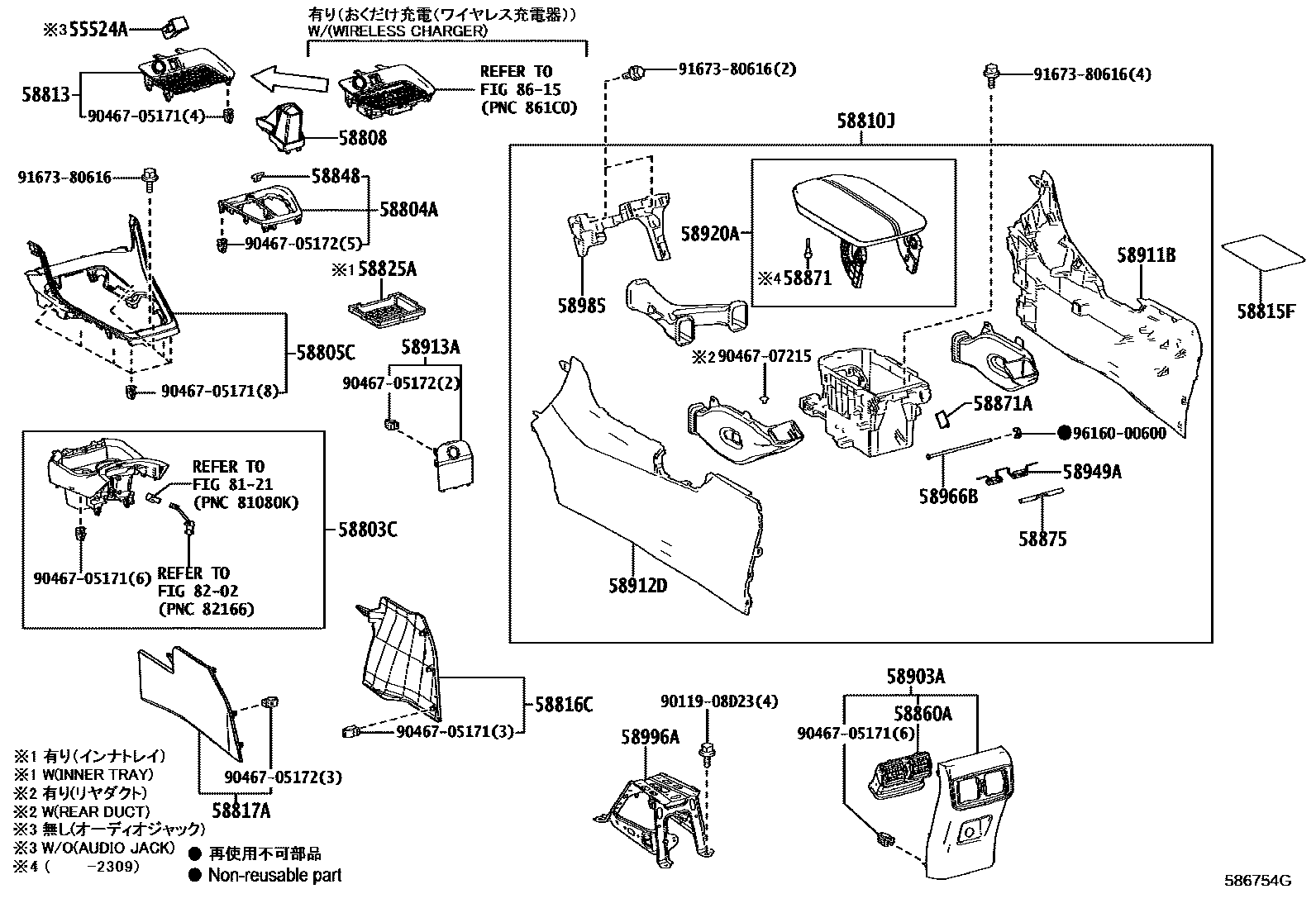

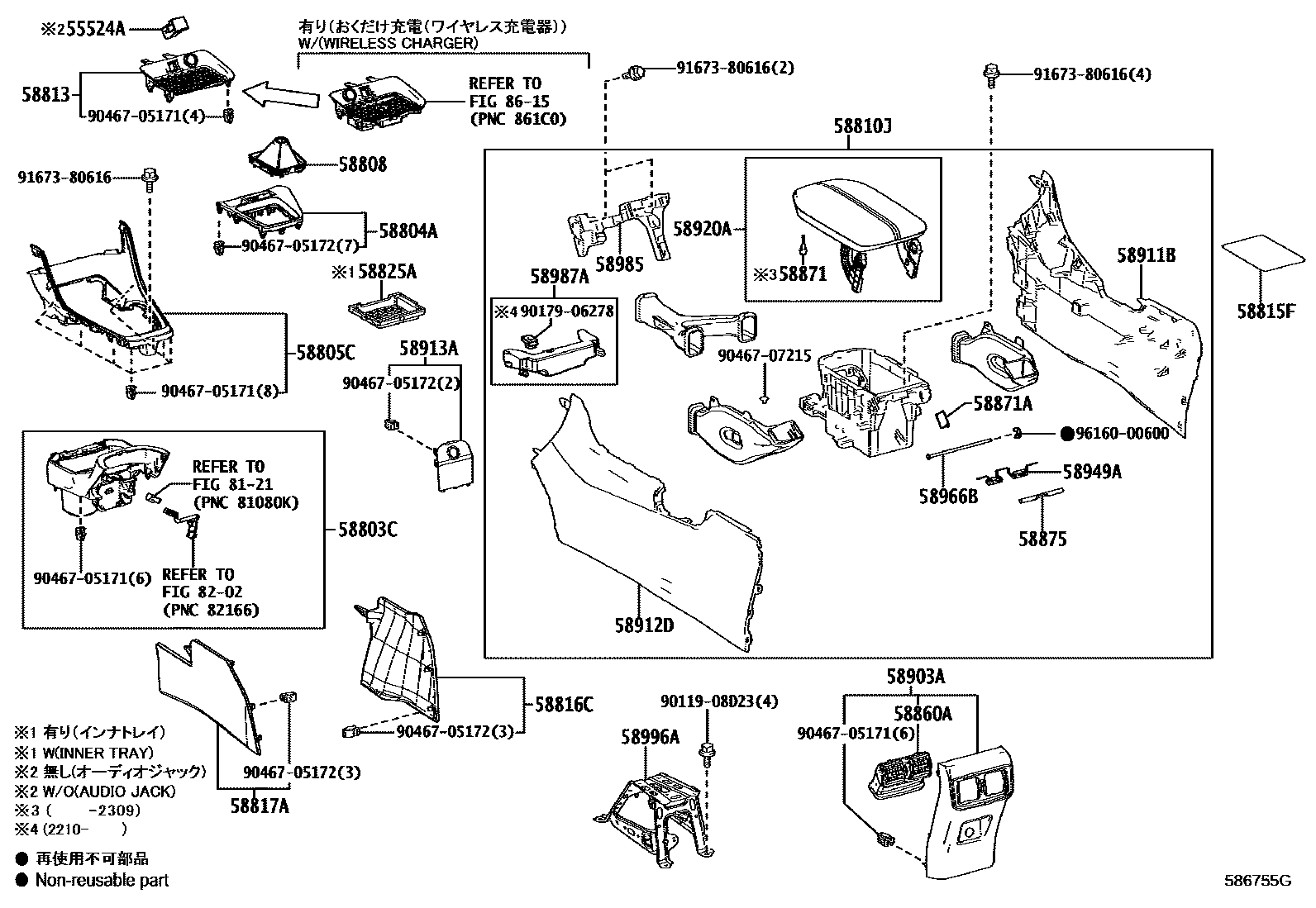

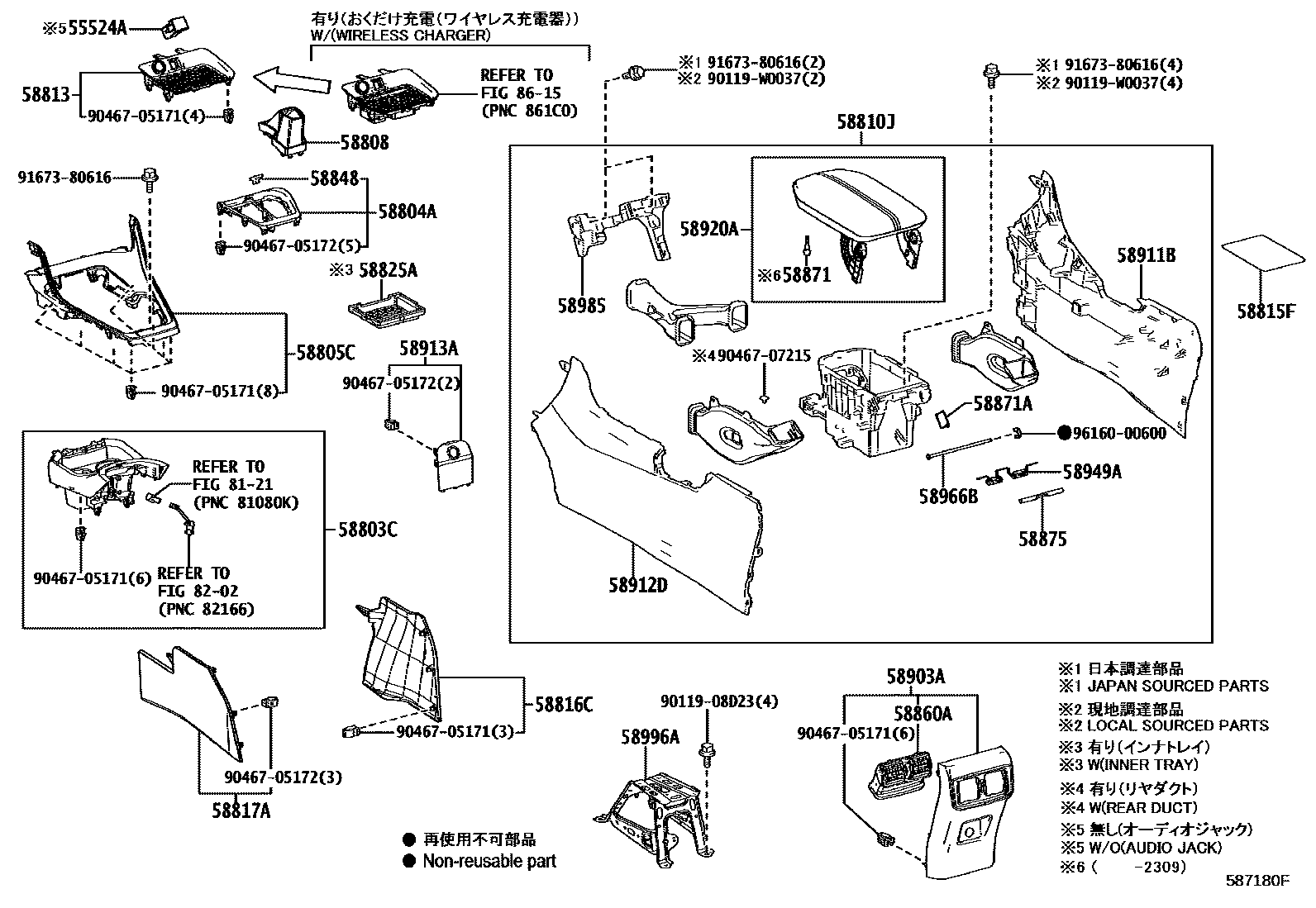

Toyota RAV4 EPC diagram 5855, 中央扶手箱和支架, with 6 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55524A | Switch base hole cover | 55524-12010-C0 · 55524-42010-C0 |
| 58803C | Armrest box cup holder sub-assembly | 58803-42030-C3 · 58803-42040-C5 · 58803-42050-C3 · 58803-42050-C4 · 58803-42050-C5 · 58803-42050-C6 · 58803-42060-C2 · 58803-42060-C3 · 58803-42090-C0 · 58803-42100-C0 · 58803-42100-C1 · 58803-42100-C2 · 58803-42100-C3 |
| 58804A | Armrest box upper panel sub-assembly | 58804-0R230 · 58804-42460 · 58804-42470 · 58804-42480 · 58804-42490 |
| 58805C | Rear armrest box upper panel sub-assembly | 58805-42080 · 58805-42090 · 58805-42100 · 58805-42110 · 58805-42160 · 58805-42170 |
| 58808 | Shift hole cover sub-assembly | 58808-42110-C0 · 58808-42110-C4 · 58808-42120-C0 · 58808-42130-C0 · 58808-42130-C4 |
| 58810J | Armrest box assembly | 58810-42020-C0 · 58810-42030-C1 · 58810-42030-C4 · 58810-42040-C1 · 58810-42050-C0 · 58810-42060-C1 · 58810-42060-C4 · 58810-42070-C1 |
| 58813 | Upper armrest box | 58813-42040-C3 · 58813-42040-C4 · 58813-42040-E7 · 58813-42040-E8 · 58813-42041-C3 · 58813-42041-C4 · 58813-42041-E7 · 58813-42041-E8 · 58813-42050-C2 · 58813-42050-E3 · 58813-42051-C2 · 58813-42051-E3 · 58813-42060-C2 · 58813-42070-C2 · 58813-42080-C1 · 58813-42080-E3 · 58813-42080-E4 · 58813-42081-C1 · 58813-42081-E3 · 58813-42081-E4 · 58813-42090-C1 |
| 58815F | Armrest box felt pad | 58815-0R100 · 58815-42040 |
| 58816C | Front armrest box insert No. 1 | 58816-42020-C0 · 58816-42030-C0 |
| 58817A | Front armrest box insert No. 2 | 58817-42020-C0 · 58817-42021-C0 · 58817-42030-C0 |
| 58825A | Armrest box groove | 58825-42030 |
| 58848 | Shift lever hole cover | 58848-42010 · 58848-42020 |
| 58860A | Armrest box air regulator assembly | 58860-48050-C2 |
| 58871 | Armrest box cushion | 90541-03078 |
| 58871A | Armrest Box No. 2 Cushion Pad | 58871-42040 |
| 58875 | Armrest box spacer | 58875-42010 |
| 58903A | Armrest box rear end plate sub-assembly | 58903-42050-C0 · 58903-42060-C0 |
| 58911B | Armrest box panel No. 1 | 58911-42060-C0 · 58911-42070-C0 · 58911-42080-C0 · 58911-42090-C0 |
| 58912D | Armrest box panel No. 2 | 58912-42050-C0 · 58912-42060-C0 · 58912-42070-C0 · 58912-42080-C0 |
| 58913A | Armrest box panel No. 3 | 58913-42010 · 58913-42030 · 58913-42040 · 58913-42050 |
| 58920A | Rear armrest box armrest assembly | 58920-42010-C0 · 58920-42020-C1 · 58920-42020-C4 · 58920-42030-C1 |
| 58949A | Armrest box mounting bracket spring | 58949-42040 · 58949-42050 |
| 58966B | Armrest box lid stopper lock pin | 58966-42020 |
| 58985 | Armrest box fixing bracket | 58985-42060 · 58985-42070 · 58985-42080 · 58985-42090 |
| 58987A | Armrest box No. 2 fixed bracket | 58987-42020 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-0R100 · 58996-42080 · 58996-42081 |
