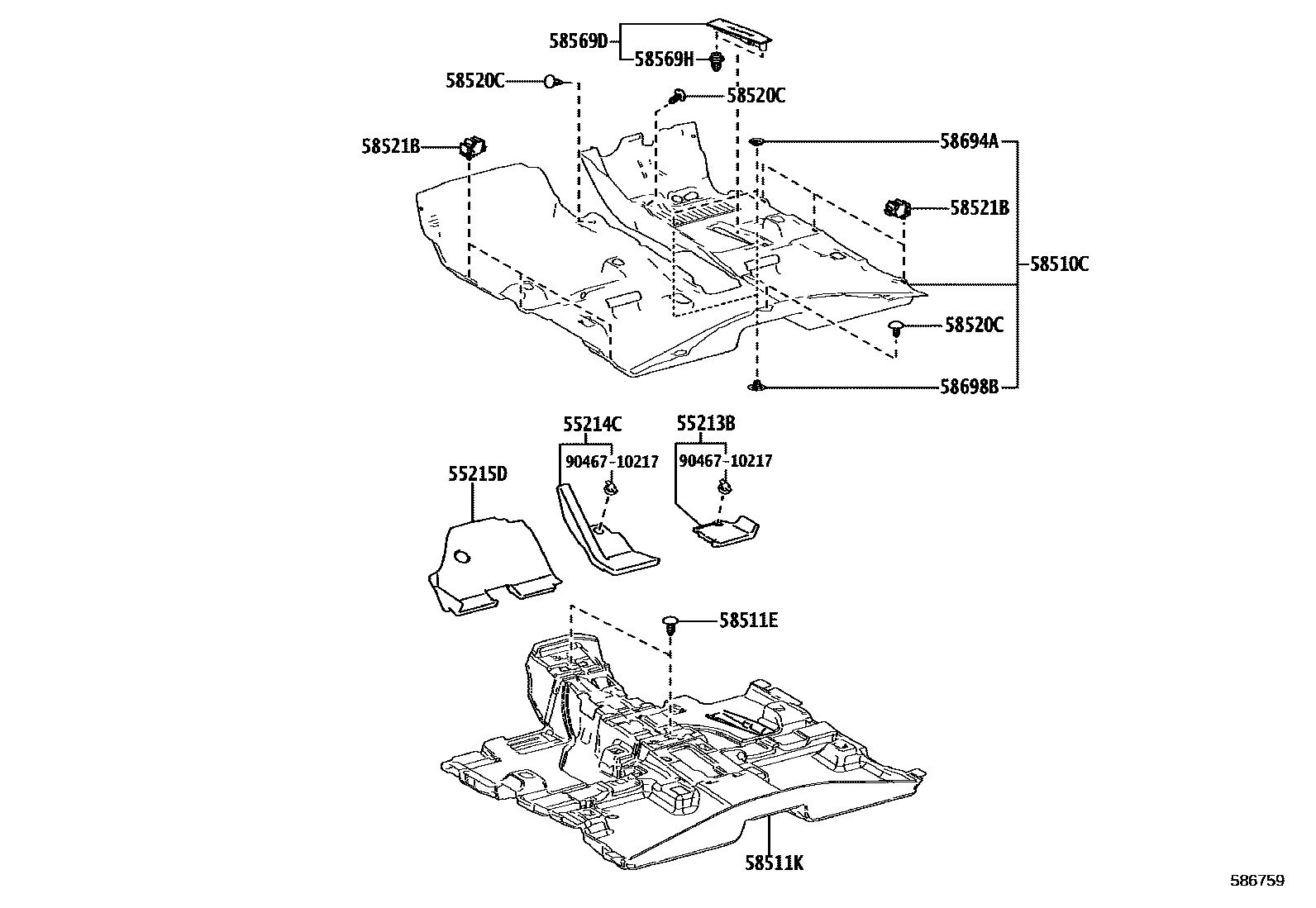

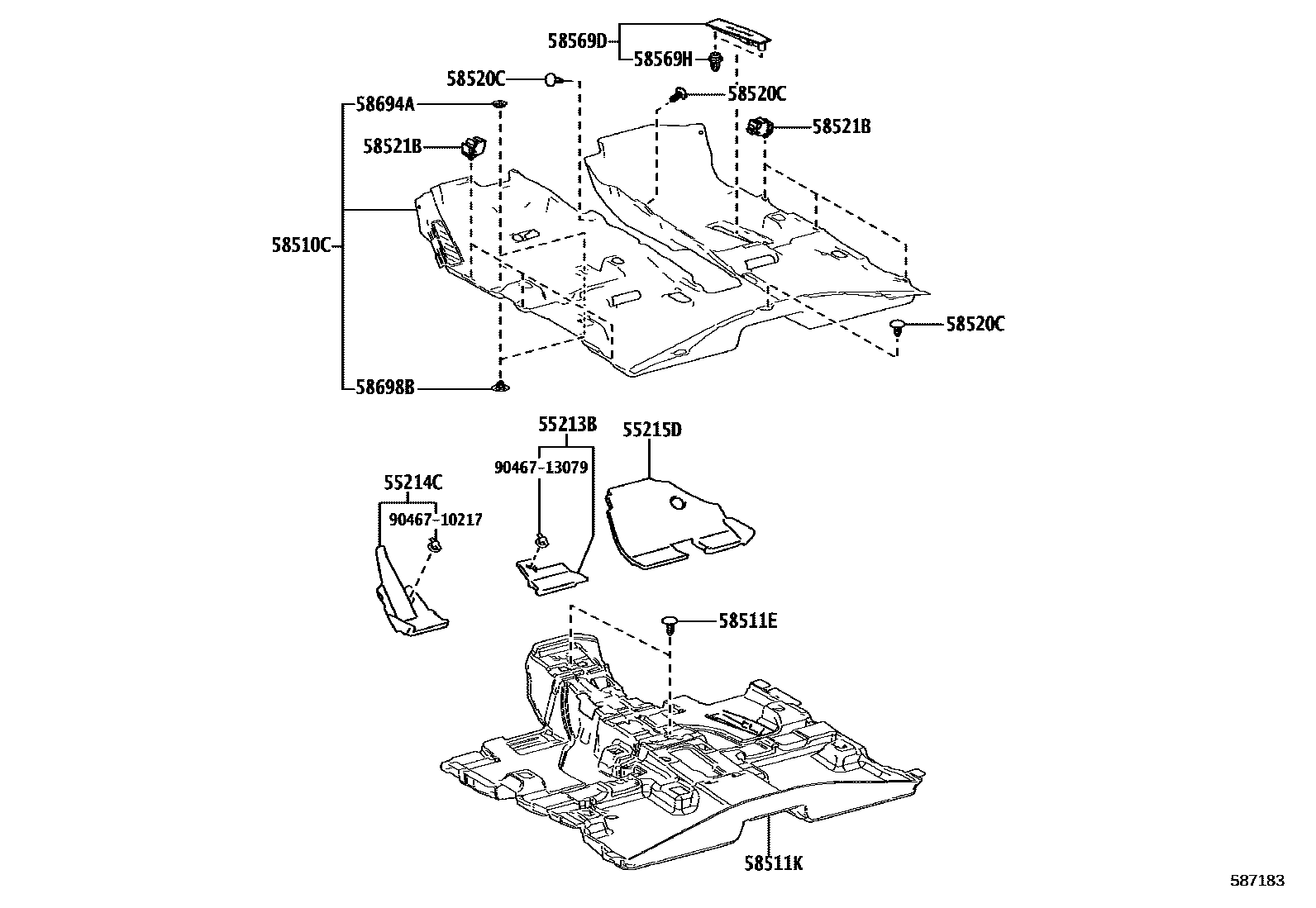

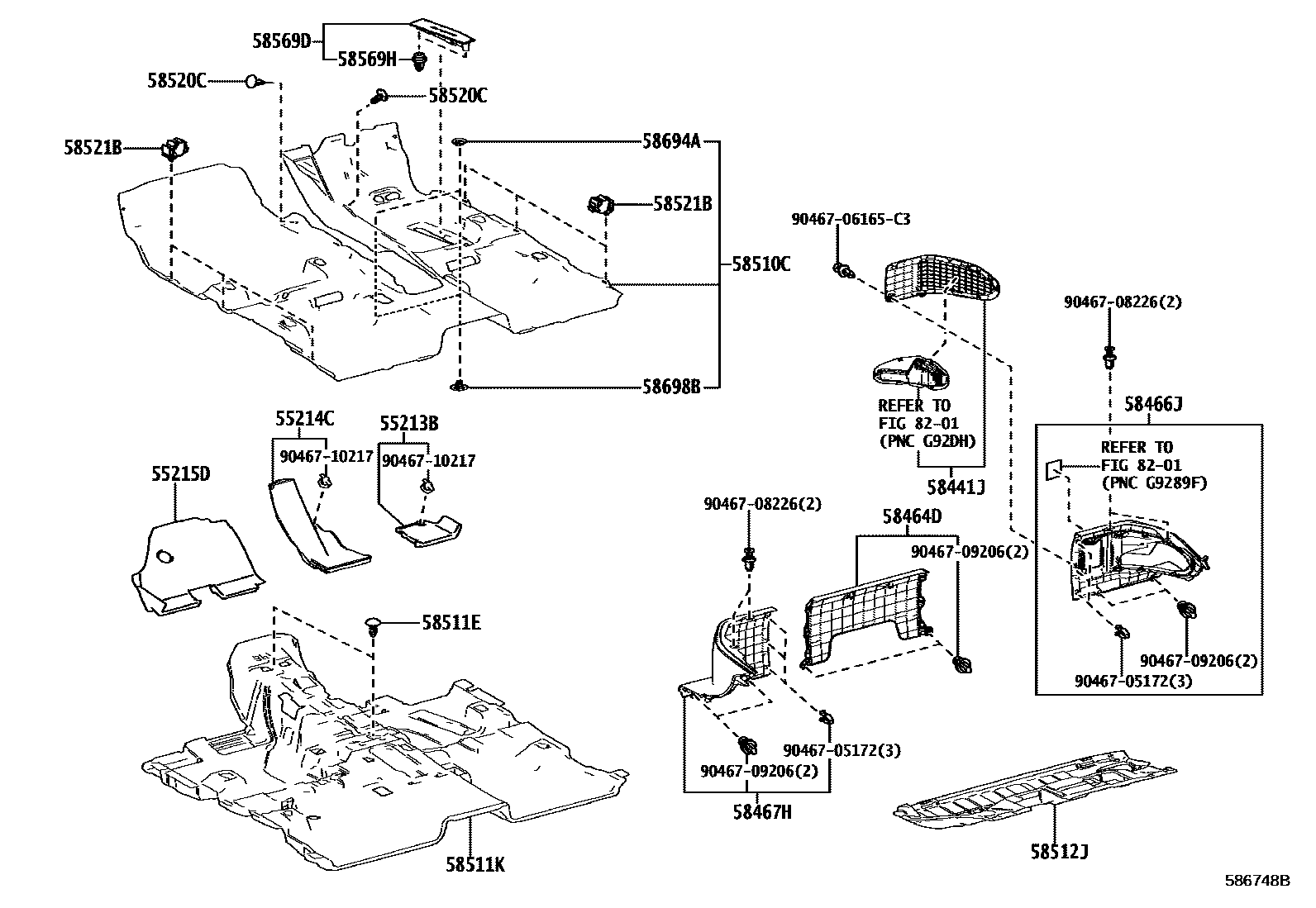

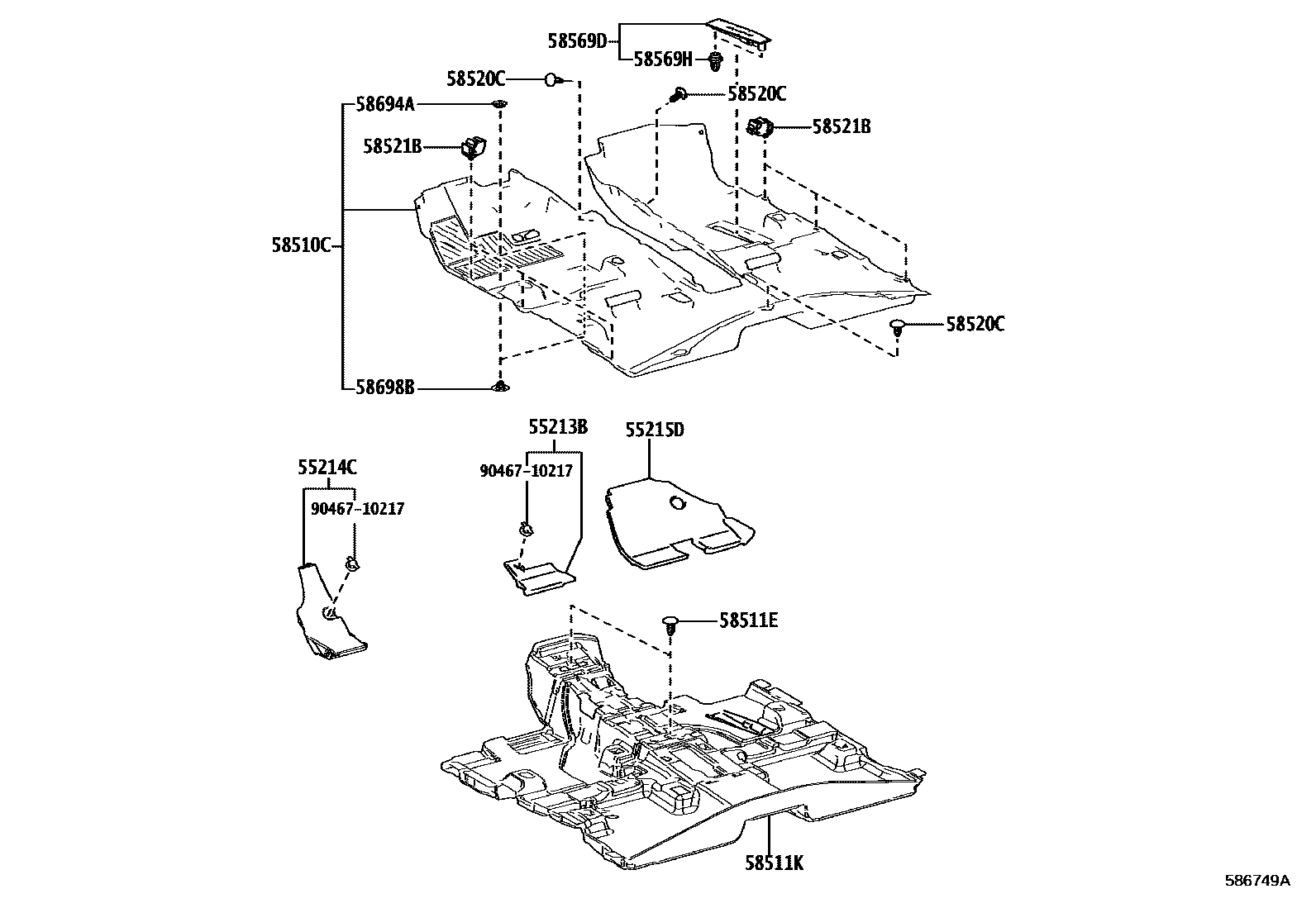

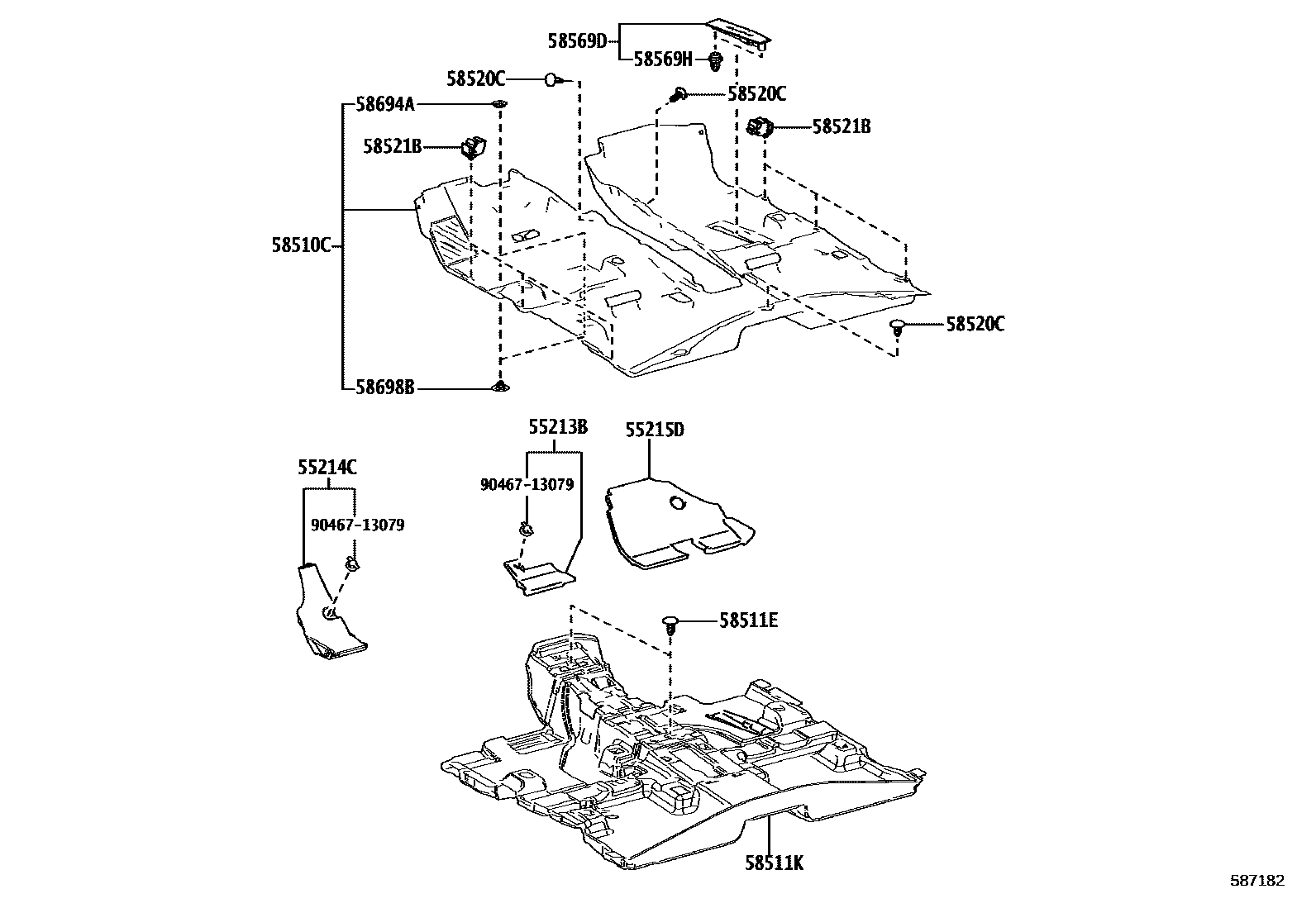

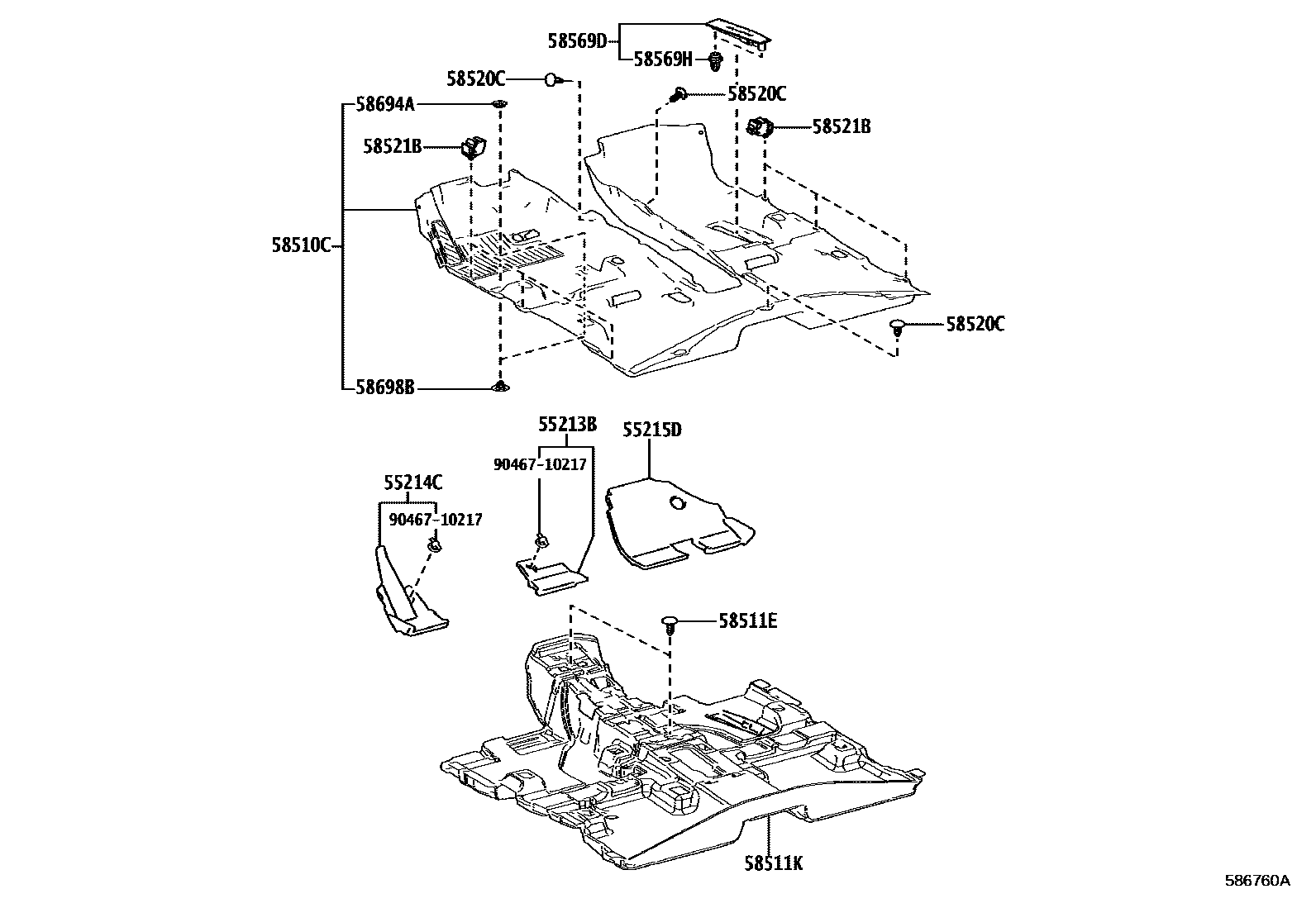

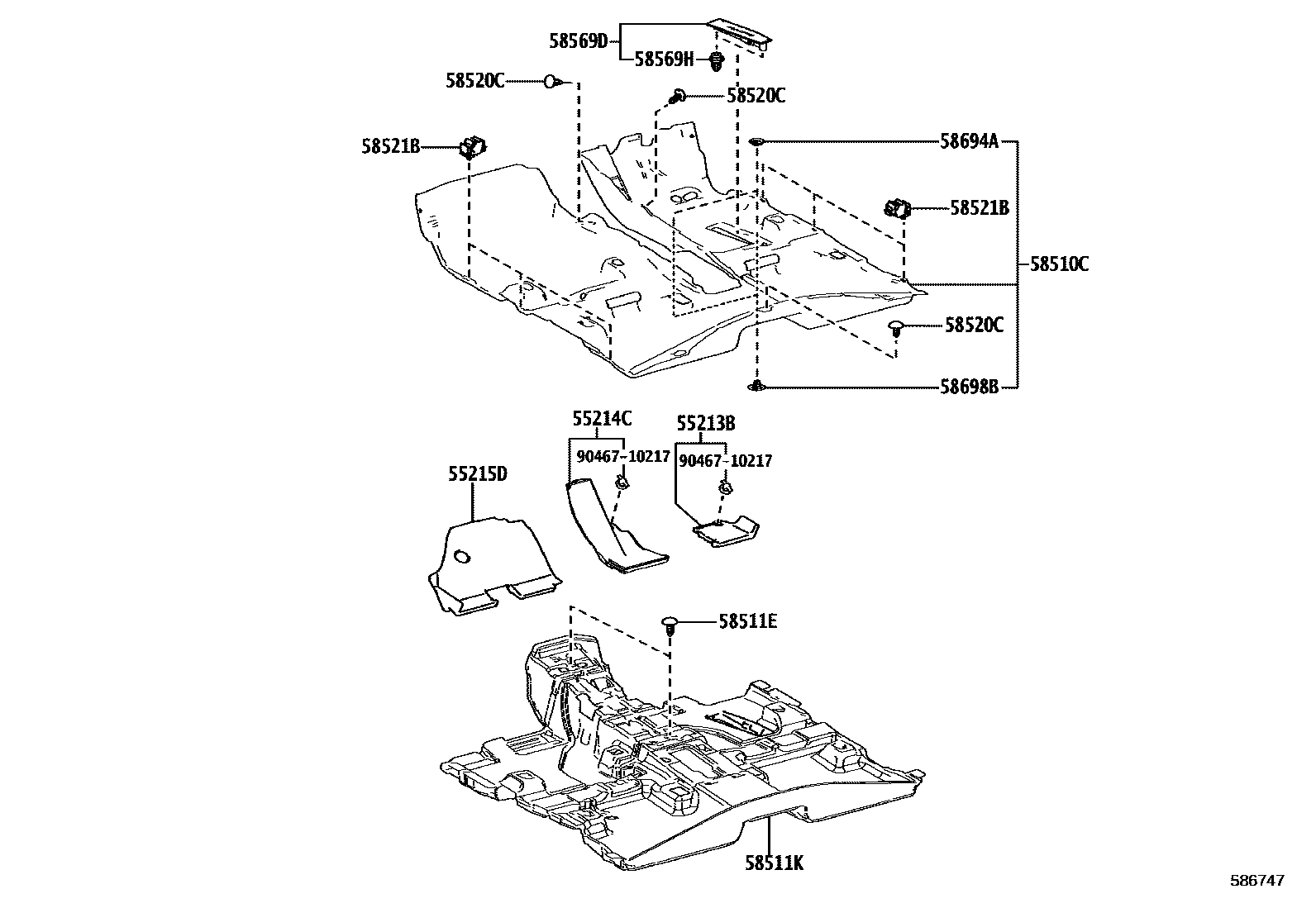

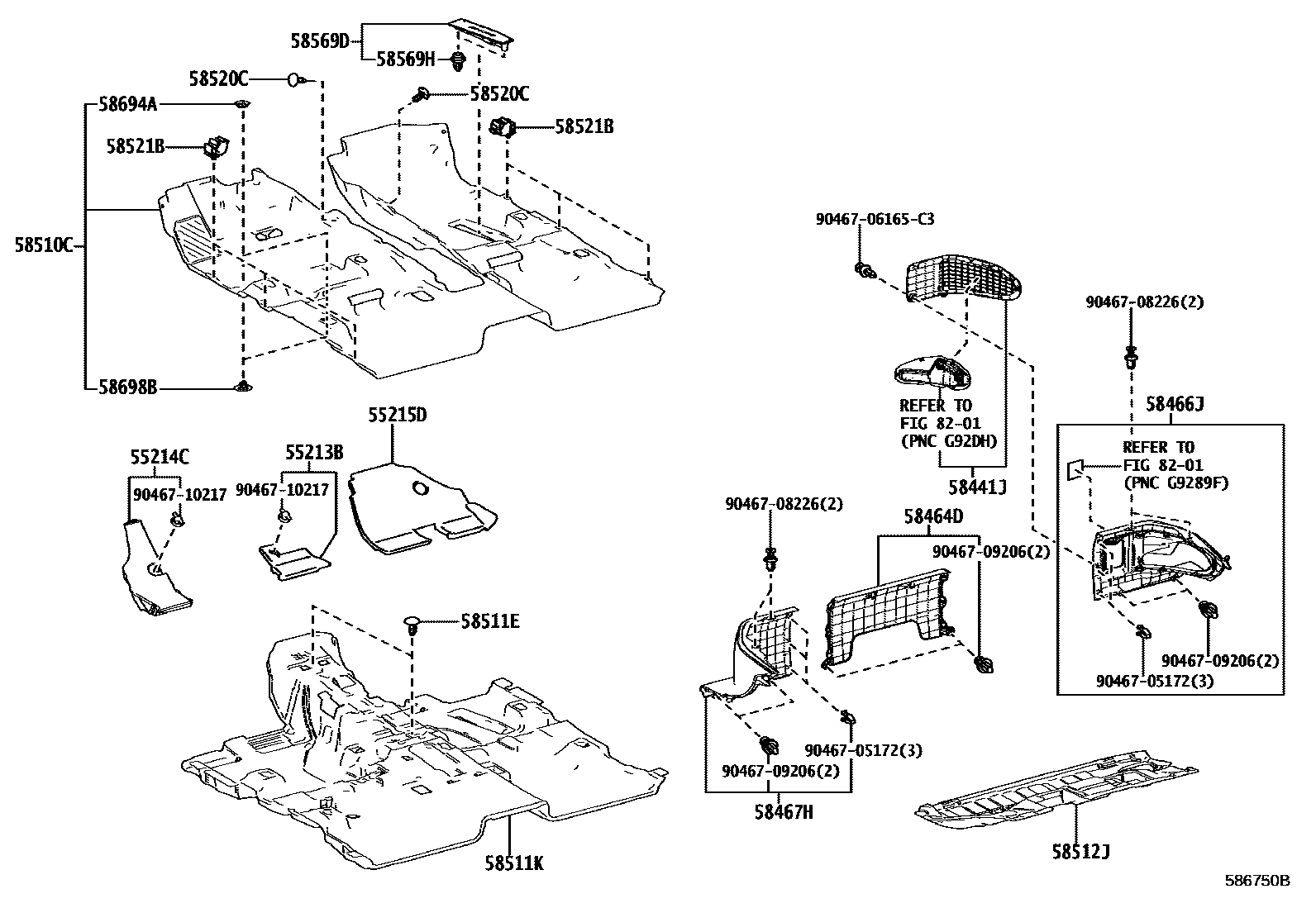

Toyota RAV4 地板垫和消声垫 — Figure 5854
Toyota RAV4 EPC diagram 5854, 地板垫和消声垫, with 8 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55213B | No. 1 insulation pad for front wall panel | 55213-0R040 · 55213-42100 · 55213-42110 · 55213-42111 |
| 55214C | No. 2 insulation pad for front wall panel | 55214-0R080 · 55214-42090 · 55214-42091 · 55214-42100 · 55214-42101 · 55214-42110 · 55214-42120 |
| 55215D | No. 3 insulation pad for front wall panel | 55215-0R040 · 55215-42030 · 55215-42040 |
| 58441J | Battery access hole cover | 58441-42020-C0 |
| 58464D | Battery access hole cover | 58464-42010-C0 |
| 58466J | No. 2 battery inspection hole cover | 58466-42010-C0 |
| 58467H | No. 3 battery access hole cover | 58467-42010-C0 |
| 58510C | Front floor and front felt pad assembly | 58510-0R220-C0 · 58510-0R230-C0 · 58510-42C40-C1 · 58510-42C50-C1 · 58510-42C60-C1 · 58510-42C80-C1 · 58510-42C90-C1 · 58510-42D00-C1 · 58510-42D10-C1 · 58510-42D30-C1 |
| 58511E | Clip (for front floor mat) | 90467-07042-C4 |
| 58511K | Floor Mat No. 1 | 58511-0R070 · 58511-42020 · 58511-42040 |
| 58512J | Floor mat No. 2 | 58512-42010 |
| 58520C | Clip (for front carpet) | 90467-05164-C7 |
| 58521B | carpet hook | 58521-33070 |
| 58569D | Front floor warning nameplate cover | 58569-42040-C0 |
| 58569H | Front floor warning nameplate cover No. 1 clip | 62217-13010 |
| 58694A | Pad the fixing plate | 58694-33010 |
| 58698B | Fixing plate under the pad | 58698-33010 |
