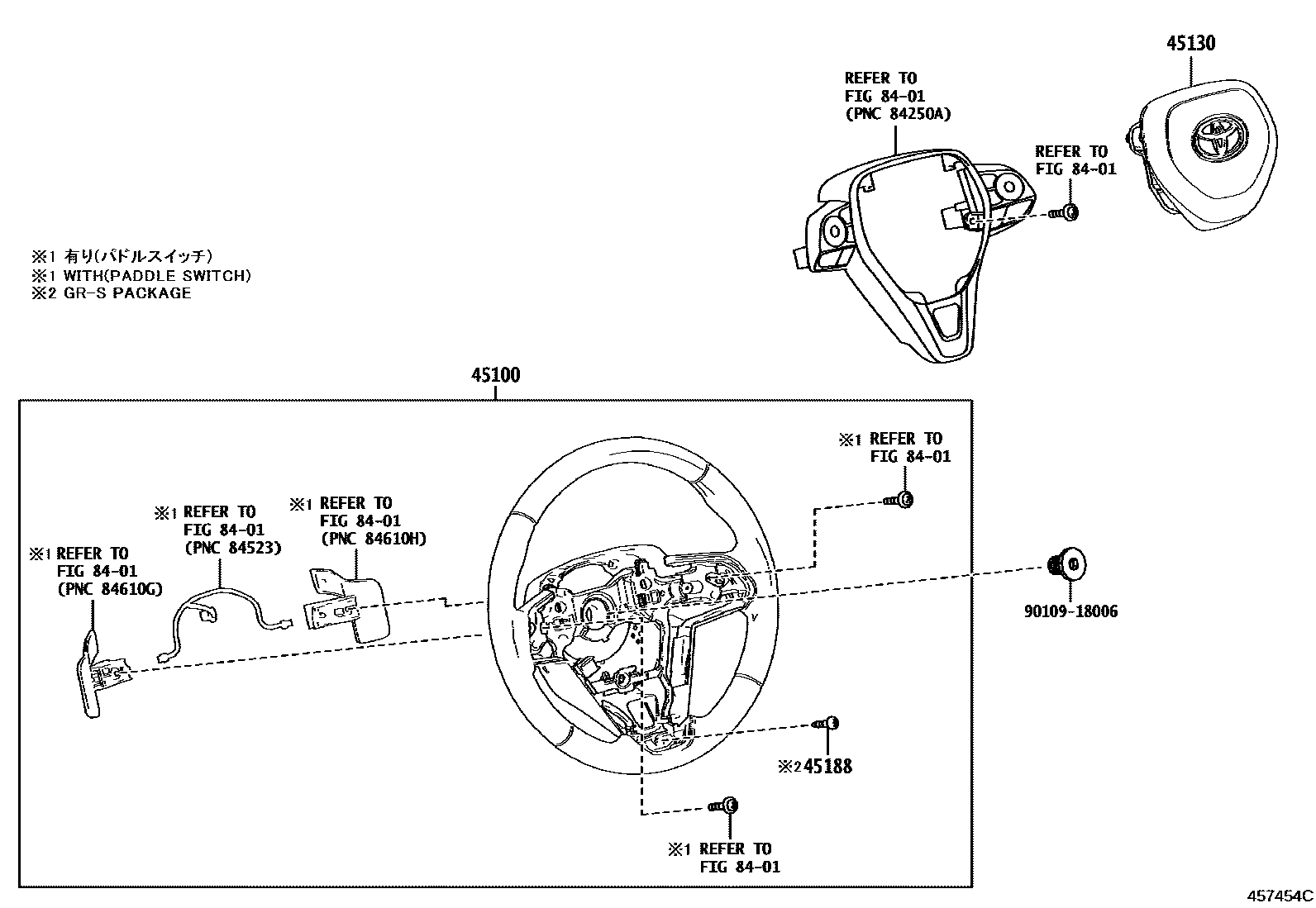

Toyota RAV4 Steering Wheel — Figure 4504
Toyota RAV4 EPC diagram 4504, Steering Wheel, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45100 | Steering wheel assembly | 45100-12G60-C0 · 45100-12G70-C0 · 45100-12G80-C0 · 45100-12G90-C0 · 45100-12J00-C0 · 45100-42420-C2 · 45100-42510-C0 · 45100-42520-C2 |
| 45130 | Speaker button assembly | 45130-12E40-C0 |
| 45188 | Steering wheel trim cover fixing screws | 90168-40113 |
