Toyota RAV4 Steering Column & Shaft — Figure 4501

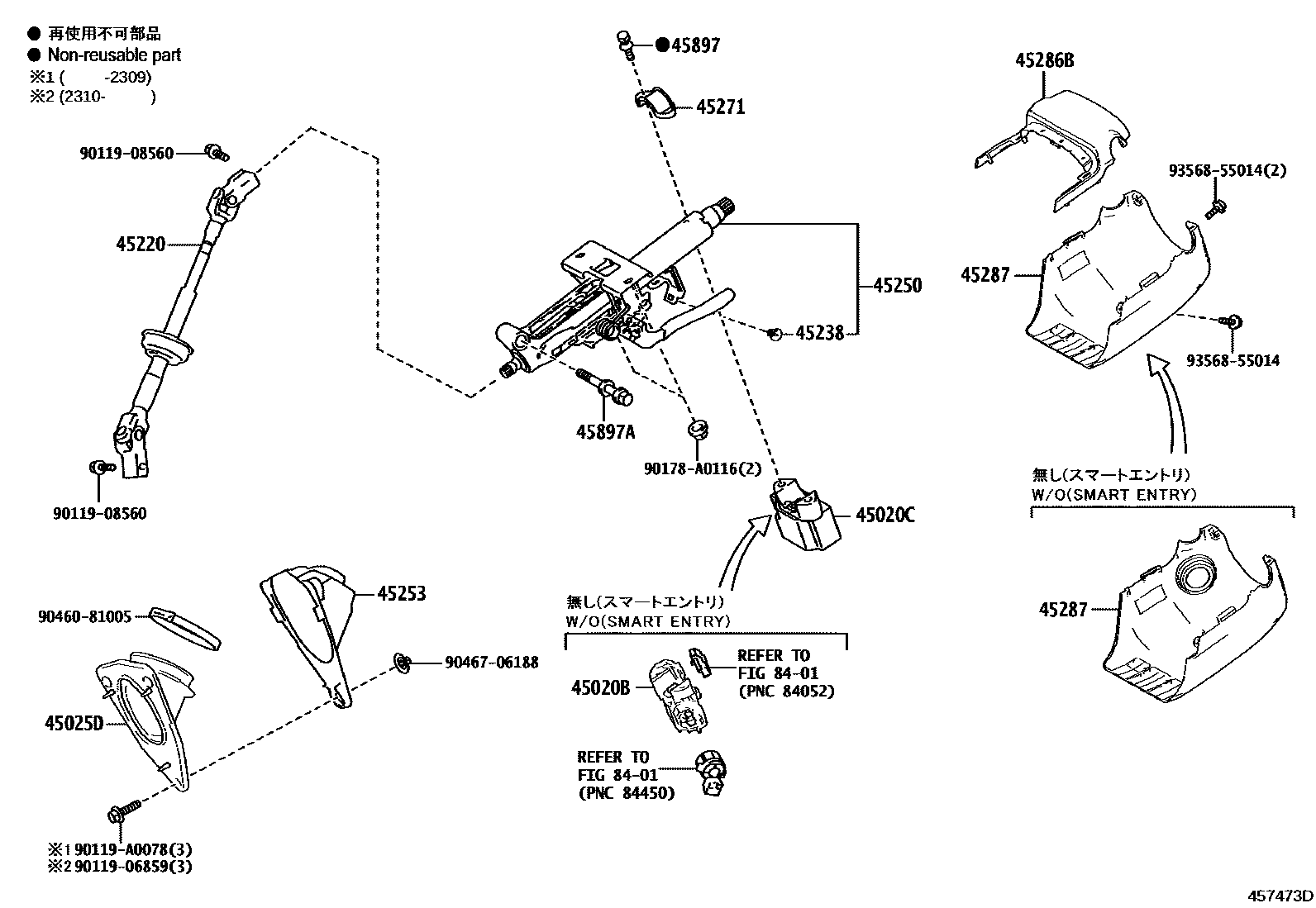

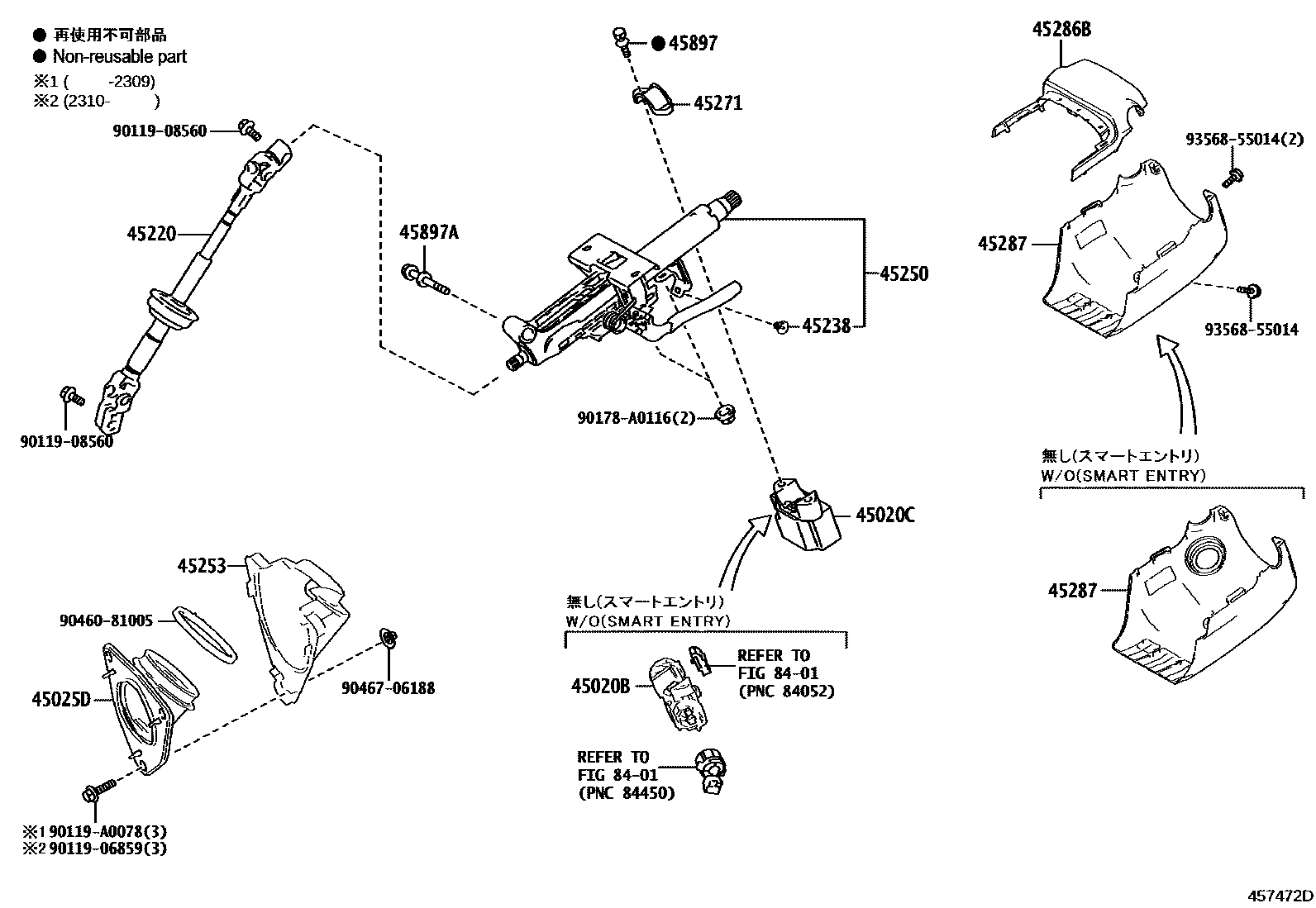

Toyota RAV4 EPC diagram 4501, Steering Column & Shaft, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | Steering lock actuator or upper bracket assembly | 45280-26270 · 45280-33180 |
| 45020C | Steering lock actuator assembly with ECU | 45020-0R020 · 45020-33240 · 45020-42270 · 45020-42280 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-42090 |
| 45220 | Steering intermediate shaft assembly | 45220-42010 · 45220-42020 |
| 45238 | Bolt clamp (for steering flex coupling) | 45238-52010 |
| 45250 | Steering column assembly | 45250-42410 · 45250-42420 |
| 45253 | Steering column hole cover | 45253-42030 |
| 45271 | Clamp on steering column | 45271-52030 |
| 45286B | Steering column upper cover | 45286-33290-C0 |
| 45287 | Steering column lower cover | 45024-33220-C0 · 45024-33230-C0 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 90119-10980 |
