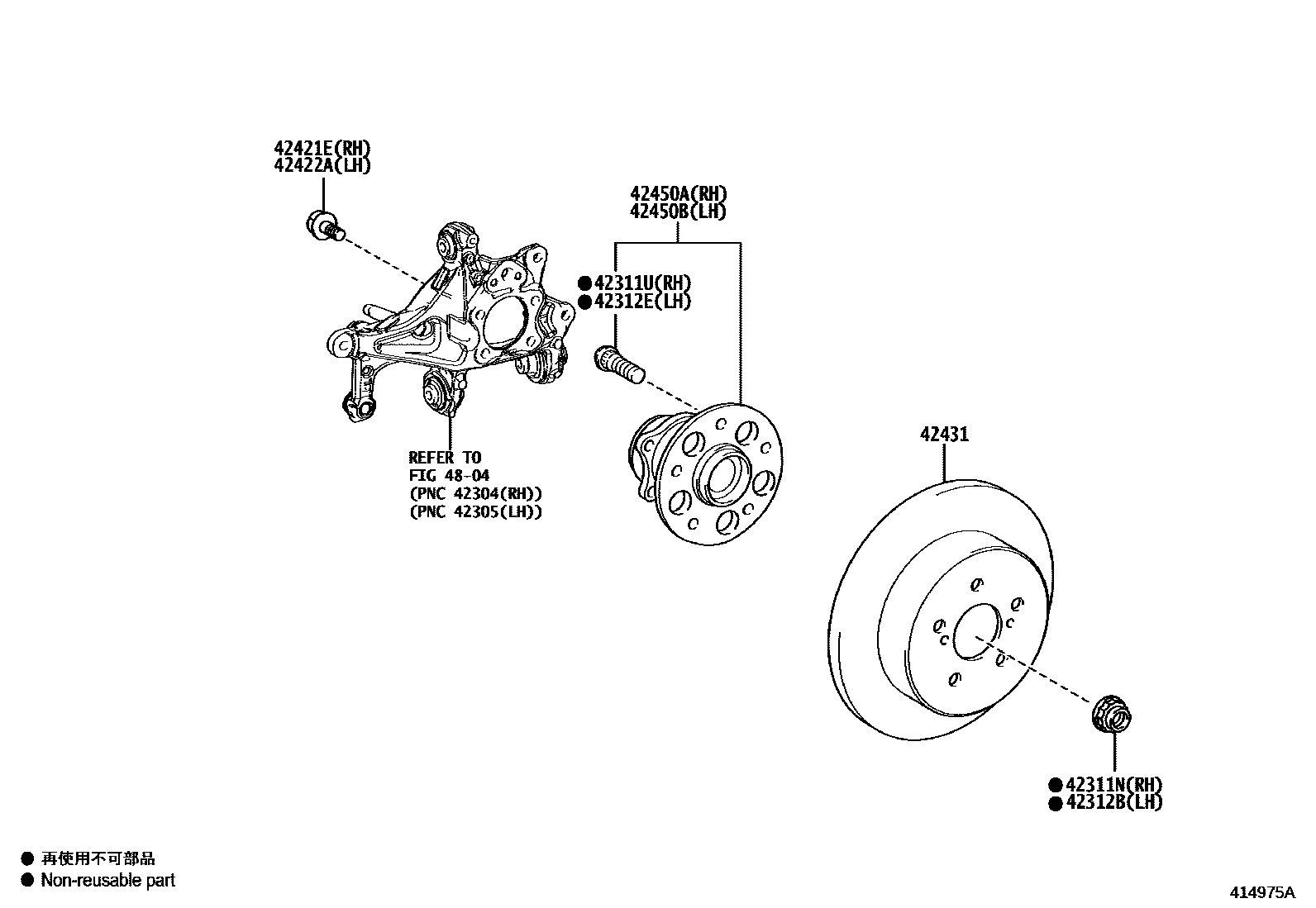

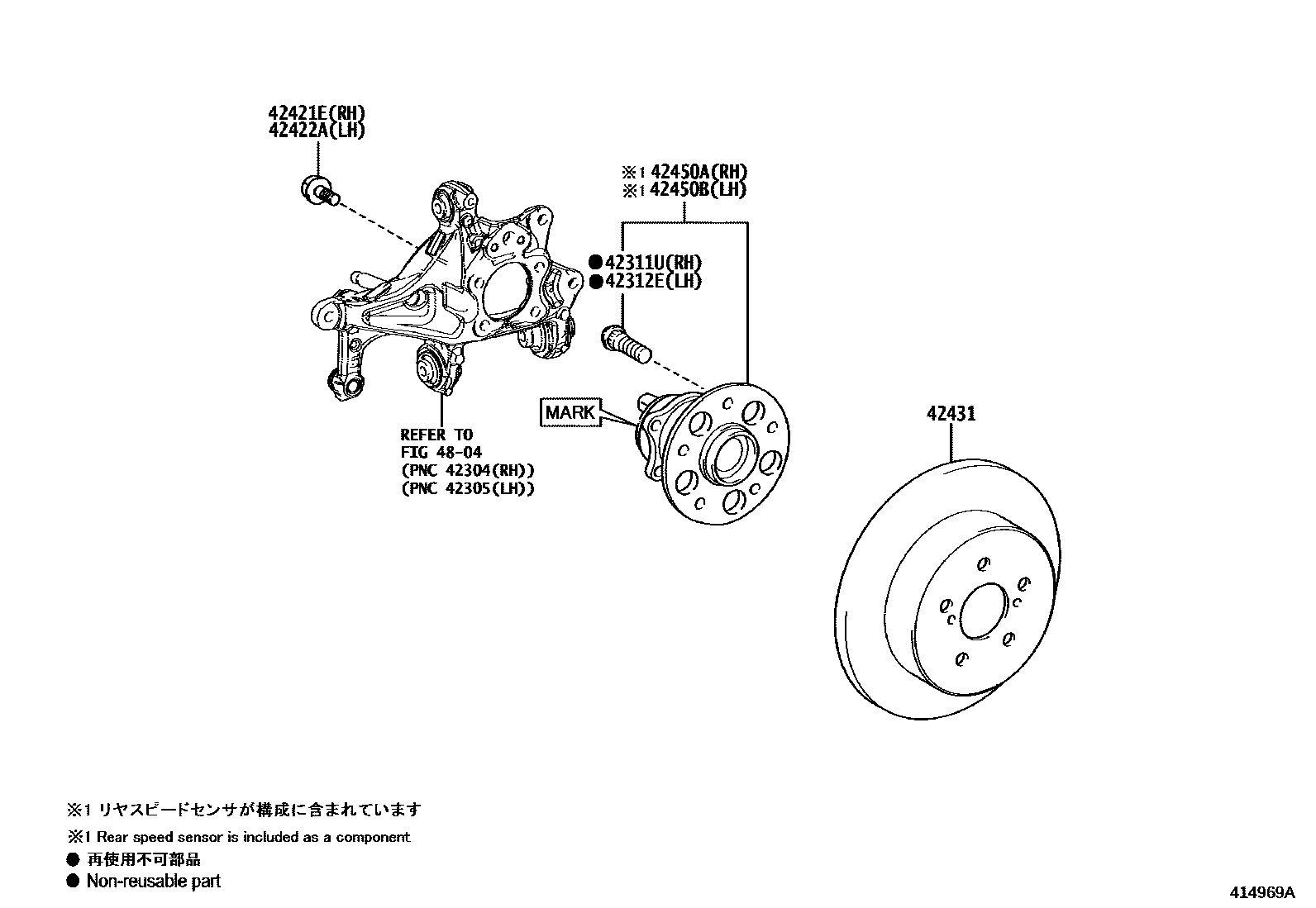

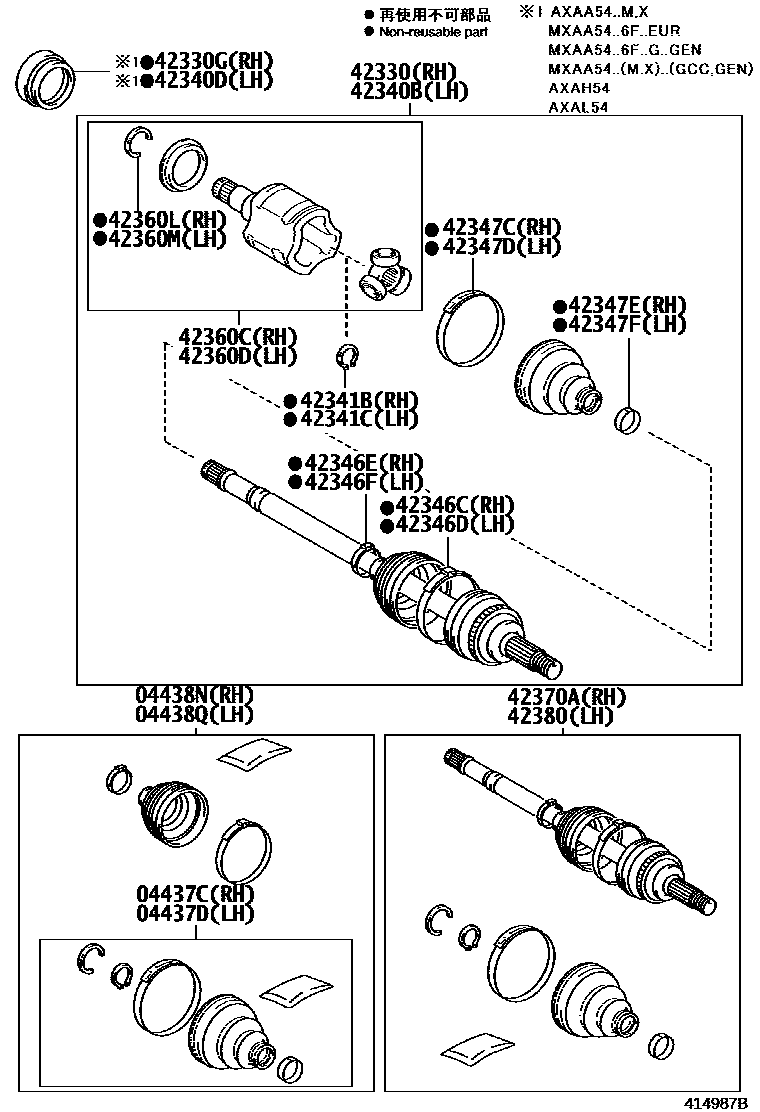

Toyota RAV4 后桥半轴和后桥轮毂 — Figure 4102
Toyota RAV4 EPC diagram 4102, 后桥半轴和后桥轮毂, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04437C | Right rear drive shaft inner universal joint dust boot assembly | 04439-12030 · 04439-48050 |
| 04437D | Left rear drive shaft inner universal joint dust boot assembly | 04439-12030 · 04439-48050 |
| 04438N | Right rear driveshaft inboard and outboard universal joint dust boot assembly | 04429-12040 · 04429-48071 |
| 04438Q | Left rear driveshaft inboard and outboard universal joint dust boot assembly | 04429-12040 · 04429-48071 |
| 42311N | Nut (for rear axle right half shaft) | 90177-22001 |
| 42311U | Hub bolt (for rear axle right) | 90942-02049 |
| 42312B | Nut (for rear axle left half shaft) | 90177-22001 |
| 42312E | Hub bolt (for left rear axle) | 90942-02049 |
| 42330 | Rear axle right drive shaft assembly | 42330-42070 · 42330-42071 · 42330-42080 · 42330-42081 · 42340-42030 |
| 42330G | Rear drive shaft right oil seal | 90311-37004 · 90311-37007 · 90311-42057 |
| 42340B | Rear axle left drive shaft assembly | 42340-42030 · 42340-42050 · 42340-42051 · 42340-42060 · 42340-42061 |
| 42340D | Rear drive shaft left oil seal | 90311-37004 · 90311-37007 · 90311-42058 |
| 42341B | Snap ring (for rear axle right drive shaft) | 43425-12150 · 43425-74010 |
| 42341C | Snap ring (for rear axle left drive shaft) | 43425-12150 · 43425-74010 |
| 42346C | Clamp (for the universal joint dust cover on the outside of the right drive shaft of the rear axle) | 42345-12280 · 42345-58120 |
| 42346D | Clamp (for universal joint dust cover outside left drive shaft of rear axle) | 42345-12280 · 42345-58120 |
| 42346E | Clamp No. 2 (for the universal joint dust cover on the outside of the right drive shaft of the rear axle) | 42345-52270 · 42345-74040 |
| 42346F | Clamp No. 2 (for the universal joint dust cover on the outside of the rear left drive shaft of the rear axle) | 42345-52270 · 42345-74040 |
| 42347C | Clamp (for the universal joint dust cover inside the right drive shaft of the rear axle) | 42345-12290 · 42345-48200 |
| 42347D | Clamp (for the universal joint dust cover inside the left drive shaft of the rear axle) | 42345-12290 · 42345-48200 |
| 42347E | Clamp No. 2 (for the dust cover of the universal joint inside the right drive shaft of the rear axle) | 42345-42070 · 42345-48210 |
| 42347F | Clamp No. 2 (for the dust cover of the universal joint inside the left drive shaft of the rear axle) | 42345-42070 · 42345-48210 |
| 42360C | Rear axle right drive shaft inner universal joint assembly | 42360-42020 · 42360-42030 · 42360-42060 |
| 42360D | Rear axle left drive shaft inner universal joint assembly | 42360-42020 · 42360-42030 · 42360-42060 |
| 42360L | Shaft snap ring (for rear axle right drive shaft inner universal joint) | 90520-19018 · 90521-26004 |
| 42360M | Shaft snap ring (for rear axle left drive shaft inner universal joint) | 90520-19018 · 90521-26004 |
| 42370A | Rear axle right drive shaft outer universal joint assembly | 42370-49355 · 42370-49365 · 42370-49366 · 42370-49375 · 42370-49376 |
| 42380 | Rear axle left drive shaft outer universal joint assembly | 42370-49355 · 42370-49385 · 42370-49386 · 42370-49395 · 42370-49396 |
| 42421E | Bolt (for rear axle right bearing housing) | 90105-12406 |
| 42422A | Bolt (for rear axle left bearing housing) | 90105-12406 |
| 42431 | rear brake disc | 42431-42080 · 42431-78010 |
| 42450A | Rear axle right hub and bearing assembly | 42410-42060 · 42410-47050 · 42450-33080 · 42450-42060 |
| 42450B | Rear axle left wheel hub and bearing assembly | 42410-42060 · 42410-47050 · 42450-33080 · 42450-42060 |
