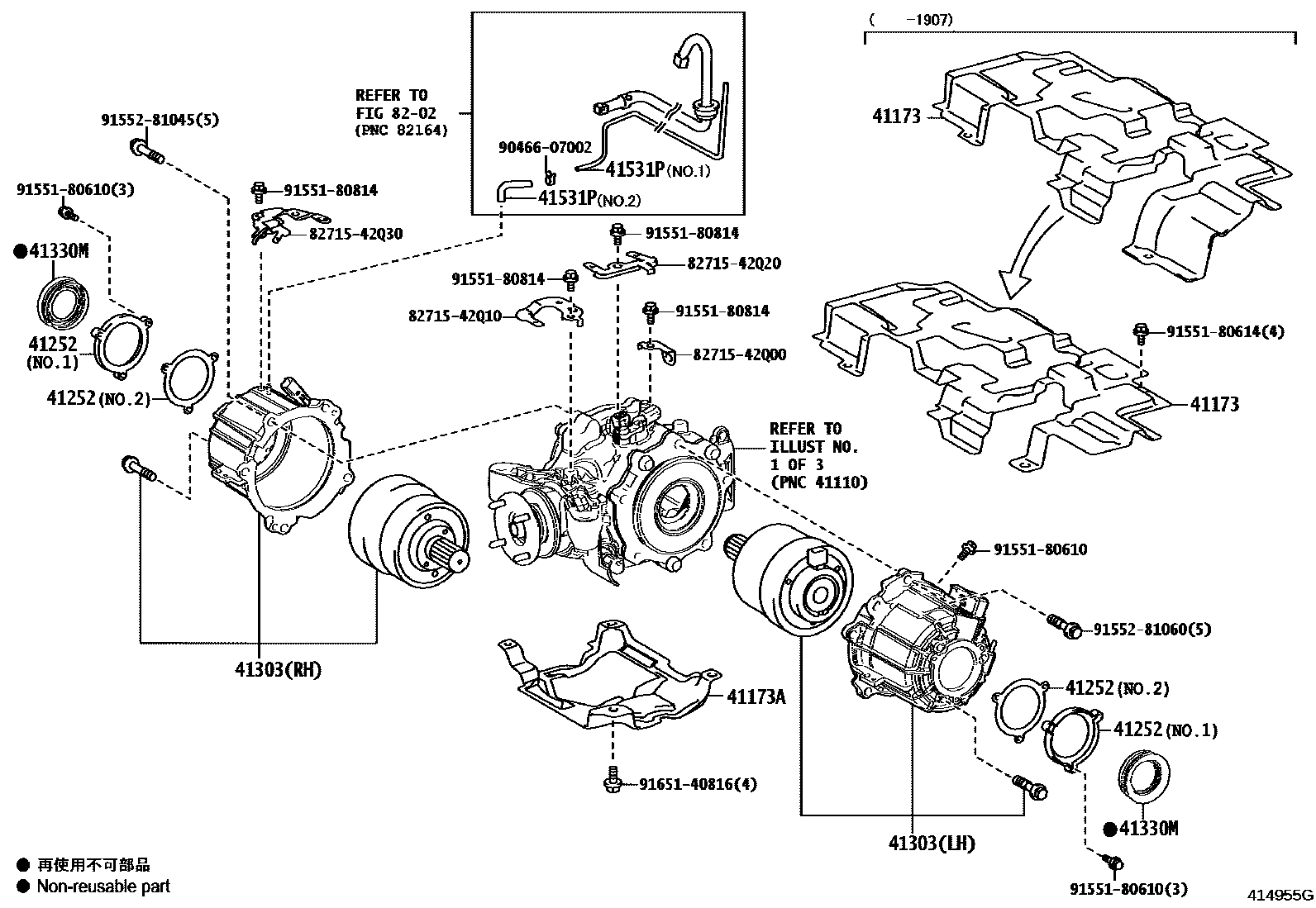

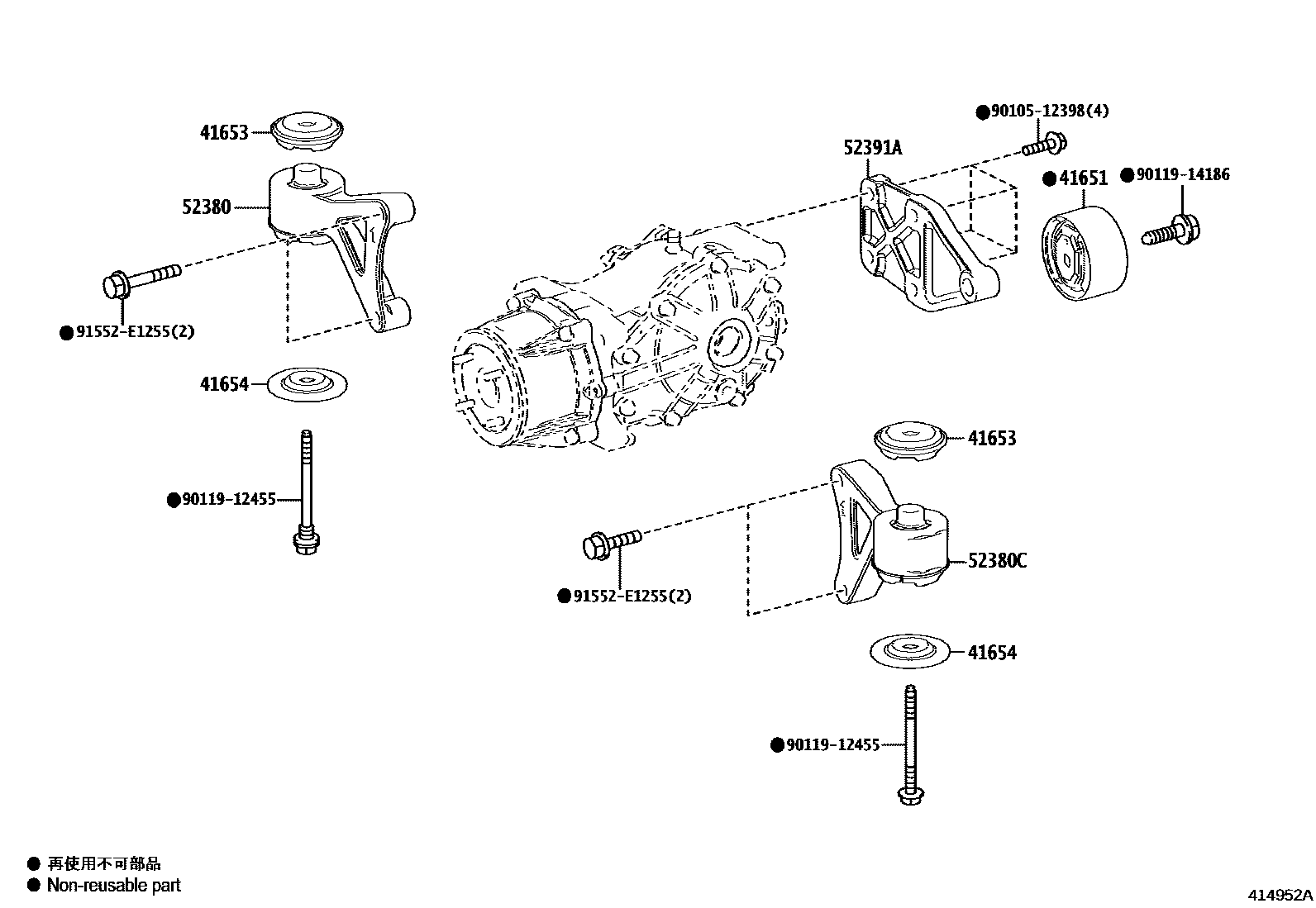

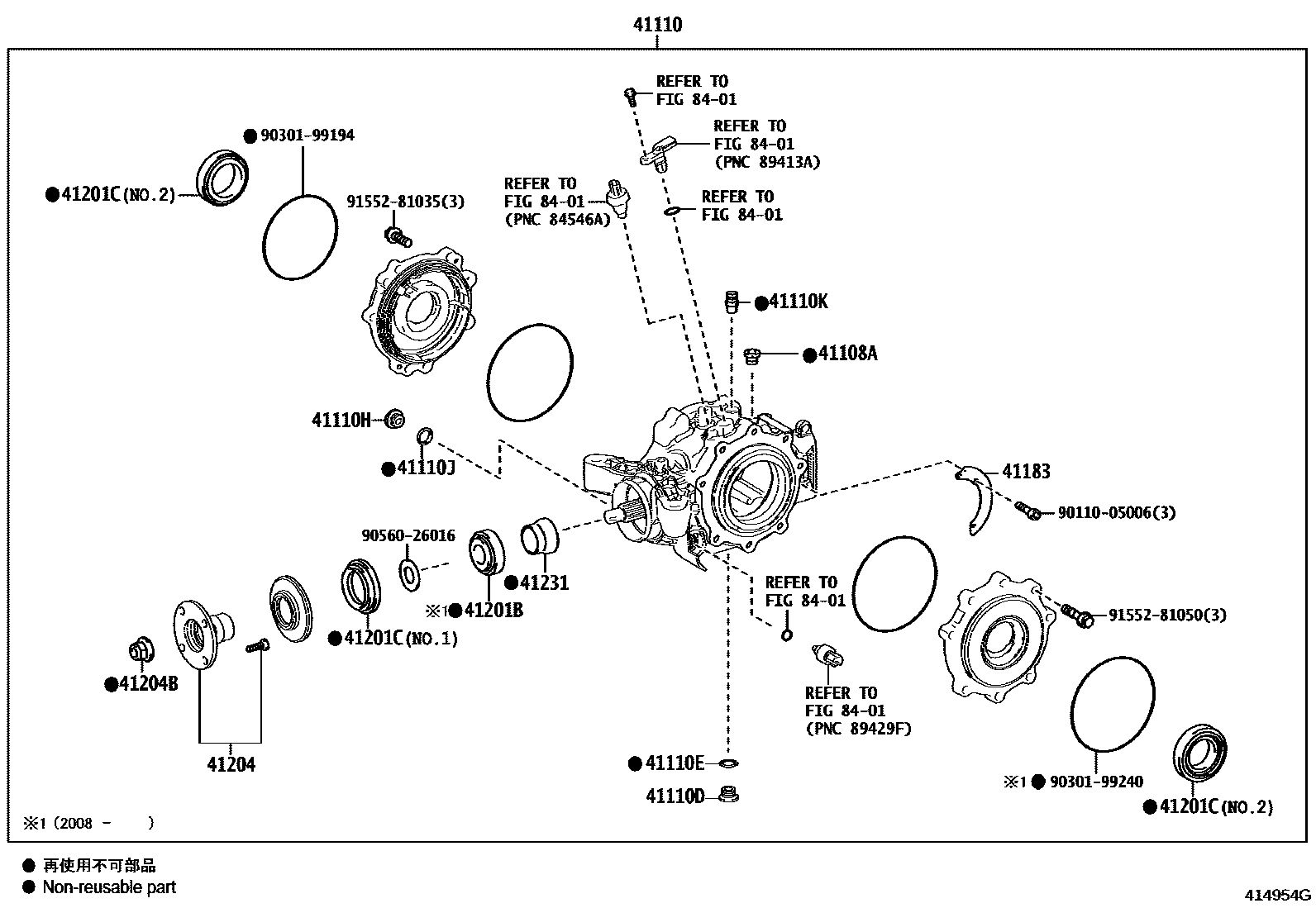

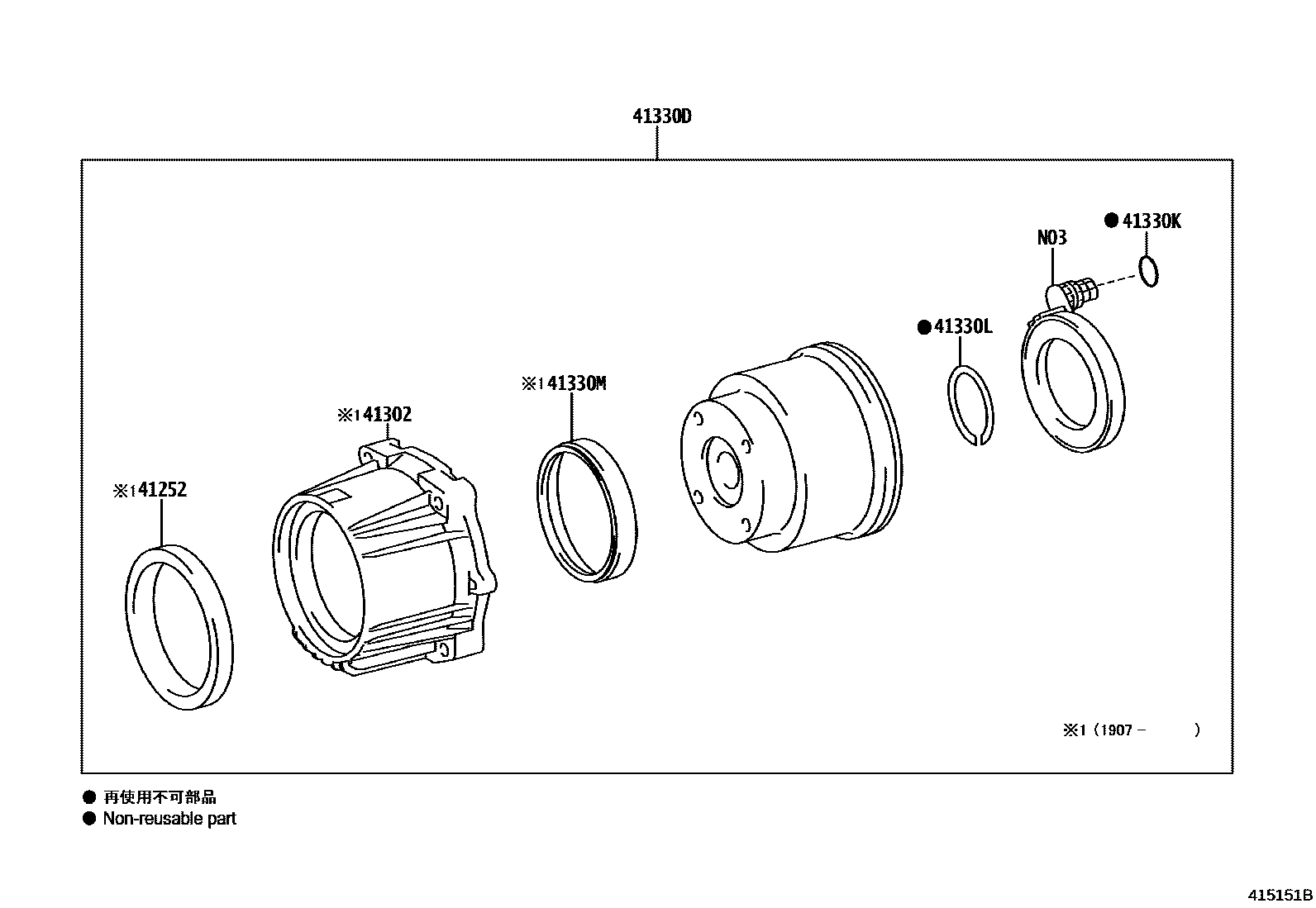

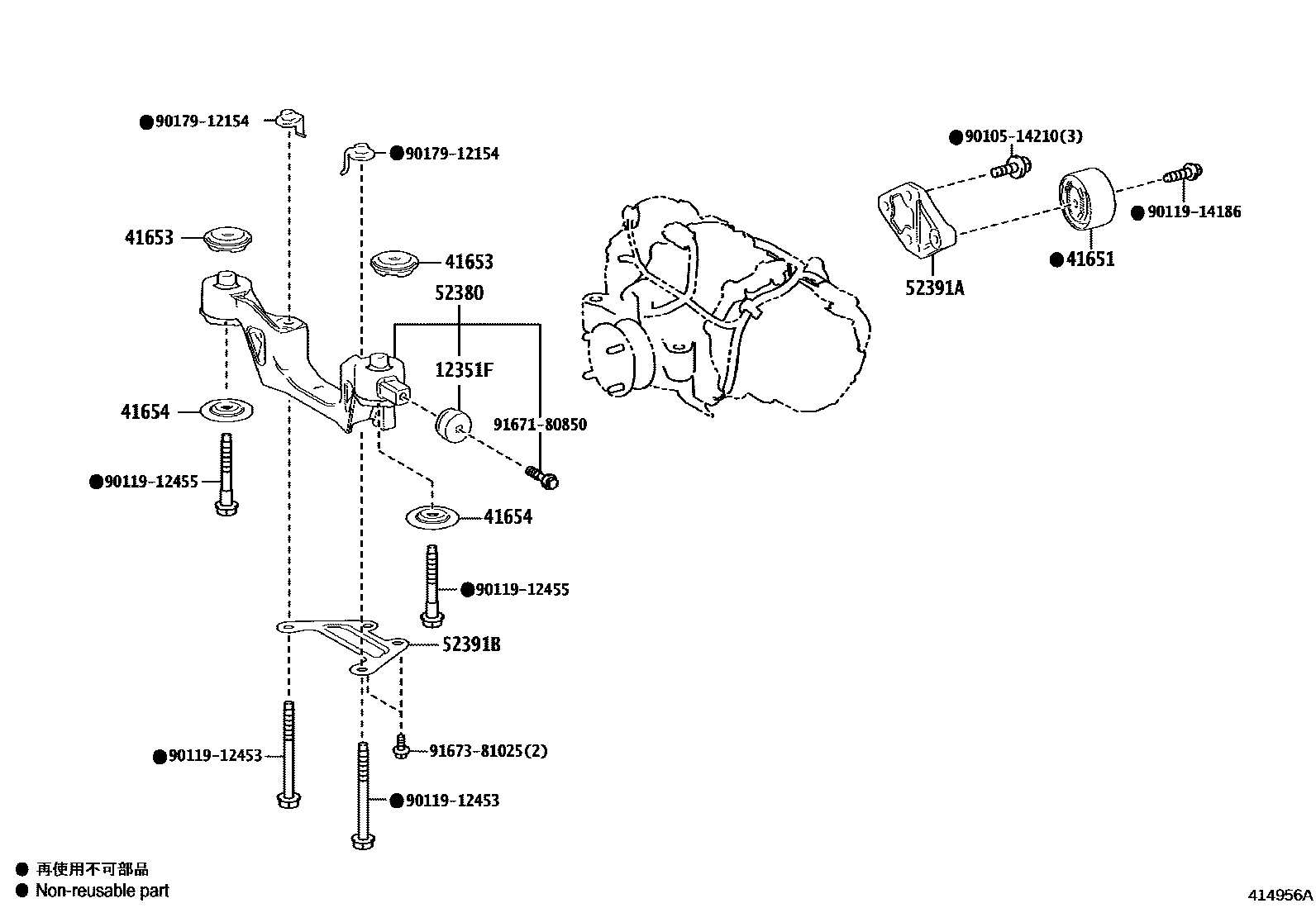

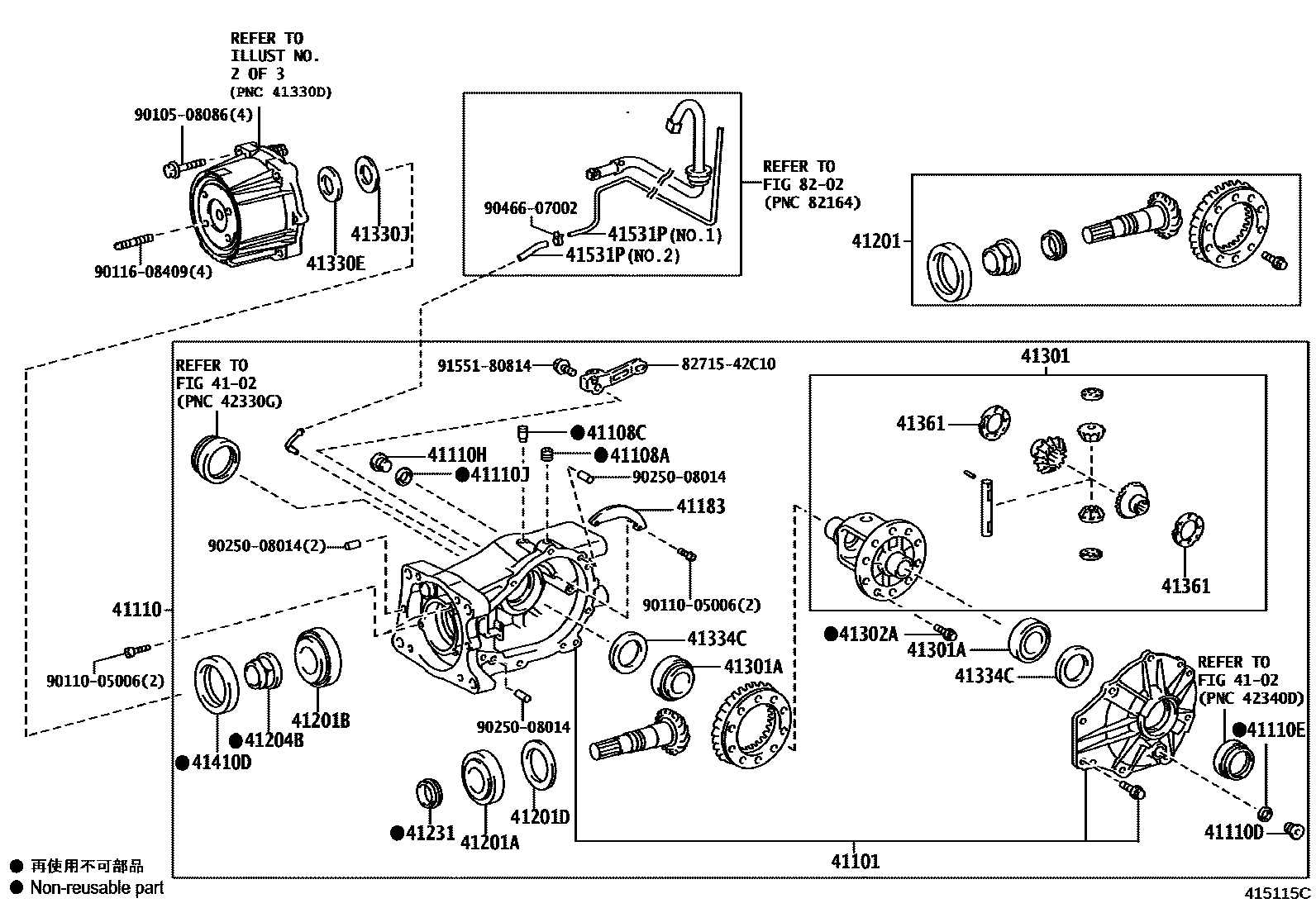

Toyota RAV4 后桥壳和差速器 — Figure 4101
Toyota RAV4 EPC diagram 4101, 后桥壳和差速器, with 6 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12351F | shock absorber | 12351-22060 |
| 41101 | Rear differential bracket sub-assembly | 41101-42022 |
| 41108A | Screw plug (for rear differential case cover) | 90344-53006 |
| 41108C | Breather plug (for rear differential case cover) | 90930-03235 |
| 41110 | Rear differential bracket assembly | 41110-42050 · 41110-42051 · 41110-42052 · 41110-42053 · 41110-42054 · 41110-42060 |
| 41110D | Screw plug (for rear differential drain port) | 90341-18035 · 90341-18051 |
| 41110E | Gasket (for rear differential drain plug) | 12157-10010 |
| 41110H | Plug (for rear differential oil filling port) | 90341-18023 |
| 41110J | Gasket (for rear differential oil plug) | 12157-10010 |
| 41110K | Breather plug (for rear differential) | 90930-03075 |
| 41173 | Separate differential cover | 41173-42010 · 41173-42011 |
| 41173A | No. 2 separate differential cover | 41173-42020 |
| 41183 | Rear differential breather plug oil baffle | 41183-42020 · 41183-52010 |
| 41201 | Rear differential final drive gear assembly | 41201-59115 · 41201-59425 |
| 41201A | Rear bearing (for rear drive pinion) | 90366-35130 |
| 41201B | Front bearing (for rear drive pinion) | 90366-30090 · 90366-30123 |
| 41201C | Oil seal (for rear differential case) | 90311-37006 · 90311-39002 |
| 41201D | Flat washer (for rear differential drive pinion) | 90564-35041 · 90564-35043 · 90564-35045 · 90564-35047 · 90564-35049 · 90564-35051 · 90564-35053 · 90564-35055 · 90564-35057 · 90564-35059 · 90564-35061 · 90564-35063 · 90564-35065 · 90564-35071 · 90564-35073 · 90564-35075 · 90564-35077 · 90564-35079 · 90564-35081 · 90564-35083 · 90564-35085 · 90564-35087 · 90564-35089 · 90564-35091 · 90564-35093 · 90564-35095 |
| 41204 | Rear driving pinion rear coupling flange sub-assembly | 41204-42010 |
| 41204B | Nut (for rear driving pinion) | 90178-30001 · 90179-18020 |
| 41231 | Rear differential drive pinion bearing spacer | 41231-42010 · 41231-52010 |
| 41252 | Dust cover (for rear differential) | 41252-42013 · 41252-42040 · 41252-42050 |
| 41301 | Rear differential housing sub-assembly | 41301-52100 |
| 41301A | Bearings (for rear differential housing) | 90366-33003 |
| 41302 | Rear differential housing sub-assembly | 41302-42050 |
| 41302A | Bolt (for rear differential case) | 90105-11034 |
| 41303 | Electromagnetic control coupling sub-assembly | 41303-42031 · 41303-42032 · 41303-42041 |
| 41330D | Transmission coupling assembly | 41303-42023 |
| 41330E | Tapered spring washer (for transmission coupling) | 90208-25001 |
| 41330J | Gasket (for transmission coupling) | 90564-25024 · 90564-25025 · 90564-25026 · 90564-25027 · 90564-25028 · 90564-25029 · 90564-25031 · 90564-25032 · 90564-25033 · 90564-25034 · 90564-25035 · 90564-25036 · 90564-25037 · 90564-25038 · 90564-25039 · 90564-25040 · 90564-25041 · 90564-25042 · 90564-25043 · 90564-25044 |
| 41330K | O-ring (for transmission coupling) | 90301-16015 |
| 41330L | Snap ring (for transmission coupling) | 90520-59004 |
| 41330M | Dust seal (for transmission coupling) | 90304-42001 · 90304-94005 |
| 41334C | Flat washer (for rear differential side gear shaft) | 90564-37022 · 90564-37023 · 90564-37024 · 90564-37025 · 90564-37026 · 90564-37027 · 90564-37028 · 90564-37029 · 90564-37030 · 90564-37031 · 90564-37032 · 90564-37033 · 90564-37034 · 90564-37035 · 90564-37036 · 90564-37037 · 90564-37038 · 90564-37039 · 90564-37040 · 90564-37041 · 90564-37042 · 90564-37043 · 90564-37044 · 90564-37045 · 90564-37046 · 90564-37047 · 90564-37048 · 90564-37049 · 90564-37050 · 90564-37051 · 90564-37052 · 90564-37053 · 90564-37054 · 90564-37055 · 90564-37056 · 90564-37057 |
| 41361 | No. 1 rear differential half gear thrust washer | 41361-52180 · 41361-52190 · 41361-52200 · 41361-52210 · 41361-52220 · 41361-52230 · 41361-52240 · 41361-52250 |
| 41410D | Diaphragm oil seal | 90311-54006 |
| 41531P | Rear differential vacuum hose | 90446-04014 · 90999-92002 |
| 41651 | No. 1 rear differential fixed cushion | 41651-42080 |
| 41653 | Rear differential retainer upper block | 41653-42010 |
| 41654 | Rear differential retainer lower block | 41653-42020 |
| 52380 | Rear differential No. 1 bracket | 52380-42100 · 52380-42150 |
| 52380C | Rear differential No. 2 bracket | 52380-42140 |
| 52391A | Rear differential bracket | 52391-42110 · 52391-42160 |
| 52391B | Differential bracket | 52391-42180 |
