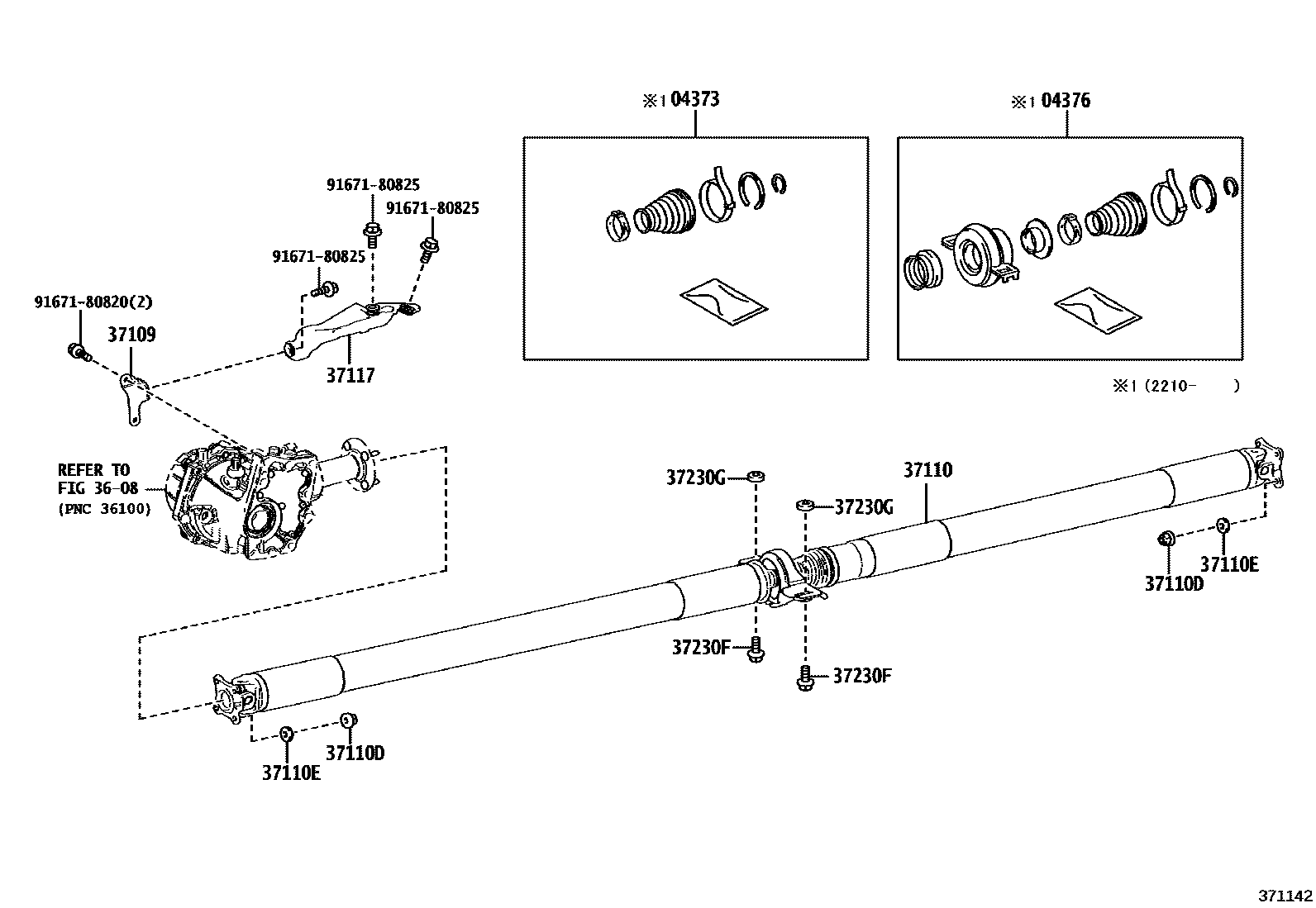

Toyota RAV4 Propeller Shaft & Universal Joint — Figure 3701
Toyota RAV4 EPC diagram 3701, Propeller Shaft & Universal Joint, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04373 | Universal joint dust boot assembly | 04373-52010 |
| 04376 | Intermediate support bearing assembly | 04376-52020 |
| 37109 | Drive shaft insulation pad No. 1 bracket sub-assembly | 37109-42010 |
| 37110 | Drive shaft assembly | 37100-42070 · 37100-42100 · 37100-42110 · 37100-42120 |
| 37110D | Nut (for drive shaft) | 90179-08197 |
| 37110E | Washer (for drive shaft) | 90201-08097 |
| 37117 | drive shaft insulation pad | 37117-42010 |
| 37230F | No. 1 bolt (for intermediate support bearing) | 90119-10444 |
| 37230G | No. 2 washer (for intermediate support bearing) | 90201-10081 · 90201-10083 · 90201-10123 |
