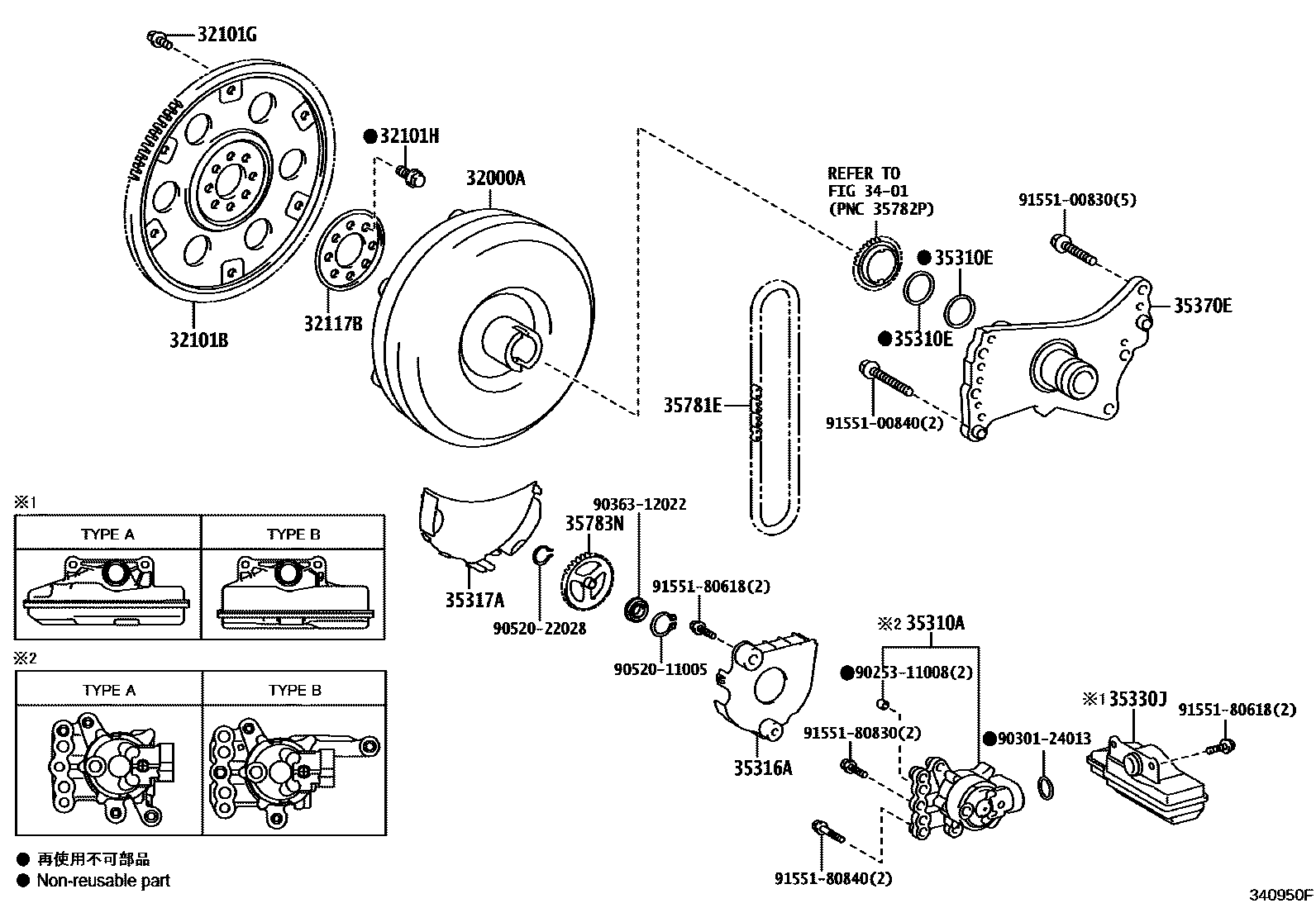

Toyota RAV4 变矩器、前油泵(CVT) — Figure 3402
Toyota RAV4 EPC diagram 3402, 变矩器、前油泵(CVT), with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000A | Torque converter assembly | 32000-12460 · 32000-12520 |
| 32101B | Transmission plate and ring gear sub-assembly | 32101-12120 |
| 32101G | Bolts (for securing transmission plate and torque converter) | 90109-09001 · 90119-09025 |
| 32101H | Hexagonal bolts (used to fix the transmission plate) | 90105-12404 |
| 32117B | Rear transmission plate spacer | 32117-33010 |
| 35310A | Front oil pump assembly | 35310-12200 · 35310-28050 |
| 35310E | T-type oil seal (for front oil pump) | 35617-12060 · 35617-12070 |
| 35316A | Transmission No. 1 oil pump separator plate | 35316-12010 · 35316-12020 |
| 35317A | Transmission No. 2 oil pump separator plate | 35317-12010 · 35317-12020 |
| 35330J | Oil filter assembly | 35330-12080 · 35330-12090 · 35330-28040 |
| 35370E | Stator shaft assembly (CVT) | 35370-12120 · 35370-12130 |
| 35781E | Transmission drive chain | 35781-12010 · 35781-33010 · 35781-42010 |
| 35783N | Driven sprocket | 35783-12060 |
