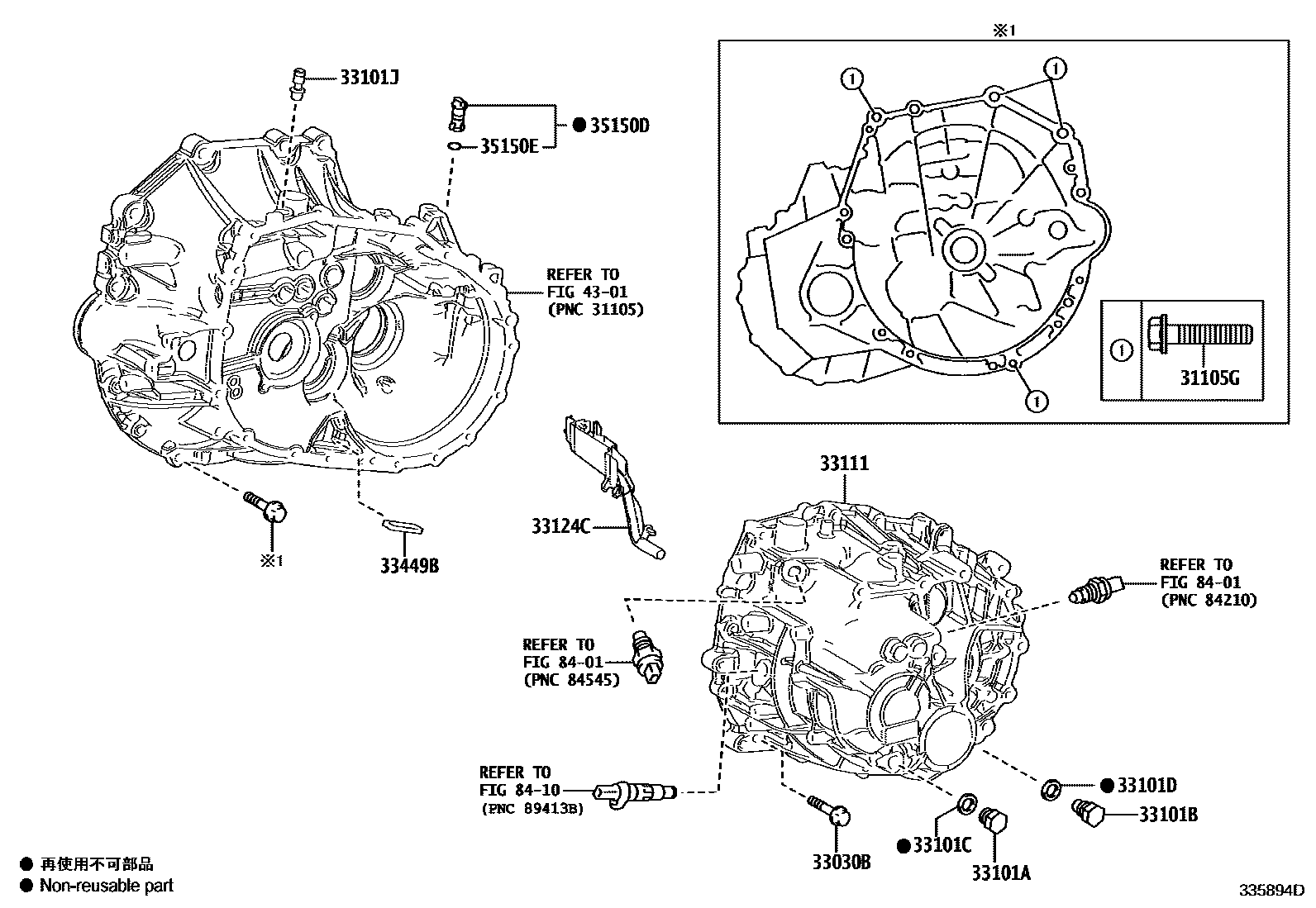

Toyota RAV4 离合器壳和变速器壳(MTM) — Figure 3302
Toyota RAV4 EPC diagram 3302, 离合器壳和变速器壳(MTM), with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105G | Bolts (for securing transaxle housing and engine) | 90105-10591 · 90105-W0092 · 91552-81250 · 91553-80830 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 91551-10840 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18033 |
| 33101B | Screw plug (for manual transmission drain port) | 90341-18085 |
| 33101C | Gasket (for manual transmission filler plug) | 90430-18008 |
| 33101D | Gasket (for manual transmission drain plug) | 90430-18008 |
| 33101J | vent plug | 90930-03085 |
| 33111 | Manual transmission housing | 33111-12350 |
| 33124C | No. 1 oil collecting pipe (MTM) | 33124-12090 |
| 33449B | derailleur magnet | 33449-60010 |
| 35150D | gearbox plug assembly | 35150-44010 |
| 35150E | O-ring (for gearbox plug) | 90301-09173 |
