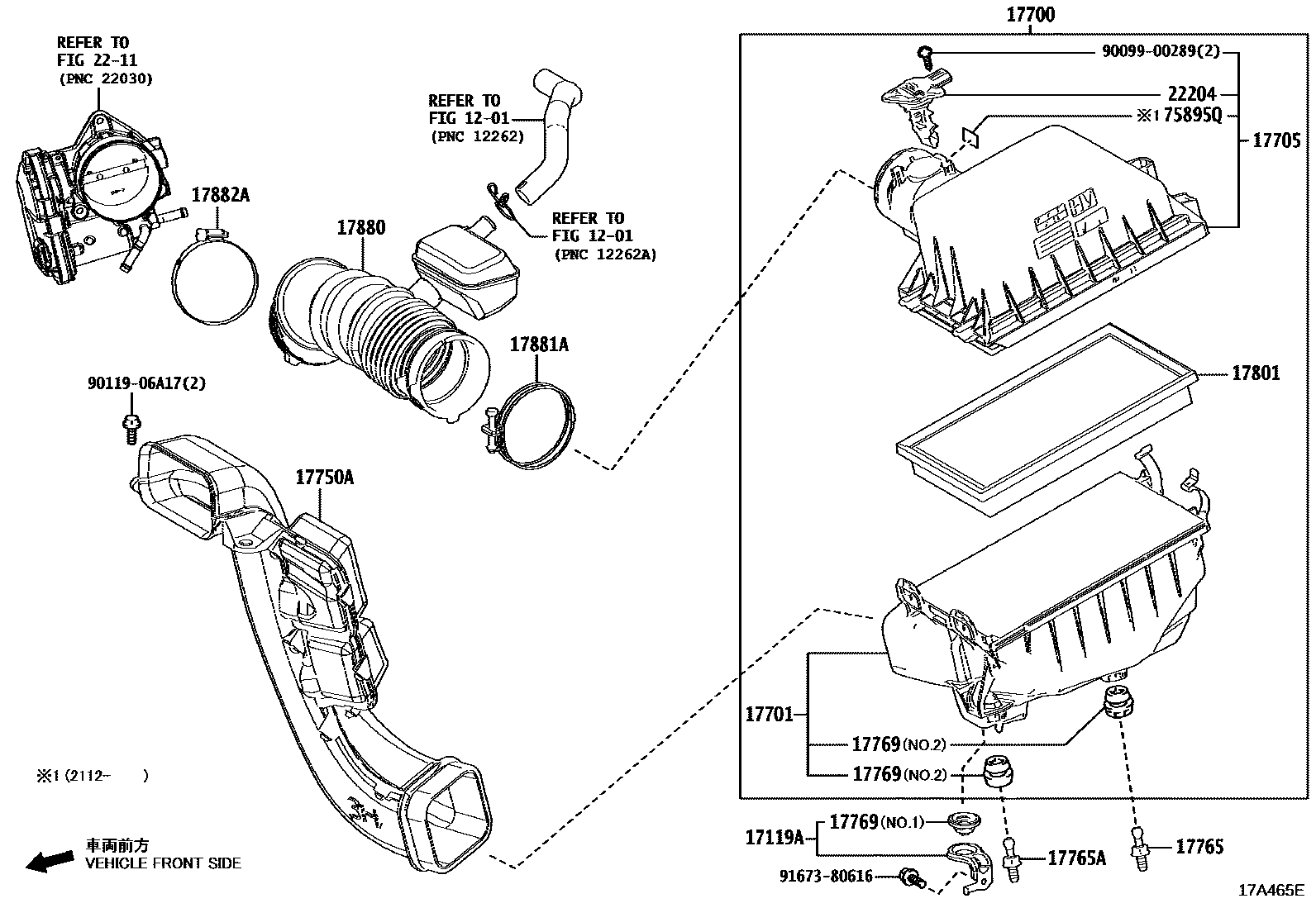

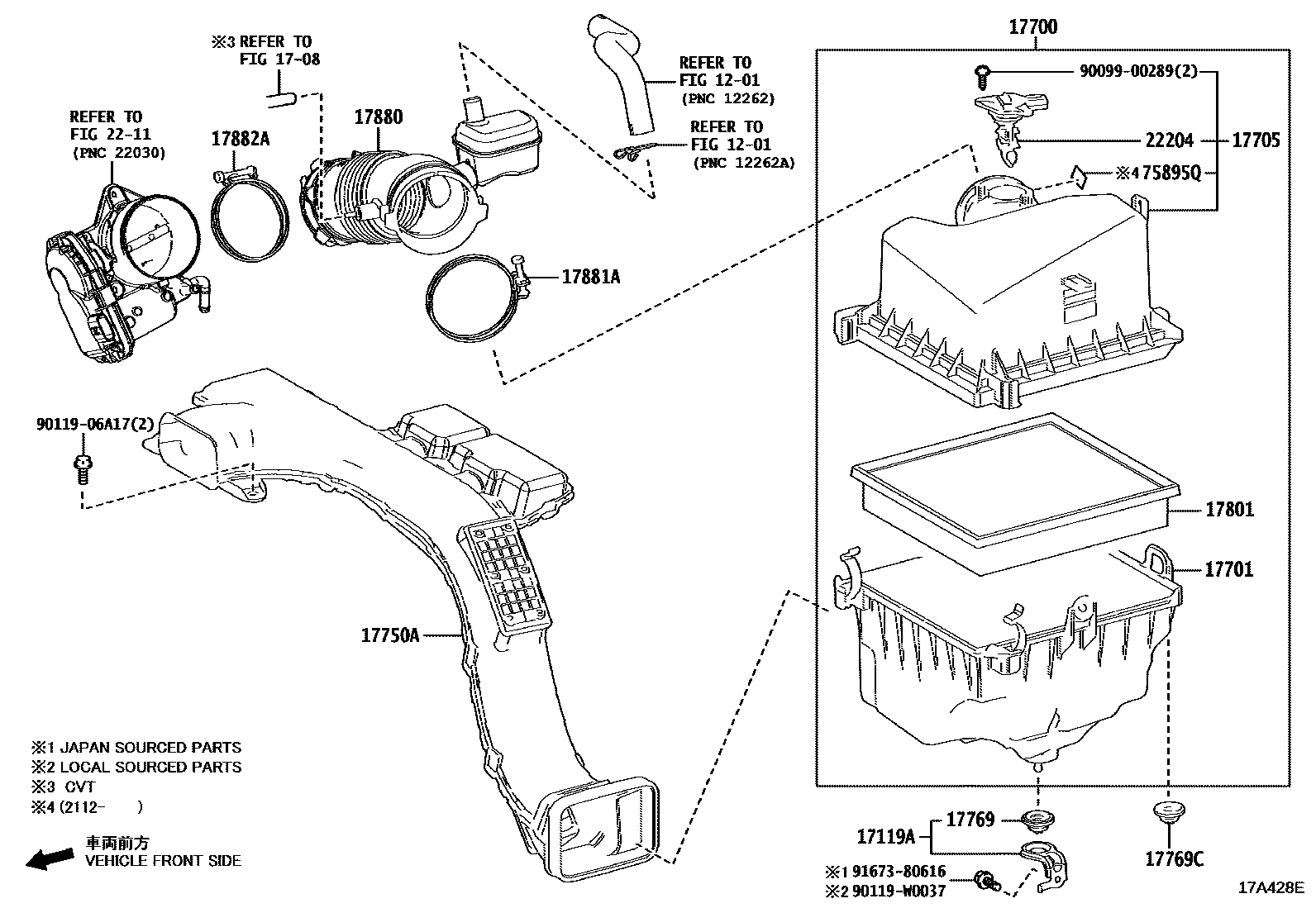

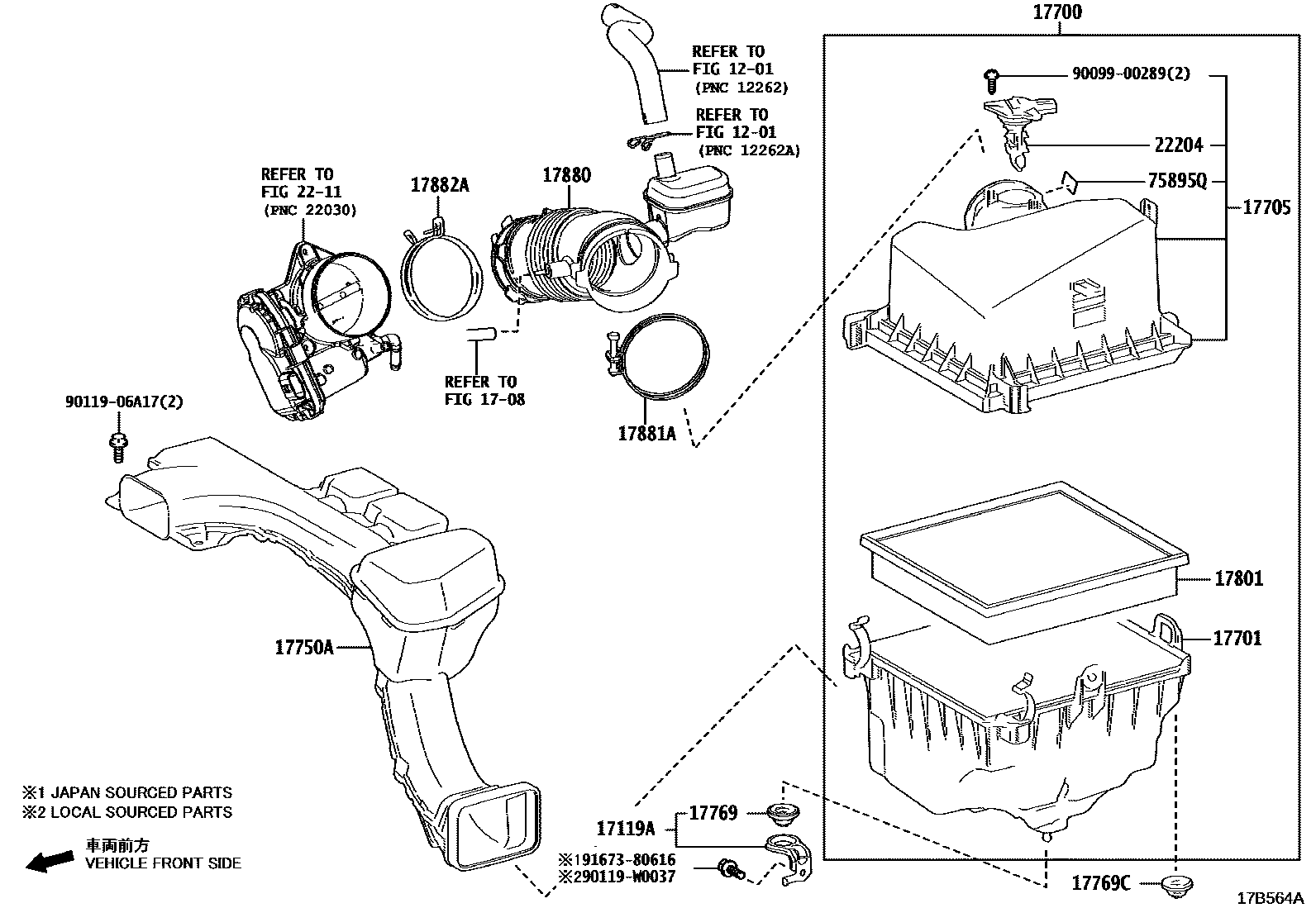

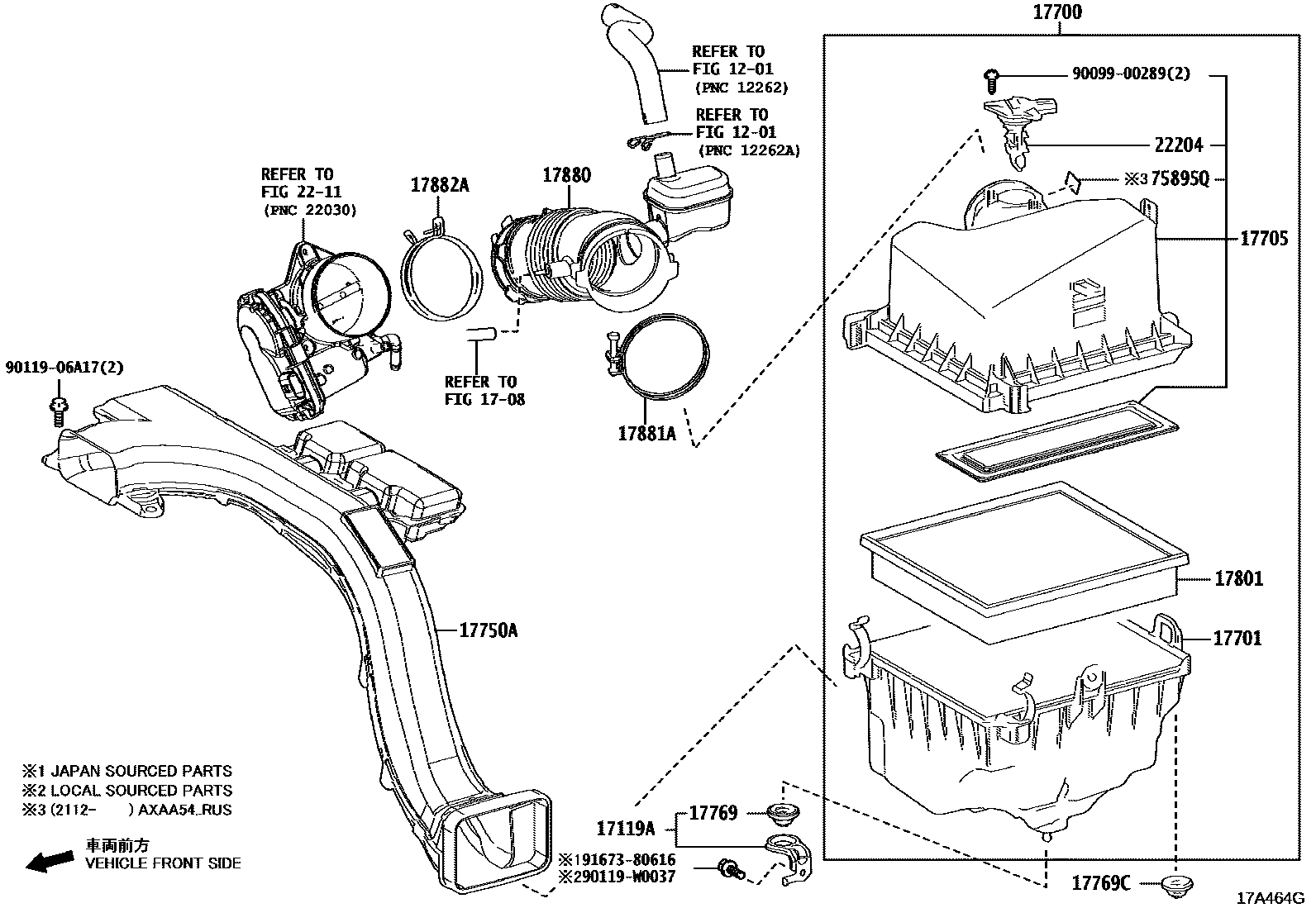

Toyota RAV4 Air Cleaner — Figure 1703
Toyota RAV4 EPC diagram 1703, Air Cleaner, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-25010 |
| 17700 | air filter assembly | 17700-25100 · 17700-25101 · 17700-25140 · 17700-25141 · 17700-25150 · 17700-25151 |
| 17701 | Air filter housing sub-assembly | 17701-25080 · 17701-25081 · 17701-25100 · 17701-25101 |
| 17705 | Air filter cover sub-assembly | 17705-25040 · 17705-25050 · 17705-25070 |
| 17750A | Air filter air inlet assembly | 17750-24010 · 17750-24031 · 17750-25030 · 17750-25040 · 17750-25050 |
| 17765 | No. 1 air filter stay | 17765-25010 |
| 17765A | No. 1 air filter stay | 17765-25010 |
| 17769 | air filter bracket | 17769-25020 · 17769-25030 |
| 17769C | No. 1 air filter bracket | 17769-25020 |
| 17801 | Air filter element sub-assembly | 17801-25020 · 17801-77050 |
| 17880 | Air cleaner hose assembly | 17880-24020 · 17880-24030 · 17880-25040 · 17880-25050 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10850 · 96111-10880 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 17891-31010 · 90466-71001 · 96111-10800 |
| 22204 | Intake air flow meter assembly | 22204-75040 |
| 75895Q | No. 1 protective strip tape | 75895-52050 |
