Toyota RAV4 Camshaft & Valve — Figure 1302

Toyota RAV4 EPC diagram 1302, Camshaft & Valve, with 2 images and 27 PNC and OE references.

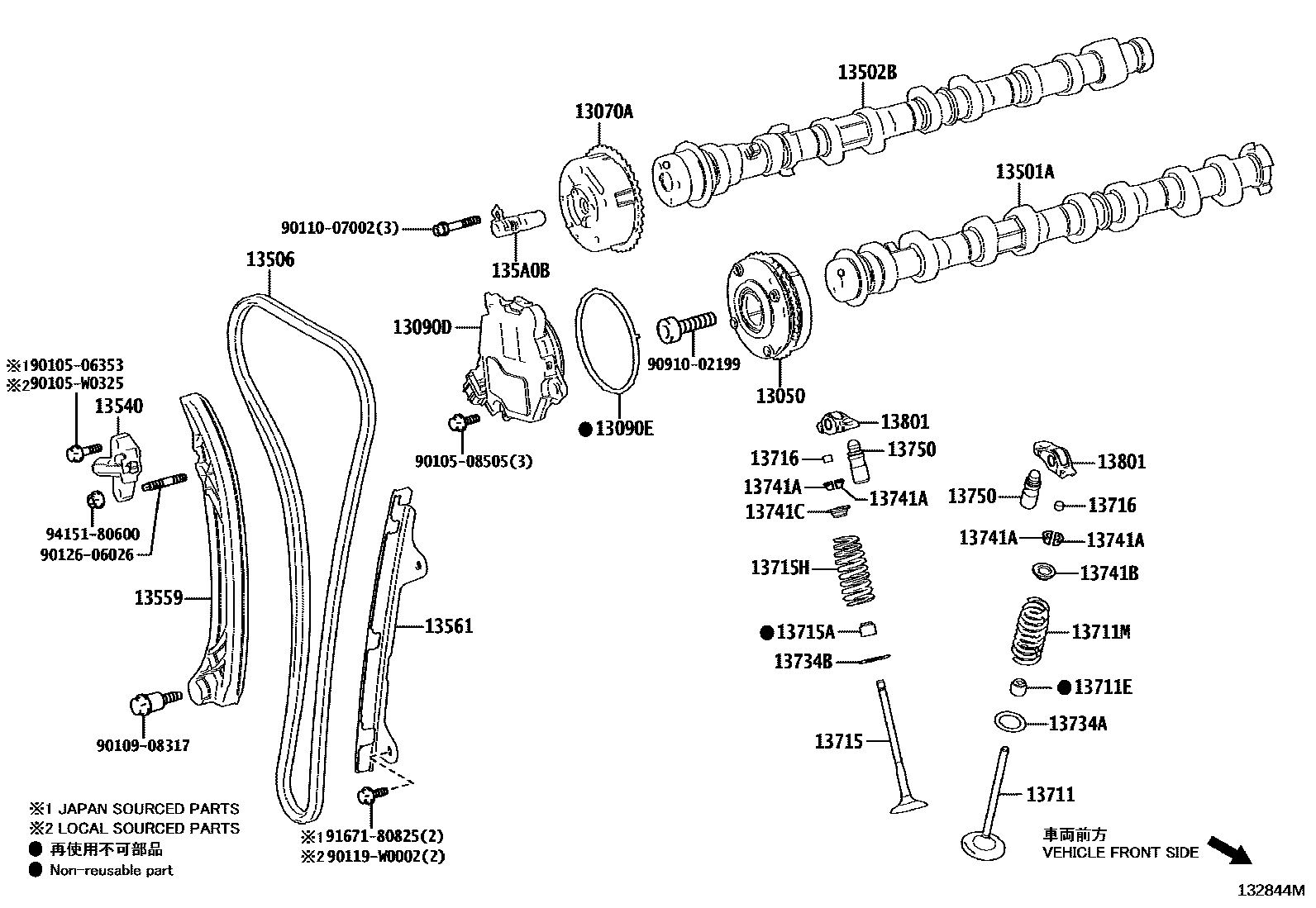

Toyota RAV4 Camshaft & Valve EPC diagram — 132844M
Camshaft & Valve — 132844M (201811 – 999999)

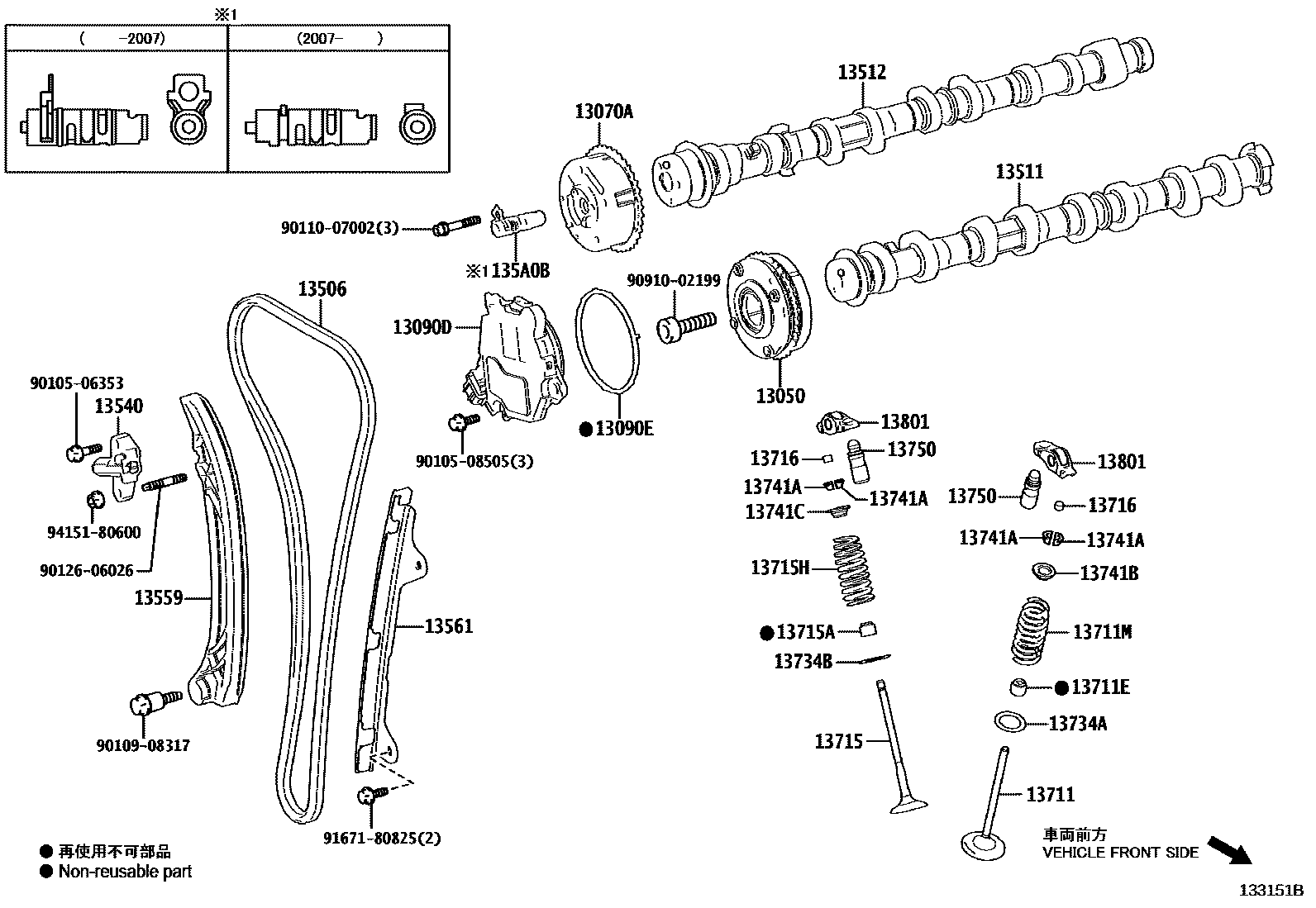

Toyota RAV4 Camshaft & Valve EPC diagram — 133151B
Camshaft & Valve — 133151B (201811 – 999999)

PNC and OE references

PNCPart nameOE numbers
13050Camshaft timing gear assembly13050-25010
13070AExhaust camshaft timing gear assembly13070-25020 · 13070-25030
13090DCam timing control motor assembly with EDU13090-25010
13090EO-ring (for cam timing control motor)90301-92005
13501AIntake camshaft sub-assembly13501-24020 · 13501-F2050
13502BExhaust camshaft sub-assembly13502-24010 · 13502-F2050
13506Chain sub-assembly13506-24020 · 13506-25020 · 13506-F2030
13511camshaft13501-25010 · 13501-25020
13512Camshaft No. 213502-25010 · 13502-25020
13540No. 1 chain tensioner assembly13540-25020 · 13540-F2020
13559chain tensioner guide plate13559-24010 · 13559-25010 · 13559-F2030
13561No. 1 chain shock absorber13561-15010 · 13561-24020 · 13561-25020 · 13561-25021 · 13561-F2030 · 13561-F3020
135A0BCamshaft timing valve assembly135A0-25010 · 135A0-25020
13711intake valve13711-24040 · 13711-25020 · 13711-F2050
13711EIntake valve stem oil seal90080-31061 · 90913-02101
13711MCompression spring (for intake valve)90501-31031 · 90501-33034
13715exhaust valve13715-24040 · 13715-25020 · 13715-F2040 · 13715-F3010
13715AExhaust valve stem oil seal90080-31062 · 90913-02112
13715HCompression spring (for exhaust valve)90501-32075 · 90501-33035
13716valve stem cover13716-25010 · 13716-F2020
13734AIntake valve spring seat13734-62020
13734BExhaust valve spring seat13734-62020
13741AValve spring seat lock plate90913-03028
13741BIntake valve spring seat ring13741-36010
13741CExhaust valve spring seat ring13741-36010
13750Valve lash adjuster assembly13750-25010 · 13750-F2050
13801No. 1 valve rocker arm sub-assembly13801-25010 · 13801-F2050
