Toyota RAV4 Ventilation Hose — Figure 1201

Toyota RAV4 EPC diagram 1201, Ventilation Hose, with 3 images and 4 PNC and OE references.

Toyota RAV4 Ventilation Hose EPC diagram — 121300A — Ventilation Hose — 121300A (201811 – 999999)

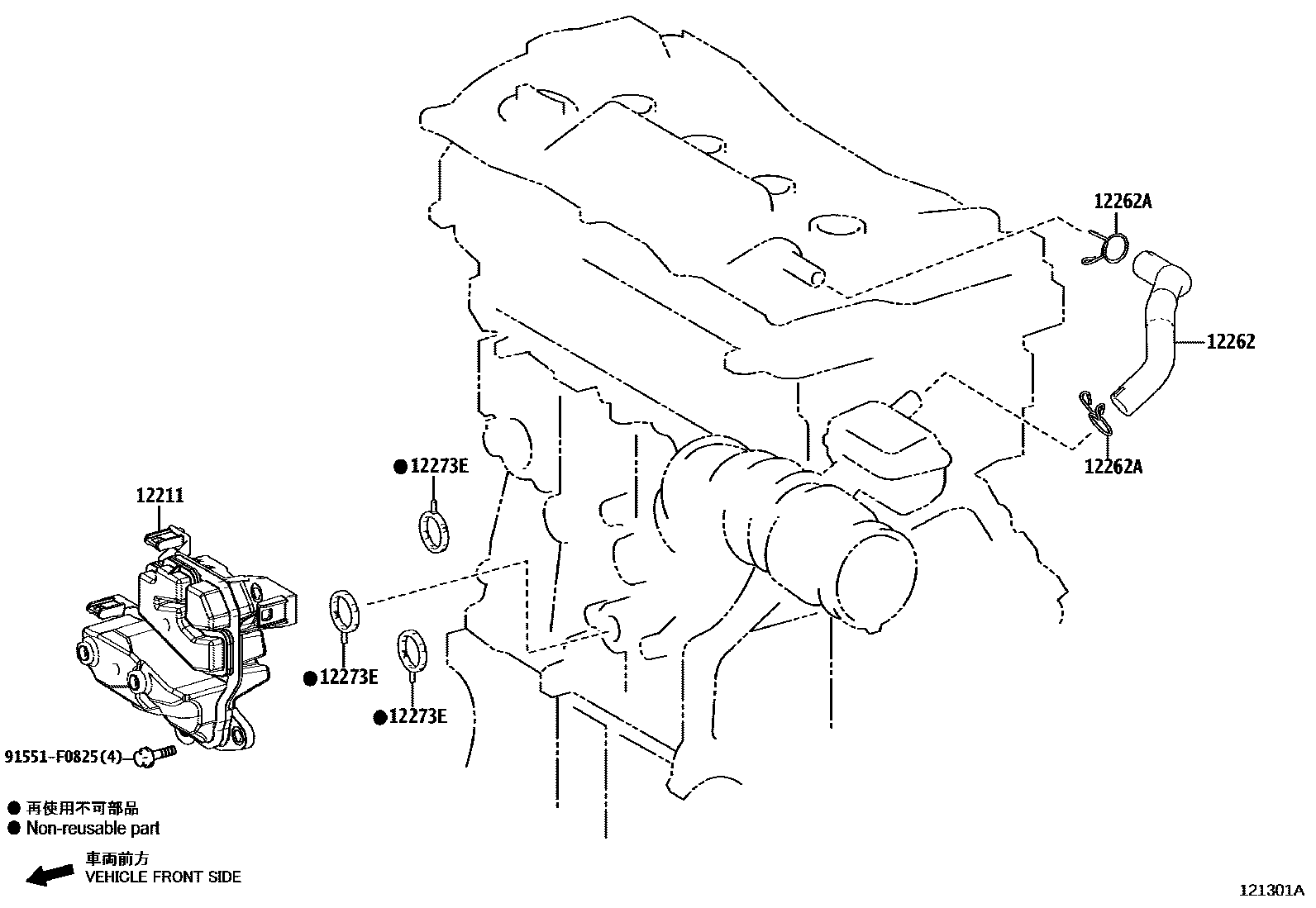

Toyota RAV4 Ventilation Hose EPC diagram — 121301A — Ventilation Hose — 121301A (201811 – 999999)

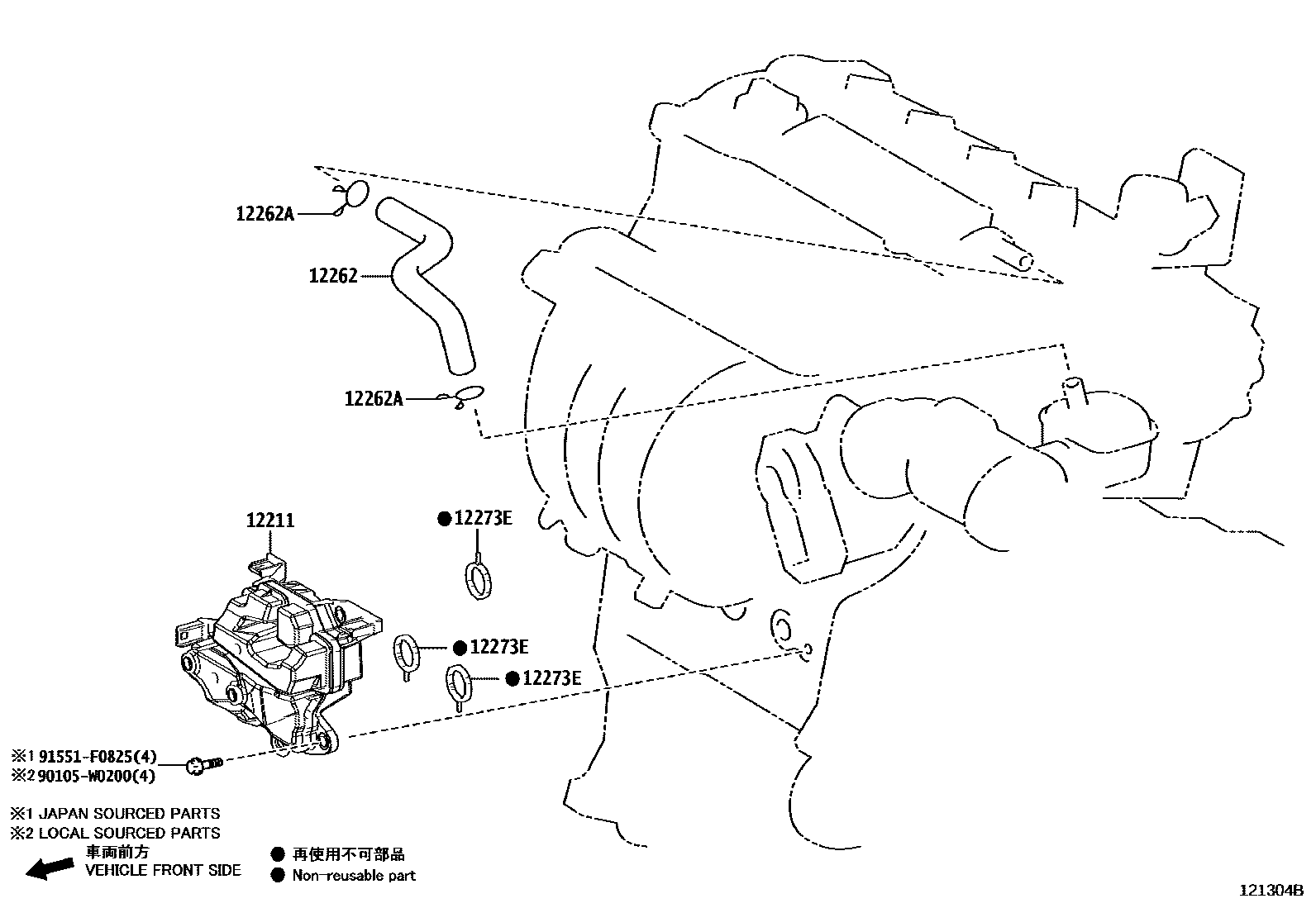

Toyota RAV4 Ventilation Hose EPC diagram — 121304B — Ventilation Hose — 121304B (201811 – 999999)

PNC and OE references

PNC	Part name	OE numbers
12211	Ventilation box No. 1	12211-24010 · 12211-24020 · 12211-25010 · 12211-25011 · 12211-F2020
12262	Ventilation hose No. 2	12262-24060 · 12262-25030 · 12262-25080
12262A	Clamp (for vent hose No. 2)	90467-21004
12273E	Pads (for ventilation boxes)	12273-24010
