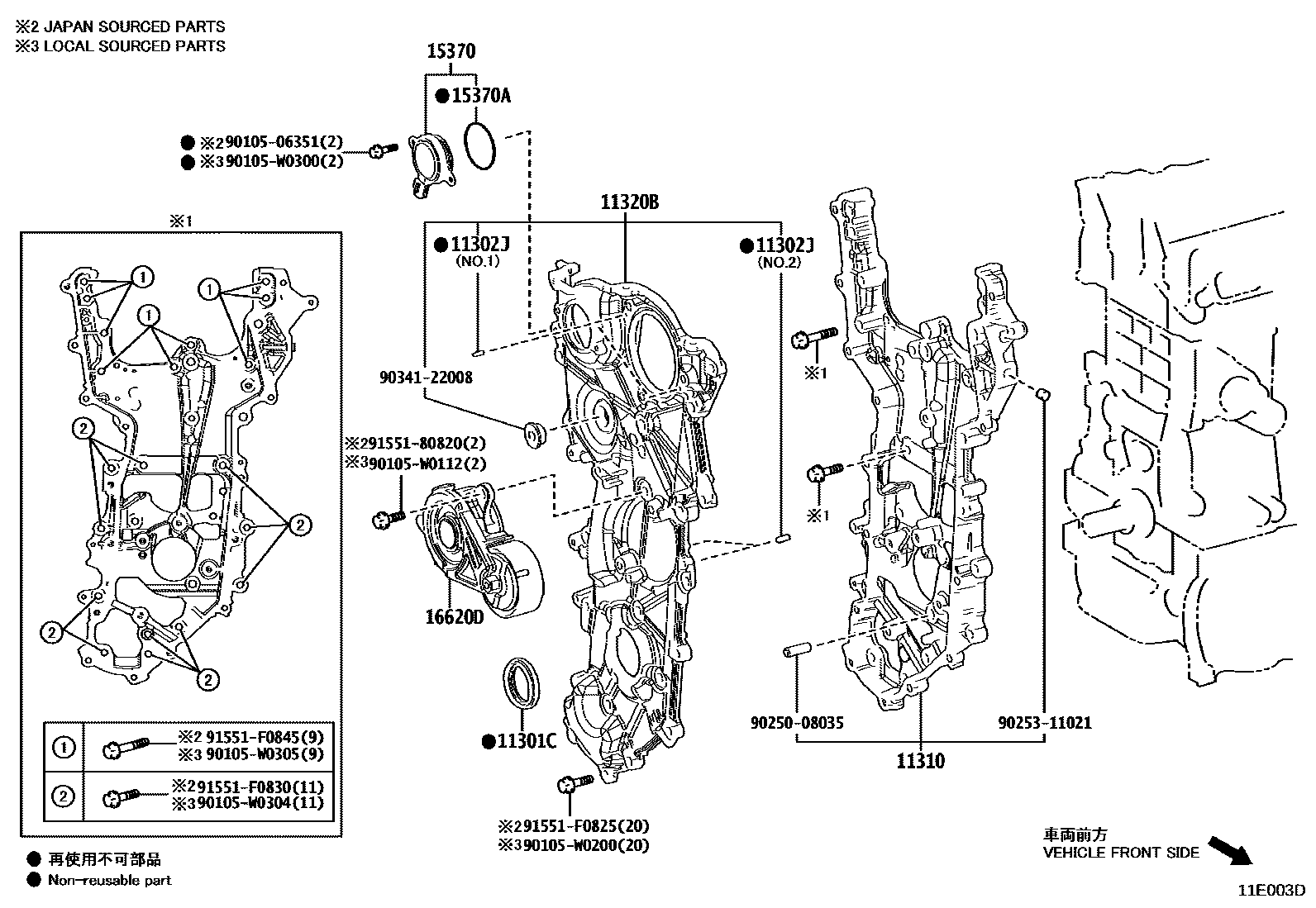

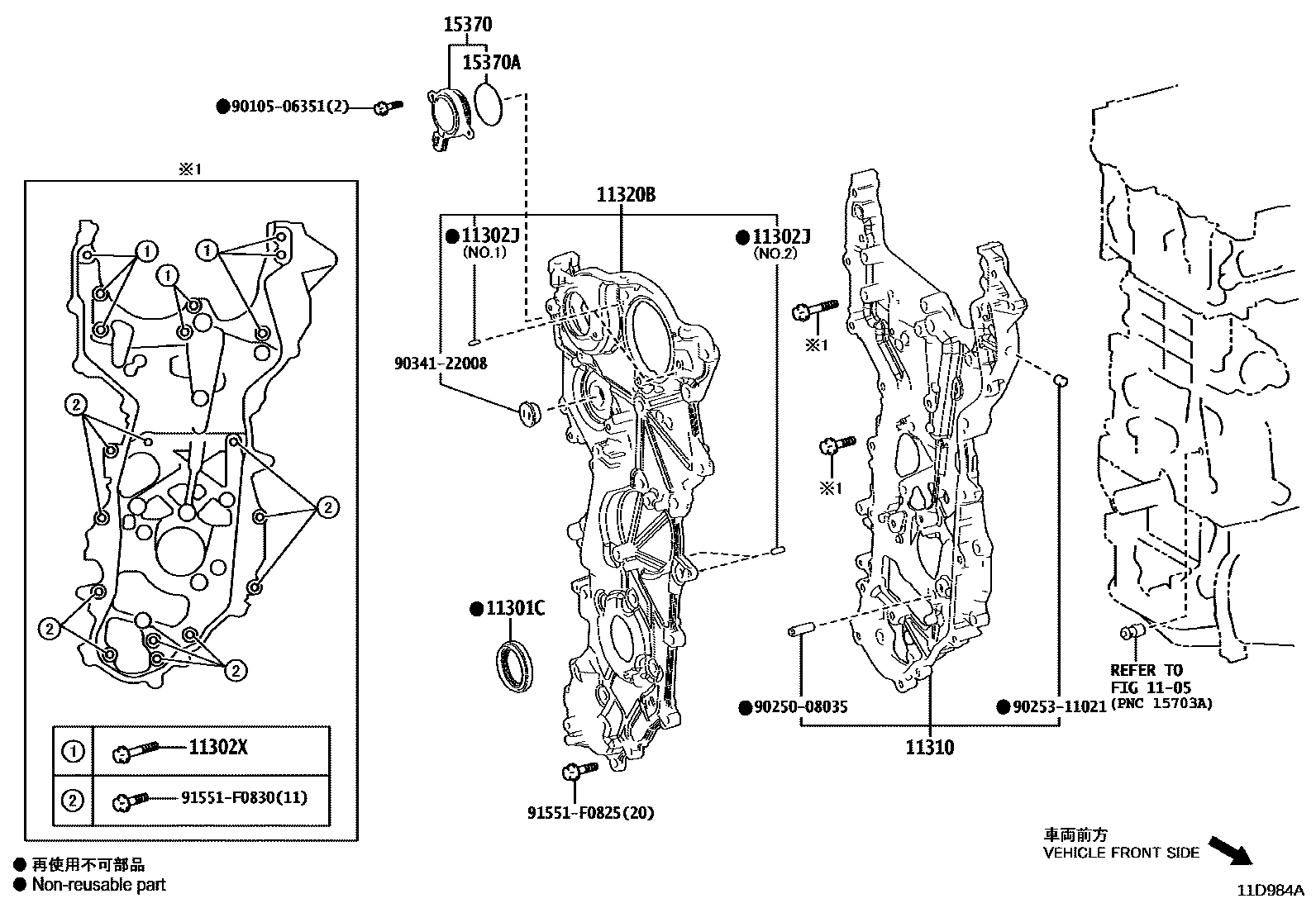

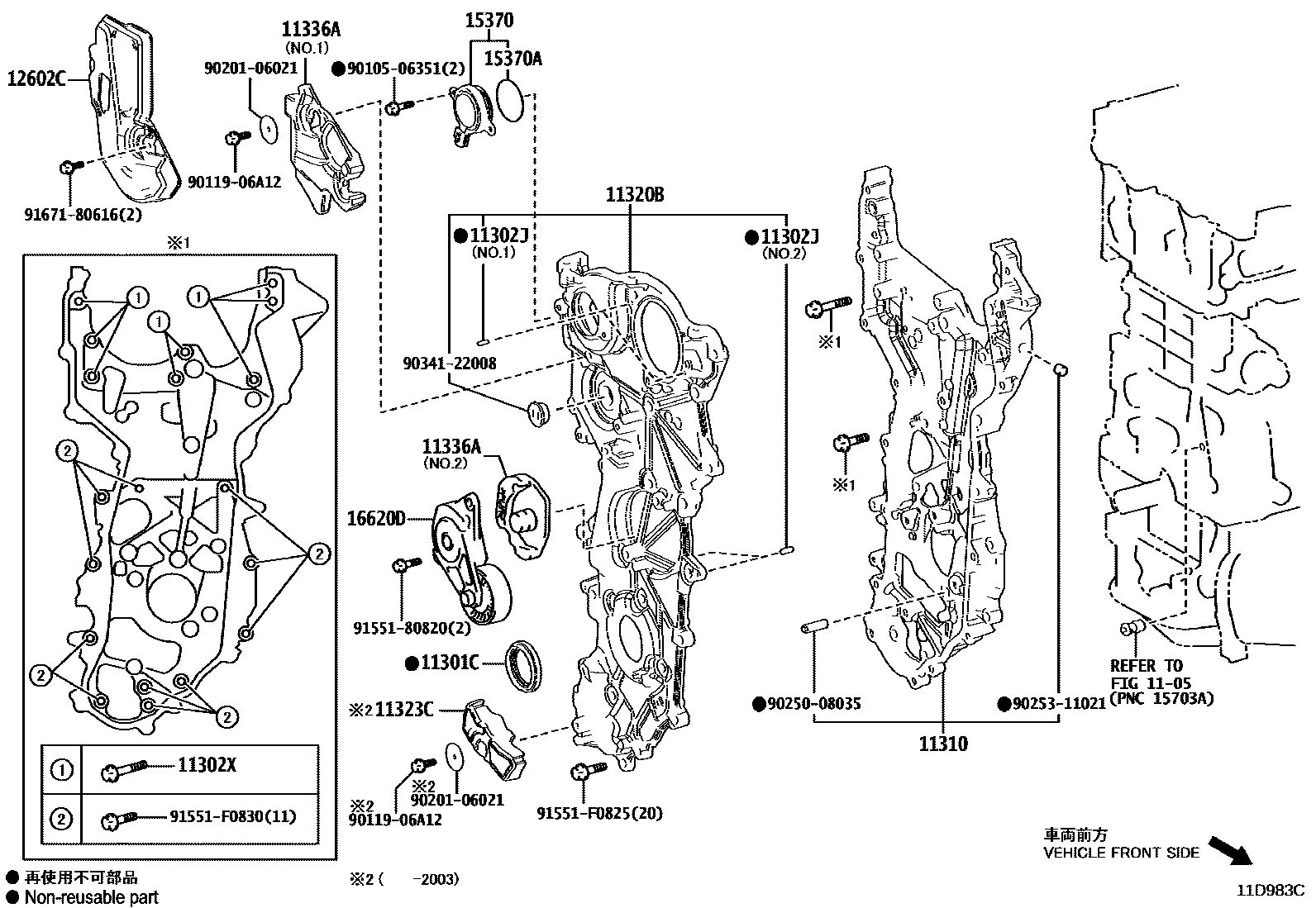

Toyota RAV4 Timing Gear Cover & Rear End Plate — Figure 1106
Toyota RAV4 EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90311-40044 · 90311-W0021 |
| 11302J | Direct sales (for timing chain cover) | 90250-04097 · 90250-06003 |
| 11302X | flange bolts | 91551-F0845 |
| 11310 | Timing chain cover assembly | 11310-24010 · 11310-25030 · 11310-F2030 |
| 11320B | No. 2 timing chain cover assembly | 11320-24010 · 11320-25010 · 11320-25011 · 11320-F2030 |
| 11323C | No. 3 timing chain cover | 11323-25010 |
| 11336A | Timing gear cover vibration isolation pad | 11336-25010 · 11339-25010 |
| 12602C | Engine hood No. 2 | 12612-25010 |
| 15370 | Camshaft timing oil control solenoid valve assembly | 15370-25020 |
| 15370A | O-ring (for camshaft timing oil control solenoid valve) | 90301-44006 |
| 16620D | Poly V-belt tensioner assembly | 16620-24010 · 16620-24020 · 16620-24021 · 16620-24030 · 16620-24040 · 16620-25010 · 16620-25011 · 16620-25020 · 16620-25021 |
