Toyota RAV4 挡风玻璃清洗器 — Figure 8503

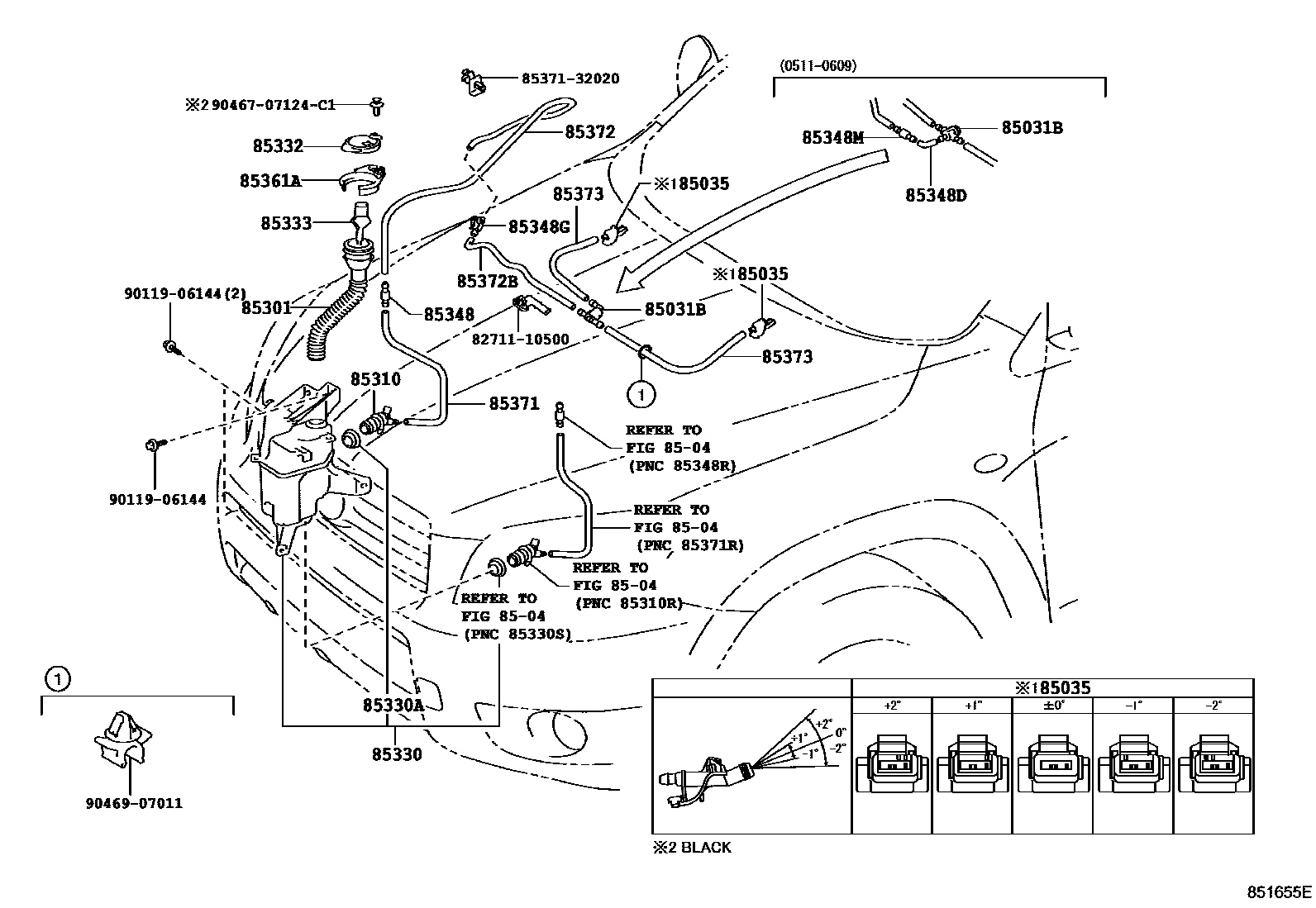

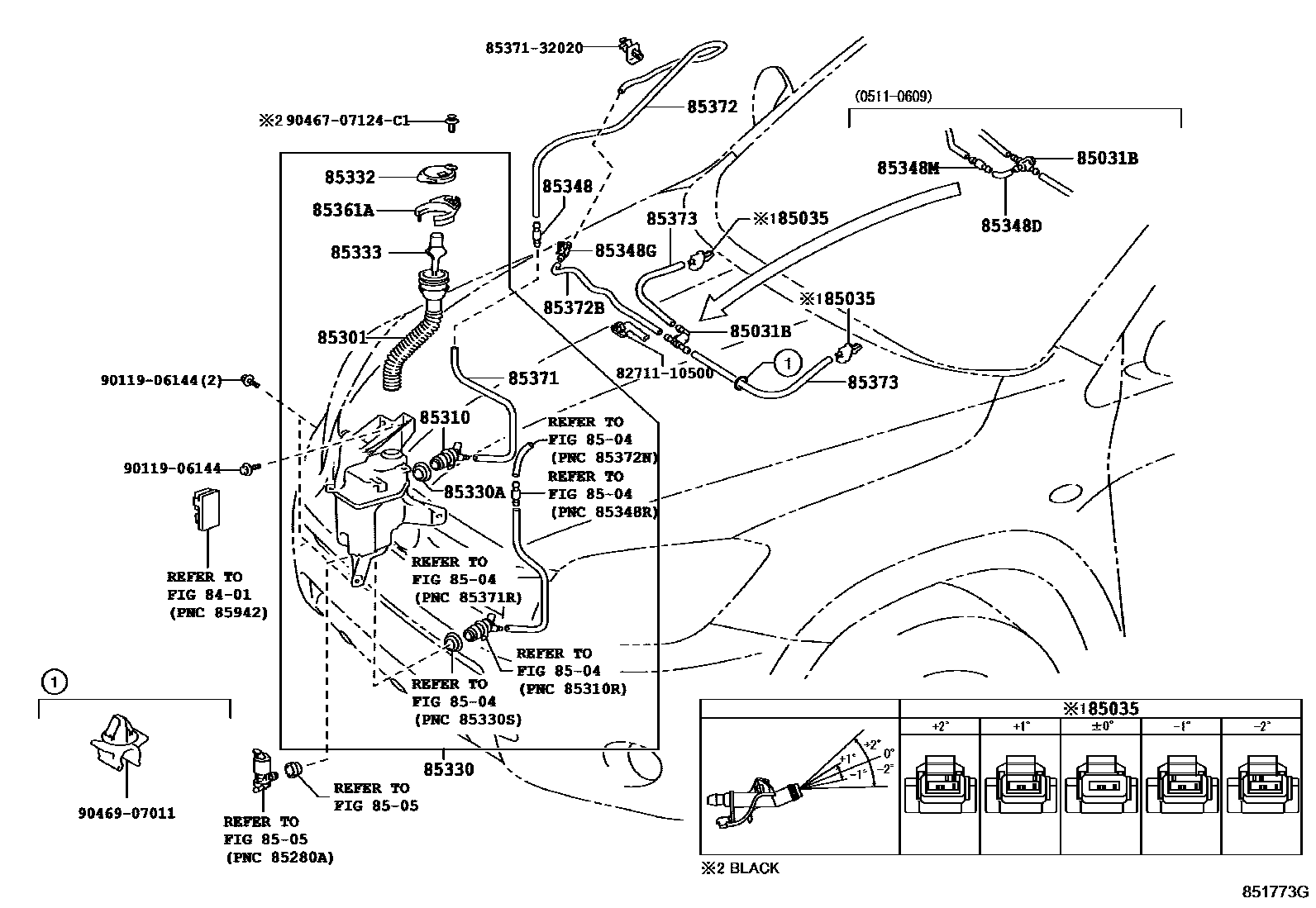

Toyota RAV4 EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031B | Cleaner valve sub-assembly | 85321-28020 · 85321-30080 |
| 85035 | Cleaner nozzle sub-assembly | 85381-30170 · 85381-30180 · 85381-30190 · 85381-30200 · 85381-30210 |
| 85301 | Cleaner water inlet sub-assembly | 85319-42230 |
| 85310 | Windshield washer motor and pump assembly | 85330-71020 · 85330-74010 |
| 85330 | Windshield washer fluid tank assembly | 85315-42230 · 85315-42270 · 85315-42280 · 85355-42050 · 85355-42051 · 85355-42052 · 85355-42060 · 85355-42070 |
| 85330A | Windshield washer fluid tank bushing | 85336-60300 |
| 85332 | Windshield washer fluid tank cap | 85316-48050 |
| 85333 | Windshield washer fluid tank filter | 85312-21020 · 85312-48010 |
| 85348 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85348D | No. 1 windshield washer elbow joint | 85355-14481 |
| 85348G | Windshield washer hose connector No. 2 | 85375-20800 |
| 85348M | No. 3 windshield washer hose connector | 85349-89122 |
| 85361A | Windshield washer bracket No. 1 | 85337-42230 · 85337-42232 |
