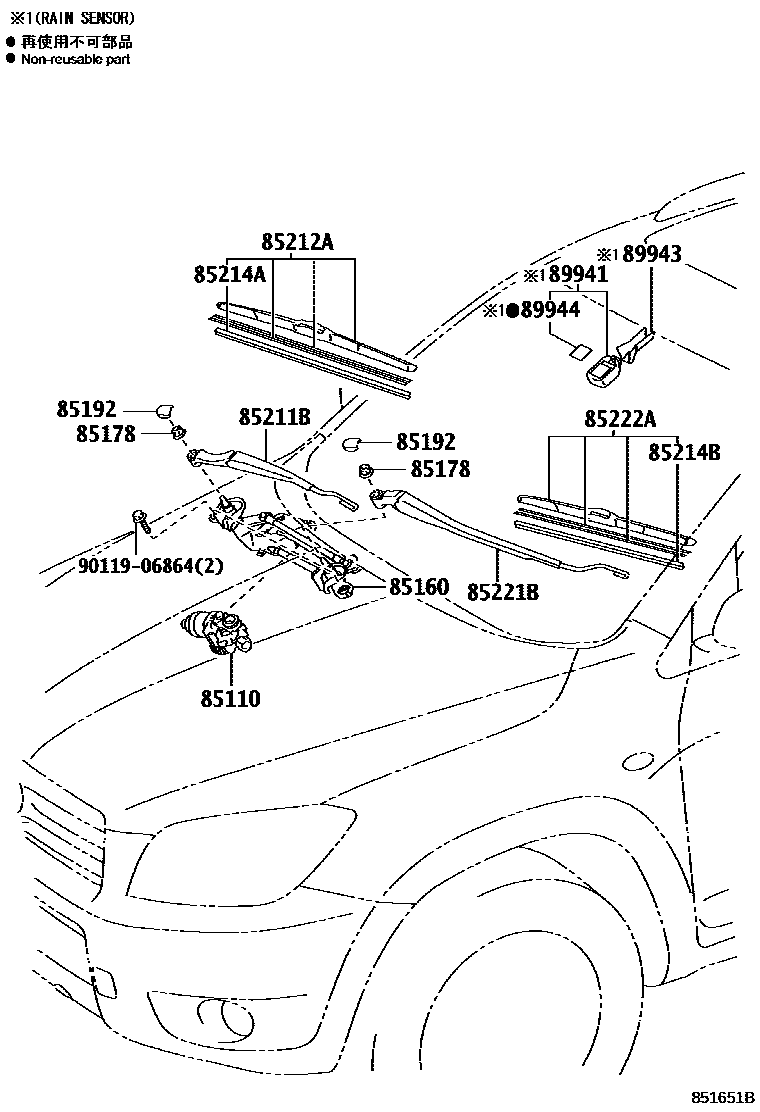

Toyota RAV4 挡风玻璃刮水器 — Figure 8501
Toyota RAV4 EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-42140 · 85110-42150 · 85110-42160 · 85110-42170 |
| 85160 | Windshield wiper connecting rod assembly | 85150-42120 · 85150-42130 · 85150-42140 · 85150-42150 |
| 85178 | Nut (for securing front wiper arm) | 90182-10006 |
| 85192 | windshield wiper arm cover | 85292-13010 |
| 85211B | Right front wiper arm | 85211-42100 · 85211-42110 · 85211-42120 · 85211-42130 |
| 85212A | Right front wiper blade | 85212-35070 · 85212-35071 · 85212-42110 · 85212-42120 |
| 85214A | Right wiper rubber strip | 85214-12300 · 85214-12301 · 85214-30380 · 85214-42050 |
| 85214B | Left wiper rubber strip | 85214-30380 · 85214-42050 · 85214-50100 |
| 85221B | Left front wiper arm | 85221-42110 · 85221-42120 · 85221-42130 |
| 85222A | Left front wiper blade | 85222-24080 · 85222-42100 · 85222-42110 |
| 89941 | rain sensor | 89941-42010 |
| 89943 | Rain sensor cover | 89943-42010 |
| 89944 | Rain sensor tape | 89944-42010 |
