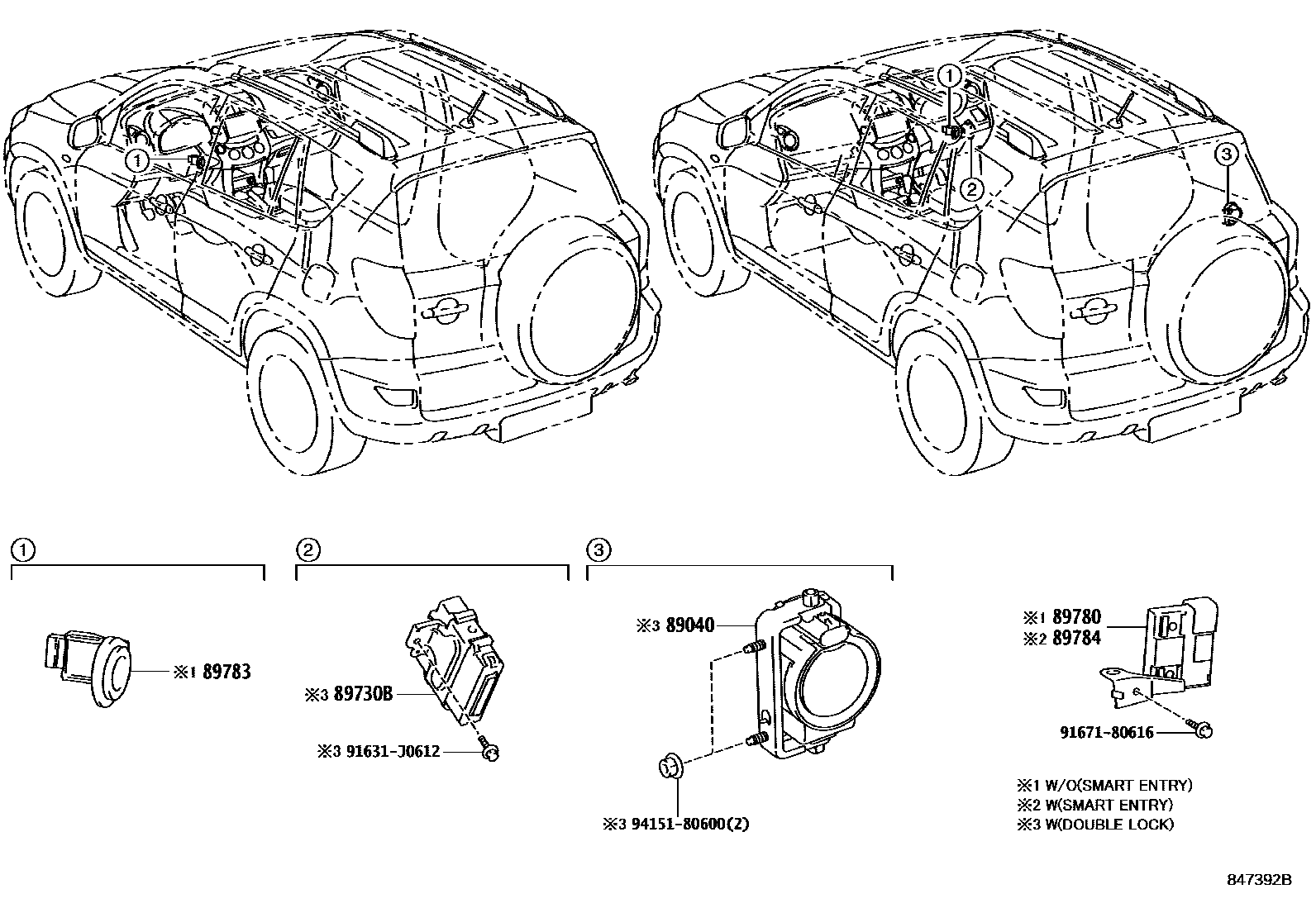

Toyota RAV4 防盗装置 — Figure 8424
Toyota RAV4 EPC diagram 8424, 防盗装置, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89040 | Anti-theft alarm assembly | 89040-48020 |
| 89730B | Anti-theft warning ECU assembly | 89730-42010 · 89730-42011 · 89730-42012 · 89730-42013 · 89730-42040 · 89730-42041 · 89730-42042 |
| 89780 | Transceiver key ECU assembly | 89780-42120 · 89780-42121 · 89780-42130 · 89780-42131 · 89780-42150 |
| 89783 | transceiver key amplifier | 89783-42020 · 89783-42040 · 89783-42041 · 89783-42050 · 89783-42051 |
| 89784 | Shutdown code system ECU | 89784-42030 · 89784-42031 |
